Aruba R4H23A

Overview

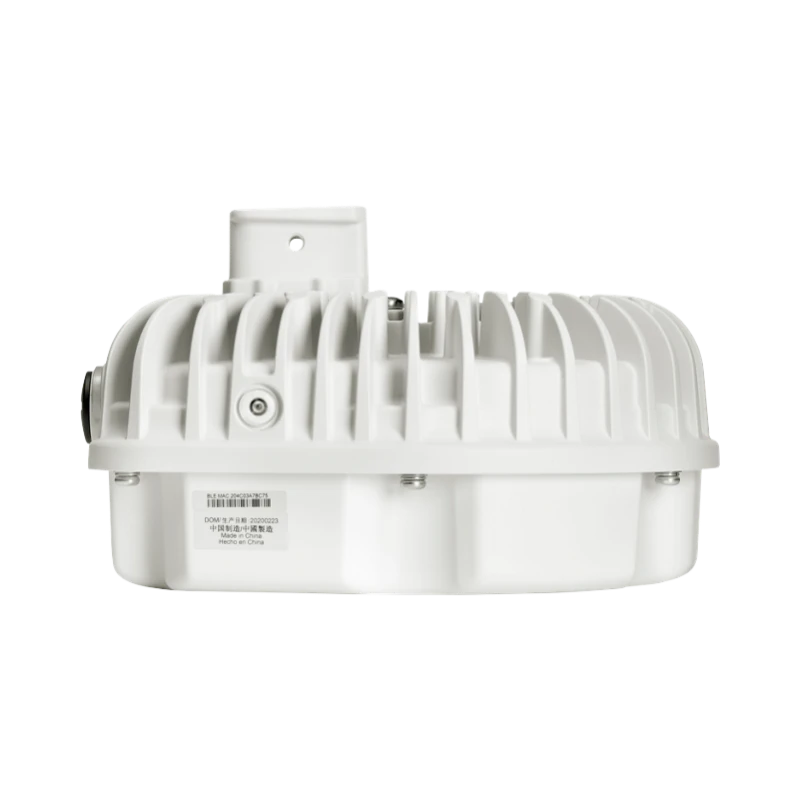

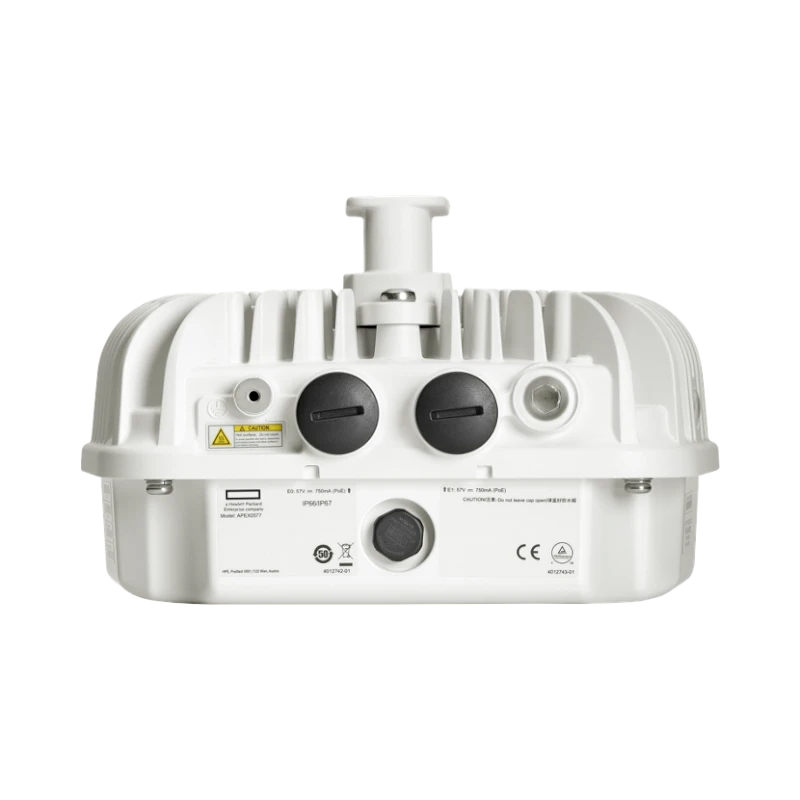

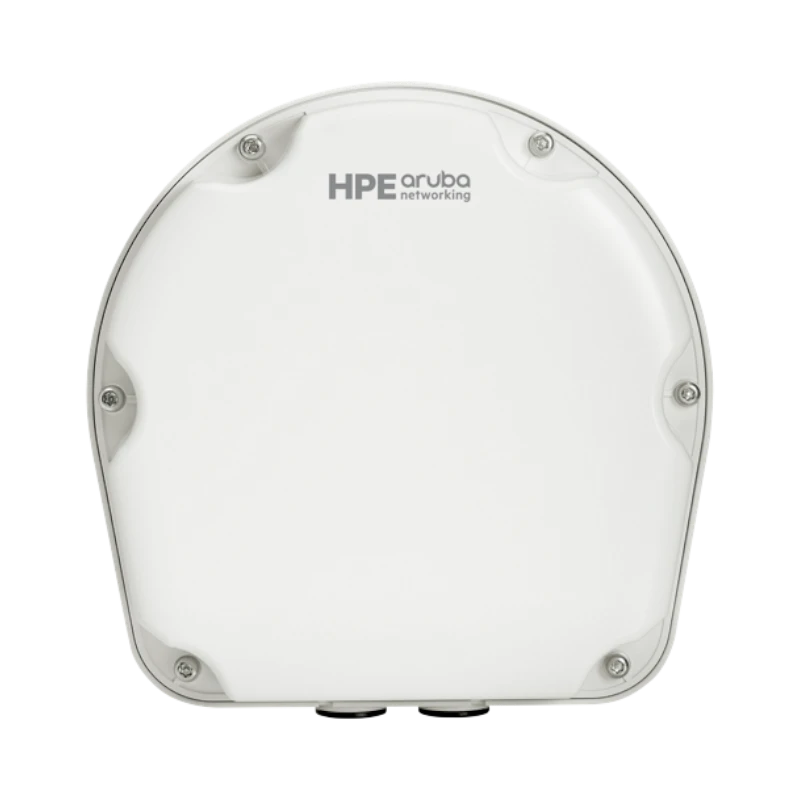

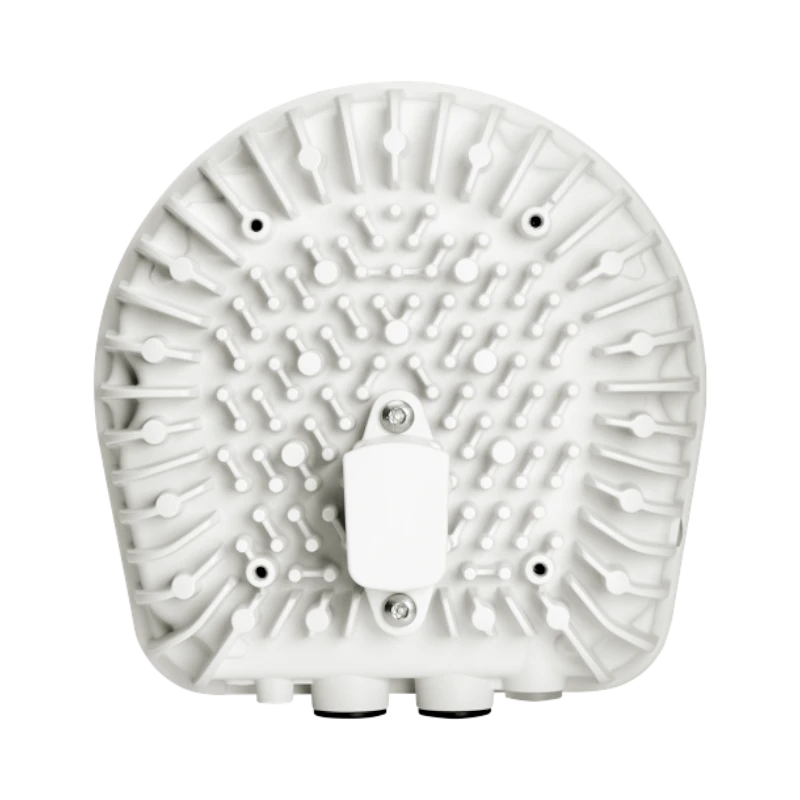

The Aruba R4H23A is an outdoor wireless access point designed to extend Wi-Fi 6 connectivity to challenging environments like stadium seating, parking lots, festival grounds, and open campus areas. It delivers a combined data rate of up to 2.69 Gbps across dual radios, ensuring fast and reliable connections for laptops, phones, scanners, and tablets even in crowded settings. Its integrated directional antennas focus coverage precisely where it’s needed, eliminating the need for external antenna installations.

Key features

• Dual radios with 4x4 MIMO at 5 GHz and 2x2 MIMO at 2.4 GHz support high client density and improved throughput.
• Integrated directional antennas provide focused coverage with 6.3 dBi gain at 5 GHz and 6.4 dBi at 2.4 GHz, optimizing signal strength in targeted outdoor areas.
• Bluetooth 5 and Zigbee radios enable seamless integration of IoT devices such as beacons, sensors, and asset trackers without additional gateways.
• Rugged, weather-resistant housing operates reliably in extreme temperatures from -40 to 149 °F and withstands wind-driven rain, dust, and UV exposure.
• Power over Ethernet (PoE) simplifies installation by delivering power and data over a single cable, with a maximum power draw of 32 W.
• Supports up to 512 simultaneous clients per radio, making it suitable for venues with large, dense crowds.
• Compatible with Aruba Central for cloud-based management and zero-touch provisioning, allowing remote configuration and monitoring.
• Internal antennas and sealed enclosure reduce the need for external hardware, while the included mounting bracket speeds up field installation.
• Backed by a limited lifetime warranty, providing long-term reliability and peace of mind for IT teams and property managers.

Key specs

• Wi-Fi standard: 802.11ax (Wi-Fi 6)
• Maximum aggregate throughput: 2.69 Gbps
• Radio configuration: Dual radio (5 GHz 4x4 MIMO, 2.4 GHz 2x2 MIMO)
• Antenna gain: 6.3 dBi at 5 GHz, 6.4 dBi at 2.4 GHz (integrated directional)
• Client capacity: Up to 512 clients per radio
• Operating temperature range: -40 to 149 °F
• Power: PoE with maximum draw of 32 W
• Additional radios: Bluetooth 5 and Zigbee
• Enclosure: Weather-resistant and rugged

Connectivity and compatibility

This access point supports dual-band Wi-Fi 6 connectivity, ensuring compatibility with a wide range of modern devices including laptops, smartphones, tablets, and scanners. The integrated Bluetooth 5 and Zigbee radios expand its role by supporting IoT devices such as beacons and sensors, which is especially useful in smart venue or campus deployments. Power over Ethernet simplifies installation by combining power and data delivery over a single cable, making it easy to mount on poles, walls, or under grandstands.

Installation and setup

The R4H23A is designed for straightforward deployment in outdoor environments. Its sealed enclosure protects internal components from harsh weather, while the included mounting bracket allows quick and secure attachment to various surfaces. Zero-touch provisioning through Aruba Central enables on-site staff to install the unit without specialized network knowledge, as the device automatically downloads its configuration once connected to the network. This reduces setup time and minimizes the need for IT intervention on site.

Ideal uses and environments

This access point excels in outdoor venues where high client density and reliable coverage are critical. It works well in stadiums, parking areas, festival grounds, and open campuses where focused directional coverage is needed to serve ticket lines, walkways, or loading zones. Its rugged design and wide operating temperature range make it suitable for locations exposed to extreme weather conditions. The support for Bluetooth and Zigbee radios also makes it a strong choice for environments integrating IoT devices for asset tracking or environmental monitoring.
