Sennheiser 509652

Overview

The Sennheiser 509652 is the EM 100 G4-A1 wireless microphone system receiver designed to deliver consistent radio performance and clear audio for a variety of professional settings. It operates within a 470 to 516 MHz tuning range and offers a signal-to-noise ratio of 110 dB(A), ensuring vocal clarity and minimal interference. This receiver is well suited for environments such as club shows, worship services, corporate meetings, and broadcast productions where reliable wireless audio is essential.

Key features

• True diversity design that monitors two antenna signals and automatically selects the stronger one to prevent dropouts during movement across challenging RF zones
• Durable half-rack metal chassis built to withstand frequent setups and road travel

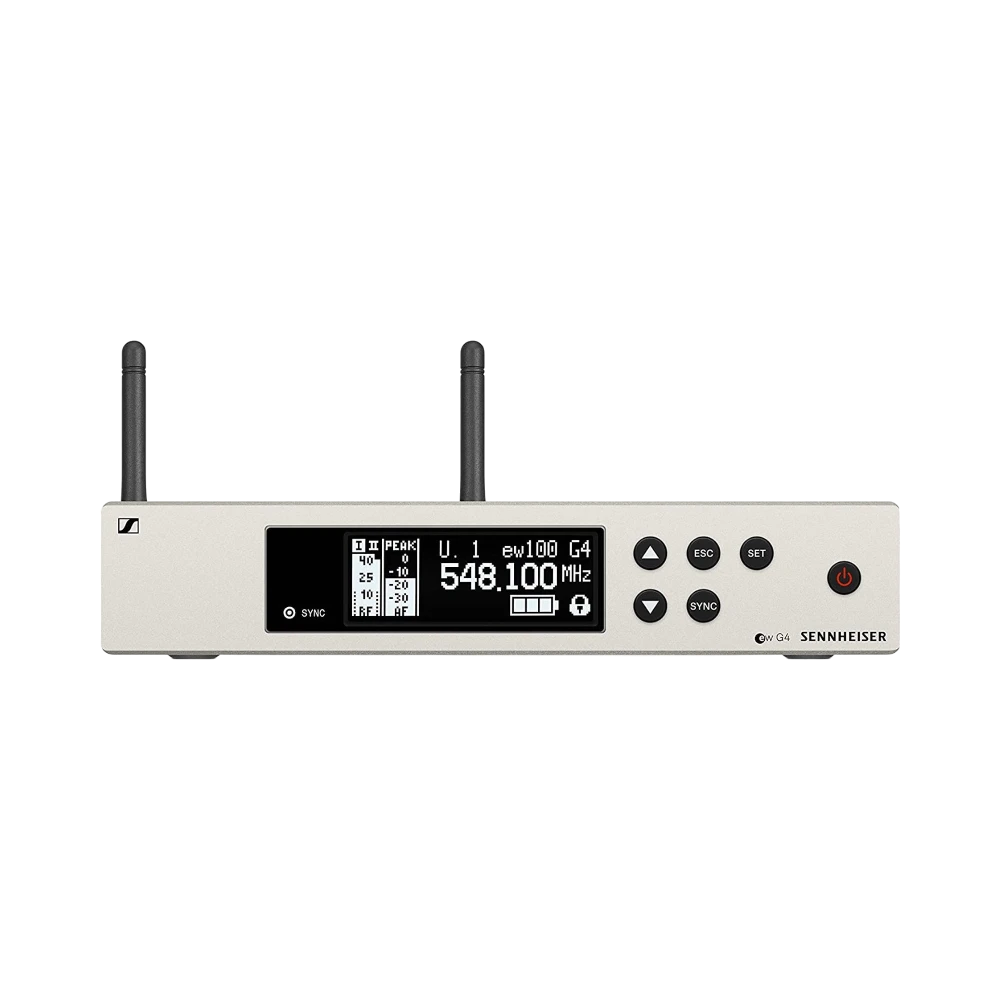

• Backlit LCD display providing real-time information on frequency, RF strength, audio level, and battery life for easy adjustments even in low light
• Infrared sync feature that pairs the receiver with compatible G4 transmitters quickly and effortlessly
• Fast frequency scan capable of coordinating up to twelve receivers on the same stage without manual channel planning
• Flexible connectivity options including XLR and 6.35 mm audio outputs for mixers or recorders, plus BNC antenna jacks for antenna splitter integration
• Includes all necessary installation accessories such as two rod antennas, a universal power supply, an RJ-10 data cable, and a rackmount kit

Key specs

• Operating frequency range: 470 to 516 MHz
• Signal-to-noise ratio: 110 dB(A)
• Maximum reliable range: up to 328 feet line of sight
• Audio outputs: XLR and 6.35 mm jack
• Antenna connections: BNC
• Chassis size: half rack, metal construction

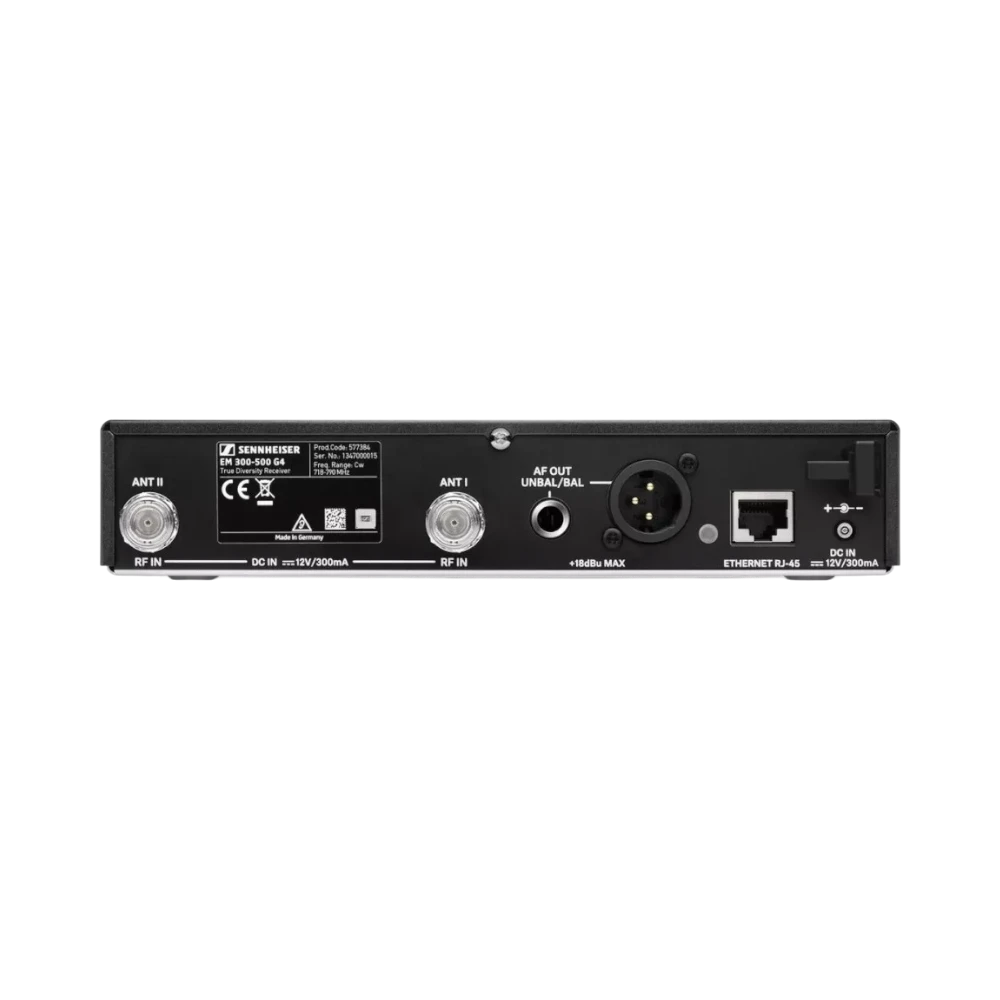

Connectivity and compatibility

This receiver offers versatile connection options to fit into various audio setups. The XLR and 6.35 mm outputs allow seamless integration with professional mixers, audio interfaces, or recording devices. BNC antenna jacks support external antenna splitters, making it easy to expand the system for larger venues or complex stage arrangements. The infrared sync simplifies pairing with compatible G4 transmitters, ensuring quick setup and reliable operation.

Ideal uses and environments

The EM 100 G4-A1 receiver is a strong choice for performers, presenters, and audio engineers who need dependable wireless audio in dynamic environments. It works well in live music venues, houses of worship, corporate event spaces, and broadcast studios where clear sound and stable connections are critical. Its robust design and flexible frequency range make it suitable for both fixed installations and touring setups.
