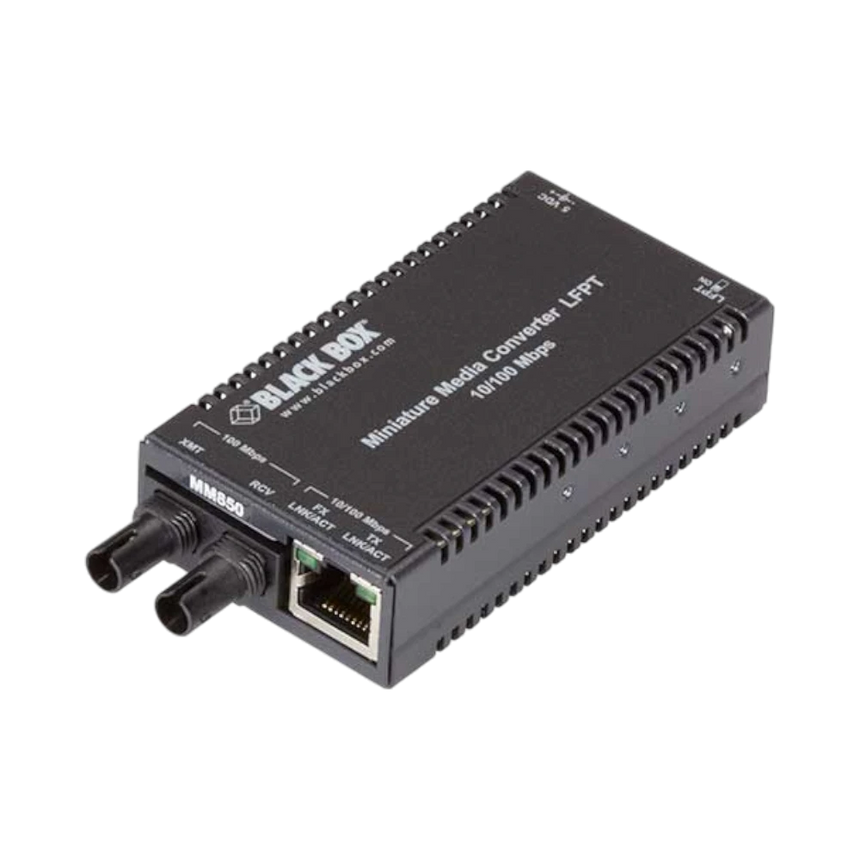

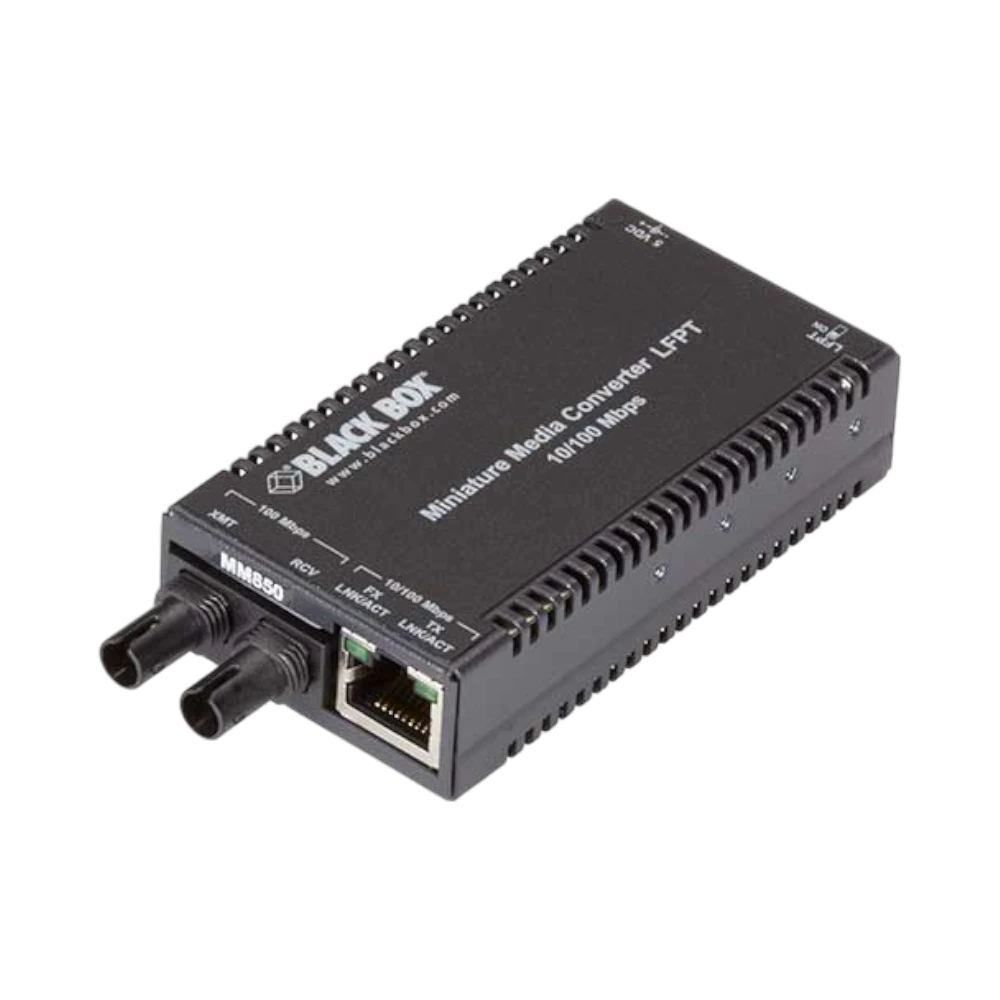

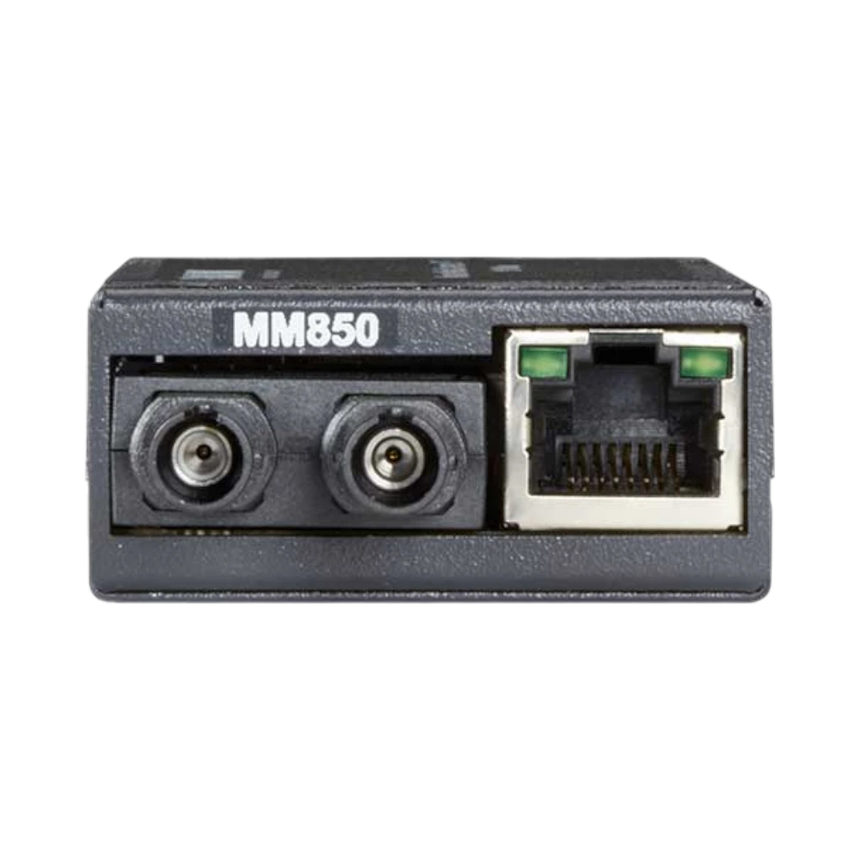

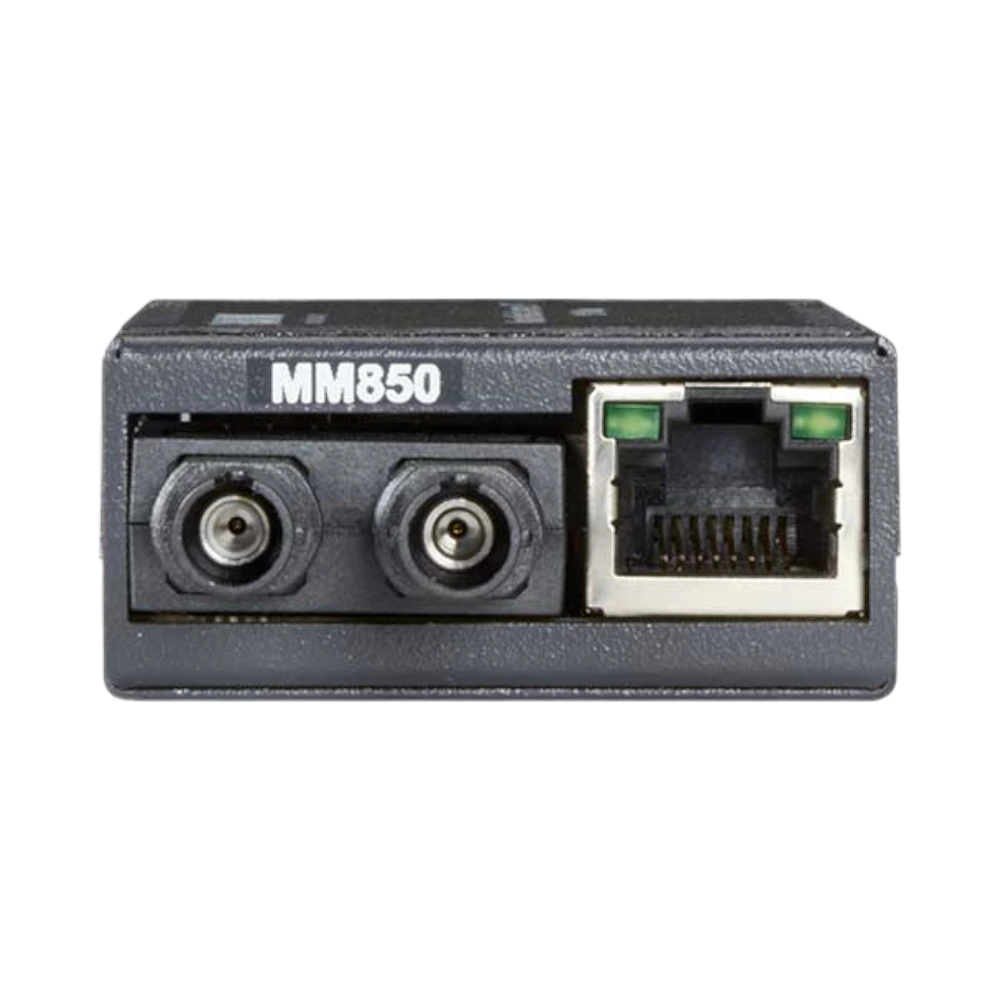

Black Box LHC040A-R4

Overview

The Black Box LHC040A-R4 is a compact Fast Ethernet media converter designed to extend your network from copper to multimode fiber with minimal effort. It supports 10 or 100 Mbps traffic on its RJ45 port and transmits data at 100 Mbps over fiber, enabling seamless connections between desktops, switches, or industrial controllers and distant fiber backbones without replacing existing copper infrastructure. Its small size and flexible power options make it ideal for tight spaces and varied installation environments.

Key features

• Converts 10/100 Mbps copper Ethernet signals to 100 Mbps multimode fiber, allowing longer distance network connections.
• Compact housing measuring 0.8 by 1.8 by 3.4 inches fits easily behind equipment or inside cabinets with limited space.
• Multiple power options including an included AC adapter, optional USB power cable, or rack-mountable PowerTray for centralized power management.
• Auto MDI/MDI-X function automatically detects and configures the correct Ethernet pinout, eliminating the need for crossover cables.
• Twisted-pair port supports 10/100 Mbps autonegotiation to ensure smooth communication with connected devices.

Key specs

• Data rate: 10/100 Mbps on RJ45 port, 100 Mbps on multimode fiber
• Fiber type: Multimode
• Dimensions: 0.8 x 1.8 x 3.4 inches
• Power options: External AC adapter, optional USB power cable, PowerTray rack mount support
• Auto MDI/MDI-X: Yes
• Port type: RJ45 for copper Ethernet

Connectivity and compatibility

This media converter supports standard Ethernet patch cables thanks to its Auto MDI/MDI-X feature, simplifying installation without worrying about cable types. It connects easily to existing copper devices such as desktops, switches, or industrial controllers and links them to fiber backbones using multimode fiber cables. The unit’s compatibility with 10 and 100 Mbps Ethernet devices ensures it fits well into a variety of network setups without requiring specialized hardware.

Installation and setup

Installation is straightforward due to the converter’s small footprint and flexible power options. It can be placed discreetly behind computers, under counters, or inside control cabinets where space is limited. The included AC adapter powers the unit from a standard outlet, while an optional USB power cable offers an alternative when outlets are scarce. For larger deployments, the PowerTray rack mount allows multiple converters to share a single power source, simplifying cable management and reducing clutter.

Ideal uses and environments

This converter is well suited for small offices needing fiber connections between rooms, production floors requiring immunity to electromagnetic interference, and remote equipment closets with limited fiber availability. It provides a cost-effective way to extend fiber networks without investing in fiber network interface cards for every endpoint, making it a practical choice for environments where space, power flexibility, and reliable fiber connectivity are priorities.
