MSI X870TMAHAWKWIFI

Overview

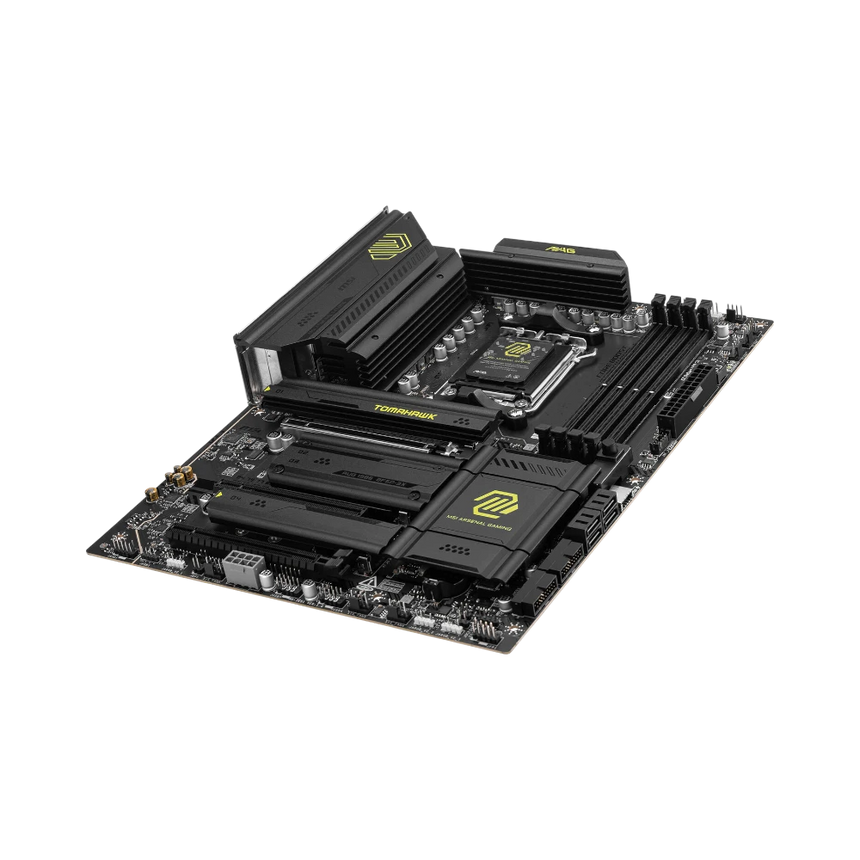

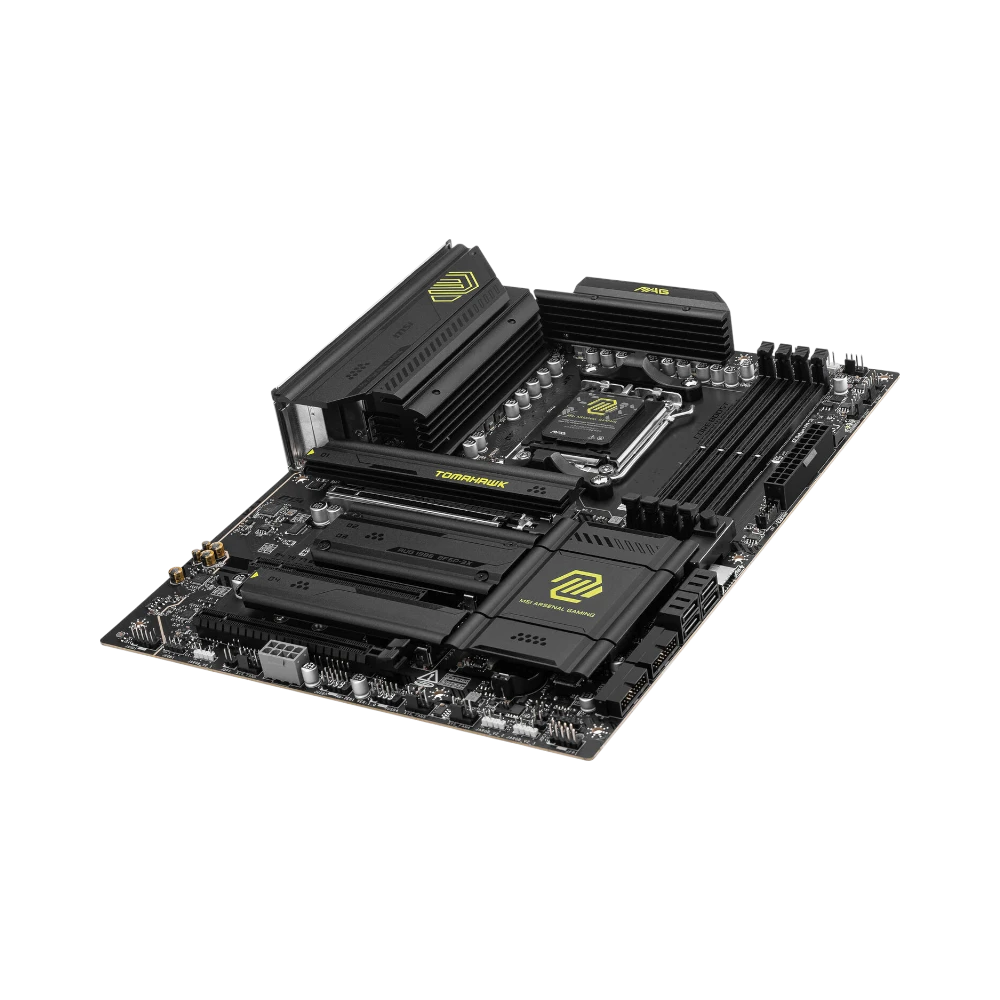

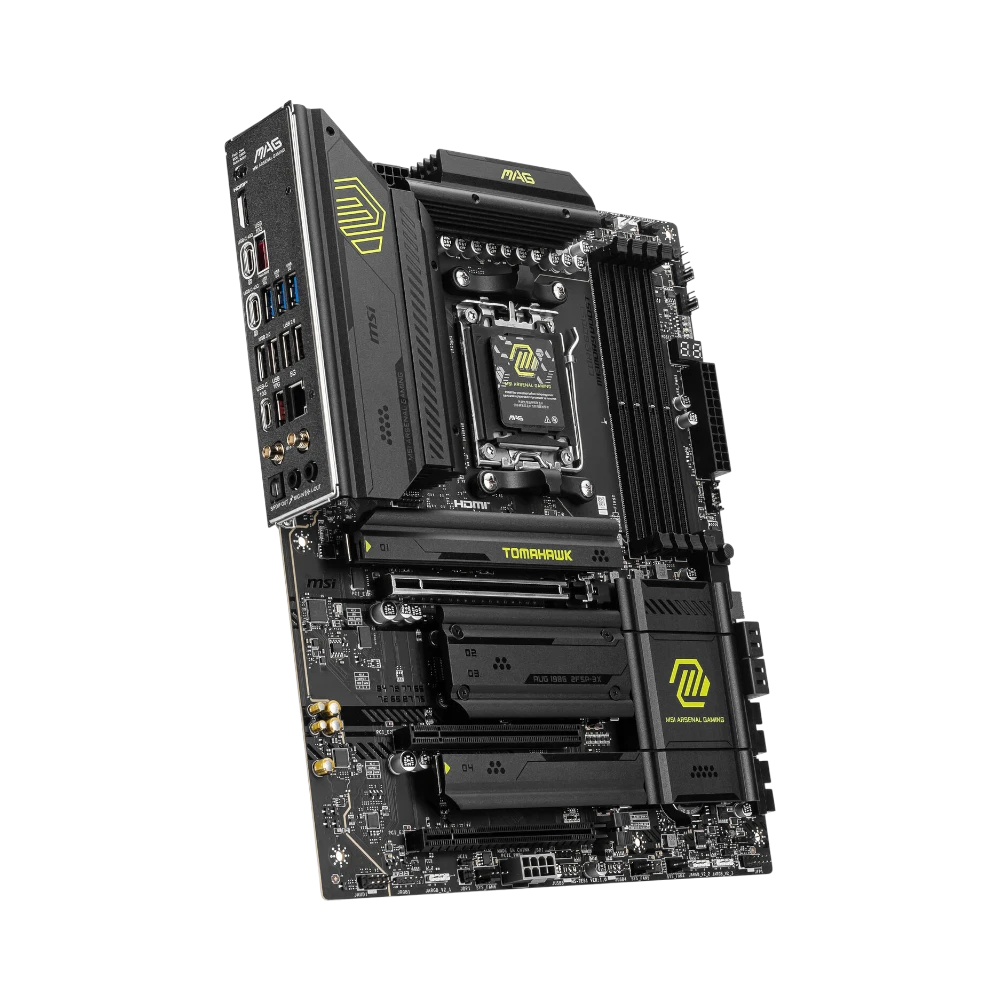

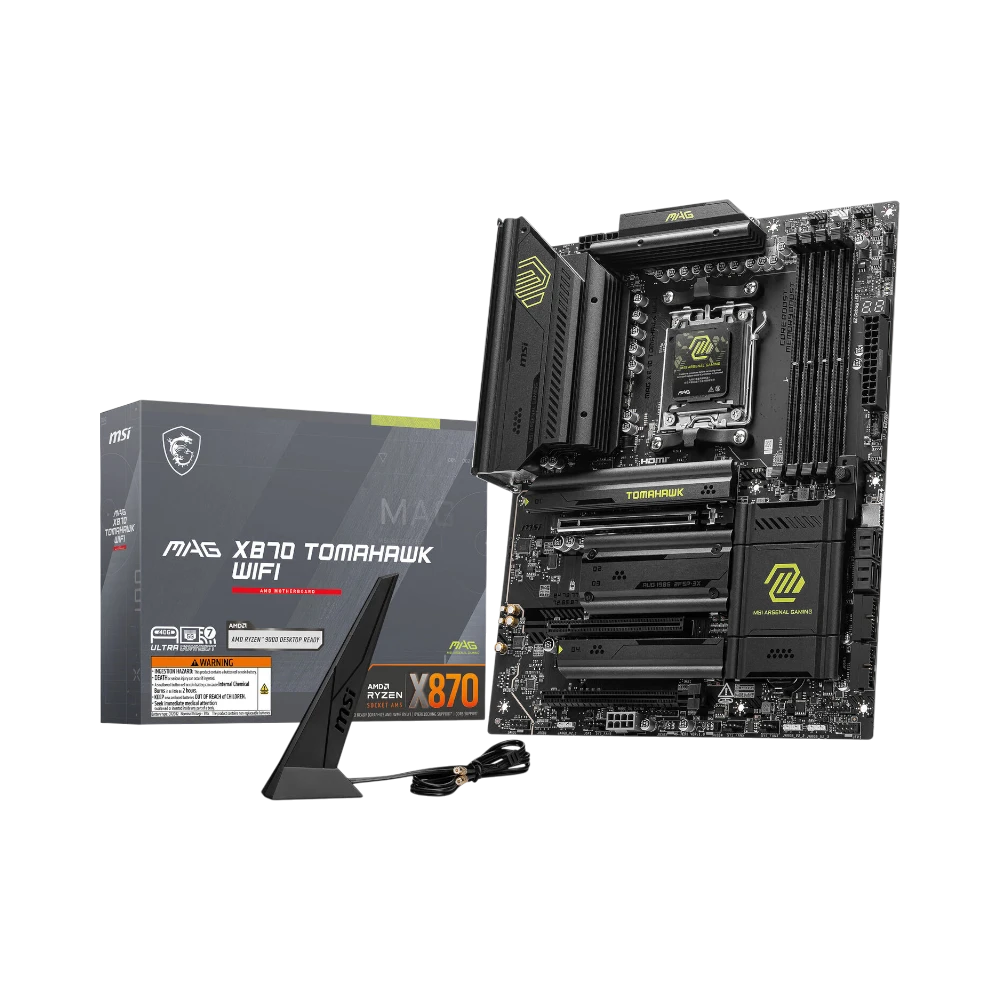

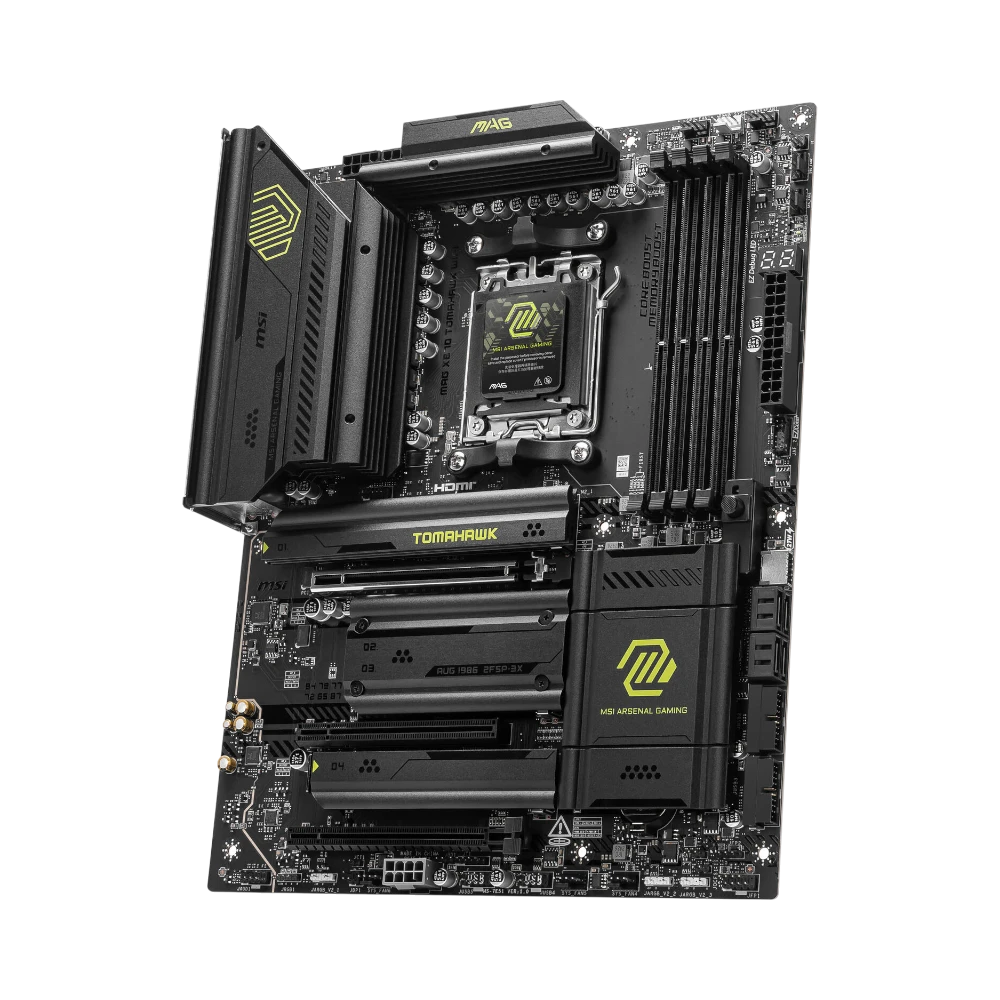

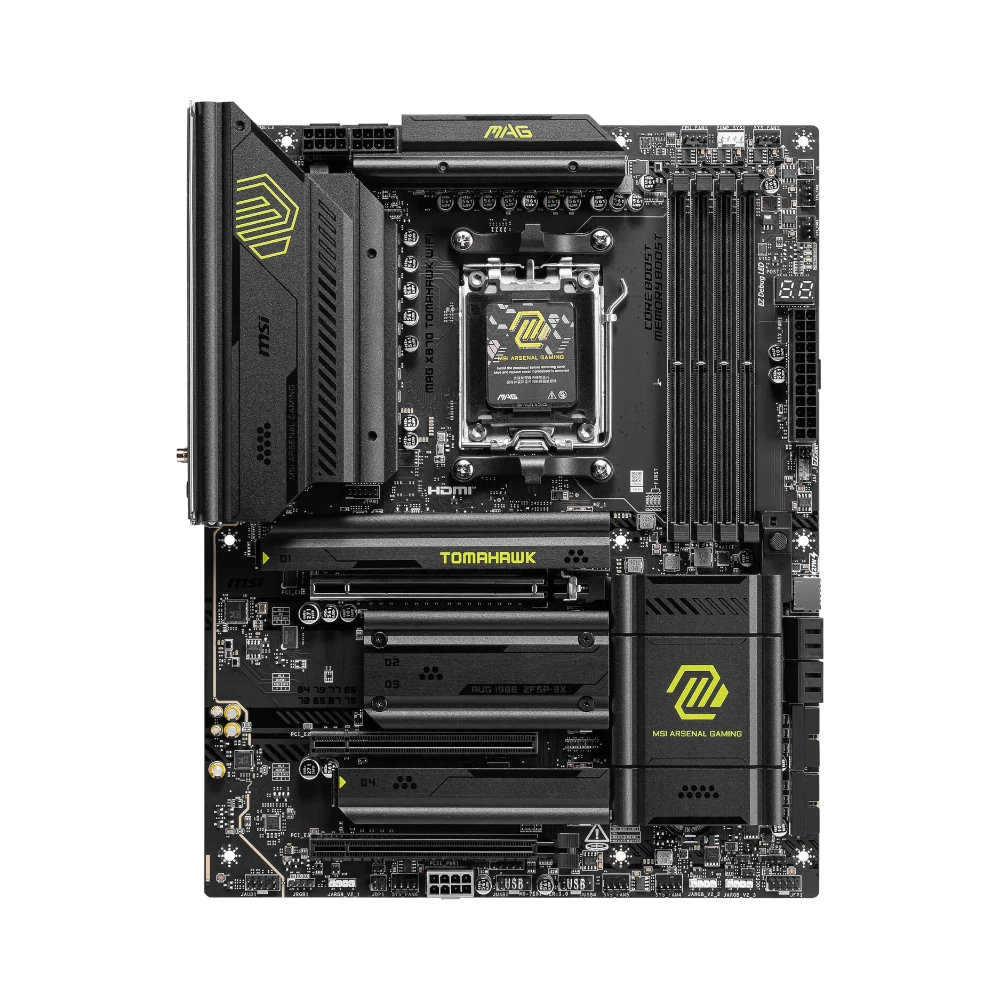

The MSI X870TMAHAWKWIFI is an ATX motherboard designed to support AMD Ryzen 7000, 8000, and 9000 series processors through its AM5 socket and X870 chipset. It offers a robust foundation for high-refresh gaming systems and content-creation workstations, delivering ample power delivery and expansion options. With support for up to 256 GB of DDR5 memory running at speeds up to 8400 MT/s, this motherboard ensures smooth multitasking and fast processing for demanding applications.

Key features

• Supports up to 256 GB of DDR5 memory across four DIMM slots, enabling large workloads and fast data handling.
• Equipped with two PCIe 5.0 x4 M.2 slots and two PCIe 4.0 x4 M.2 slots for high-speed NVMe storage and flexible drive configurations.
• Includes a PCIe 5.0 x16 slot to accommodate the latest graphics cards for enhanced gaming and rendering performance.
• Dual USB4 ports provide data transfer speeds up to 40 Gb/s and support USB-C displays for versatile connectivity.
• Integrated Wi-Fi 7 offers tri-band wireless connectivity with speeds up to 5.8 Gb/s, ideal for fast and stable internet access.
• 5 GbE Ethernet port delivers low-latency wired networking for reliable online gaming and data transfers.
• 14+2+1 phase VRM with 80 A Smart Power Stages ensures stable and efficient power delivery during intensive tasks and overclocking.
• EZ PCIe Release latch and M.2 Clip II design simplify hardware upgrades without the need for tools.
• USB 3.2 Gen 2x2 front-panel header supports 20 Gb/s data transfer for fast access to external devices.

Key specs

• Chipset: AMD X870
• Socket: AM5
• Memory: 4 x DDR5 DIMM slots, up to 256 GB, 8400 MT/s
• Storage: 2 x PCIe 5.0 x4 M.2 slots, 2 x PCIe 4.0 x4 M.2 slots
• Expansion slots: 1 x PCIe 5.0 x16, additional PCIe 4.0 and PCIe 3.0 slots
• USB ports: Dual USB4 (40 Gb/s), USB-C Gen 2, multiple USB-A ports
• Networking: Integrated Wi-Fi 7 (tri-band, up to 5.8 Gb/s), 5 GbE Ethernet
• Power delivery: 14+2+1 phase VRM with 80 A Smart Power Stages
• Form factor: ATX

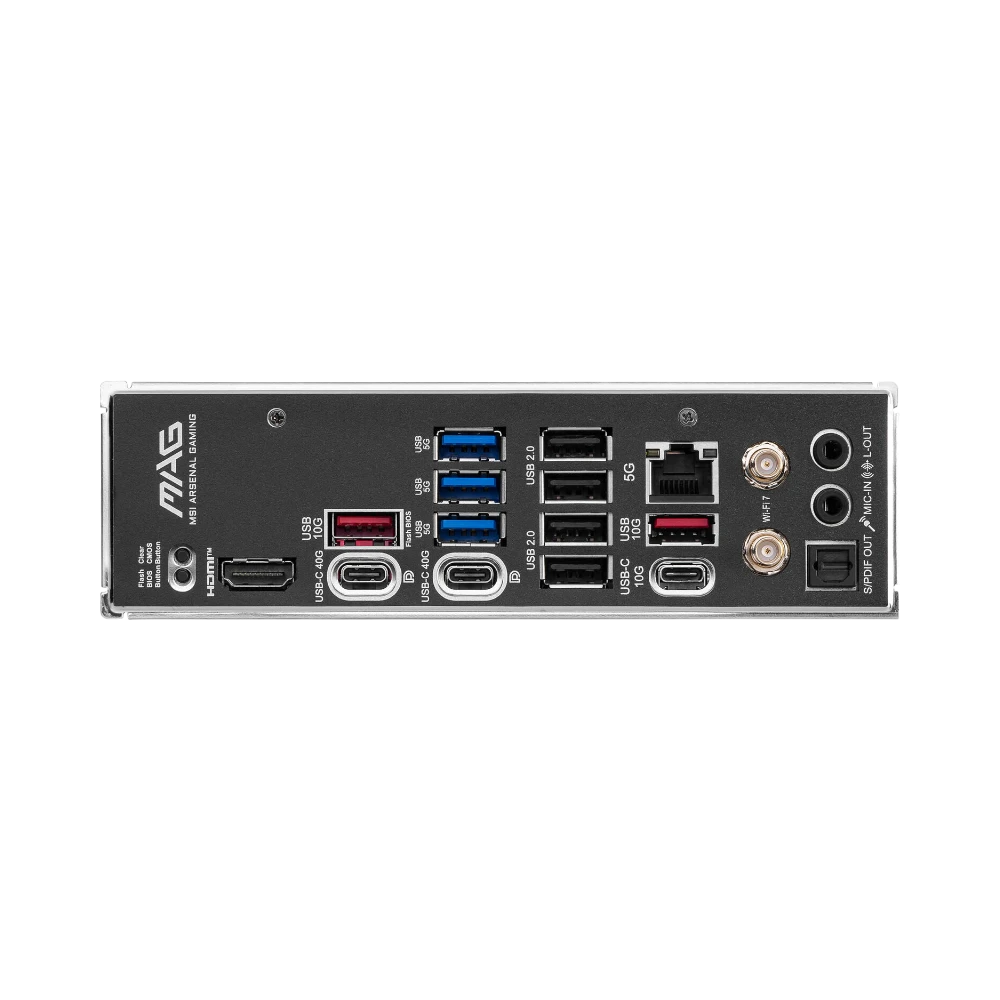

Connectivity and compatibility

This motherboard offers a comprehensive set of connectivity options to support a wide range of peripherals and network environments. The dual USB4 ports enable ultra-fast data transfers and support for USB-C displays, while the USB 3.2 Gen 2x2 front-panel header allows for high-speed connections to external drives and hubs. Integrated Wi-Fi 7 ensures cutting-edge wireless performance, and the 5 GbE Ethernet port provides a stable wired connection for latency-sensitive tasks.

• Dual USB4 ports with 40 Gb/s data transfer and USB-C display support
• USB-C Gen 2 and multiple USB-A ports for versatile device connections
• Internal USB 3.2 Gen 2x2 header for front-panel expansion
• Wi-Fi 7 tri-band wireless up to 5.8 Gb/s for fast and reliable internet
• 5 GbE Ethernet port for low-latency wired networking

Performance and reliability

The MSI X870TOMAHAWK WIFI is built to handle demanding workloads with a powerful 14+2+1 phase VRM design featuring 80 A Smart Power Stages. This ensures the CPU receives clean and stable power, which is crucial for sustained performance during gaming, content creation, or overclocking. The motherboard’s robust heatsinks and thoughtful layout contribute to effective heat dissipation and long-term reliability.

Installation and setup

Designed with user convenience in mind, this motherboard includes the EZ PCIe Release latch, which makes swapping graphics cards easier even in tight cases. The M.2 Clip II design secures SSDs without screws, simplifying storage upgrades. Its ATX form factor fits standard cases, making it suitable for a wide range of builds.

Ideal uses and environments

This motherboard is a strong choice for gamers seeking high refresh rates and fast load times, as well as professionals working with large files or virtual machines. Its extensive memory support and fast storage options make it well suited to content creators and power users who need a platform that can keep up with intensive multitasking and rendering tasks. The advanced networking features also benefit users who require stable and fast internet connections for streaming or online collaboration.
