Tripp Lite SRW18US

Overview

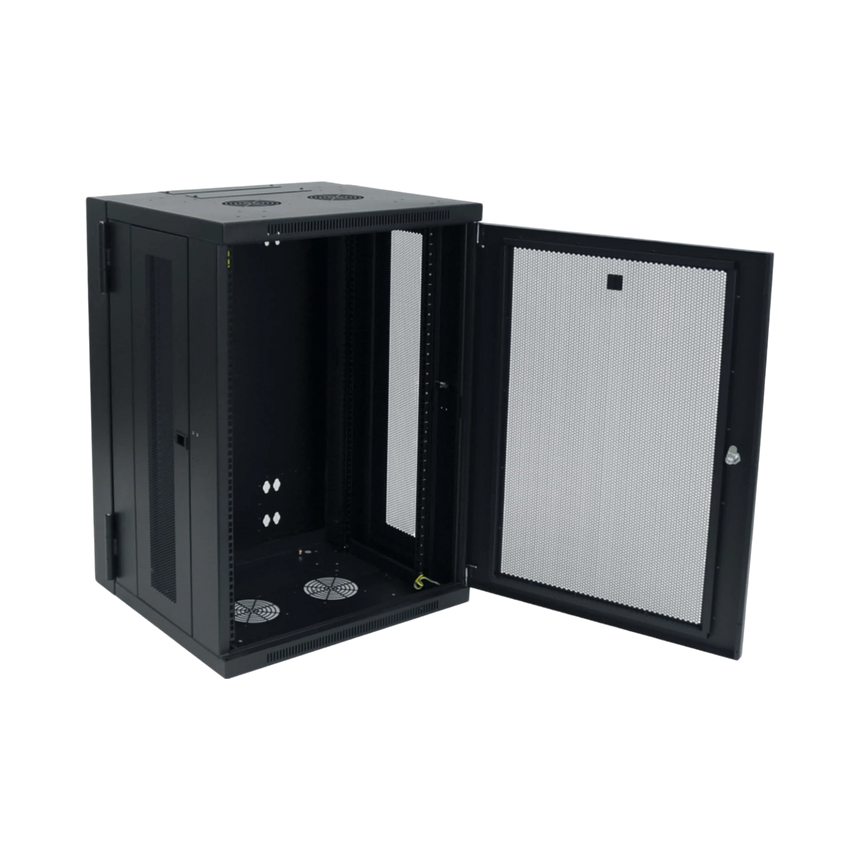

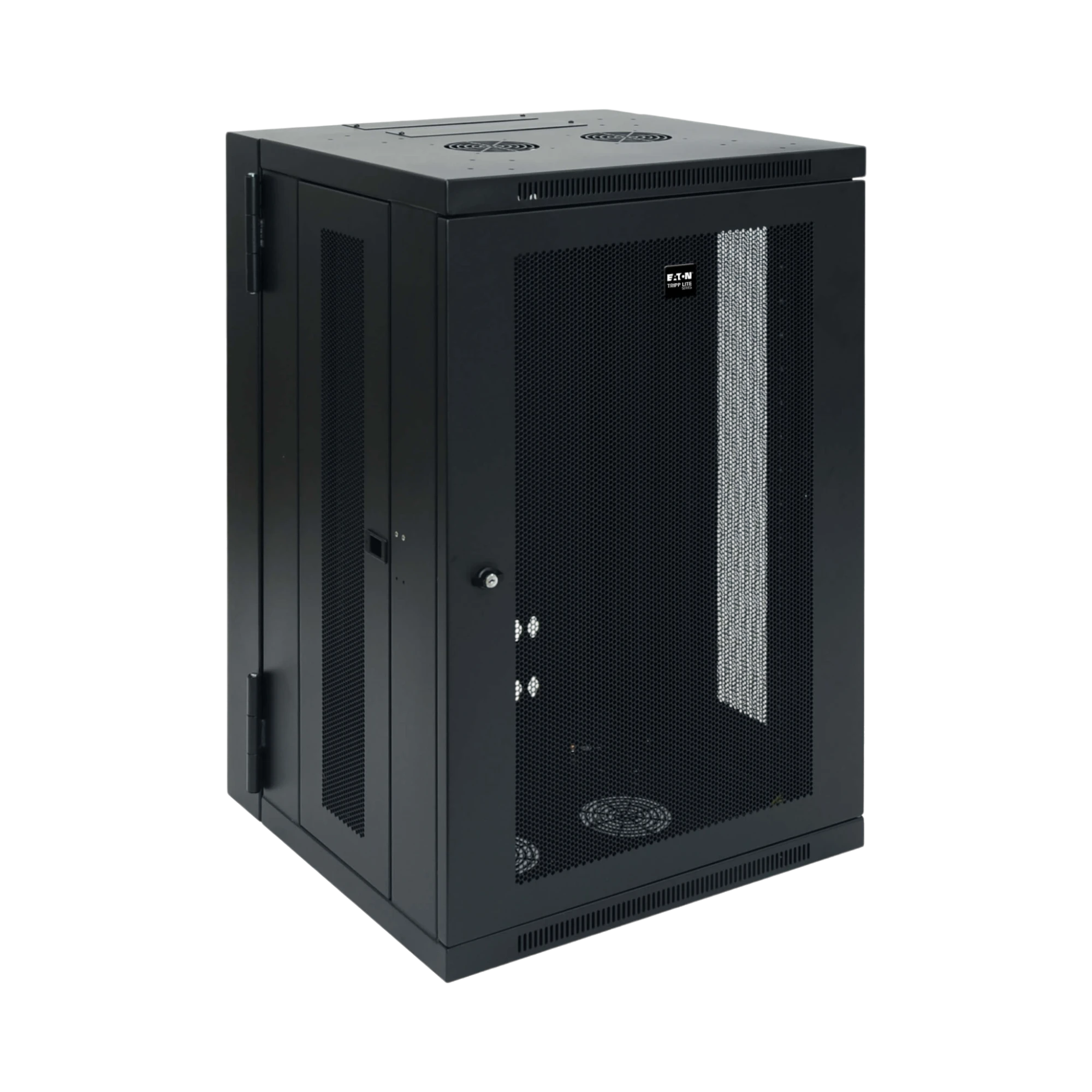

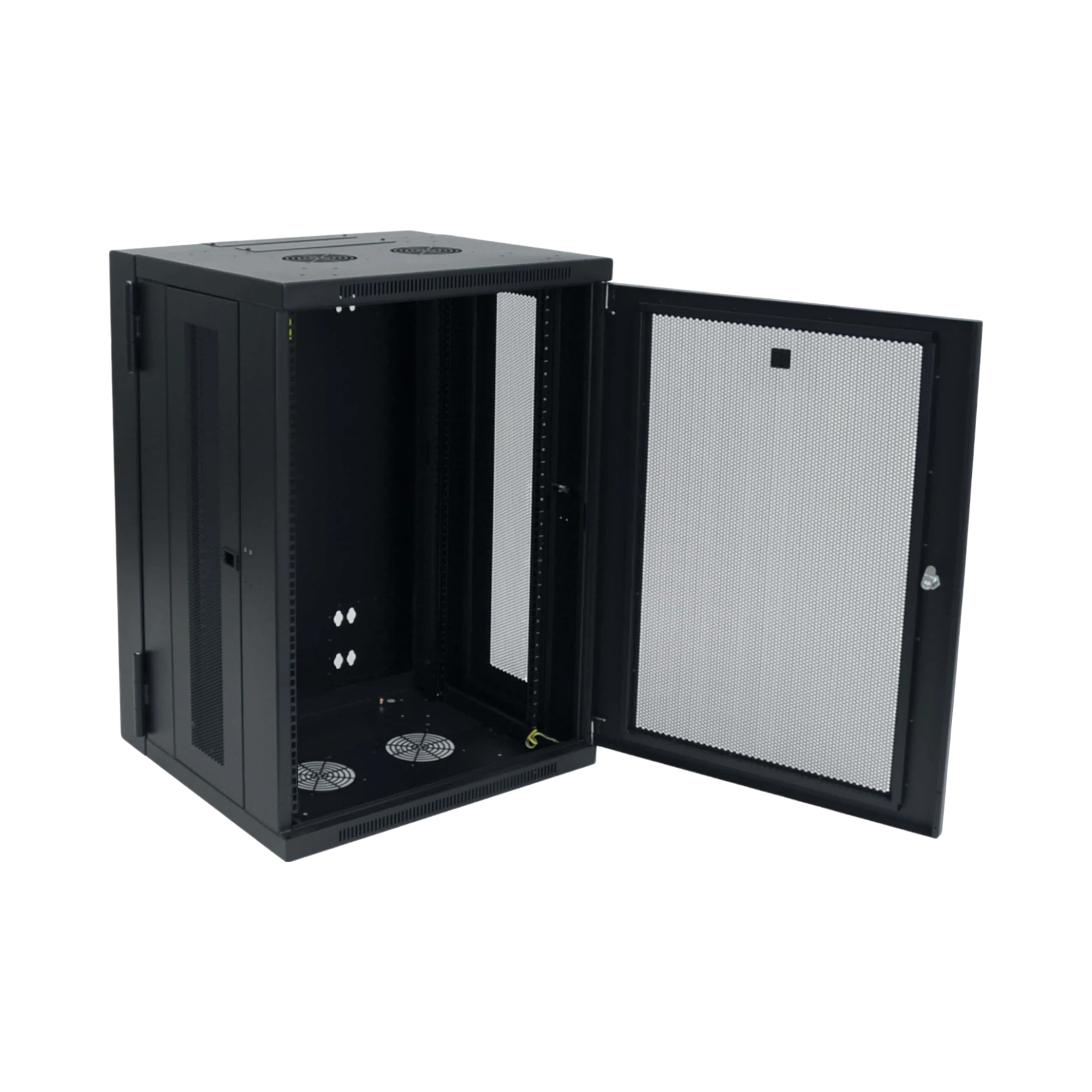

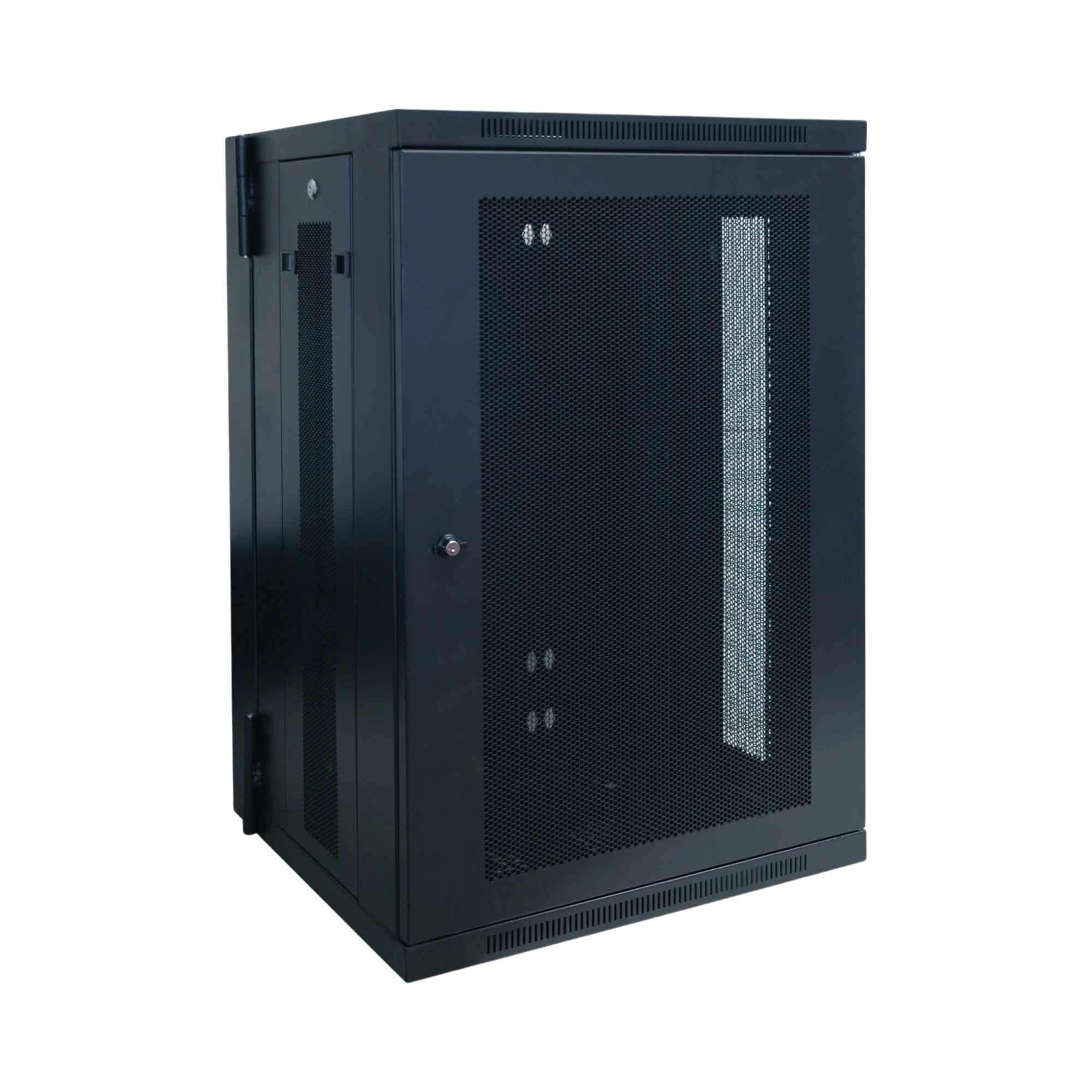

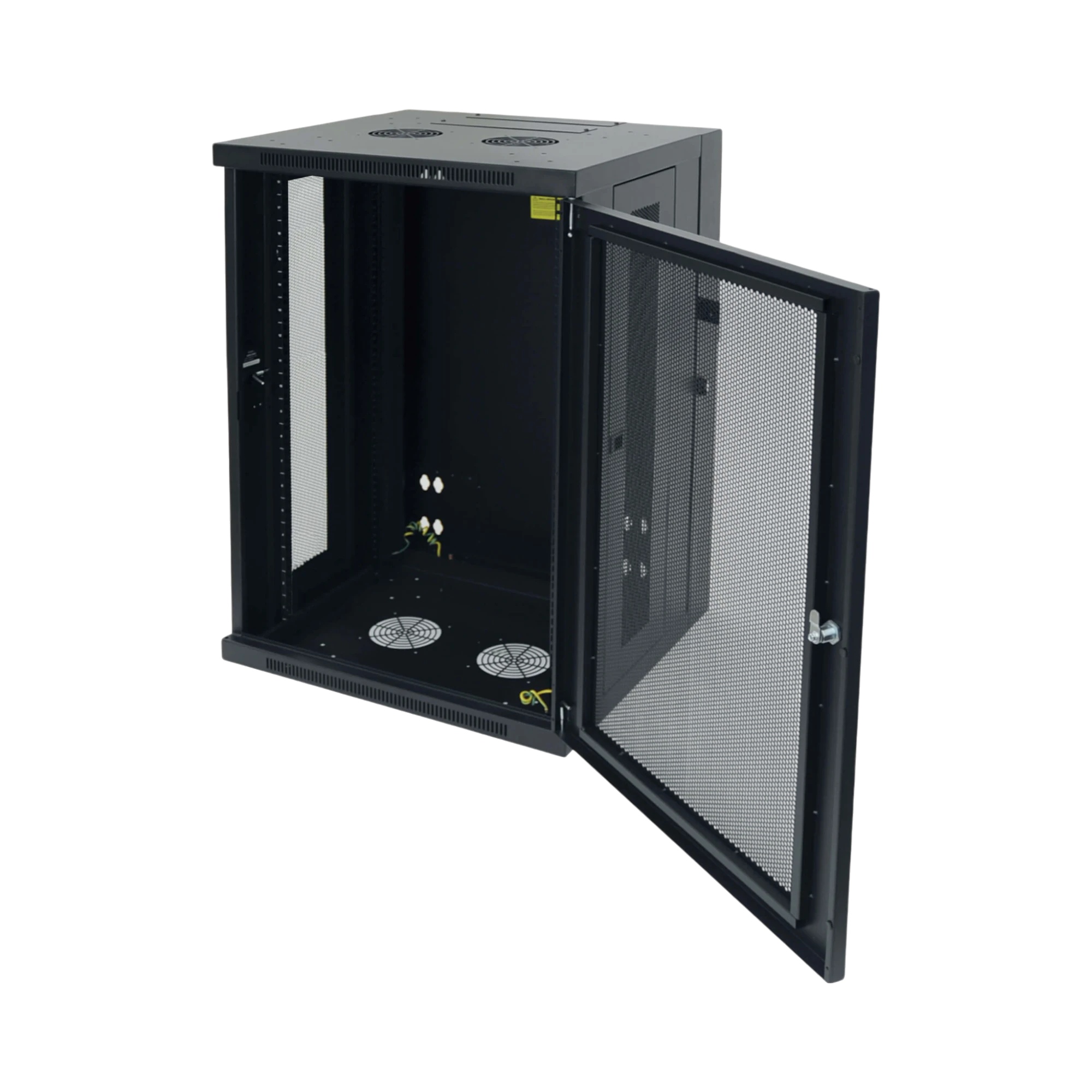

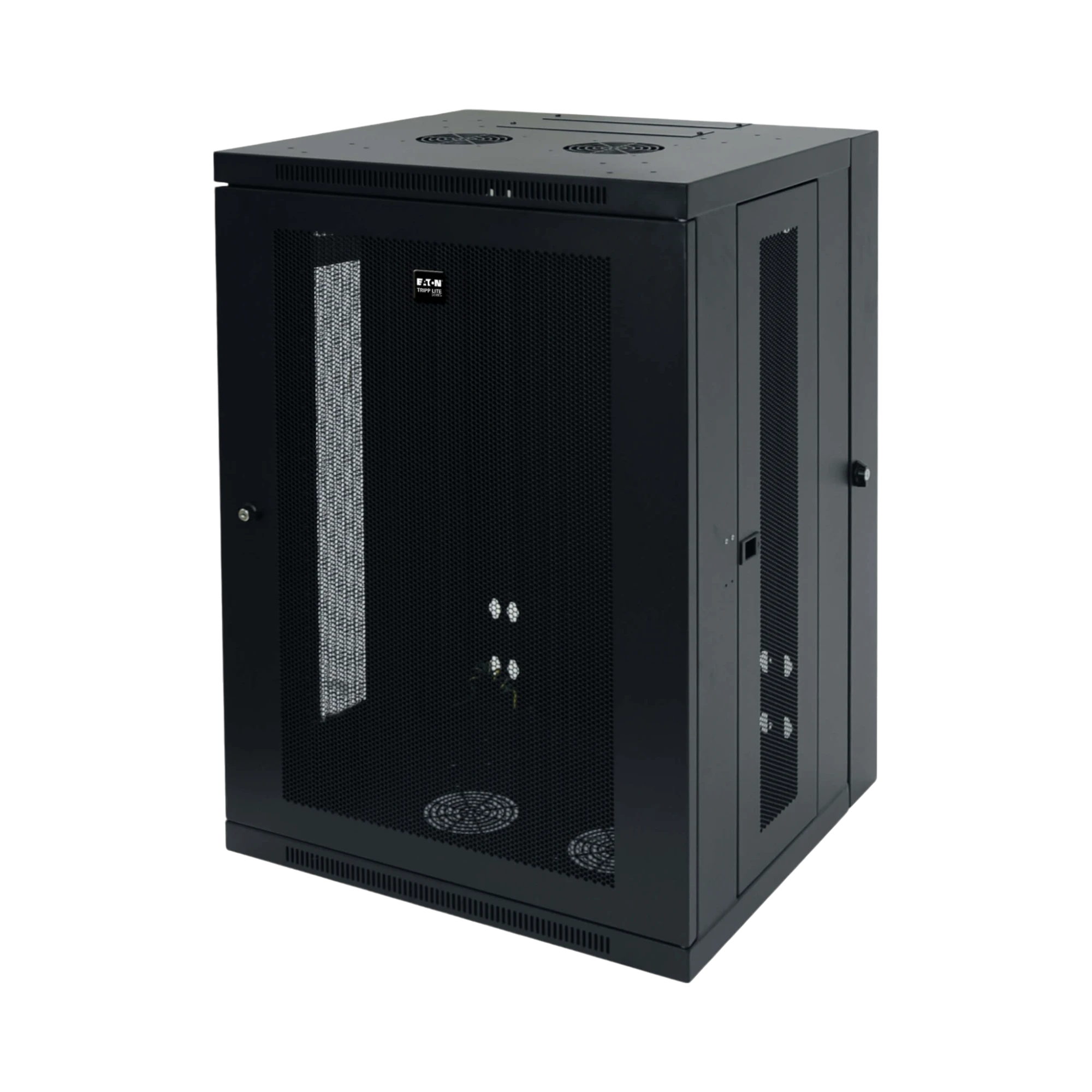

The Tripp Lite SRW18US is an 18U low-profile wall-mount rack enclosure designed to securely house standard 19-inch network equipment up to 20.5 inches deep. Its steel frame supports up to 250 pounds, making it suitable for switches, patch panels, and security devices in tight spaces like network closets, classrooms, or branch offices. The hinged back allows the entire enclosure to swing away from the wall, providing easy access to the rear of installed equipment without removal.

Key features

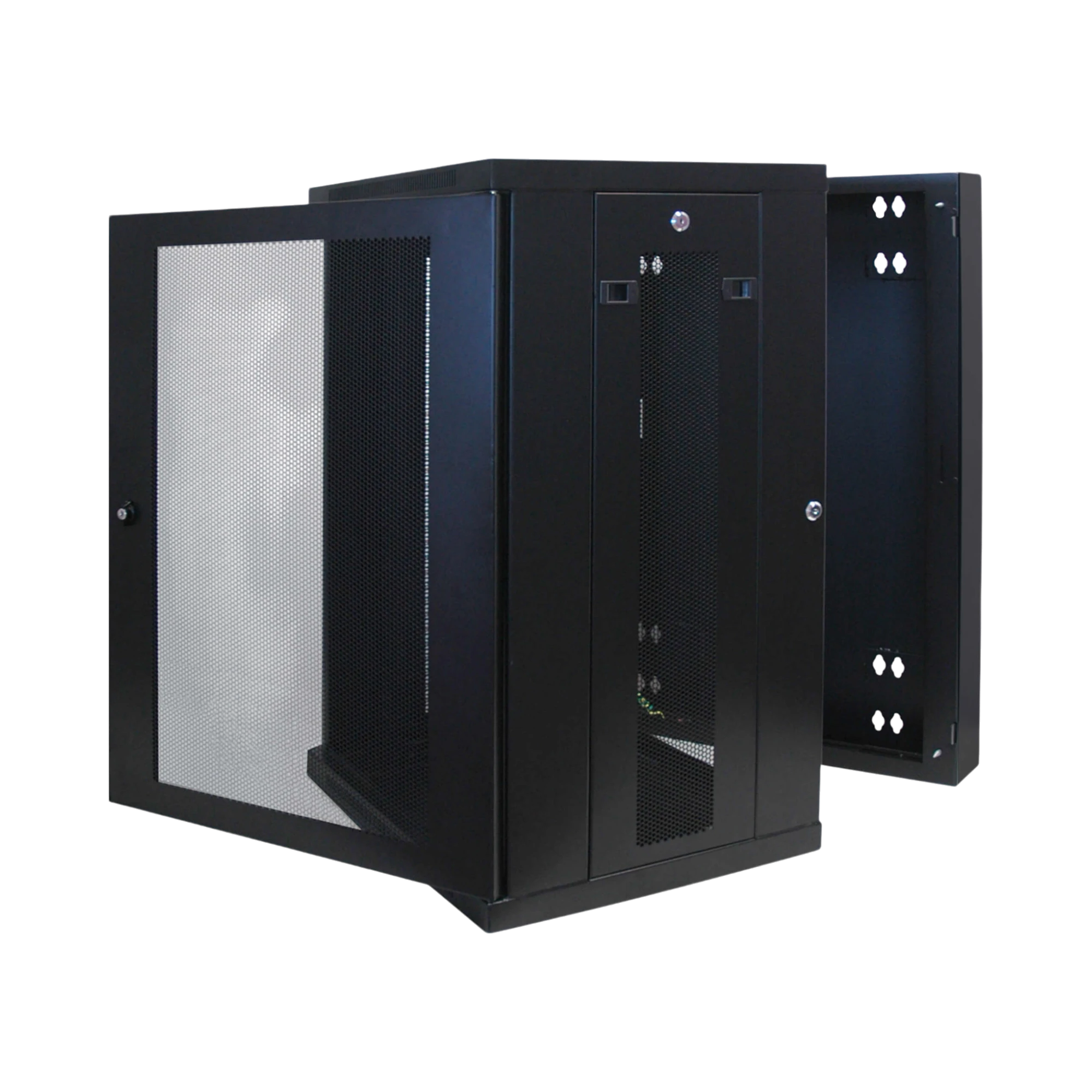

• Hinged design that swings the enclosure away from the wall for convenient rear access and maintenance
• Lockable front door and side panels with vented surfaces to enhance security while promoting passive airflow
• Adjustable mounting rails that accommodate equipment depths up to 20.5 inches for flexible installation
• Cable entry ports located on the top and bottom to simplify and organize power and data wiring
• Fully assembled out of the box, reducing installation time to positioning and anchoring
• Optional caster kit available for mobility when rack relocation is needed
• Compliance with PCI DSS standards, making it suitable for environments handling payment data
• Robust steel construction rated to support up to 250 pounds of installed equipment
• Five-year limited warranty reflecting Tripp Lite’s confidence in long-term durability

Key specs

• Rack space: 18U
• Equipment width: Standard 19-inch
• Maximum equipment depth: 20.5 inches
• Weight capacity: 250 pounds
• Mounting type: Wall-mount with hinged back
• Security: Lockable front door and side panels
• Ventilation: Vented front door and side panels for passive airflow
• Compliance: PCI DSS
• Warranty: Five-year limited

Connectivity and compatibility

The SRW18US is designed to accommodate a wide range of standard 19-inch rack-mount equipment commonly used in networking and security setups. Its adjustable rails and generous depth support various switches, patch panels, and other devices, while cable ports on both the top and bottom provide clean and organized routing options for power and data cables. This makes it a versatile choice for integrating into existing network infrastructures or new installations.

Installation and setup

Installation is straightforward since the cabinet ships fully assembled. Simply position the enclosure on the wall, secure it with appropriate anchors, and load your equipment. The hinged back design allows you to easily access the rear of devices for cabling or maintenance without removing the rack. For setups requiring mobility, the optional caster kit can be added to roll the rack to different locations as needed.

Ideal uses and environments

This rack enclosure fits well in environments where floor space is limited but secure, organized equipment housing is essential. It works well in network closets, classrooms, branch offices, and retail locations that require PCI DSS compliance for payment data security. Its sturdy construction and ventilation features also make it a strong choice for small to medium-sized IT deployments that need reliable protection and easy access to networking gear.
