Tripp Lite B127F-1A1-SM-DD

Overview

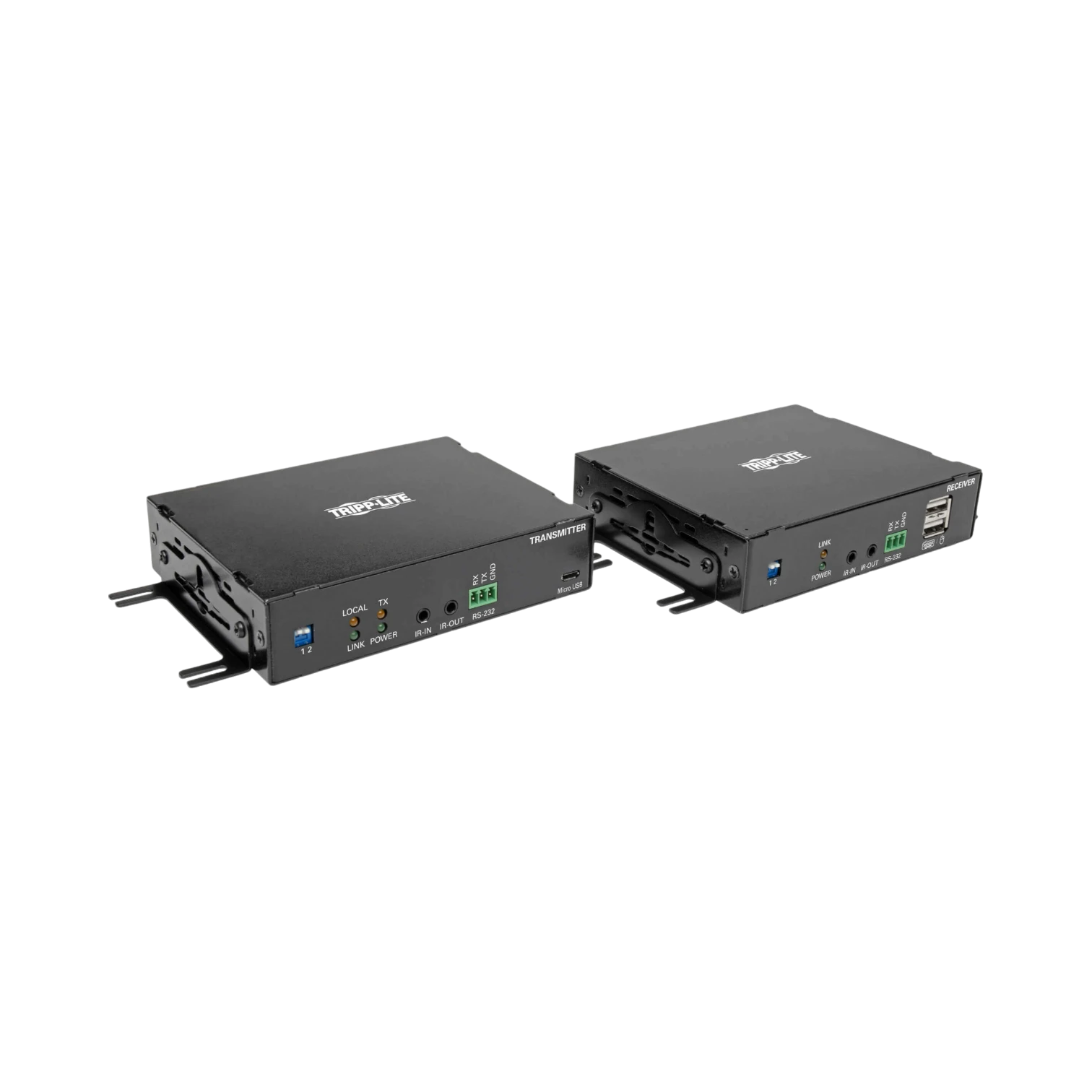

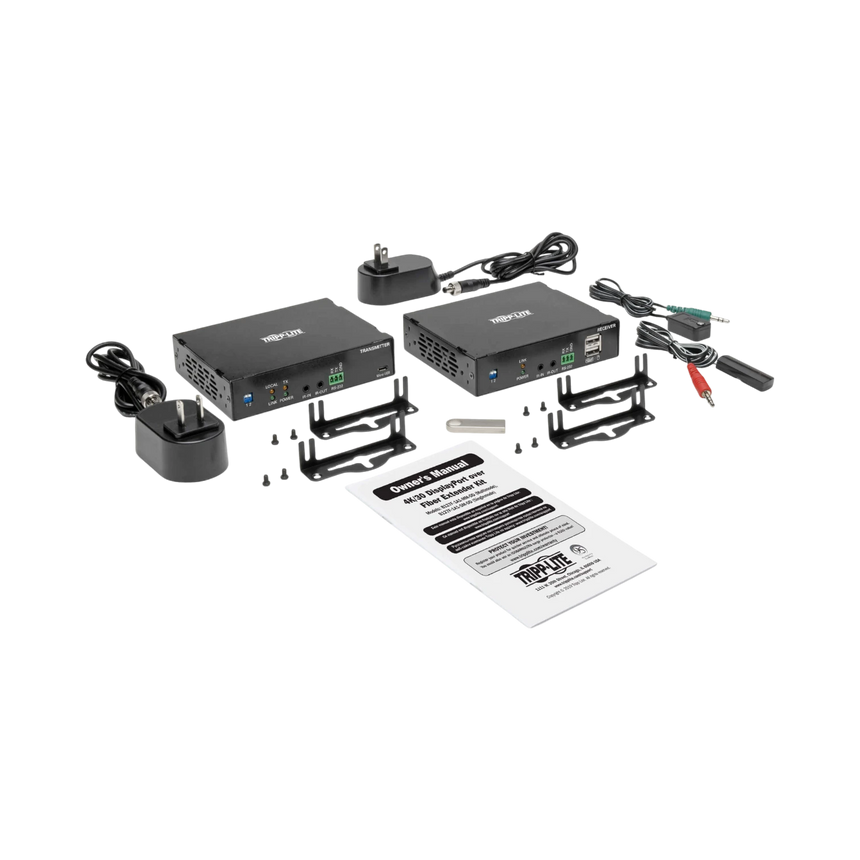

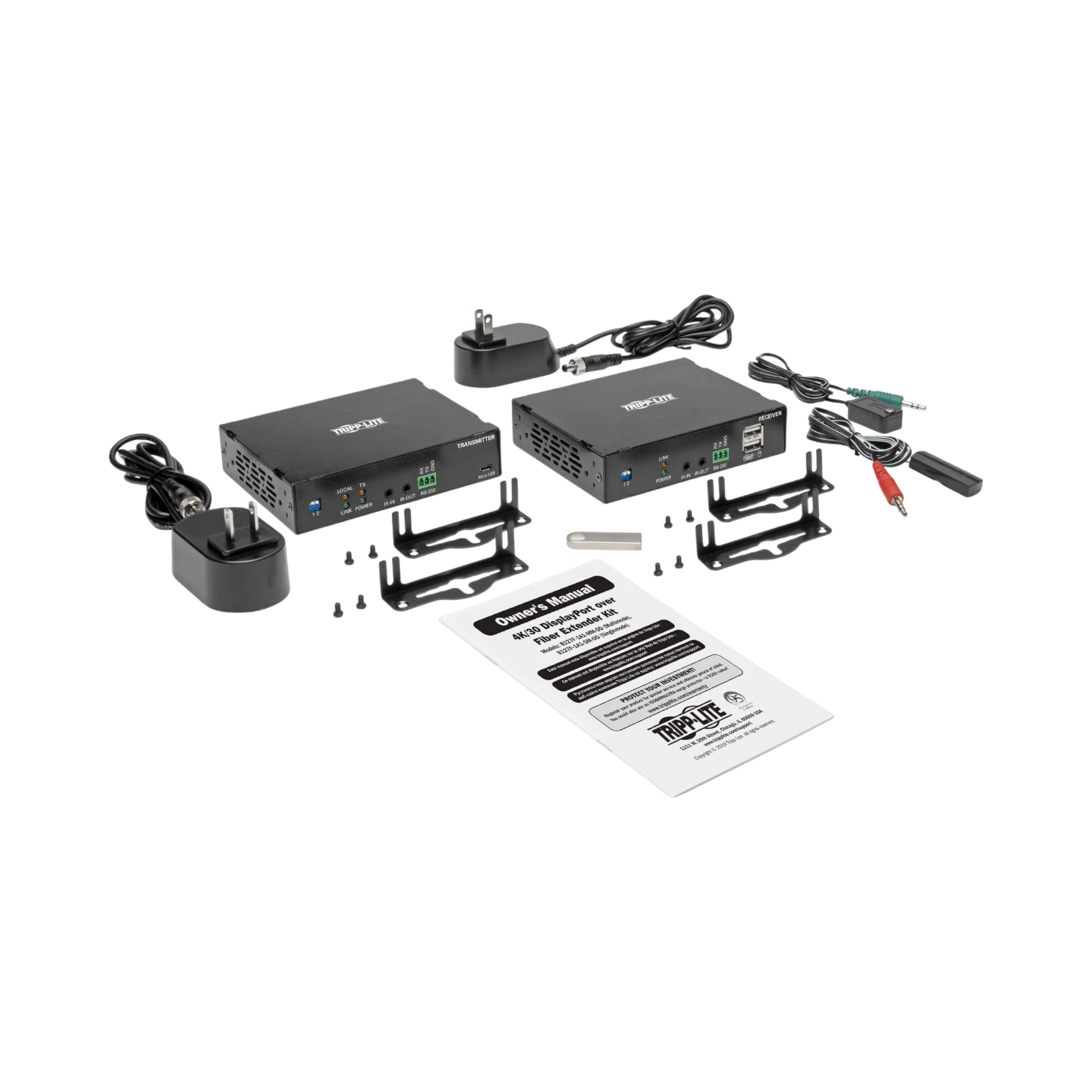

The Tripp Lite B127F-1A1-SM-DD is a DisplayPort extender kit designed to transmit uncompressed 4K video and multi-channel audio over singlemode LC fiber for distances up to 6.2 miles. It supports resolutions up to 3840 x 2160 at 30 Hz with 4:4:4 chroma subsampling and HDR, making it ideal for delivering high-quality content to remote displays without visible loss or delay. This kit includes both a transmitter and receiver, allowing you to keep your source device securely in an equipment room while displaying content far away.

Key features

• Extends DisplayPort 4K signals over long distances using singlemode LC fiber, reaching up to 6.2 miles without degradation.
• Supports uncompressed multi-channel audio formats including DTS-HD, Dolby AC-3, and eight-channel LPCM for immersive sound quality.

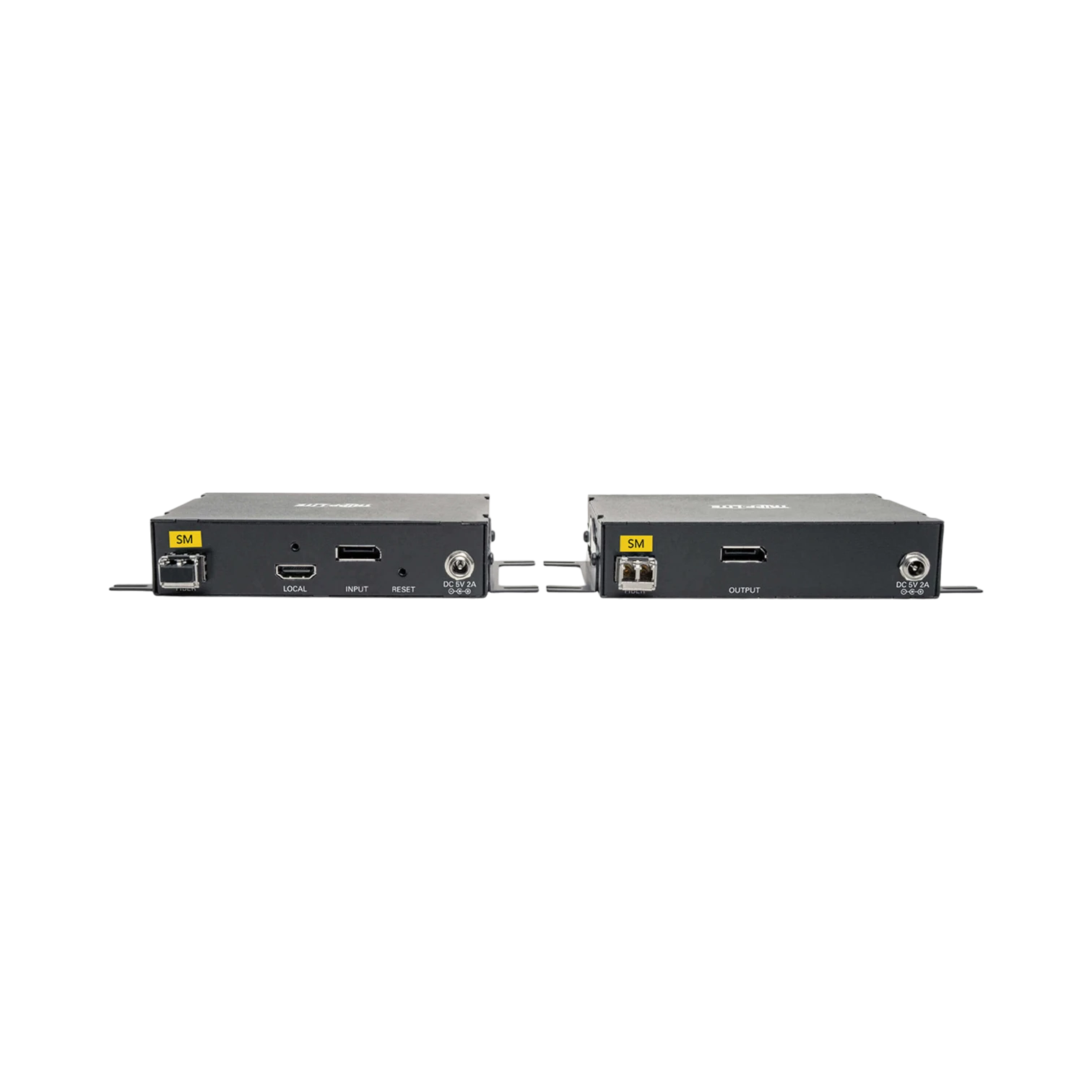

• Local HDMI port on the transmitter enables immediate source monitoring without interrupting the fiber transmission.
• Plug-and-play operation requires no drivers or software, simplifying installation and reducing setup time.

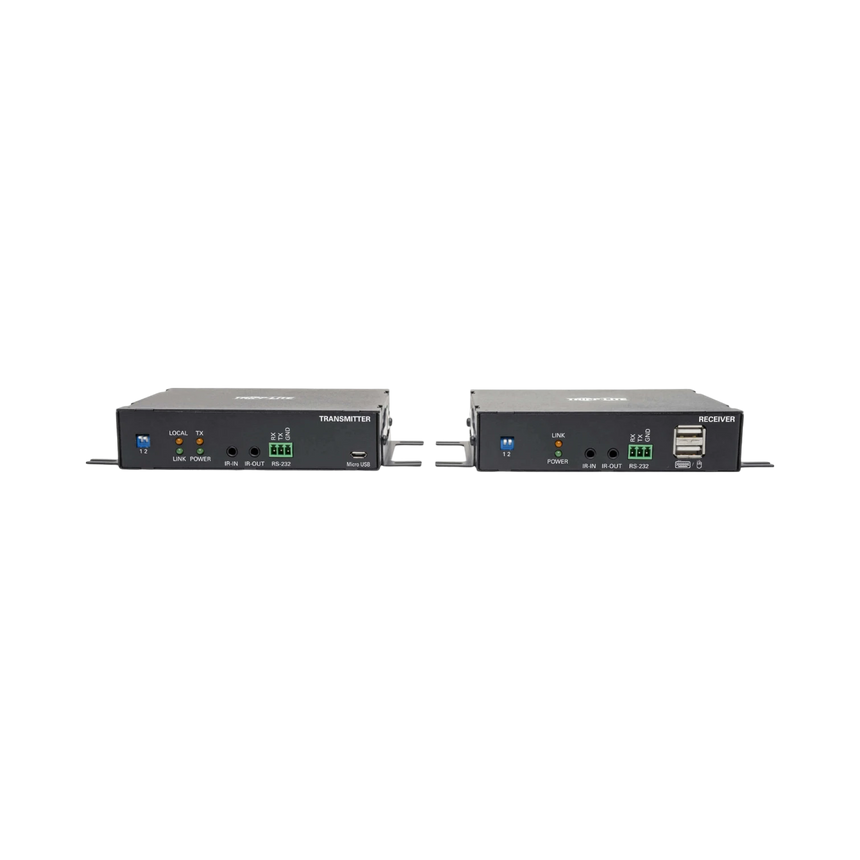

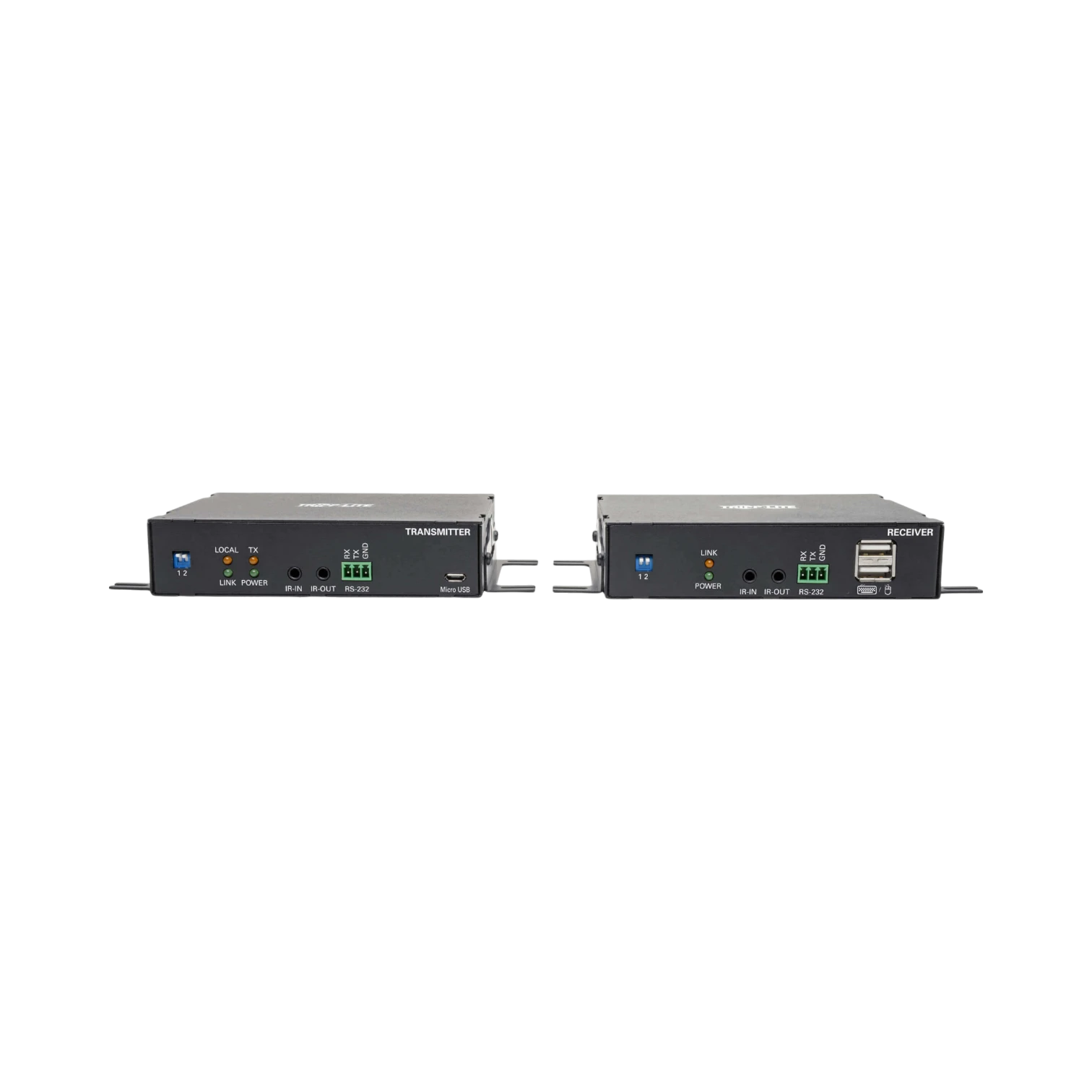

• DIP switches provide flexible options to extend USB HID for keyboard and mouse control, bidirectional IR for remote controls, or RS-232 for serial commands over the same fiber link.

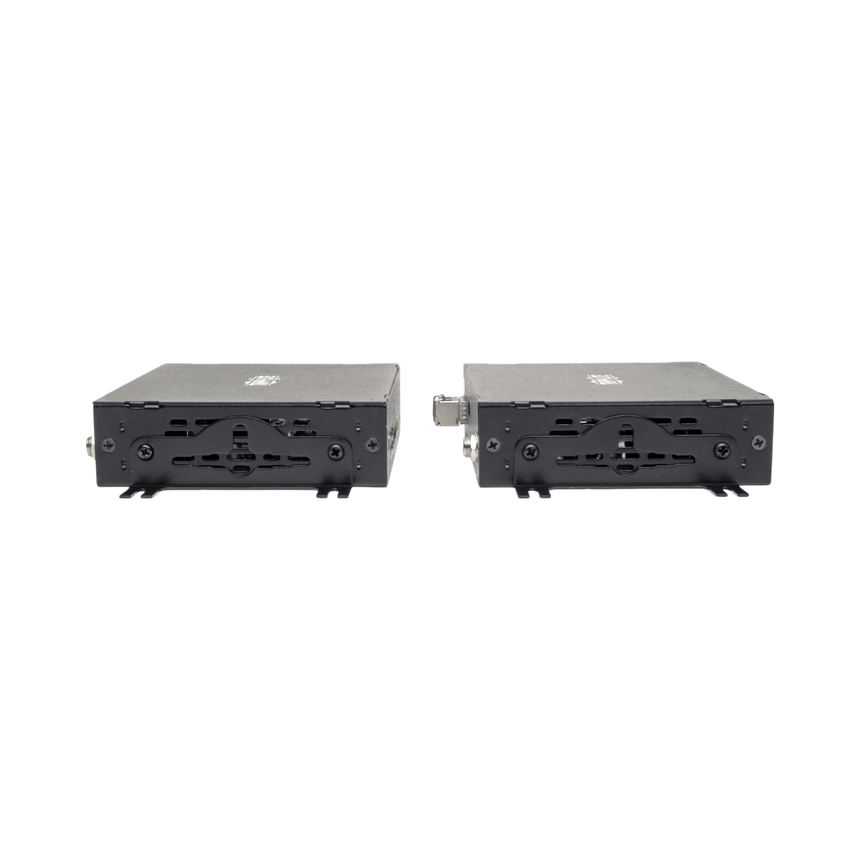

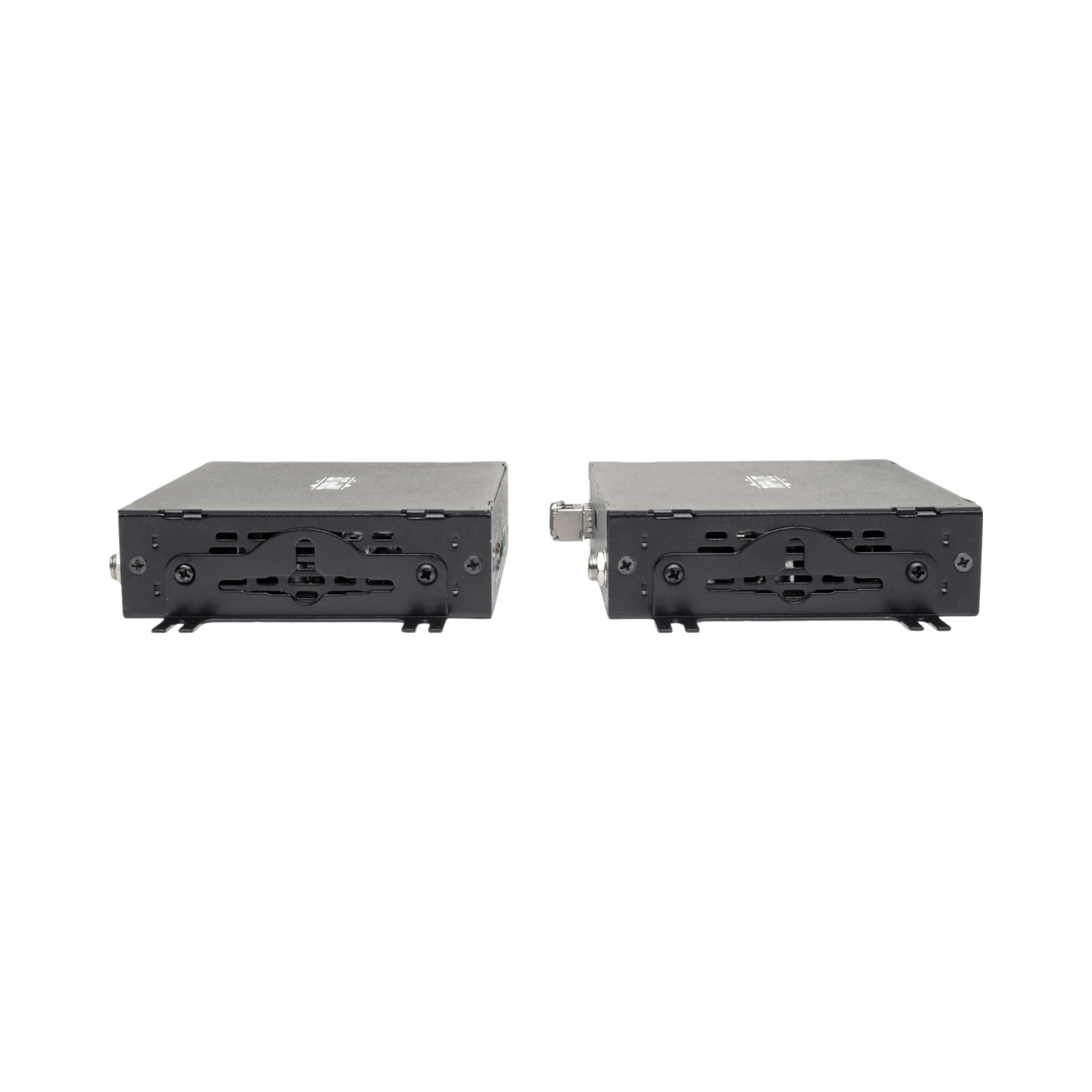

• Durable metal housings with included mounting brackets support rack, wall, or shelf installation to fit various environments.
• Complies with TAA regulations, making it suitable for government and federal procurement projects.

Key specs

• Maximum resolution: 3840 x 2160 at 30 Hz with 4:4:4 chroma subsampling
• Video format: DisplayPort 1.2 with HDR pass-through
• Audio support: Uncompressed DTS-HD, Dolby AC-3, and eight-channel LPCM
• Transmission medium: Singlemode LC fiber optic cable
• Maximum range: 6.2 miles (10 kilometers)
• Local monitoring: HDMI port on transmitter
• Control extension: USB HID, IR, RS-232 via DIP switches
• Housing: Metal with mounting brackets included
• Compliance: TAA (Trade Agreements Act)

Connectivity and compatibility

This extender kit connects a DisplayPort source to a remote display using singlemode fiber optic cable, ensuring signal integrity over long distances. The transmitter includes a local HDMI output for previewing the source feed, while the DIP switch options allow integration of USB HID devices, IR remotes, or serial control systems through the same fiber link. It supports HDCP 2.2, maintaining protected content without interruption. The kit is compatible with any DisplayPort 1.2 source and display that supports 4K resolution and HDR.

Ideal uses and environments

The B127F-1A1-SM-DD excels in scenarios where the display must be located far from the source, such as airports with flight-information boards, stadium scoreboards, trade show digital signage, or large-scale corporate installations. Its long reach and reliable signal quality make it a strong choice for integrators and IT managers who need a low-maintenance, high-performance solution to bridge control rooms and remote 4K displays. The rugged metal housing and included mounting hardware also support professional installations in demanding environments.
