Tripp Lite N282-01M-28-BK

Overview

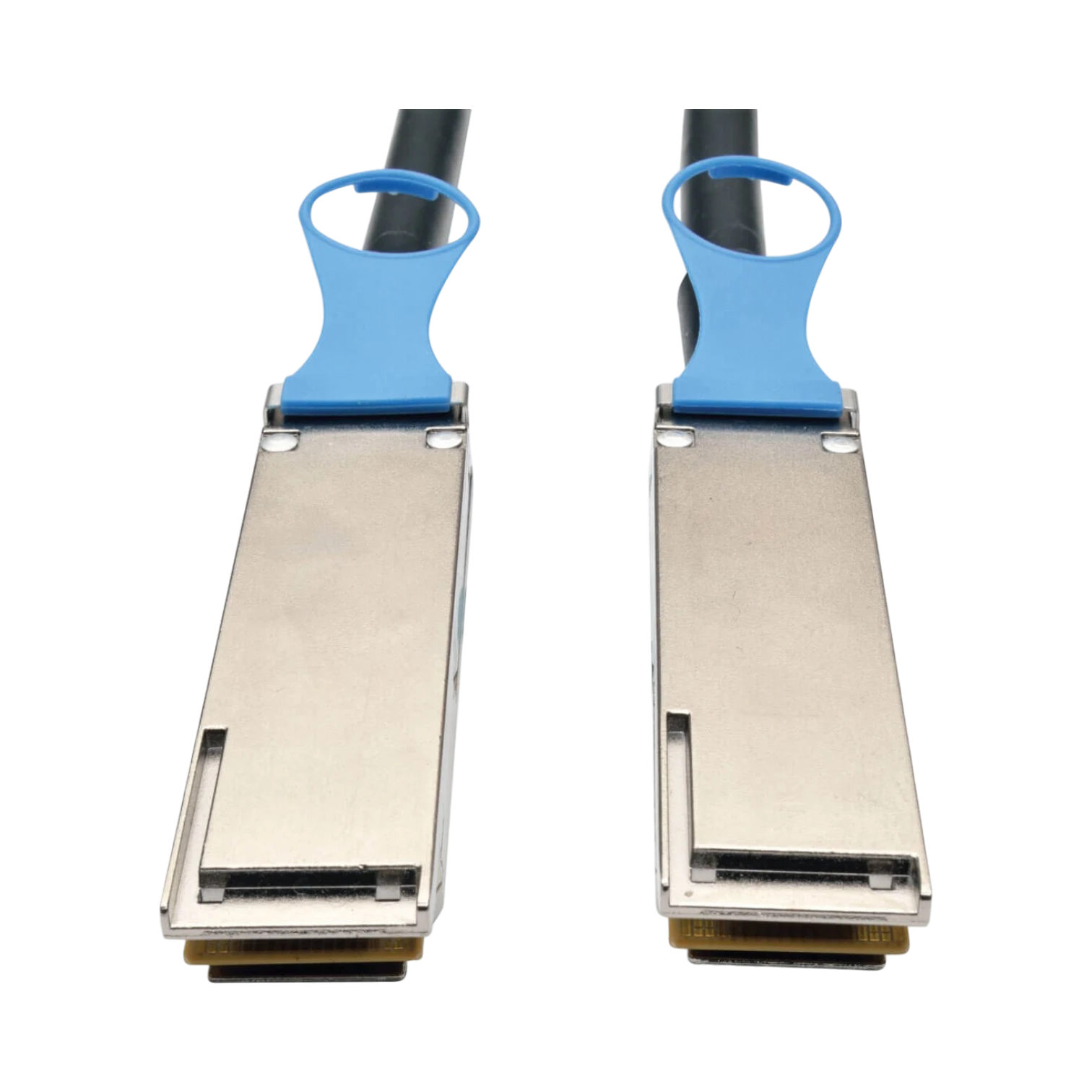

The Tripp Lite N282-01M-28-BK is a QSFP28 to QSFP28 passive direct attach copper (DAC) cable designed to deliver a full 100 Gbps connection over a short distance of one meter. It provides a high-speed copper link ideal for connecting switches, blade servers, or top-of-rack aggregation equipment without the need for separate transceivers or fiber optics. This cable supports 100GBASE-CR4 standards and merges four 28 Gbps SFP lanes into a single interface, simplifying your network setup while maintaining low latency and reducing costs.

Key features

• Delivers a 100 Gbps connection using passive copper, eliminating the need for power-hungry optical transceivers.
• One-meter length keeps short-range connections organized and minimizes signal delay.
• Complies with 100GBASE-CR4 and MSA SFF-8665 standards for reliable interoperability.
• Compatible with Cisco QSFP-100G-CU1M and similar QSFP28 ports, ensuring seamless integration in mixed-vendor environments.
• Supports 128G Fibre Channel and EDR InfiniBand protocols, making it suitable for converged networks handling Ethernet, storage, and HPC traffic.
• Constructed with 26 AWG conductors and zinc die-cast connectors to maintain signal integrity and resist electromagnetic interference.
• Pull-tab ejectors allow quick, tool-free installation and removal, which is especially useful in dense rack environments.
• Consumes less power and reduces port costs compared to equivalent fiber optic solutions, helping to optimize data center efficiency.

Key specs

• Data rate: 100 Gbps
• Cable length: 1 meter (3.28 feet)
• Connector type: QSFP28 to QSFP28
• Conductor gauge: 26 AWG
• Standards compliance: 100GBASE-CR4, MSA SFF-8665
• Supported protocols: 128G Fibre Channel, EDR InfiniBand
• Connector material: Zinc die-cast

Connectivity and compatibility

This cable is designed to connect QSFP28 ports on switches, servers, and aggregation devices, providing a direct copper link that supports multiple high-speed protocols. Its form factor and compliance with industry standards make it a drop-in replacement for Cisco QSFP-100G-CU1M cables, allowing it to fit into existing network infrastructures without compatibility concerns. The cable’s pull-tab ejectors facilitate easy handling in tight rack spaces, making it practical for data centers and enterprise environments.

Ideal uses and environments

The Tripp Lite N282-01M-28-BK is well suited for data centers, cloud service providers, and enterprise IT teams that require high-bandwidth, low-latency connections between equipment located close to each other. It works effectively in top-of-rack or blade server configurations where space is limited and power efficiency is critical. This cable is a strong choice for converged networks that combine Ethernet, storage, and high-performance computing traffic, offering a cost-effective alternative to fiber optics without sacrificing performance.
