APC AP9810

Overview

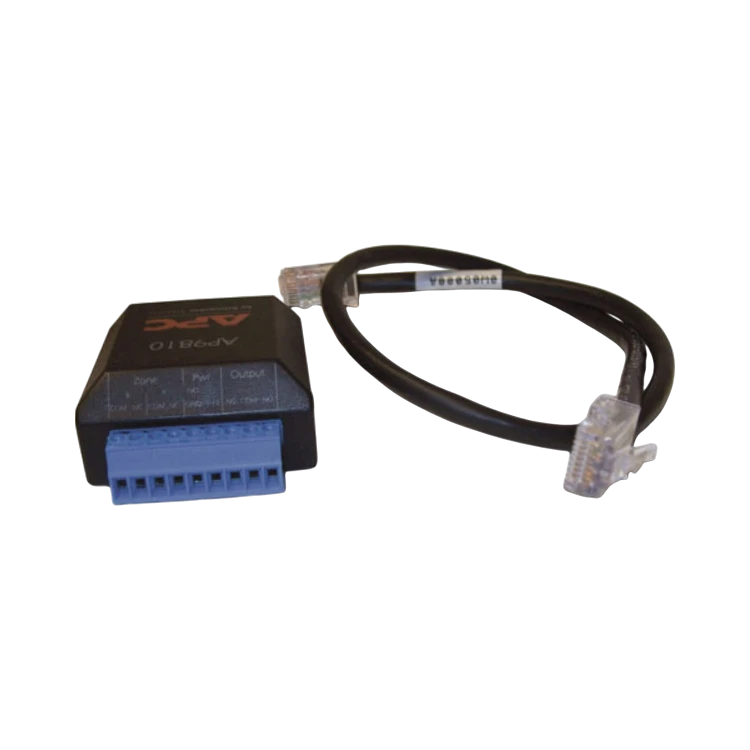

The APC AP9810 is an accessory designed to expand the monitoring and control capabilities of APC uninterruptible power supplies (UPS). It features two dry contact inputs and one relay output, enabling integration of external alarms or sensor data into the UPS Network Management Card interface. This compact unit connects via the Universal I/O port and supports seamless configuration through the APC web interface, making it a practical addition for data centers, facilities teams, and managed service providers who need to incorporate UPS status into broader site monitoring systems.

Key features

• Two dry contact inputs allow connection of devices such as door switches, leak detectors, or environmental sensors to feed external signals into the UPS monitoring system.
• One relay output can forward UPS status changes to other systems or activate local indicators, enhancing alerting and automation capabilities.
• Includes a Cat 5 Ethernet cable for straightforward installation and immediate use without additional accessories.
• Compact housing designed to fit on shelves or inside enclosures, avoiding competition for valuable rack space.
• Operates reliably in a wide temperature range from 32 to 104 degrees Fahrenheit and humidity levels up to 95 percent, suitable for various environments.
• Meets EN 61000-4 electromagnetic compatibility standards, ensuring stable operation in electrically noisy environments.
• Contains no moving parts, which contributes to a longer service life and reduced maintenance needs.
• Configuration and management are handled through the familiar APC web interface, eliminating the need for extra software.
• Backed by a two-year warranty for added confidence in durability and performance.

Key specs

• Inputs: 2 dry contact inputs
• Outputs: 1 relay output
• Connectivity: Universal I/O port connection to APC UPS Network Management Cards
• Included cable: Cat 5 Ethernet cable
• Dimensions: 0.9 inches (height) x 1.78 inches (width) x 1.76 inches (depth)
• Weight: 0.11 pounds (0.05 kilograms)
• Operating temperature: 32 to 104 degrees Fahrenheit
• Operating humidity: up to 95 percent
• Compliance: EN 61000-4 electromagnetic compatibility standards
• Warranty: 2 years

Connectivity and compatibility

The AP9810 is compatible with APC UPS Network Management Cards including models AP9641, AP9643, and the Dry Contact I/O SmartSlot Card AP9613. It connects via the Universal I/O port, allowing it to integrate smoothly into existing APC UPS setups. This compatibility ensures that external signals and UPS status changes can be monitored and controlled through a single interface, simplifying management and improving situational awareness.

Ideal uses and environments

This accessory is well suited for environments where UPS information needs to be integrated with broader monitoring systems. It works effectively in small server rooms by sending on-battery events to building alarm panels and is a cost-effective solution for remote edge locations requiring monitoring of unauthorized access or environmental conditions. Its compact size and robust operating range make it a practical choice for data centers, facilities management, and managed service providers who demand reliable and flexible UPS monitoring without occupying rack space.
