APC APDU10151SM

Overview

The APC APDU10151SM is a switched, metered outlet power distribution unit designed to deliver reliable and high-density power to NetShelter racks. It supports up to 5 kW of power at 208 V and 30 A through a single NEMA L6-30P input, making it suitable for powering a wide range of servers, storage devices, and network equipment. Its vertical 0U form factor allows installation along the rack side panel, preserving valuable rack space for other hardware.

With 40 total outlets, including 20 that accept multiple plug types (C13, C15, C19, and C21), this PDU offers flexible connectivity without the need for additional adapters. Remote management capabilities via SNMP, web interface, and CLI provide administrators with full control over power distribution, load monitoring, and scheduling from anywhere.

Key features

• 40 outlets with 20 featuring a versatile 4-in-1 design to support various plug types, simplifying device connections.
• Delivers up to 5 kW of power at 208 V and 30 A, ensuring sufficient capacity for demanding rack environments.

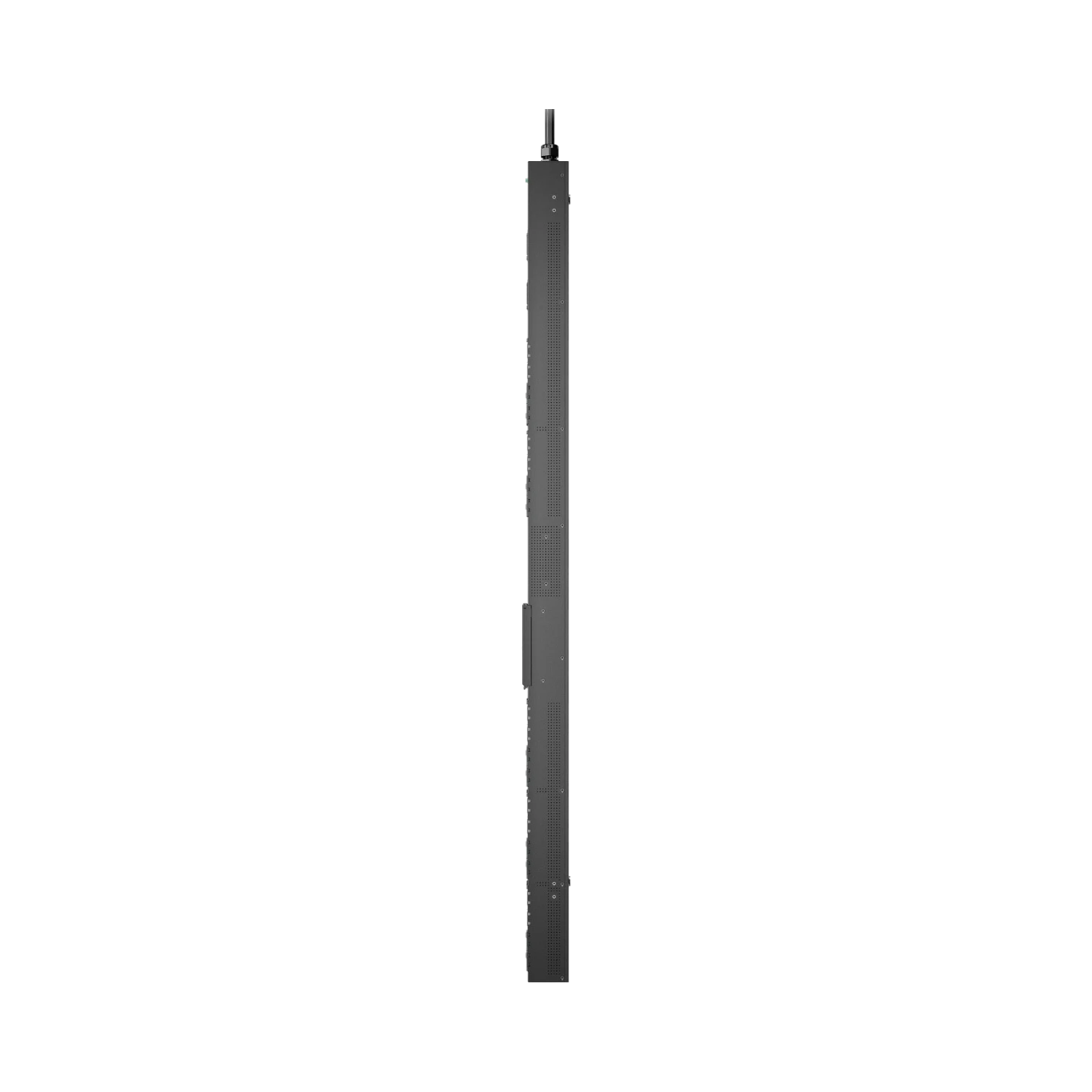

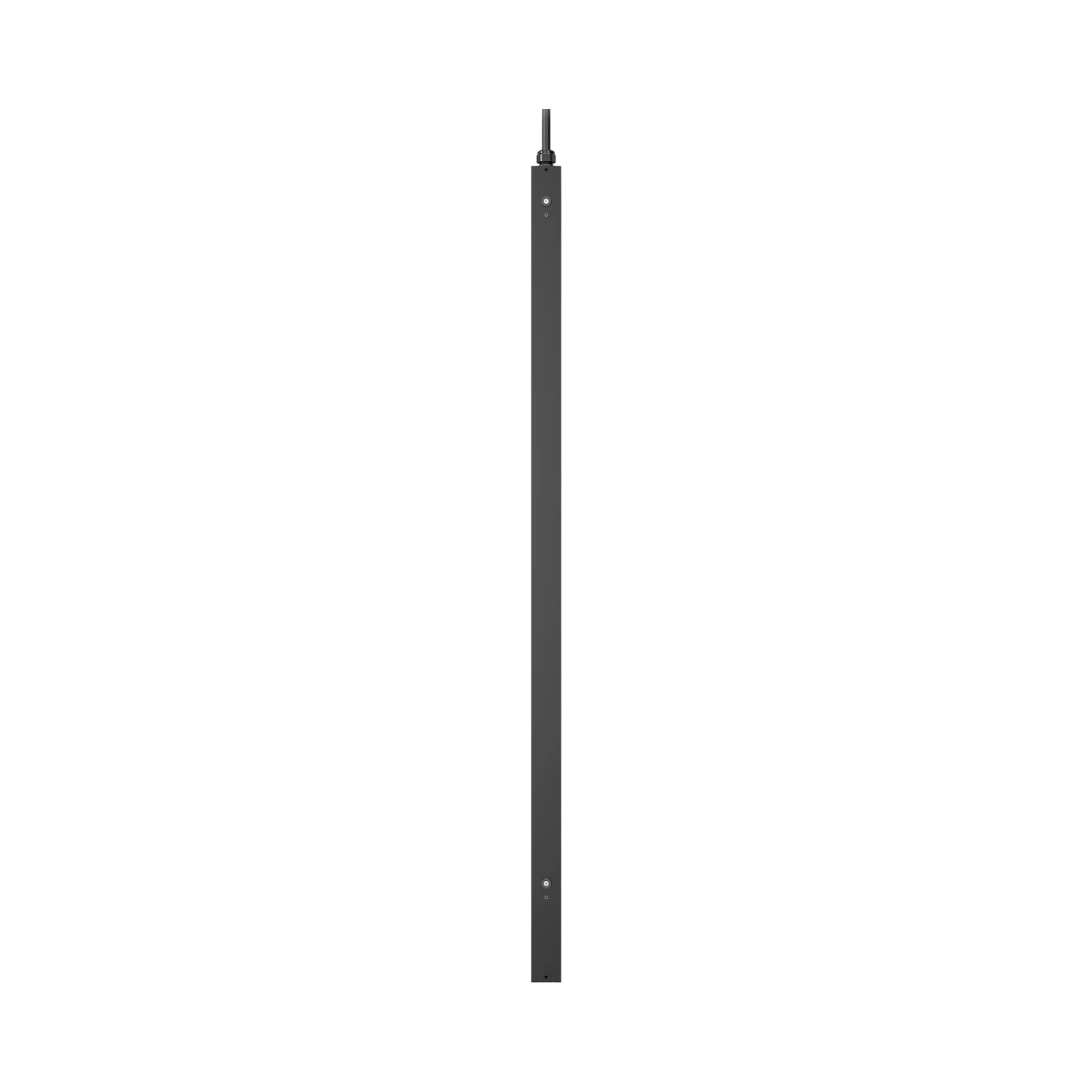

• Vertical 0U installation saves rack space by mounting along the side panel instead of occupying rack units.

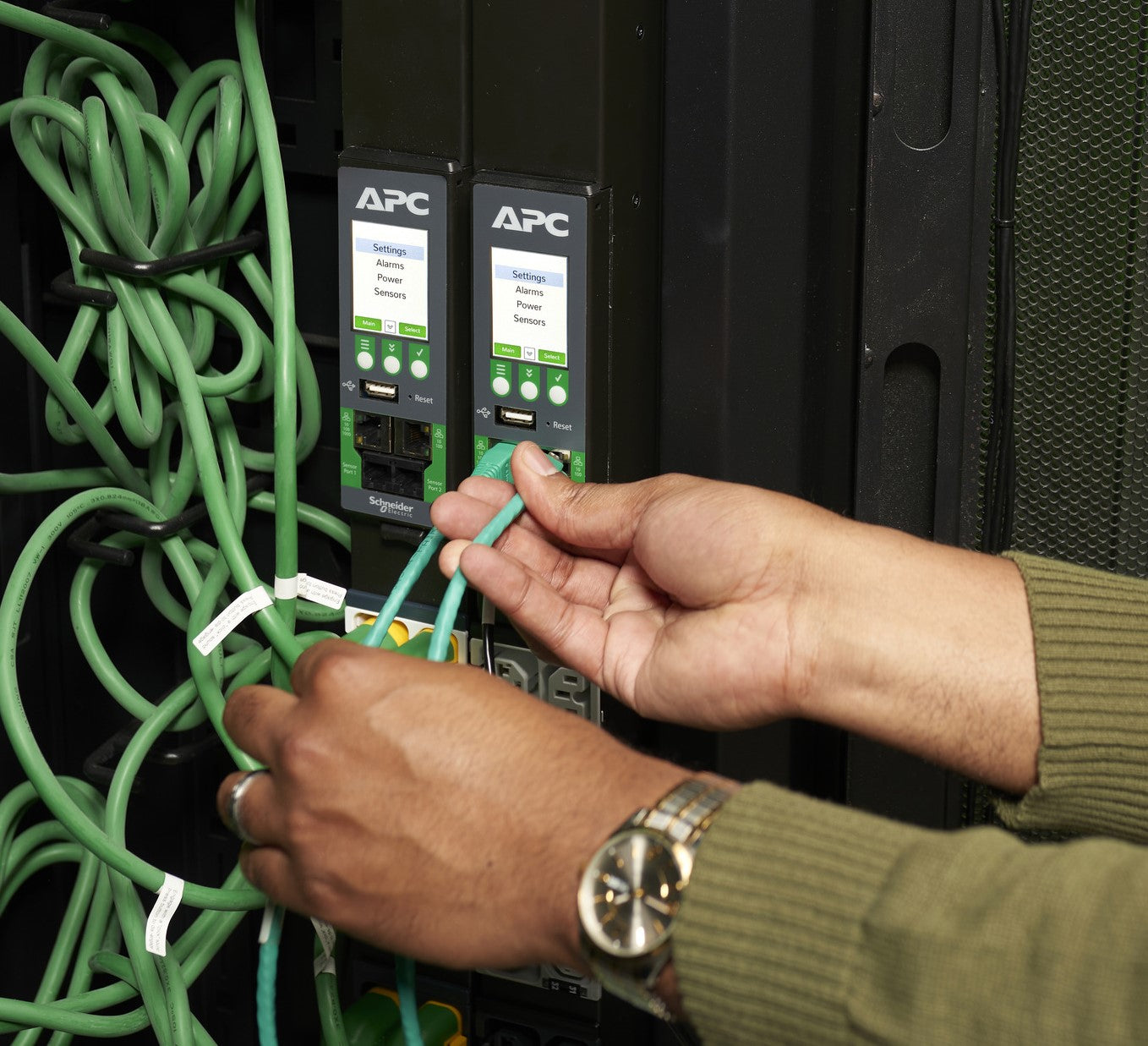

• Dual Ethernet ports enable daisy-chaining multiple PDUs or creating network redundancy for continuous management access.
• Power metering accuracy within one percent allows precise monitoring for cost allocation and capacity planning.
• Operates reliably in high-temperature environments up to 140 °F (60 °C), suitable for warm-aisle data centers.

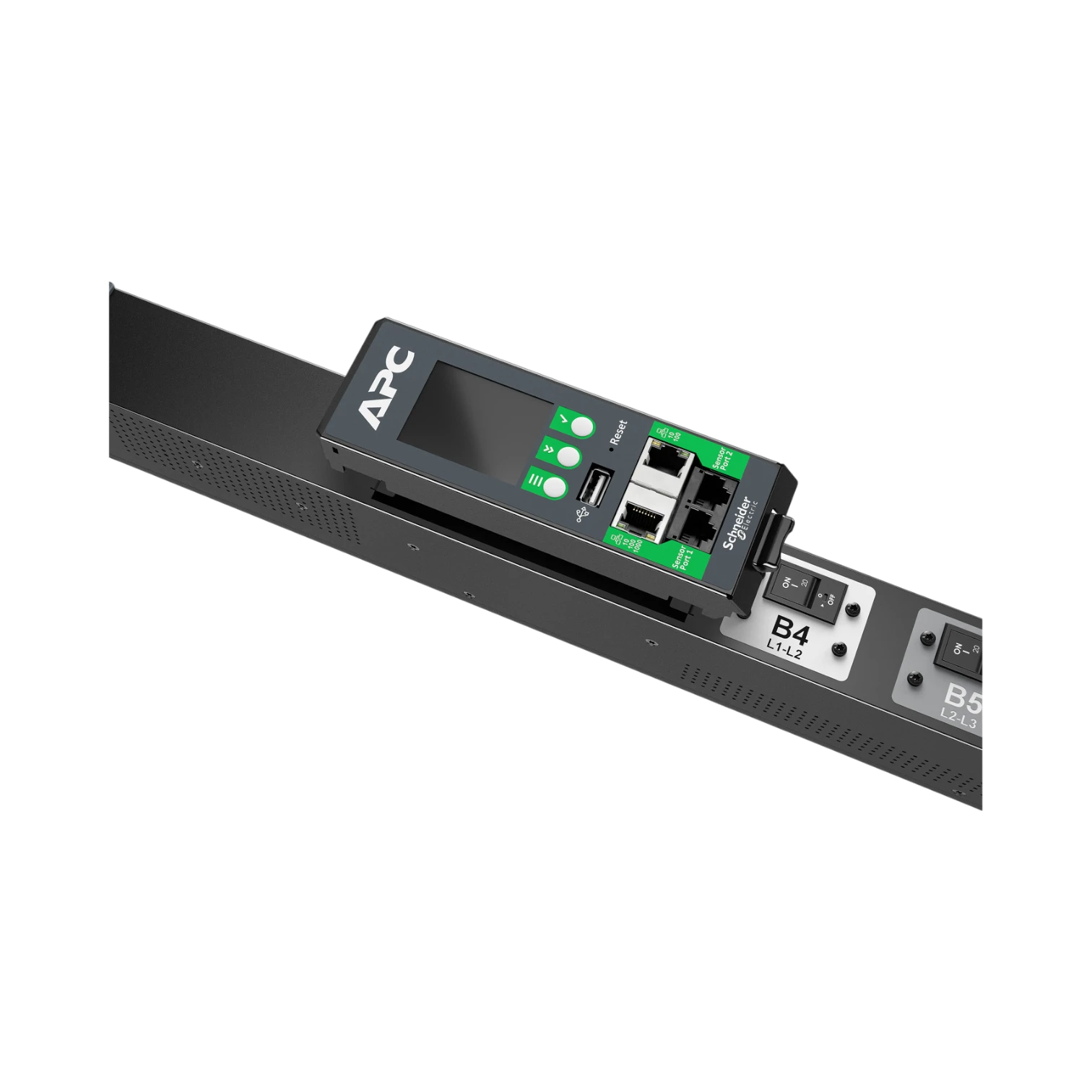

• Hot-swappable network management card supports maintenance without interrupting communication or power monitoring.
• Remote management through SNMP, web interface, and CLI offers flexible control and monitoring options.
• Includes a 9.8 ft input cord to easily reach rack power sources without additional cabling.
• Complies with UL and CSA safety and performance standards, ensuring dependable operation and safety.

Key specs

• Power capacity: 5.0 kW
• Input voltage: 208 V
• Input current: 30 A

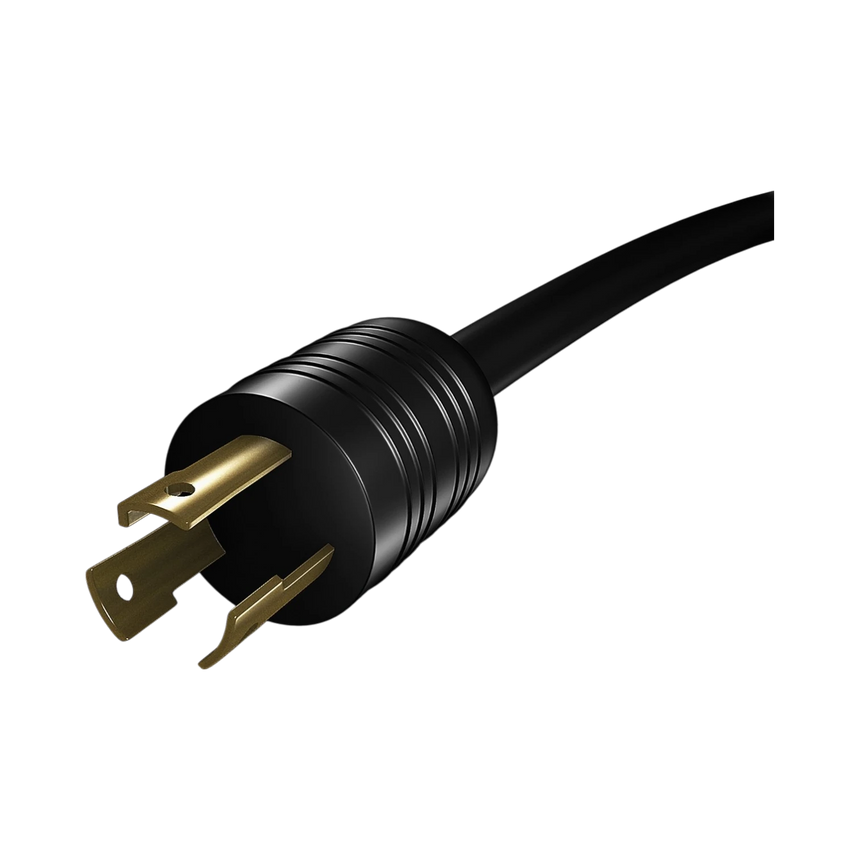

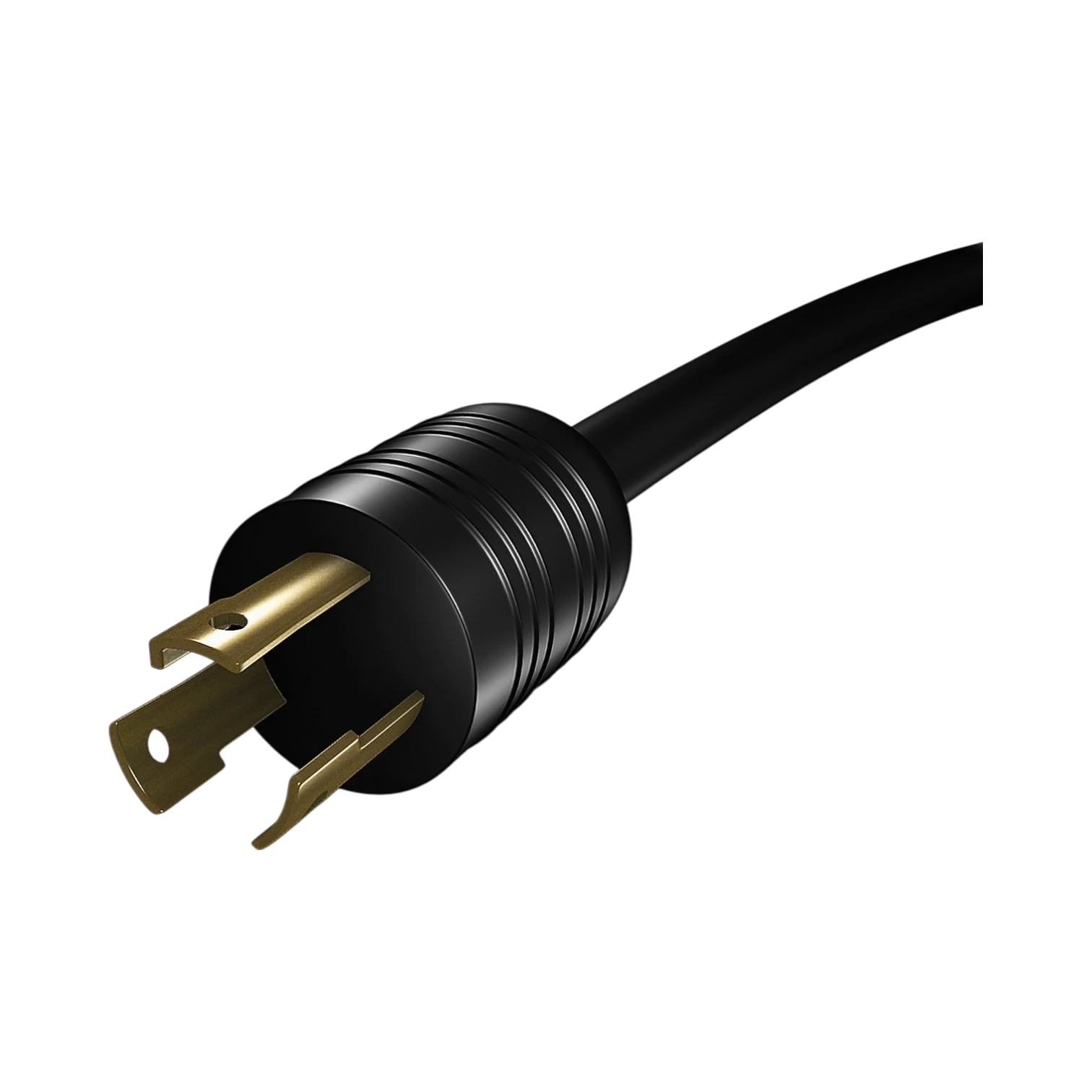

• Input connector: NEMA L6-30P

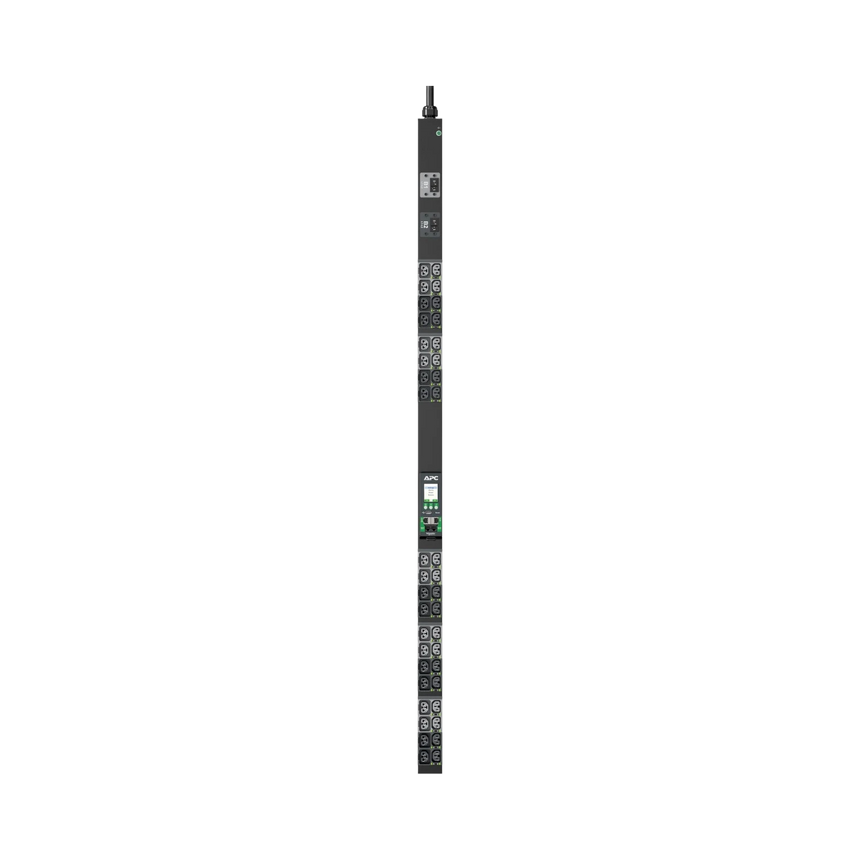

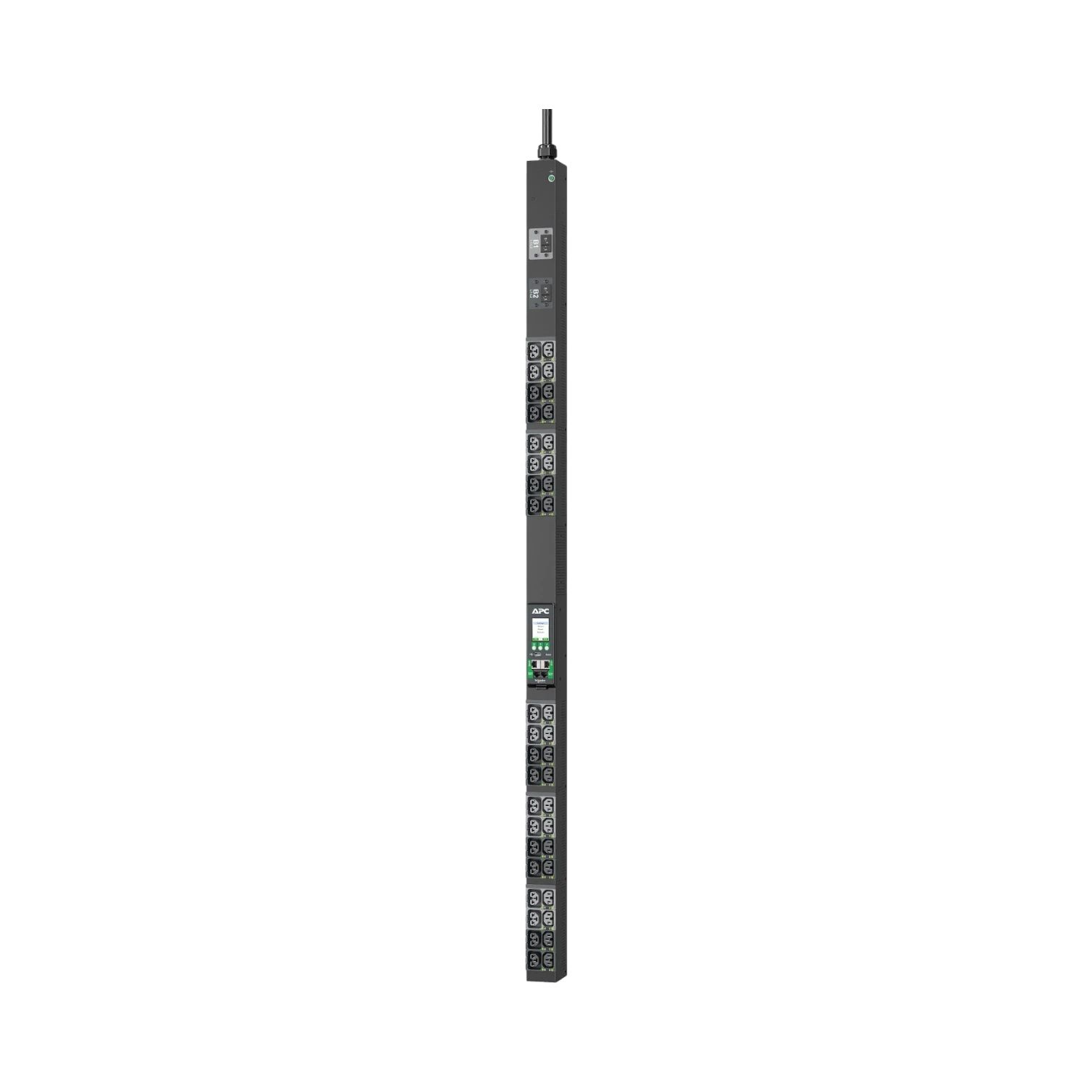

• Total outlets: 40
• Outlet types: 20 outlets with 4-in-1 design (C13, C15, C19, C21 compatible)

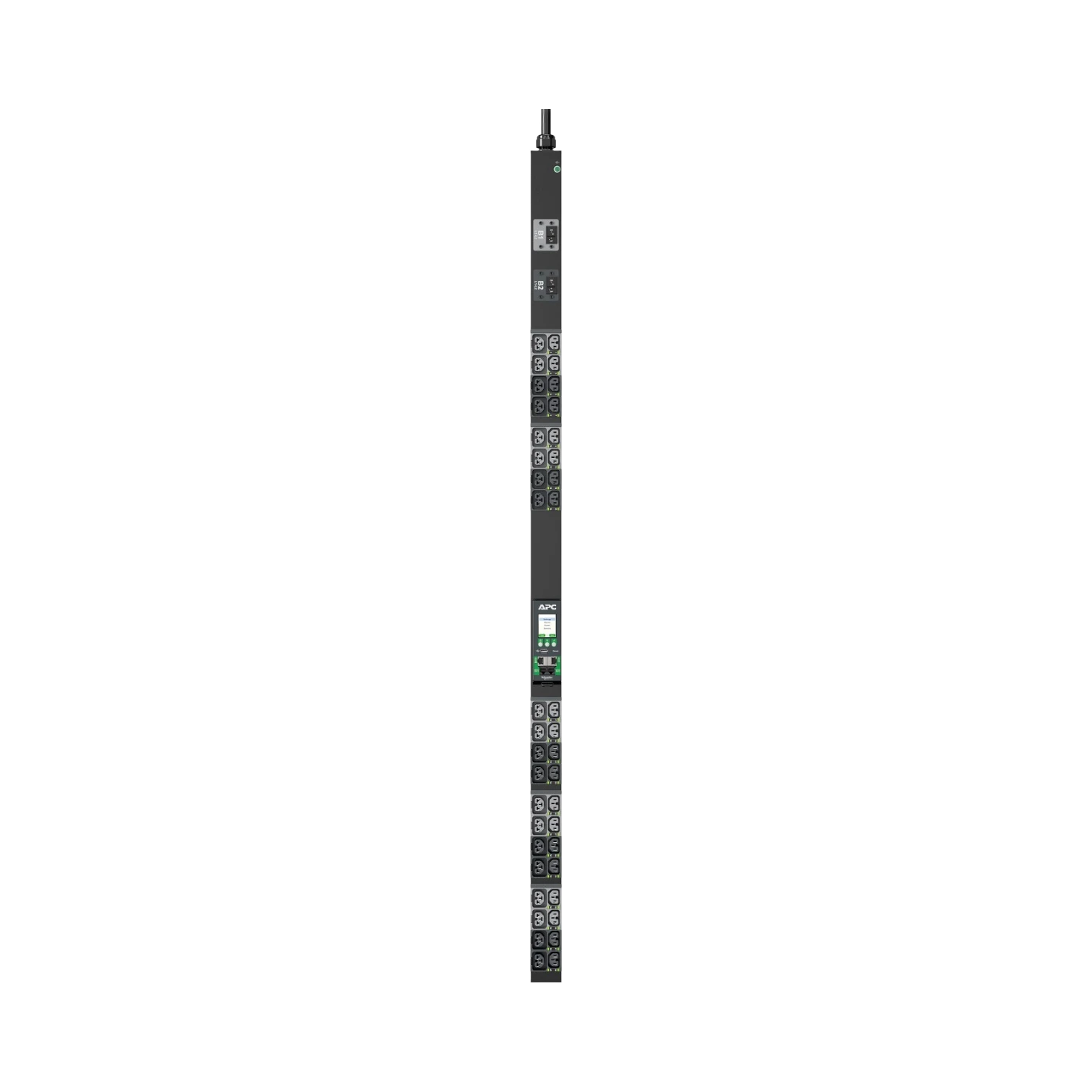

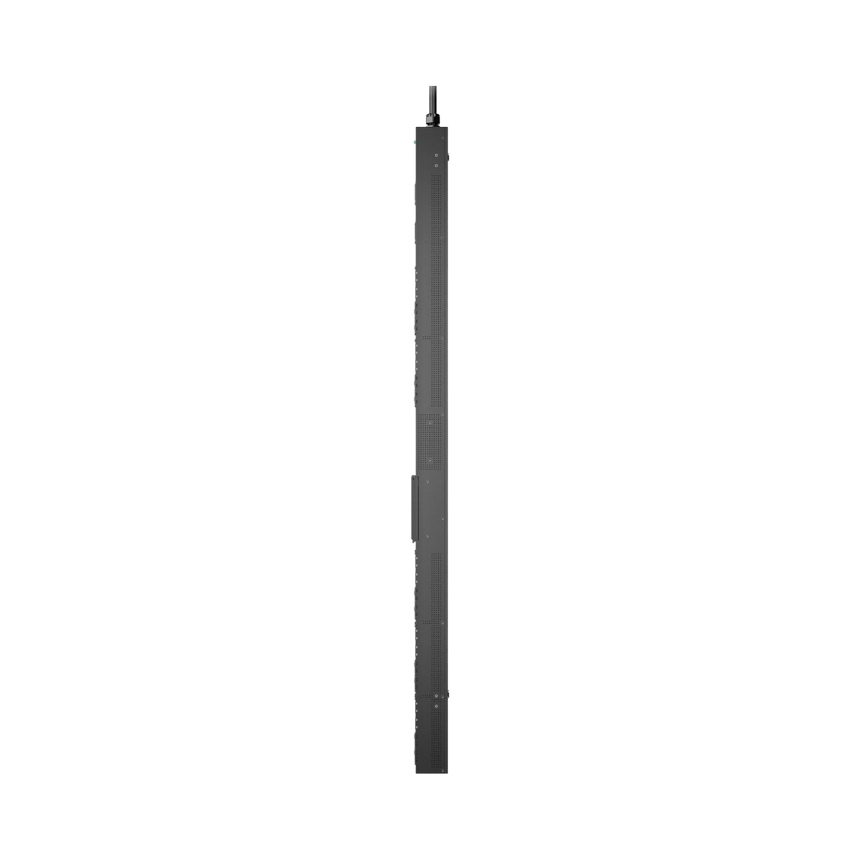

• Form factor: Vertical 0U rack mount
• Operating temperature: up to 140 °F (60 °C)
• Input cord length: 9.8 ft

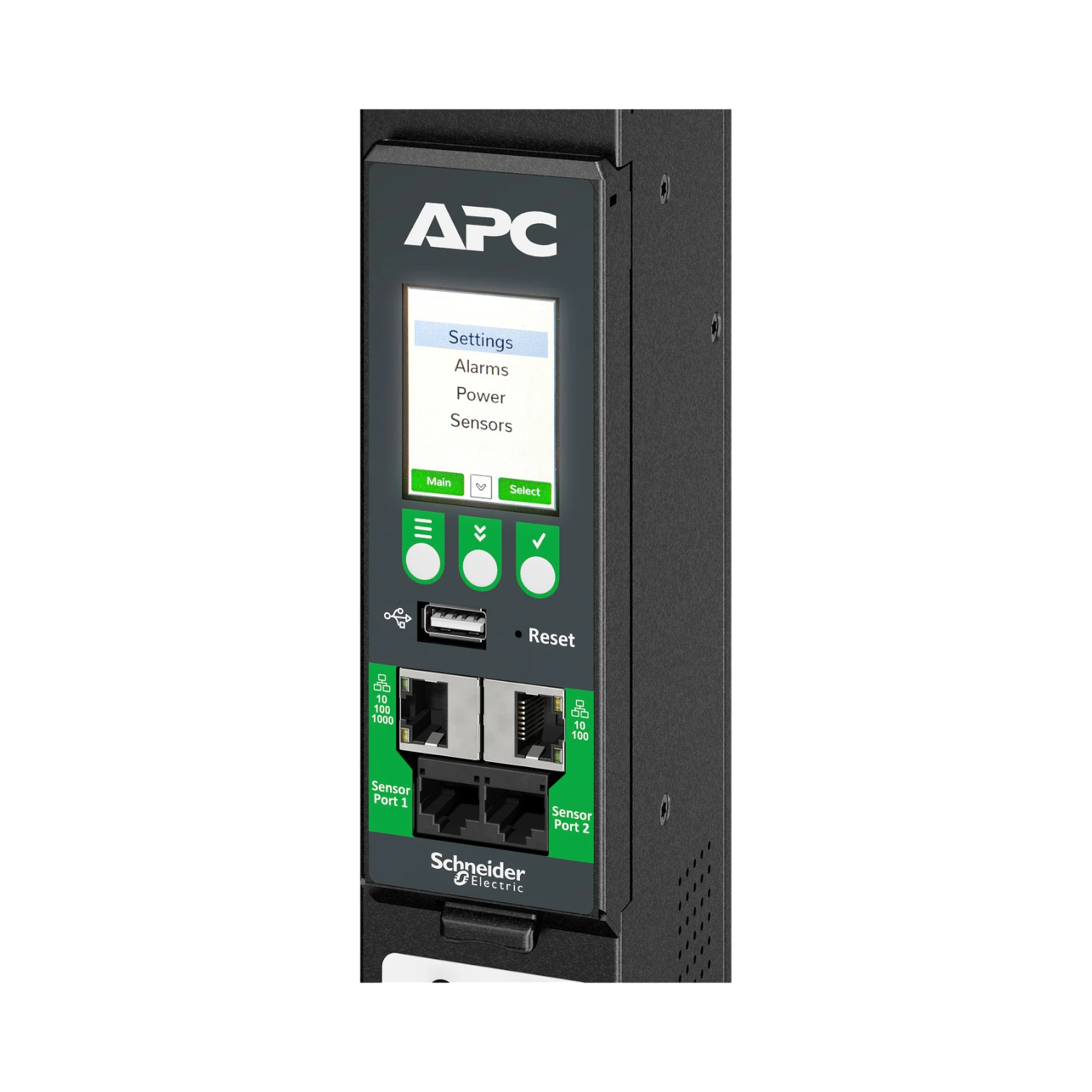

• Network management: Hot-swappable card with dual Ethernet ports
• Power metering accuracy: within 1%

Connectivity and compatibility

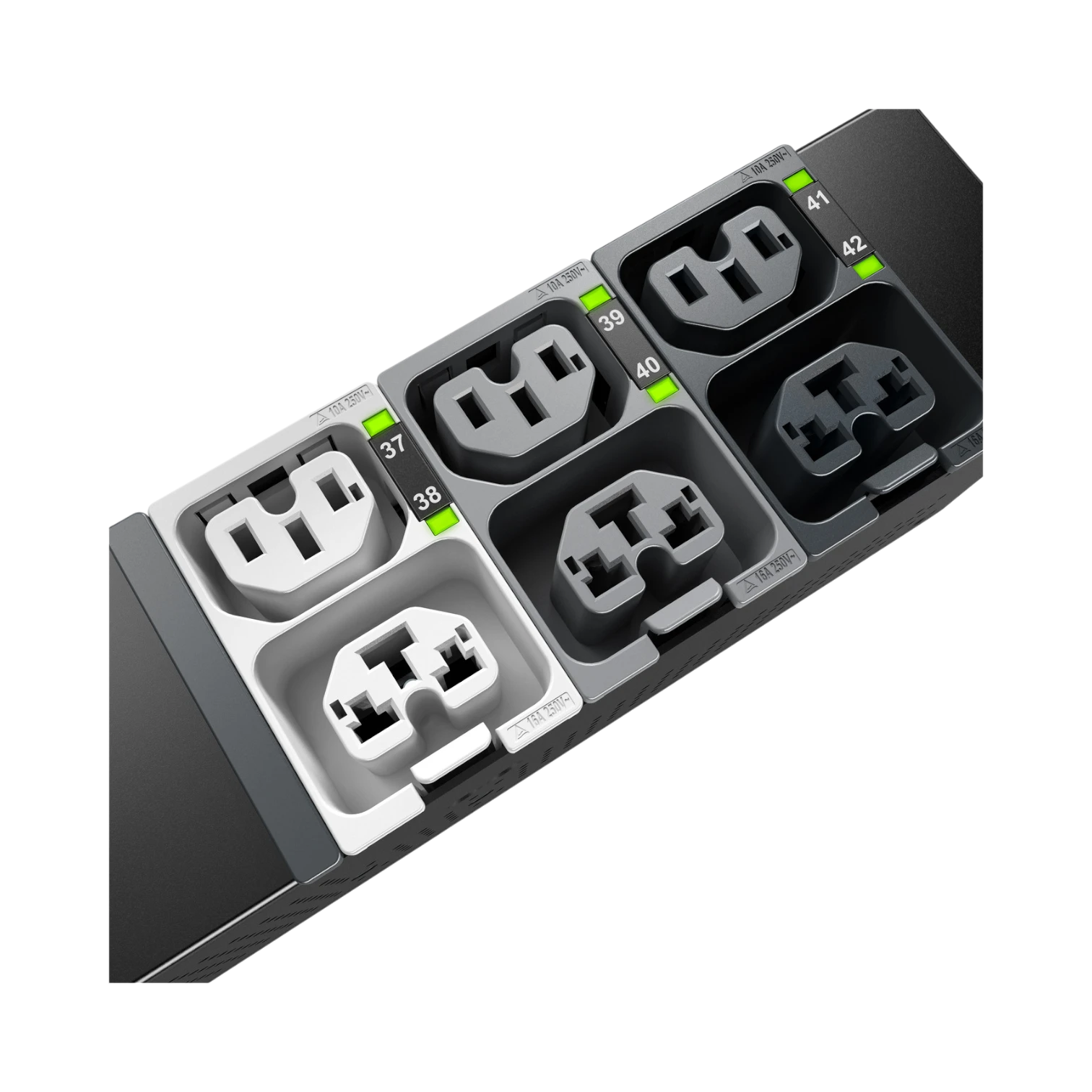

This PDU supports a wide range of rack-mounted equipment thanks to its 4-in-1 outlet design, which accepts C13, C15, C19, and C21 plugs. The dual Ethernet ports on the network management card allow for flexible network configurations, including daisy-chaining multiple PDUs or establishing redundant network paths to ensure continuous remote access and control.

• Supports mixed device types without adapters due to multi-standard outlets.
• Dual Ethernet ports for network redundancy or cascading multiple PDUs.
• Remote management compatible with SNMP, web interface, and CLI protocols.

Ideal uses and environments

This power distribution unit is well suited to data centers, colocation facilities, and edge computing sites that require precise power monitoring and high-density outlet availability. Its ability to operate in warm-aisle environments up to 140 °F (60 °C) makes it a strong choice for modern data centers where temperature control is critical. The vertical 0U design fits neatly into racks where space is at a premium, supporting dense equipment deployments without sacrificing outlet availability.

Data center managers and IT professionals who need accurate power metering and remote control capabilities will find this PDU meets their operational and monitoring needs effectively.
