Tripp Lite T020-001-PSF

Overview

The Tripp Lite T020-001-PSF is a multi-function optical fiber cable tester designed to verify the health and performance of fiber optic links up to 20 km in length. It combines a power meter, light source, and visual fault locator into a single handheld device, making it an essential tool for technicians working on installation, troubleshooting, and routine maintenance of fiber networks. The power meter supports six wavelengths, including 850, 1300, 1310, 1490, 1550, and 1625 nm, suitable for both single-mode and multimode fibers.

Key features

• Measures insertion loss, optical power, and signal continuity to ensure fiber link integrity
• Integrated light source provides stable output at 1310 and 1550 nm for accurate testing
• Visual fault locator with selectable frequencies helps identify breaks or bends visible through the fiber jacket
• Clear LCD screen displays numeric results that remain easy to read in various lighting conditions
• Includes FC connectors and supports optional SC, ST, and LC adapters for versatile cable compatibility
• Powered by three AA batteries that can be recharged via USB Micro-B port, reducing downtime and battery replacement needs
• Automatic shut-off feature conserves battery life between uses

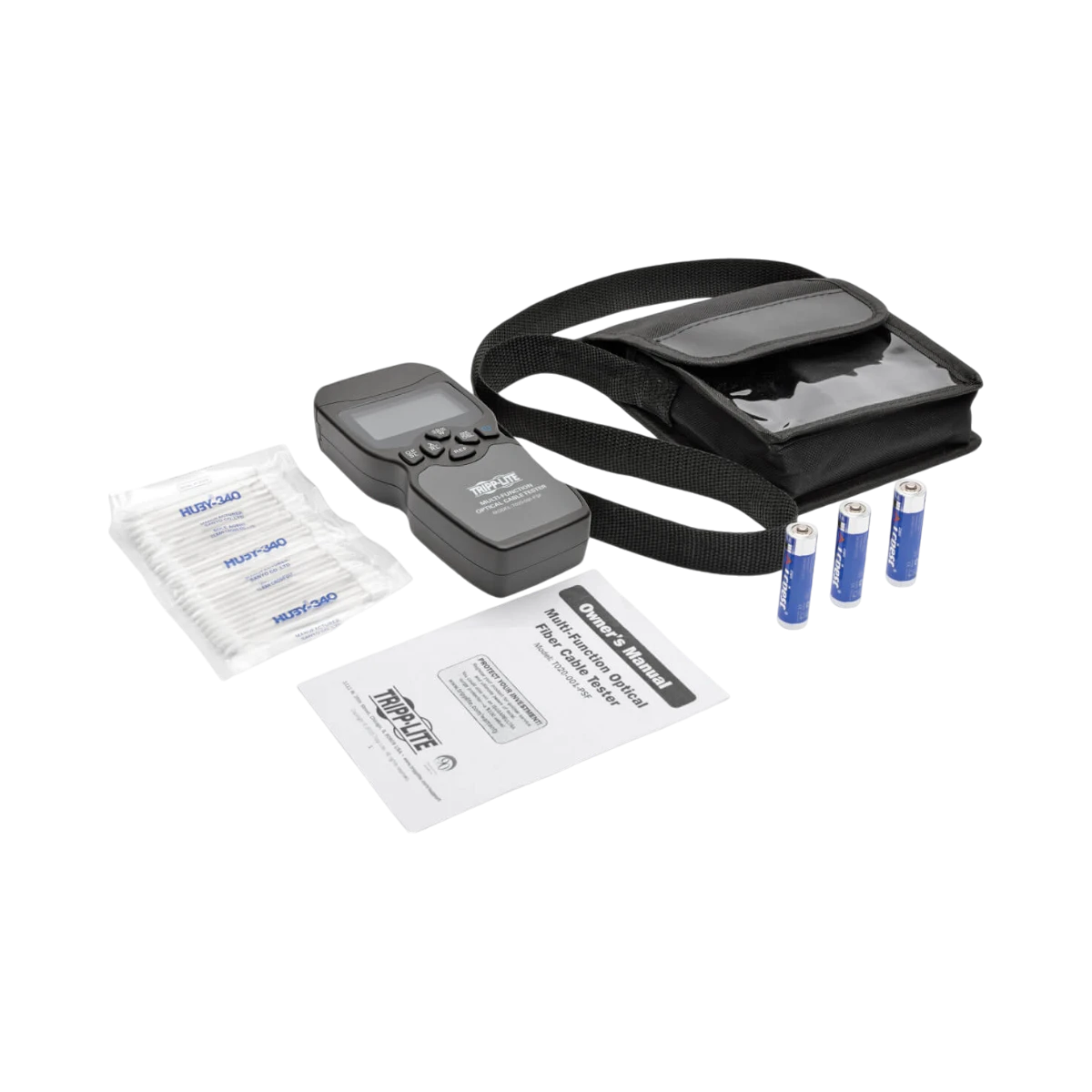

• Compact and portable design fits into the supplied carrying case for convenient transport and storage

Key specs

• Maximum test distance: 20 km
• Power meter wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm
• Light source wavelengths: 1310 nm and 1550 nm
• Connector types included: FC (with optional SC, ST, LC adapters)
• Power supply: 3 AA batteries, rechargeable via USB Micro-B
• Display: LCD numeric readout

Connectivity and compatibility

This tester supports a range of fiber optic connectors, making it adaptable to different network setups. It ships with FC connectors and accepts optional SC, ST, and LC adapters, allowing technicians to switch between cable types quickly without additional tools. This flexibility ensures compatibility with most common fiber optic cables used in data centers, telecom networks, and campus installations.

Performance and reliability

The device delivers precise measurements of optical power and insertion loss across multiple wavelengths, which is critical for maintaining high-quality fiber links. The visual fault locator aids in quickly locating physical faults, reducing troubleshooting time. Its rechargeable battery system and automatic shut-off feature enhance reliability during extended fieldwork, while the rugged carrying case protects the unit during transport.

Ideal uses and environments

The Tripp Lite T020-001-PSF is well suited for fiber installers, data center technicians, and telecom field crews who need to verify link integrity before service activation or after repairs. It also fits the needs of campus network managers conducting routine audits and contractors working on metropolitan fiber rings. Its portability and comprehensive testing capabilities make it a practical choice for diverse fiber optic environments.
