JBL AM5212/64

Overview

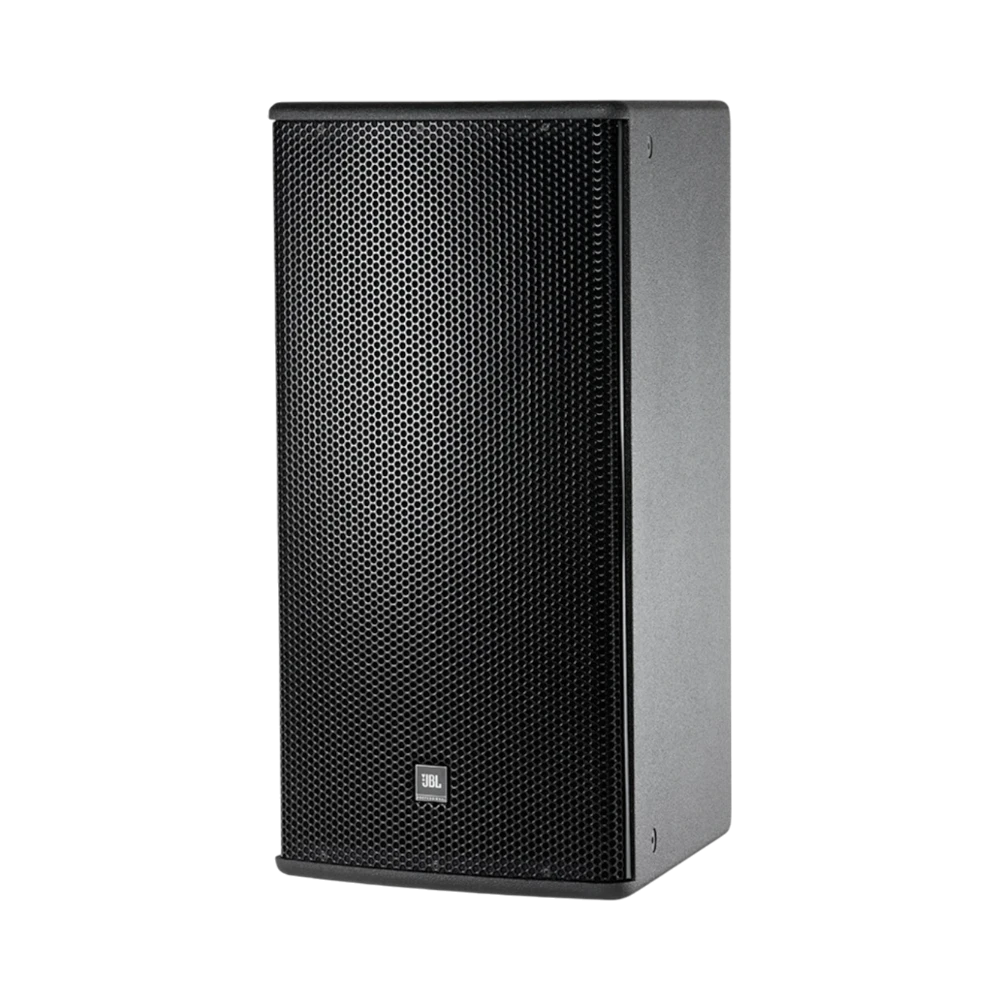

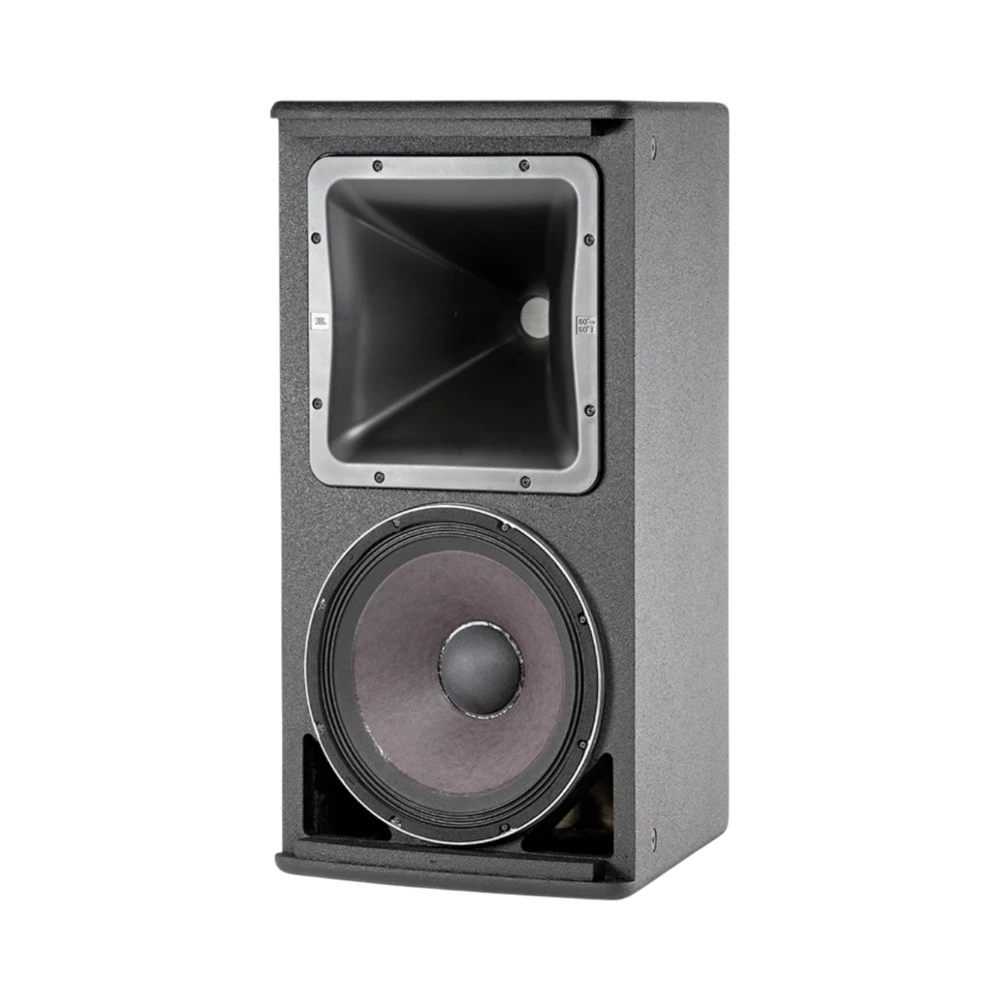

The JBL AM5212/64 is a passive two-way loudspeaker system designed to deliver clear and full-range audio for professional venues such as clubs, theaters, houses of worship, and corporate event spaces. It features a 12-inch low frequency driver with a dual voice coil and a 1.5-inch exit compression driver, providing a frequency response from 37 Hz to 20 kHz. This combination ensures tight lows, articulate mids, and crisp highs without requiring additional processing.

The speaker’s 60 by 40 degree horn offers controlled dispersion to focus sound on the audience while minimizing reflections from walls. Its rotatable waveguide allows for flexible vertical or horizontal mounting, adapting to different room layouts. With fifteen built-in mounting points, the enclosure supports various installation methods including flown clusters, wall brackets, and truss setups.

Key features

• Dual voice coil 12-inch low frequency driver delivers powerful and precise bass response
• 1.5-inch exit compression driver provides detailed and clear high frequencies
• Rotatable 60 by 40 degree horn allows flexible vertical or horizontal mounting while maintaining consistent coverage
• Switchable passive or bi-amp operation offers simple single-amp setups or advanced DSP control
• Robust cabinet made from eleven-ply birch plywood with a powder-coated steel grille for durability and stage-ready appearance
• Fifteen mounting points simplify installation in a variety of professional audio environments
• Efficient design with sensitivity ratings of 97 dB (low frequency) and 115 dB (high frequency) ensures strong output without overloading amplifiers
• Weighs 45 pounds, balancing sturdiness with portability for touring and quick setups

Key specs

• Frequency response: 37 Hz to 20 kHz
• Low frequency driver: 12-inch dual voice coil
• High frequency driver: 1.5-inch exit compression driver
• Coverage pattern: 60° horizontal by 40° vertical
• Power handling: 300 watts continuous
• Sensitivity: 97 dB (low frequency), 115 dB (high frequency)
• Cabinet material: Eleven-ply birch plywood
• Grille: Powder-coated steel
• Weight: 45 pounds
• Mounting points: 15 built-in

Connectivity and compatibility

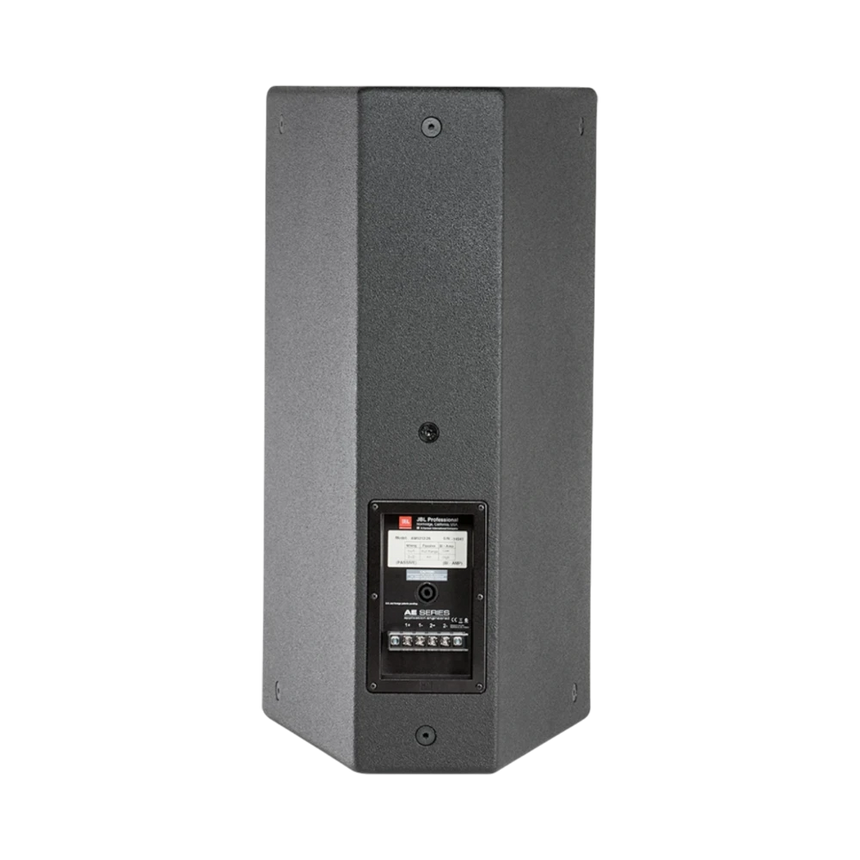

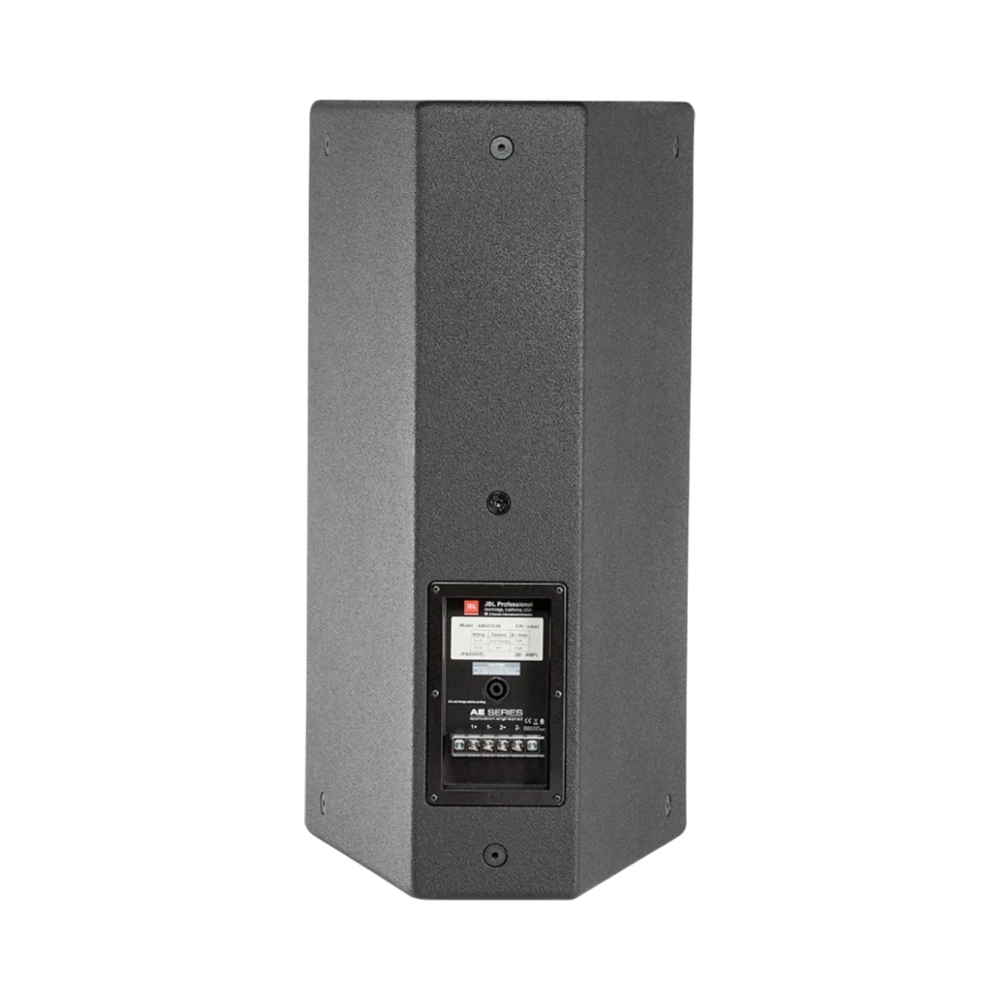

The AM5212/64 supports both passive and bi-amp wiring configurations, allowing integration with a wide range of amplifier setups. The rear panel switch enables easy selection between these modes, giving sound engineers flexibility to optimize system performance based on their equipment and venue requirements. This makes the speaker suitable for use in fixed installations or touring rigs where different amplification strategies may be preferred.

Ideal uses and environments

This loudspeaker system is well suited to venues that demand reliable, high-quality sound reinforcement. It works effectively in small to medium-sized clubs, theaters, houses of worship, and corporate event spaces where clear audio coverage and controlled dispersion are essential. The durable construction and manageable weight also make it a strong choice for touring professionals who need a speaker that can withstand frequent setup and teardown without compromising sound quality.
