Eaton EVMIL630X

Overview

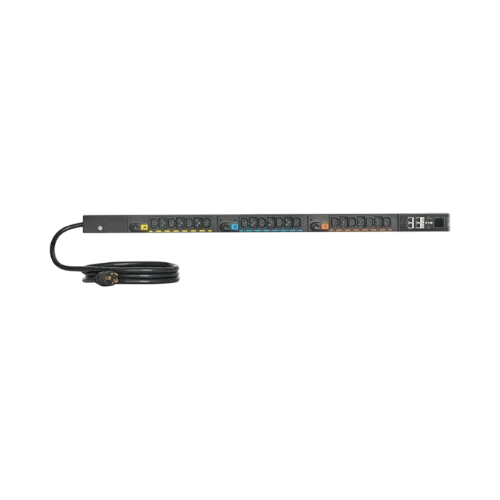

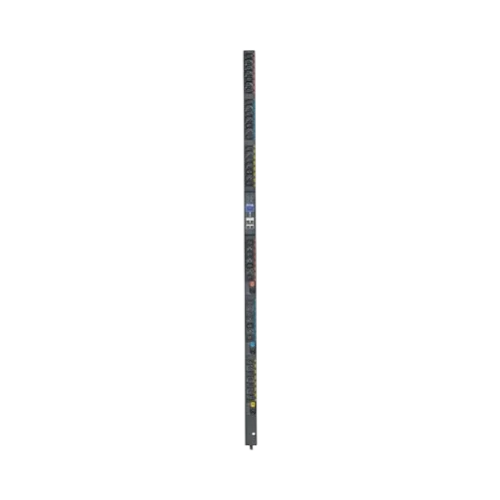

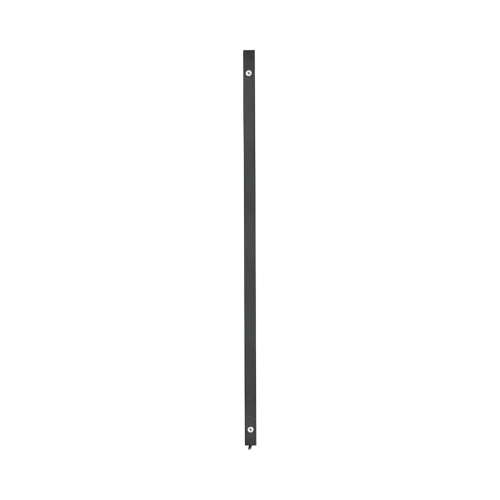

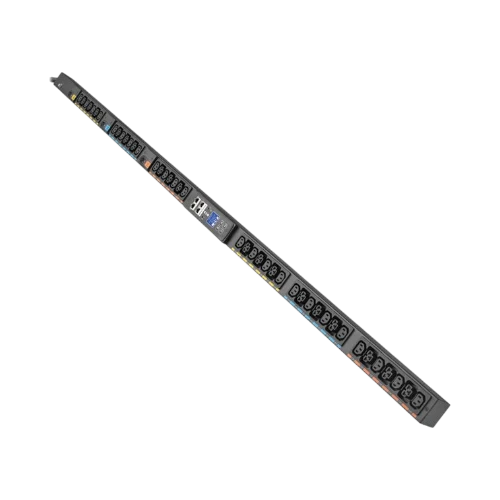

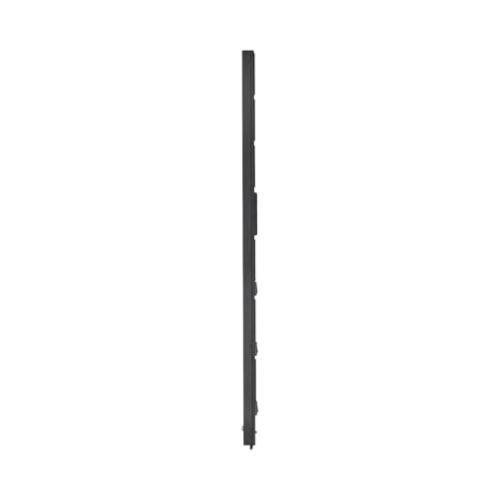

The Eaton EVMIL630X is a single-phase metered input rack power distribution unit designed to deliver reliable power management in large data centers and distributed IT environments. It features 42 outlets, including 24 standard C13 and 18 high-retention C39 combo outlets, supporting a power capacity of 5.8 kW at 208 volts and 24 amps. With a 10-foot power cord and L6-30 input, this PDU fits vertically in a 42U rack while providing flexible installation and robust power distribution for critical equipment.

Key features

• Versatile outlet configuration with 24 C13 and 18 high-retention C39 combo outlets to accommodate a wide range of devices.
• Secure firmware boot and chain-of-trust encryption protect against cyber threats, ensuring the integrity of your power infrastructure.
• Remote management capabilities via Ethernet and serial interfaces allow real-time monitoring and control of power usage, helping reduce downtime.
• Compatibility with Eaton Brightlayer Data Centers software enables integrated management of your data center’s power systems.
• Toolless mounting design simplifies installation in a 42U rack, saving time and effort during setup.
• Supports cascading up to 32 units, making it easy to scale power distribution across multiple racks as your infrastructure grows.
• Three 20A circuit breakers provide reliable overload protection to safeguard connected equipment.
• Aluminum housing with a narrow 2-inch profile maximizes rack space efficiency without compromising durability.
• Compliance with ICES, UL, cTUVus, FCC, and RoHS standards ensures safety and regulatory adherence in professional environments.

Key specs

• Input voltage: 208V AC
• Current rating: 24A
• Power capacity: 5.8 kW
• Outlets: 42 total (24 C13, 18 high-retention C39 combo)
• Input connector: L6-30
• Power cord length: 10 feet
• Circuit breakers: 3 x 20A
• Mounting: 0U vertical, fits 42U rack
• Housing material: Aluminum
• Profile width: 2 inches
• Standards compliance: ICES, UL, cTUVus, FCC, RoHS

Connectivity and compatibility

This PDU supports remote management through both Ethernet and serial interfaces, allowing IT teams to monitor power consumption and control the unit remotely. It integrates seamlessly with Eaton’s Brightlayer Data Centers software, providing a centralized platform for managing power distribution across your data center. The L6-30 input and 10-foot power cord offer flexible connection options to fit existing power infrastructure.

Installation and setup

The Eaton EVMIL630X is designed for straightforward installation with a toolless mounting system that fits vertically in a 42U rack without occupying rack units. Its narrow 2-inch profile helps conserve valuable rack space, and the unit supports cascading up to 32 PDUs, enabling easy expansion of power distribution as your data center grows. The included circuit breakers add an extra layer of protection during setup and operation.

Ideal uses and environments

This power distribution unit is well suited to high-density data centers and distributed IT setups that require reliable, secure, and scalable power management. It fits environments where space efficiency and remote monitoring are priorities, such as enterprise server rooms, colocation facilities, and network operations centers. IT professionals managing critical infrastructure will benefit from its robust security features and integration with Eaton’s management software.
