Sennheiser 509791

Overview

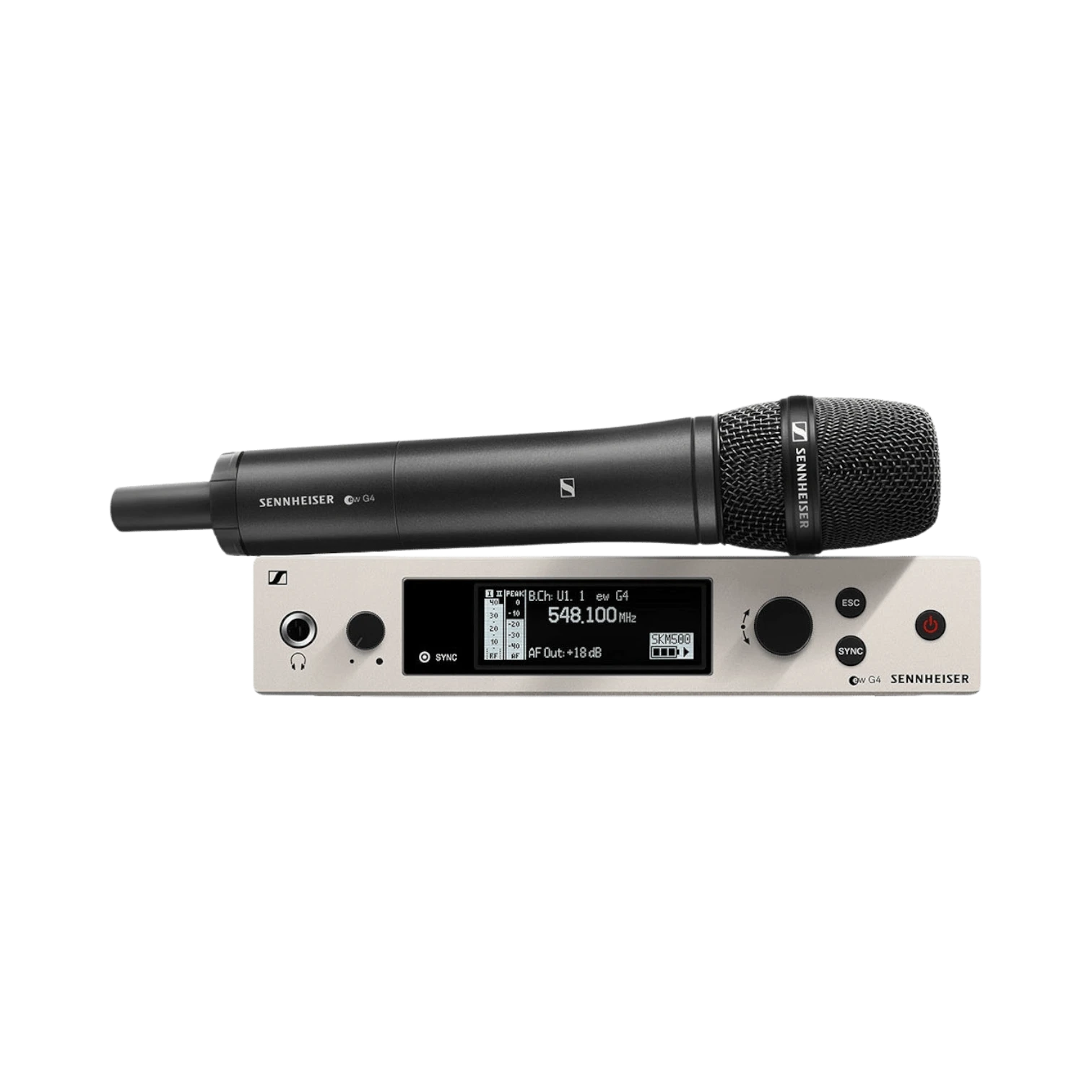

The Sennheiser 509791 is a wireless handheld microphone system designed for professional vocal performance and reliable audio transmission. Built on the Evolution Wireless 500 G4 platform and tuned for the GW1 frequency band, it features a rugged rackmount receiver paired with a handheld transmitter that houses the e965 true condenser capsule. This system offers up to 88 MHz of tuning range with 3,520 selectable frequencies, providing clear and detailed sound with a line-of-sight range of approximately 330 feet, making it suitable for large venues and complex setups.

Key features

• Operates within the GW1 band (558 MHz to 608 MHz) to avoid interference in busy RF environments
• Handheld transmitter includes the e965 condenser capsule with switchable cardioid and supercardioid pickup patterns for versatile vocal isolation
• Automatic channel scan and infrared sync simplify setup and ensure quick, reliable frequency matching
• Supports up to 32 linked channels in a single band, ideal for multi-microphone configurations
• Front-panel OLED display provides real-time information on RF strength, audio level, frequency, and battery status, with dimming for low-light conditions
• Ethernet port enables remote control and monitoring through Sennheiser Wireless Systems Manager software
• Durable metal housings on both transmitter and receiver withstand the rigors of touring and frequent use
• Up to eight hours of operation on standard AA batteries, supporting long performances without interruption
• Backward compatibility with earlier Evolution Wireless systems protects existing equipment investments
• Includes all necessary accessories such as antennas, rackmount kit, microphone clip, and power supply for immediate use

Key specs

• Frequency range: 558 MHz to 608 MHz (GW1 band)
• Tuning range: up to 88 MHz
• Selectable frequencies: 3,520
• Maximum linked channels per band: 32
• Operating range: approximately 330 feet line-of-sight
• Microphone capsule: e965 true condenser
• Pickup patterns: switchable cardioid and supercardioid
• Battery type: standard AA batteries
• Battery life: up to 8 hours
• Receiver outputs: balanced XLR and unbalanced 1/4 inch
• Display: front-panel OLED with dim and warning indicators
• Housing: metal for transmitter and receiver

Connectivity and compatibility

The receiver offers both balanced XLR and unbalanced 1/4 inch outputs, allowing easy integration with a wide range of mixing consoles and audio systems. The Ethernet port supports connection to Sennheiser’s Wireless Systems Manager software, enabling remote control and monitoring of multiple channels from a central location. Compatibility with previous Evolution Wireless systems ensures seamless integration into existing setups, making it a flexible choice for expanding or upgrading your wireless microphone inventory.

Ideal uses and environments

This wireless microphone system is well suited to touring musicians, rental companies, large houses of worship, and conference venues that require multiple wireless channels operating simultaneously. Its robust build and reliable range make it a strong choice for live performances where freedom of movement and clear vocal reproduction are essential. The switchable pickup patterns help tailor the sound to different stage environments, whether isolating vocals from drums or minimizing crowd noise during presentations.

What’s included

• Handheld transmitter with e965 condenser capsule
• Rackmount receiver unit
• Antennas for receiver
• Rackmount kit for easy installation
• Microphone clip for handheld transmitter
• Power supply for receiver
