Hanwha Vision SBP-250HMW

Overview

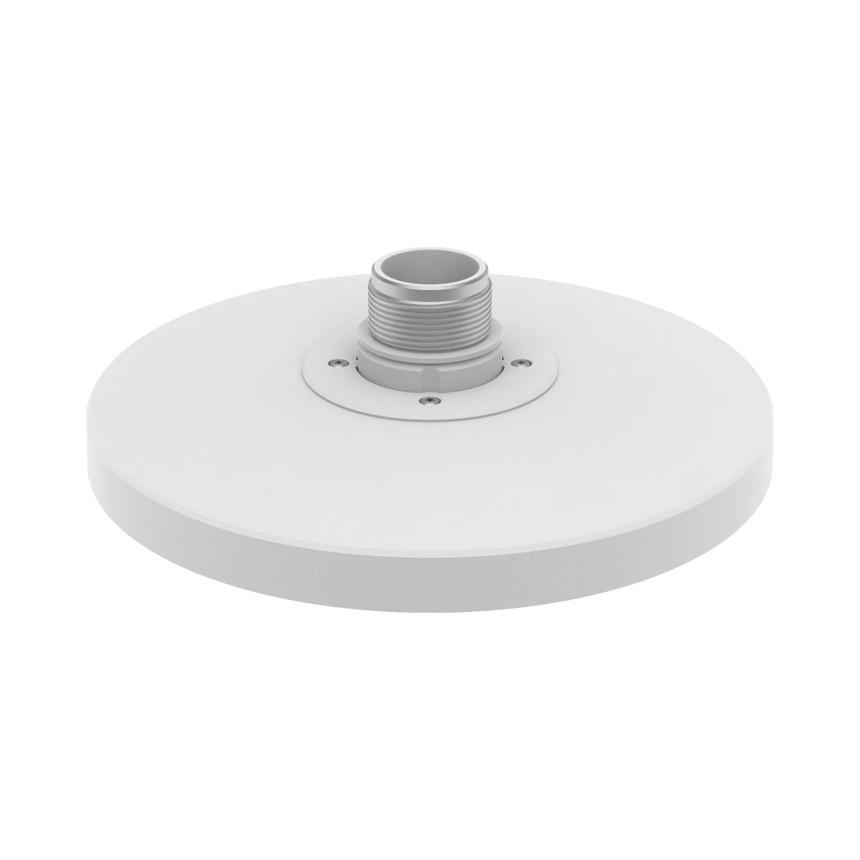

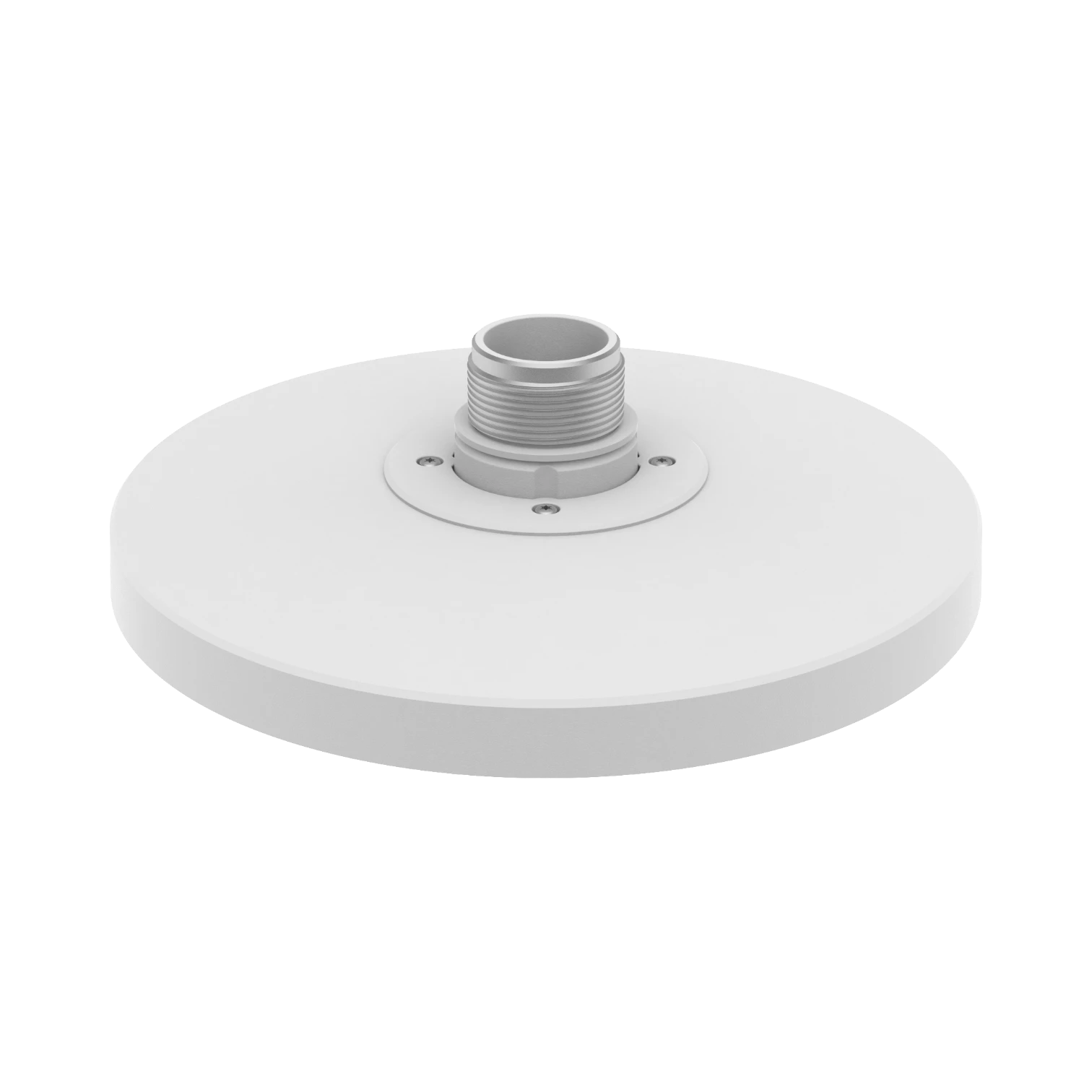

The Hanwha Vision SBP-250HMW is a hanging cap adapter designed to securely suspend Hanwha Vision multi-sensor cameras from ceilings or mounting poles. It features a PF 1 1/2 inch male thread and a TR20 mount screw, making it compatible with models like the PNM-9084QZ and PNM-C16083RVQ. With a sturdy aluminum core and a white plastic cover finished in RAL 9003, this adapter supports camera assemblies up to 3.5 kg while maintaining a low profile and neat appearance.

Key features

• PF 1 1/2 inch male thread allows direct attachment to ceilings or poles without extra hardware
• TR20 mount screw provides a secure and stable connection for multi-sensor cameras
• Aluminum core ensures strength and durability while keeping weight low
• White plastic cover blends with standard ceiling colors, reducing the need for additional painting
• Design conceals cabling and junction points for a clean, professional installation
• Lightweight at 450 g, minimizing load on suspended ceilings or brackets with weight limits
• Dimensions offer enough surface area to hide wiring while remaining unobtrusive

Key specs

• Compatibility: Hanwha Vision multi-sensor cameras including PNM-9084QZ and PNM-C16083RVQ
• Thread type: PF 1 1/2 inch male
• Mount screw: TR20
• Maximum supported weight: 3.5 kg
• Material: Aluminum core with white plastic cover (RAL 9003)
• Dimensions: 265 mm diameter, 74 mm height
• Weight: 450 g

Installation and setup

This adapter simplifies the installation process by allowing integrators to route cables through the threaded opening and lock the camera securely with the TR20 screw. Its design reduces installation time by eliminating the need for additional mounting hardware or touch-up paint, making it ideal for fast-paced projects in commercial or institutional environments.

Ideal uses and environments

The SBP-250HMW fits well in retail spaces, offices, classrooms, and warehouses where multi-sensor cameras require stable mounting and a tidy appearance. It is a strong choice for installers who need a reliable, visually consistent solution that supports cameras without adding excessive weight or complexity to the mounting structure.
