APC SBP5000RMT2U

Overview

The APC SBP5000RMT2U is a service bypass panel designed to maintain continuous power to critical equipment while performing maintenance on a compatible UPS. It supports 200, 208, and 240 volt circuits at up to 30 amps, delivering a 5000 volt-ampere capacity. This panel fits into 2U of rack space and features a break-before-make transfer design that safely disconnects the UPS before rerouting power, ensuring uninterrupted operation for servers, storage arrays, and network devices.

Key features

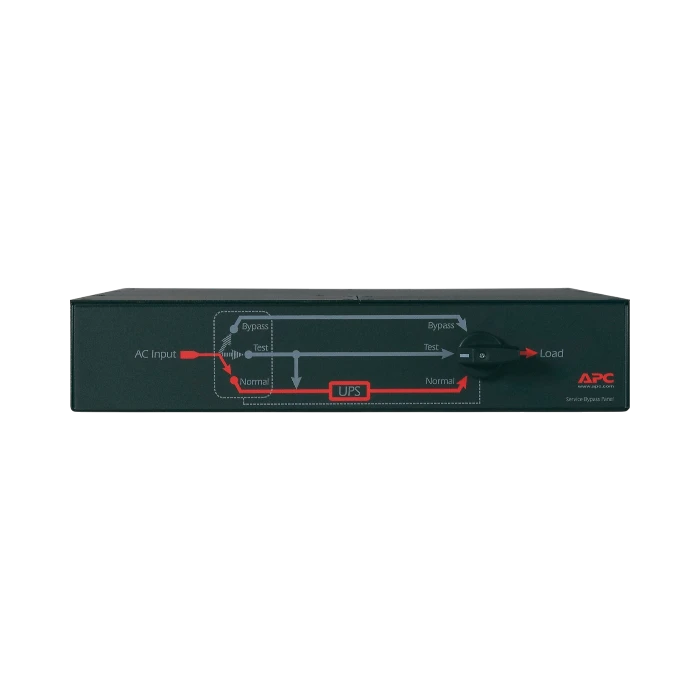

• Break-before-make transfer mechanism that prevents power interruption during UPS maintenance

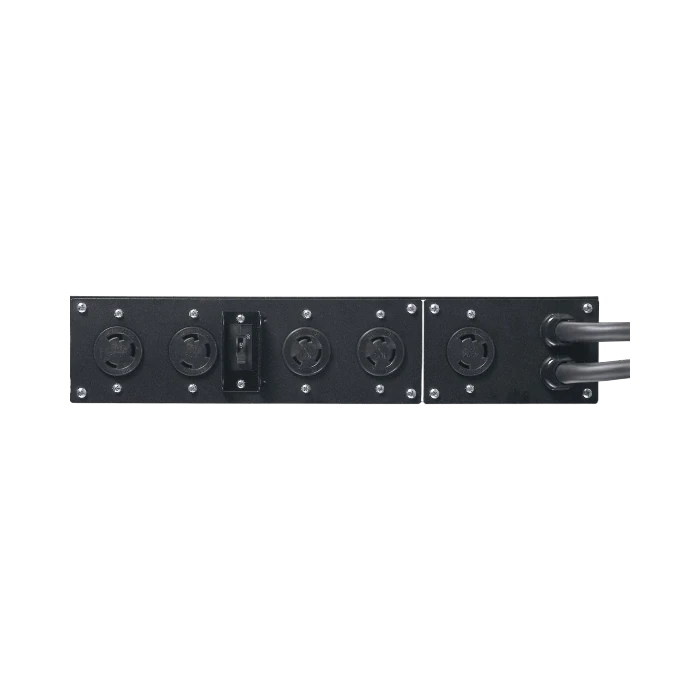

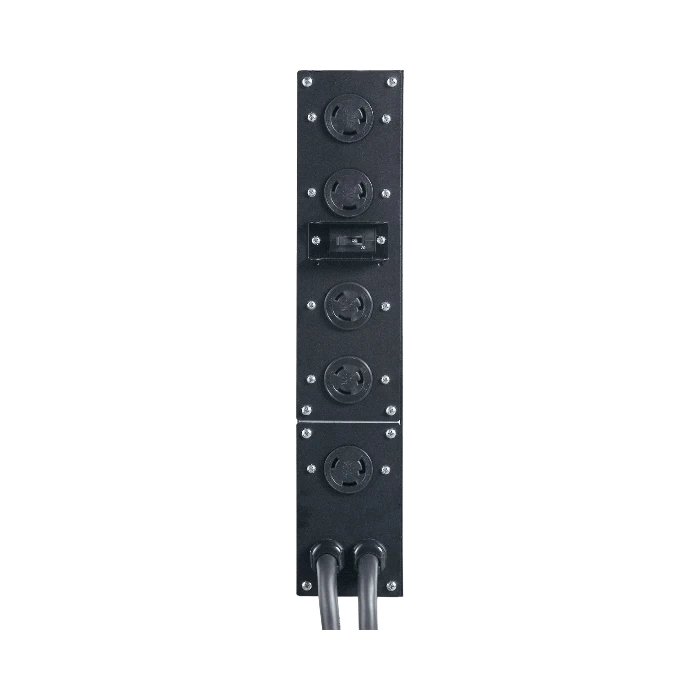

• Four locking outlets including two NEMA L6-30R and two NEMA L6-20R to accommodate devices with varying current requirements
• 10-foot NEMA L6-30P input cord allowing flexible placement within rack environments
• Built-in circuit breakers that protect connected equipment from overloads
• High operating efficiency of 99 percent to minimize energy loss during power transfer
• Includes mounting brackets and a detailed installation guide for straightforward setup in standard 2U rack space
• Operates reliably across a wide temperature range from -4 to 122°F and supports both 50 and 60 Hz frequencies

Key specs

• Input voltage compatibility: 200, 208, and 240 volts
• Current capacity: 30 amps
• Power capacity: 5000 volt-amperes (VA)
• Input connector: NEMA L6-30P with 10-foot power cord
• Output connectors: (2) NEMA L6-30R and (2) NEMA L6-20R locking outlets
• Rack space required: 2U
• Operating frequency: 50/60 Hz
• Operating temperature range: -4 to 122°F

Connectivity and compatibility

This bypass panel is compatible with UPS systems that support 200 to 240 volt input and output, making it suitable for a variety of rack-mounted power protection setups. The mix of NEMA L6-30R and L6-20R outlets allows connection of both high and moderate current devices, providing flexibility for diverse equipment configurations in data centers and network closets.

Installation and setup

Installation is designed to be simple and efficient with included mounting brackets and a comprehensive guide. The 10-foot input cord offers freedom to position the panel optimally within the rack, while the 2U form factor ensures it fits standard rack spaces without occupying excessive room. Built-in circuit breakers add an extra layer of safety during setup and operation.

Ideal uses and environments

This service bypass panel is well suited to small and midsize data centers, network closets, laboratories, and edge computing sites where maintaining uptime is critical. It enables IT professionals to perform UPS maintenance tasks such as battery replacement or firmware updates without interrupting power to essential equipment, reducing downtime and avoiding off-hour service windows.
