JBL AWC82-BK

Overview

The JBL AWC82-BK is a passive coaxial loudspeaker designed for outdoor and challenging environments where reliable sound performance is essential. It features an 8 inch Kevlar-reinforced woofer paired with a 1 inch ferrofluid-cooled high frequency driver, delivering up to 250 watts of continuous power and reaching peak sound levels of 124 decibels. This combination ensures clear announcements and energetic music playback across a wide frequency range from 80 hertz to 20 kilohertz.

Its robust ABS enclosure with an IP56 rating and heavy steel grille protect the speaker from rain, dust, and impact, making it suitable for installations exposed to the elements. The included U bracket allows for flexible mounting on walls, columns, or overhead structures, while the built-in multi-tap transformer supports 70 volt and 100 volt distributed audio systems without extra equipment.

Key features

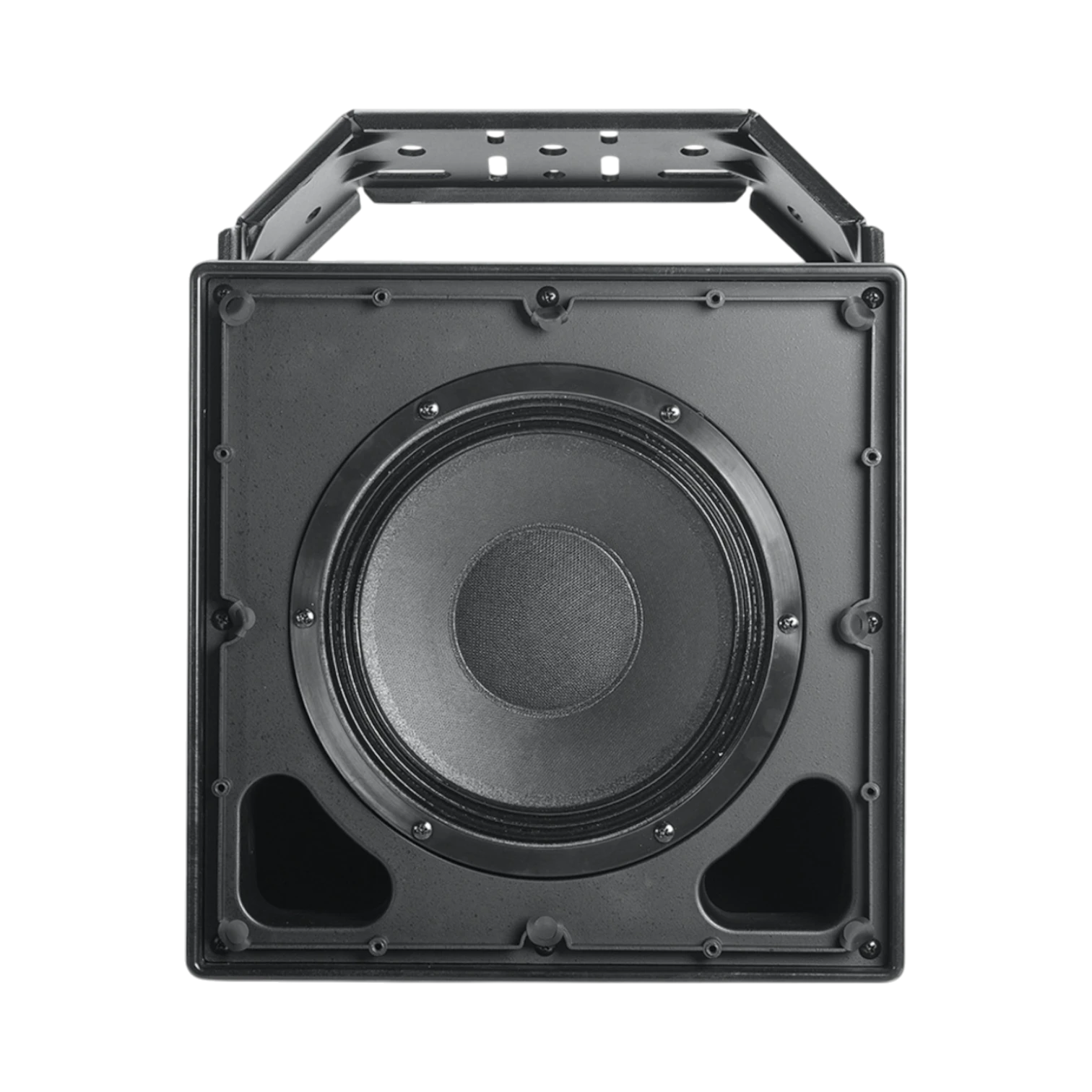

• Kevlar-reinforced 8 inch woofer and ferrofluid-cooled 1 inch high frequency driver provide balanced sound with clear midrange and crisp highs
• Wide 120 by 120 degree coverage pattern ensures even sound distribution without hot spots, simplifying speaker placement
• Durable IP56-rated ABS enclosure and heavy steel grille protect against weather, dust, and physical damage for long-lasting outdoor use
• Built-in multi-tap transformer allows easy integration with 70 volt and 100 volt distributed audio systems, reducing installation complexity

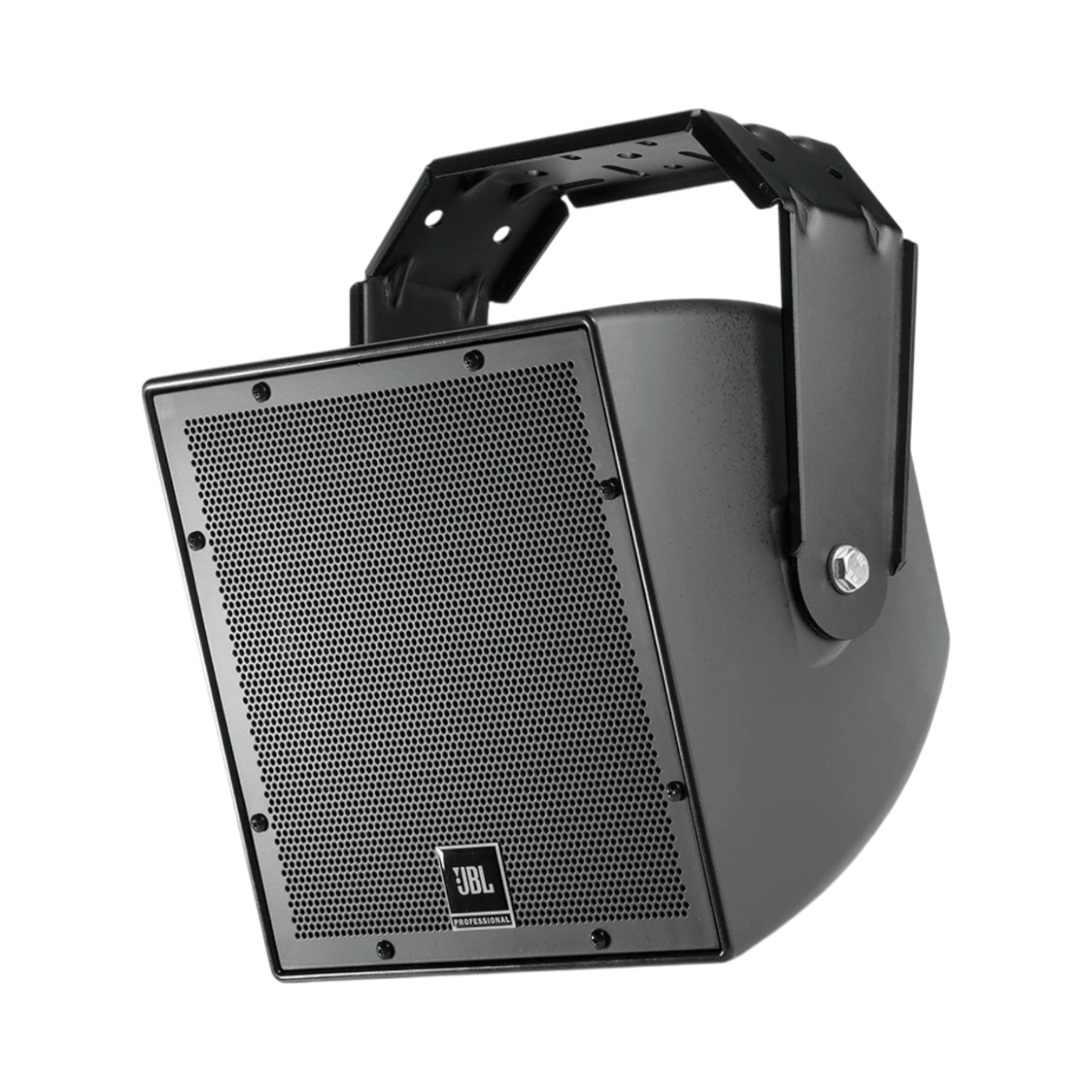

• U bracket included for quick and secure mounting with flexible aiming options on various surfaces
• High peak output of 124 decibels cuts through ambient noise, making it effective for public announcements and background music in busy environments

Key specs

• Woofer size: 8 inch with Kevlar reinforcement
• High frequency driver: 1 inch, ferrofluid cooled
• Power handling: 250 watts continuous
• Peak output: 124 decibels
• Frequency response: 80 Hz to 20 kHz
• Coverage pattern: 120° horizontal by 120° vertical
• Enclosure material: ABS plastic with IP56 rating
• Grille: Heavy steel
• Transformer taps: Multi-tap for 70 V and 100 V systems

Connectivity and compatibility

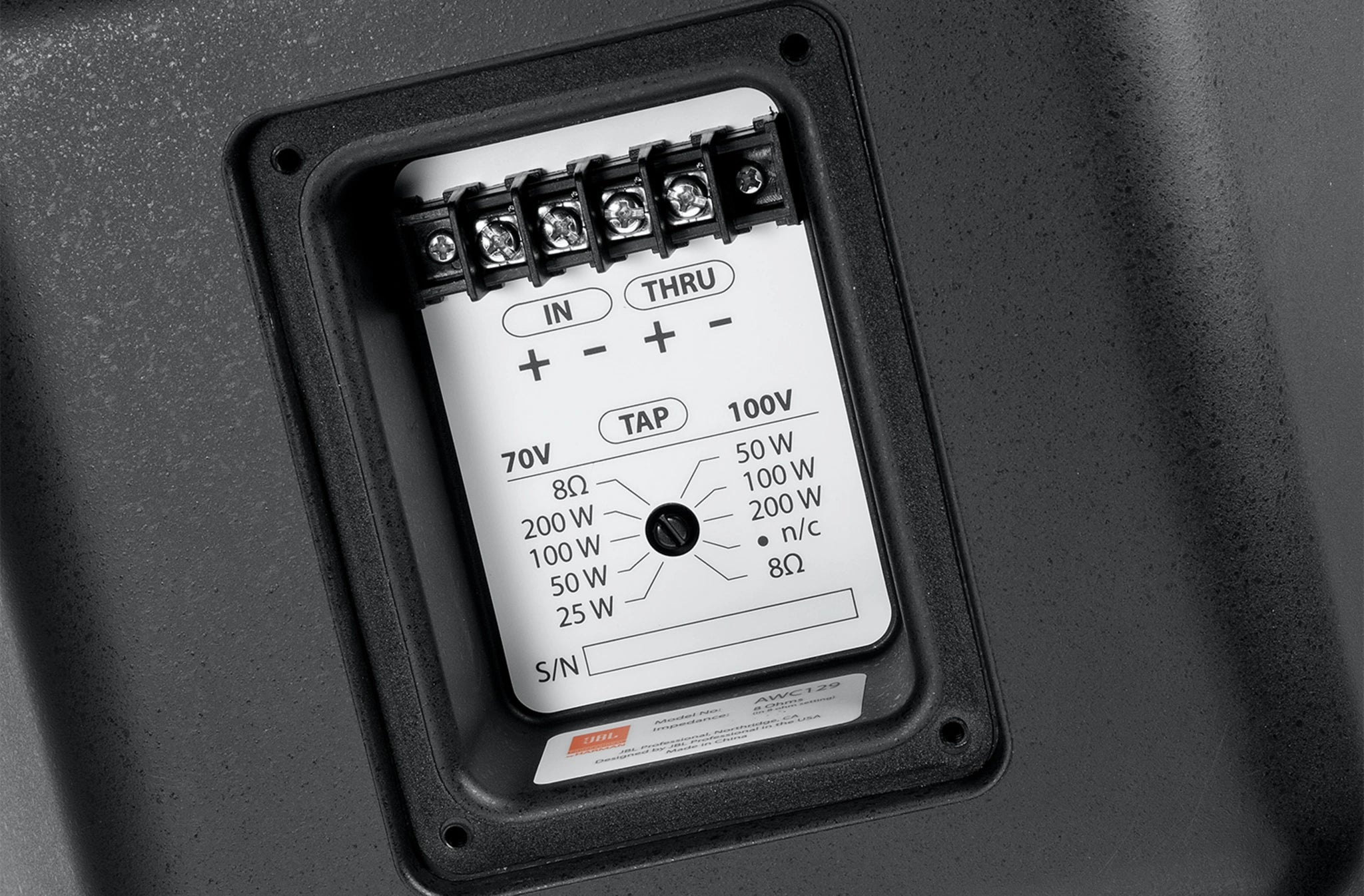

The built-in multi-tap transformer supports connection to both 70 volt and 100 volt distributed audio lines, which are common in commercial and outdoor sound systems. This feature eliminates the need for external transformers, streamlining installation and reducing additional hardware costs. The speaker’s passive design requires an external amplifier capable of delivering up to 250 watts continuous power.

Ideal uses and environments

This loudspeaker is well suited for outdoor venues such as restaurant patios, school sports fields, shopping centers, houses of worship, and cruise ship decks. Its weather-resistant construction and wide coverage pattern make it a strong choice for locations that demand consistent sound quality despite exposure to sun, rain, and temperature changes. It performs reliably in public address applications and background music systems where clear voice reproduction and musical detail are important.
