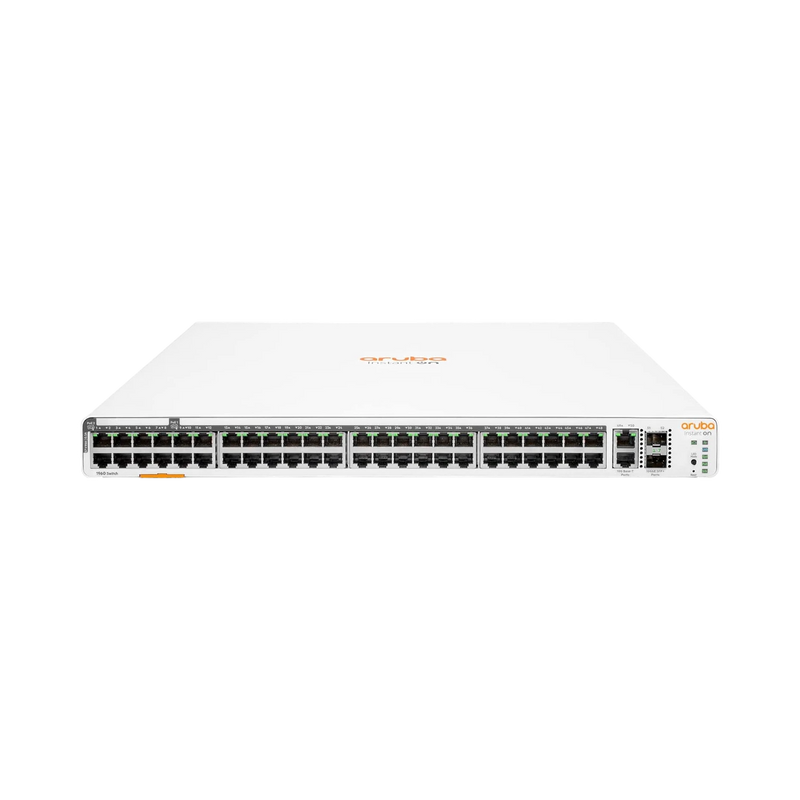

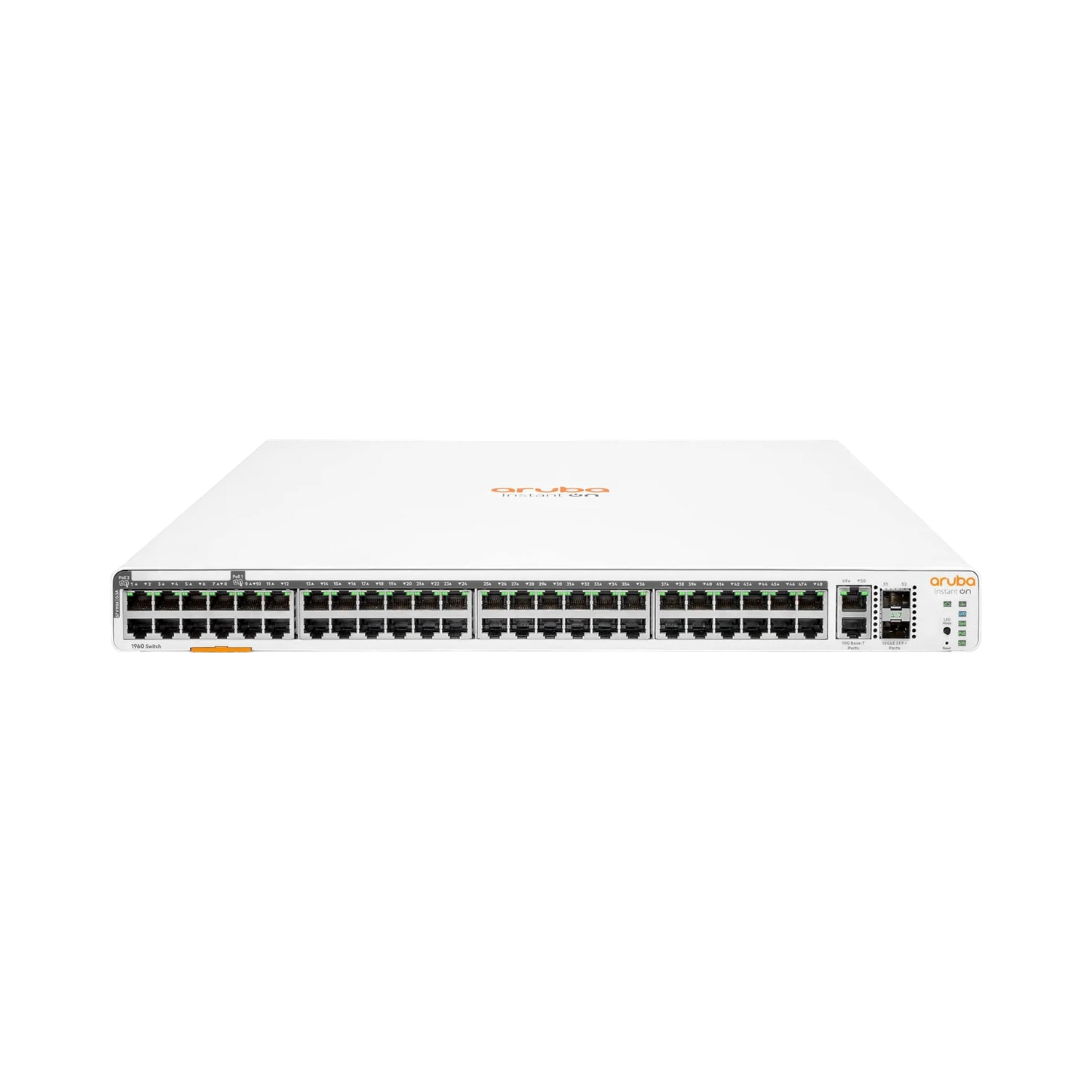

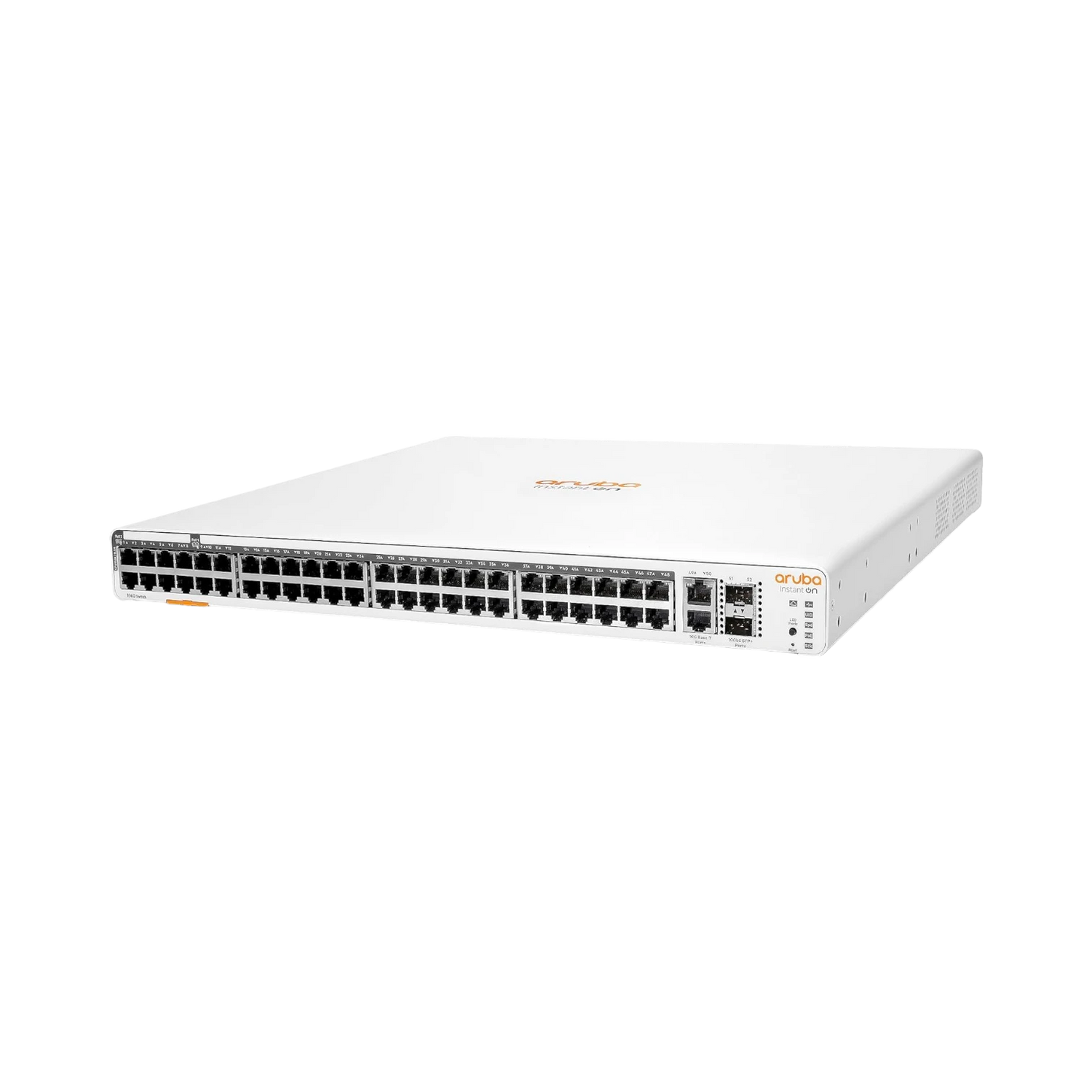

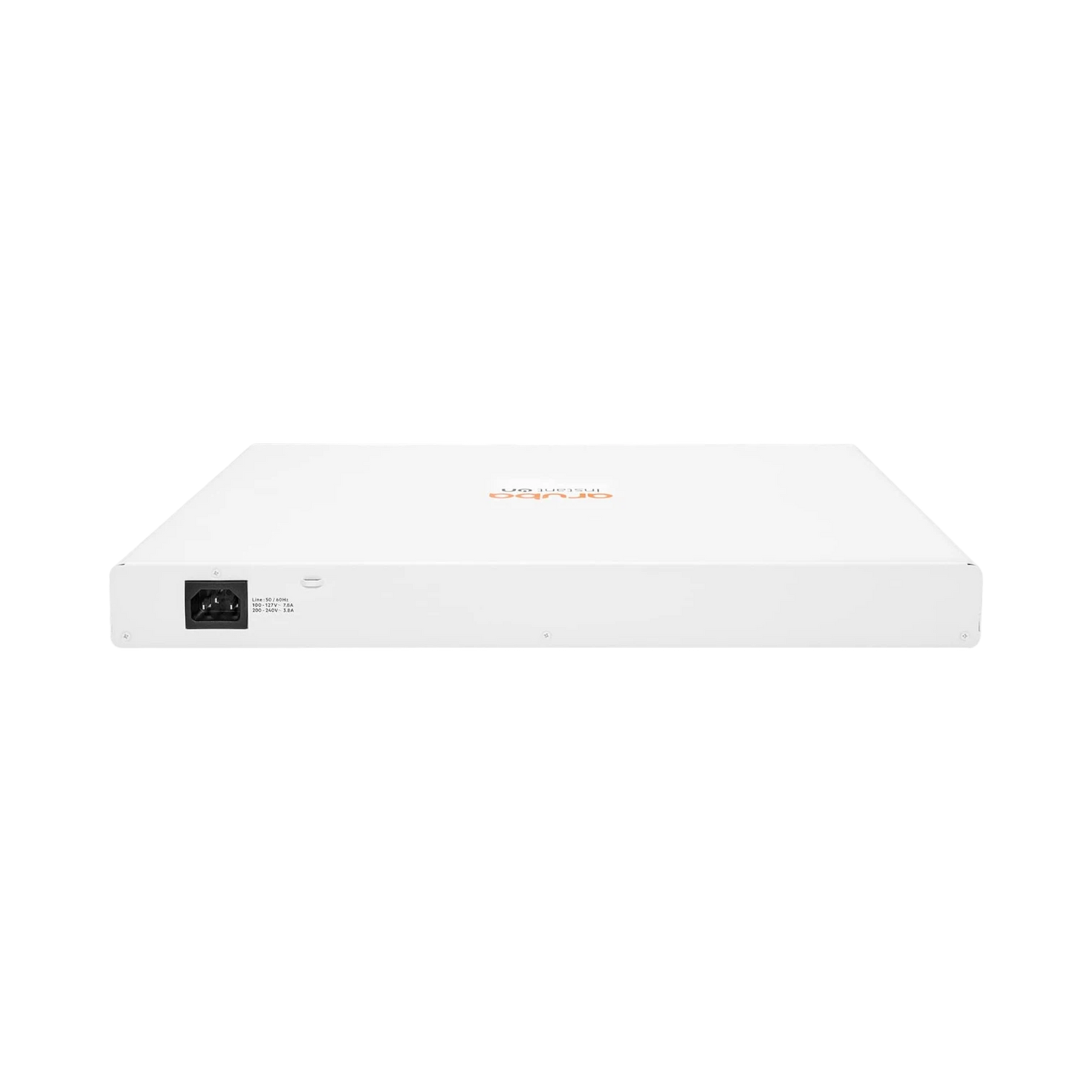

Aruba Networking Instant On 1960 48-Port Gigabit PoE++ Switch

The Aruba JL809A#ABA is a smart managed network switch designed for small and growing businesses that want enterprise-grade speed and flexibility without the usual complexity. It combines reliable Gigabit connectivity with high-power PoE++, giving you the freedom to run access points, security cameras, VoIP phones, and other devices over the same cable that carries their data.

The switch supplies 48 Gigabit Ethernet PoE++ ports backed by a generous 600 W power budget. Two 10 G RJ45 ports and two 10 G SFP+ fiber slots handle uplinks to servers, storage, or aggregation switches, while a switching capacity of 176 Gb/s and a forwarding rate of 131 Mpps keep traffic moving smoothly even during peak usage. The rack-mountable chassis slips easily into a standard equipment rack, making it a natural fit for retail locations, branch offices, and shared workspaces that expect their network to grow.

Managing the JL809A#ABA is straightforward whether you are on-site or remote. Use the local web interface for quick configuration, or tap into the Aruba Instant On mobile app and cloud portal to monitor and adjust settings from anywhere. Features such as VLAN segmentation, Access Control Lists, 802.1X authentication, and automatic DoS protection help secure your data and users. When it is time to expand, cloud-managed stacking lets you combine up to four switches and operate them as a single unit, simplifying administration while scaling bandwidth and port count.

• 48 Gigabit Ethernet PoE++ ports with a 600 W power budget
• 2 10 G RJ45 uplink ports for high-speed copper connections
• 2 10 G SFP+ slots for fiber uplinks or stacking
• 176 Gb/s switching capacity and 131 Mpps forwarding rate
• Smart managed through local web GUI, Instant On mobile app, or cloud portal
• Cloud-managed stacking for up to four switches
• Security features that include VLANs, Access Control Lists, and 802.1X authentication
• Automatic DoS protection to safeguard the network
• Rack-mountable design suited to retail, branch, or coworking environments
