Canon 5157C002

Overview

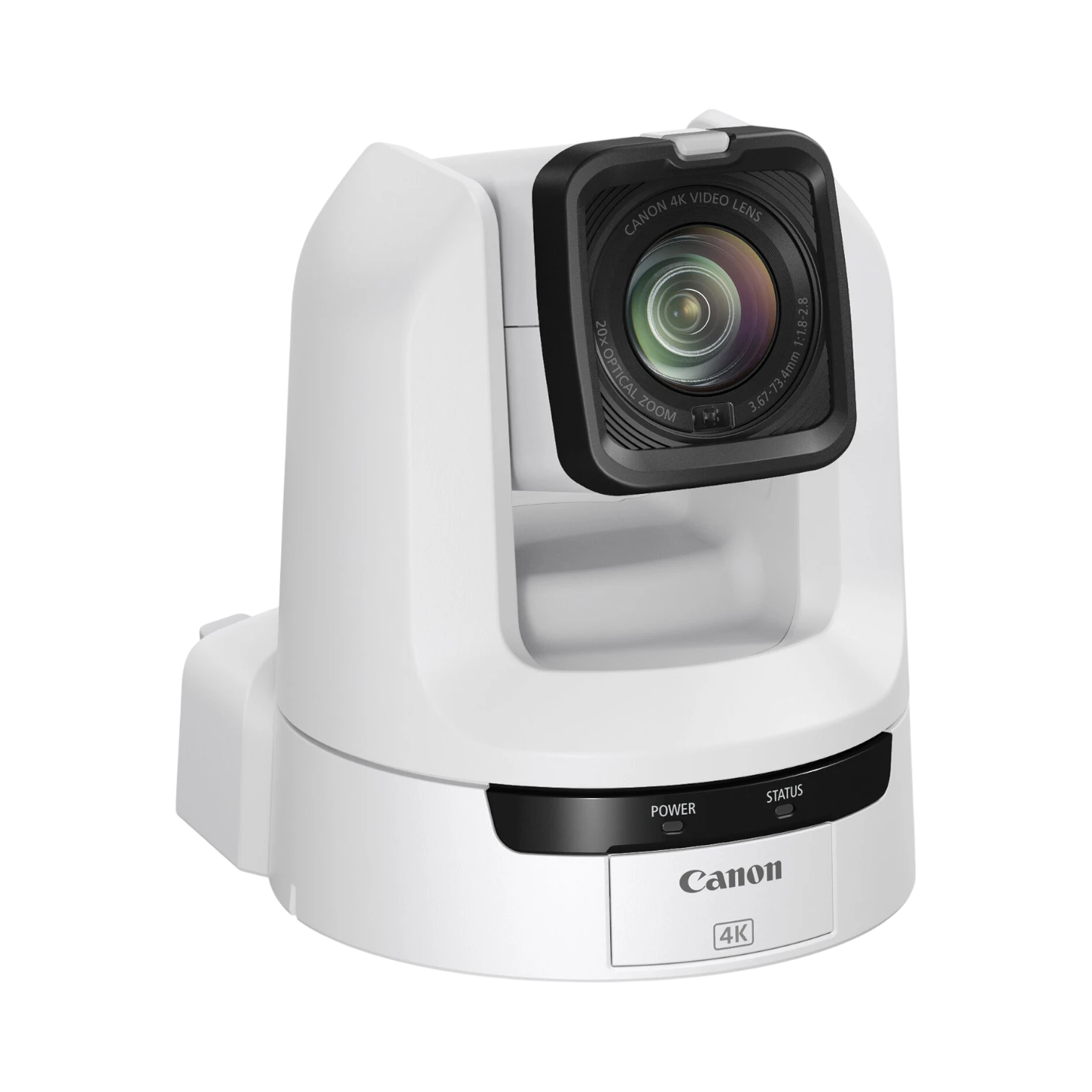

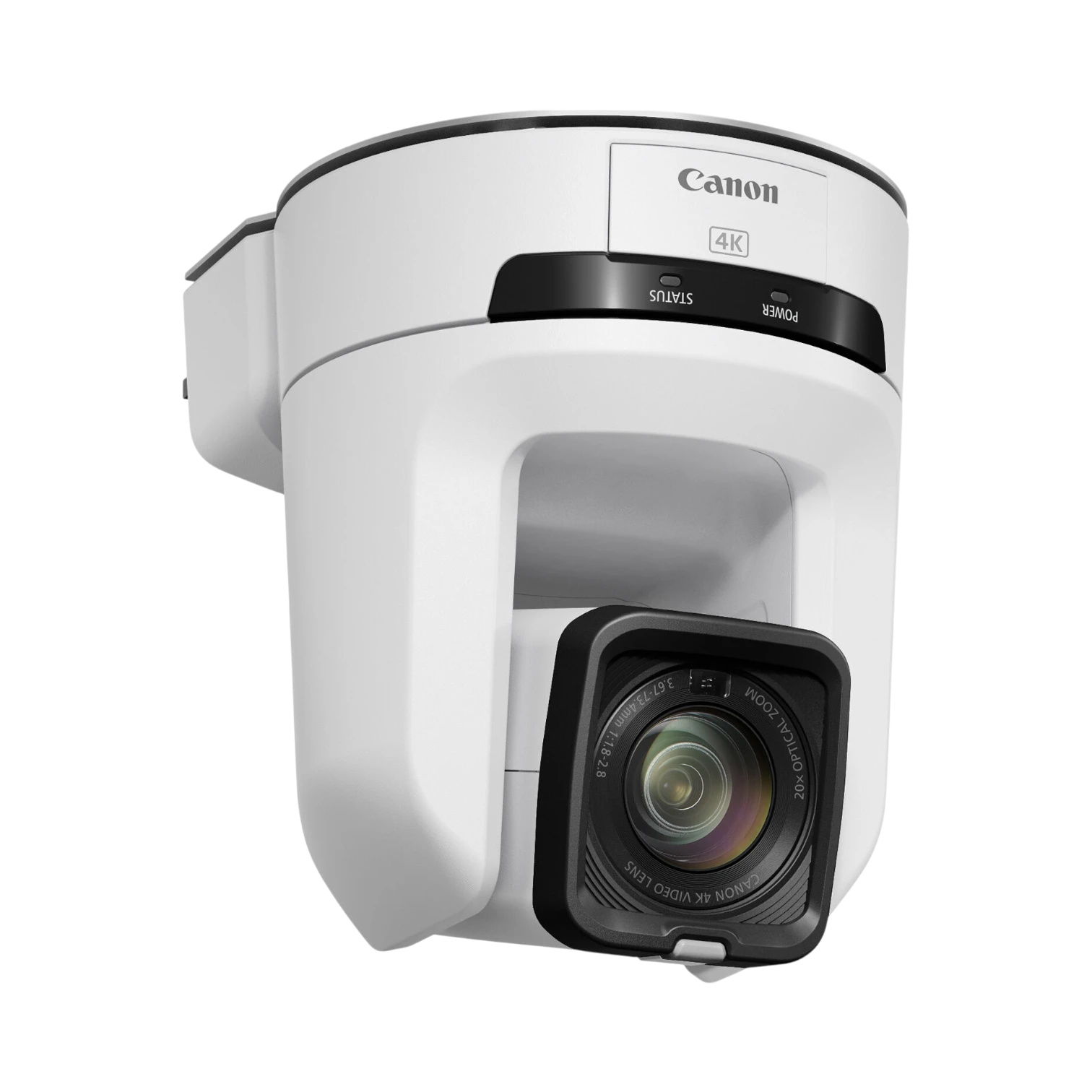

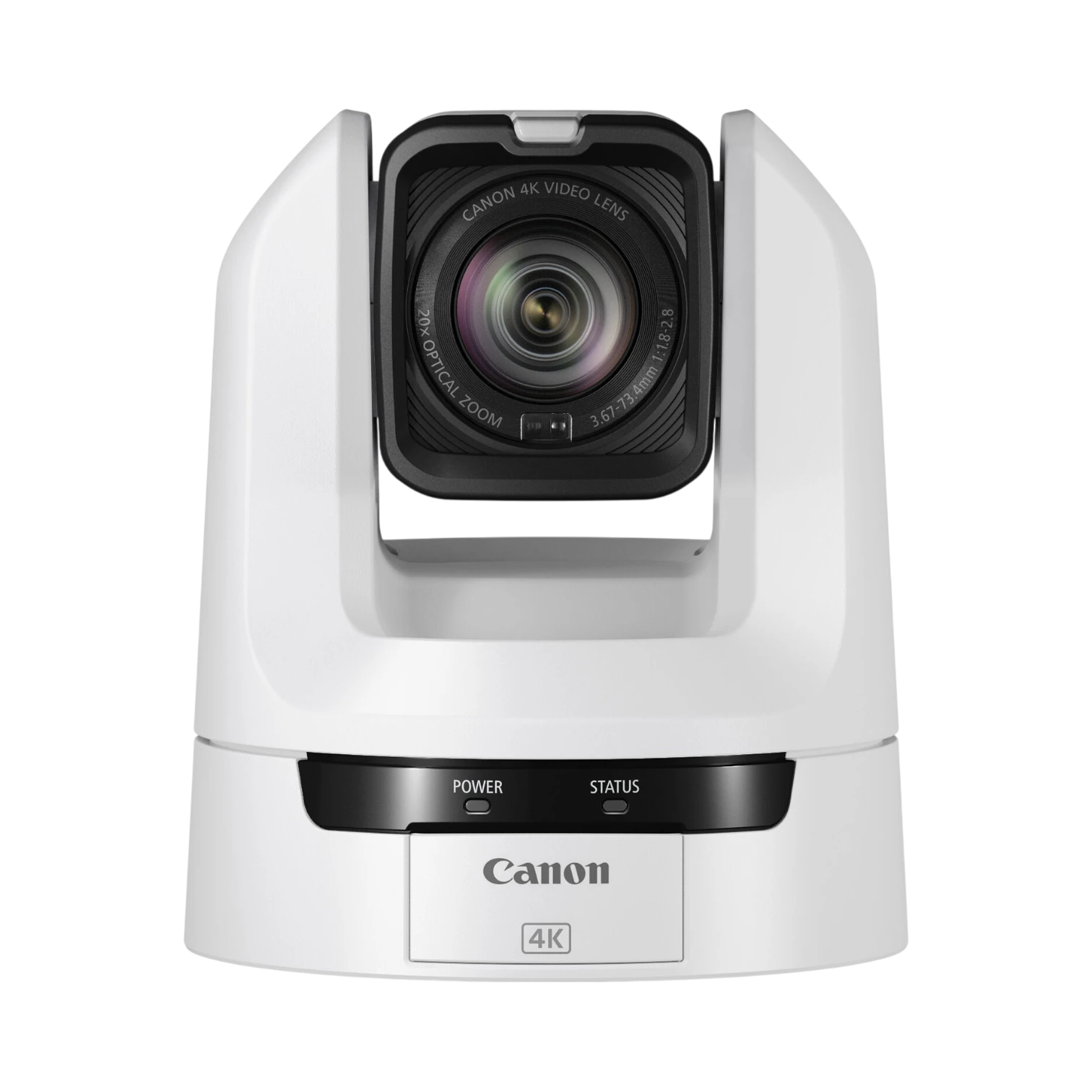

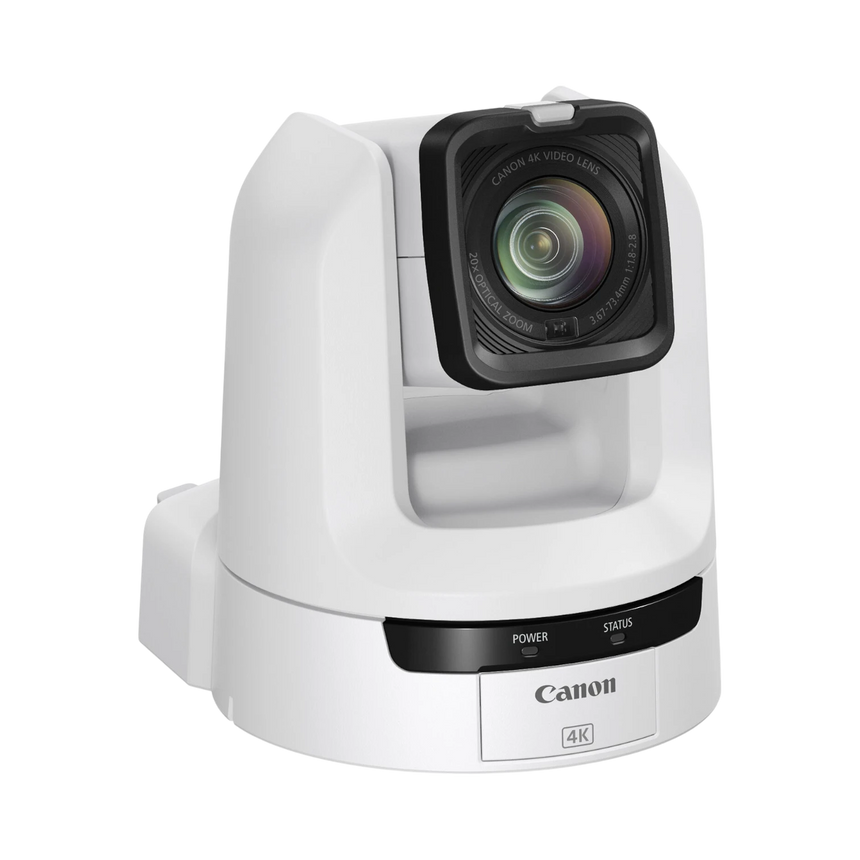

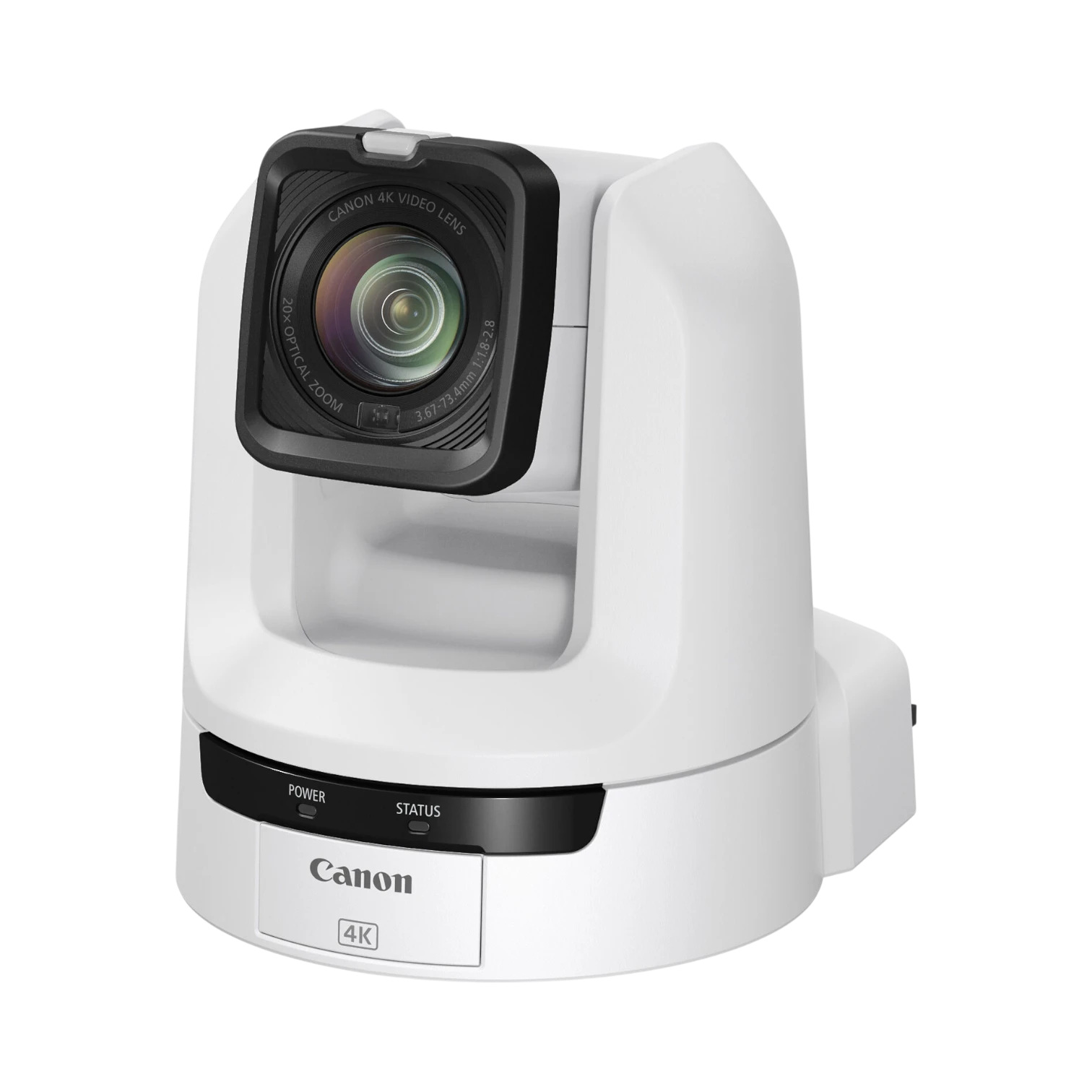

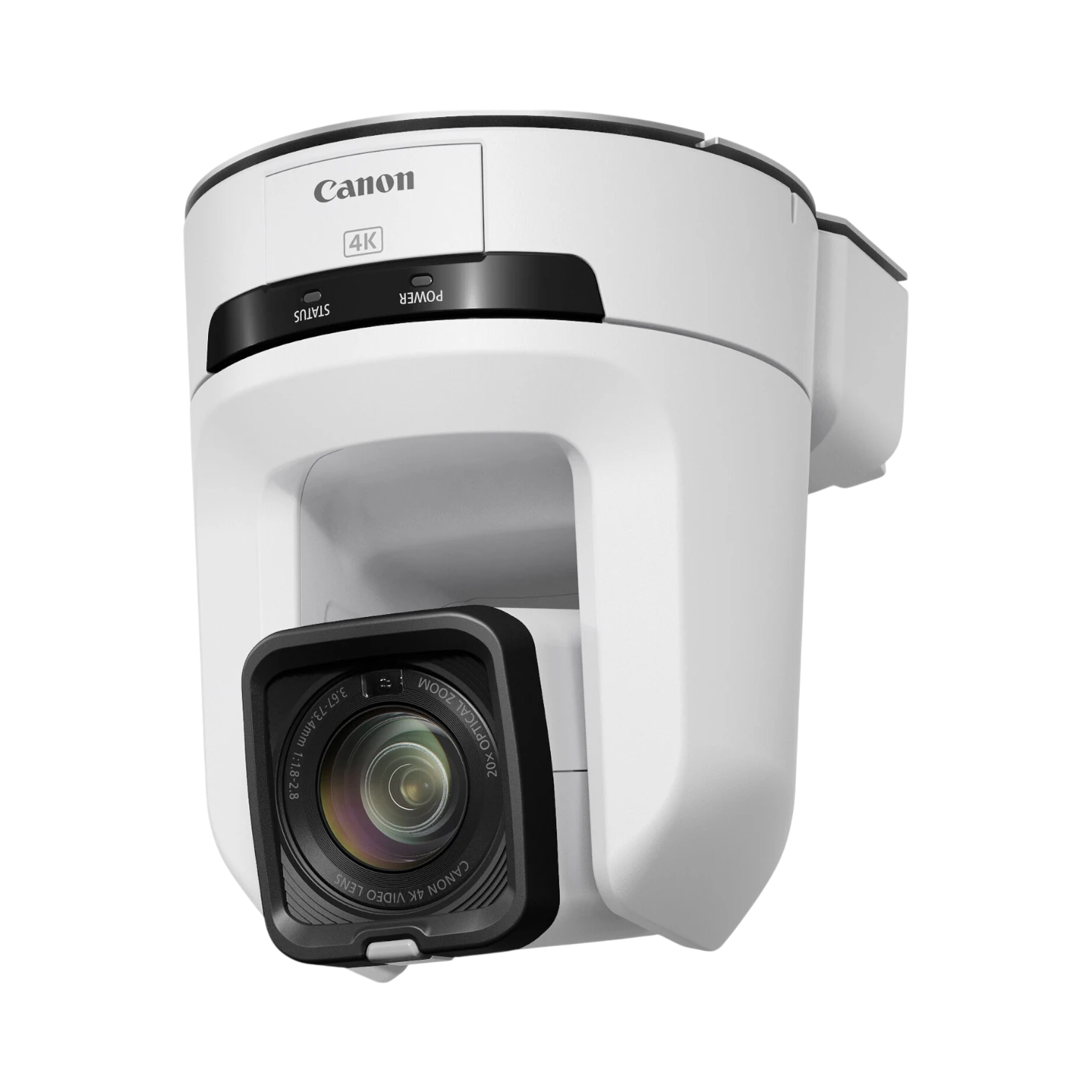

The Canon 5157C002 is a 4K PTZ (pan-tilt-zoom) camera designed for professional video production environments that require high-quality imaging with flexible control and streaming options. It features a 1/2.3-inch CMOS sensor capable of capturing sharp 4K video at 30 frames per second and smooth Full HD video at up to 60 frames per second. With a 20x optical zoom lens, this camera covers wide angles and detailed close-ups, making it suitable for classrooms, houses of worship, corporate meetings, and live streaming setups.

Its connectivity options include HDMI, 3G-SDI, USB-C, and IP streaming with support for NDI|HX, RTMP, and SRT protocols. Power over Ethernet Plus (PoE+) simplifies installation by combining power, control, and video transmission into a single cable. The camera’s smooth pan and tilt motors allow precise movement, while multiple scene modes optimize image quality in various lighting conditions. The titanium white finish and compact design help it blend discreetly into light-colored environments.

Key features

• Fast Hybrid autofocus system maintains sharp focus on moving subjects for clear, professional video.
• 20x optical zoom enables seamless transitions from wide shots to detailed close-ups without repositioning the camera.
• Multiple output options including HDMI, 3G-SDI, USB-C, and IP streaming provide versatile integration into different workflows.
• Supports popular streaming protocols such as NDI|HX, RTMP, and SRT for reliable live broadcasts over networks.
• Power over Ethernet Plus (PoE+) allows a single cable to deliver power, control signals, and video, reducing installation complexity.
• Smooth pan and tilt motors offer precise control with adjustable speeds from 0.2 to 300 degrees per second for pan and 0.2 to 170 degrees per second for tilt.
• Four selectable scene modes, including Portrait and Low Light, optimize image quality for diverse shooting environments.
• USB connectivity with UVC and UAC support enables plug-and-play webcam functionality for video conferencing applications.
• Compatible with Canon’s RC-IP100 hardware controller and VISCA protocol for easy integration into existing control systems.
• 3.5 mm stereo mini-jack input supports external microphones to enhance audio capture quality.
• Compact titanium white housing with a visible tally lamp provides discreet installation and clear on-air status indication.

Key specs

• Sensor: 1/2.3-inch CMOS
• Video resolution: 4K at 30 fps, Full HD at 60 fps
• Optical zoom: 20x
• Field of view: 65.6 degrees wide angle
• Pan speed range: 0.2 to 300 degrees per second
• Tilt speed range: 0.2 to 170 degrees per second
• Connectivity: HDMI, 3G-SDI, USB-C, IP streaming
• Streaming protocols: NDI|HX, RTMP, SRT
• Audio input: 3.5 mm stereo mini-jack
• Power delivery: Power over Ethernet Plus (PoE+)
• Control compatibility: Canon RC-IP100 controller, VISCA protocol

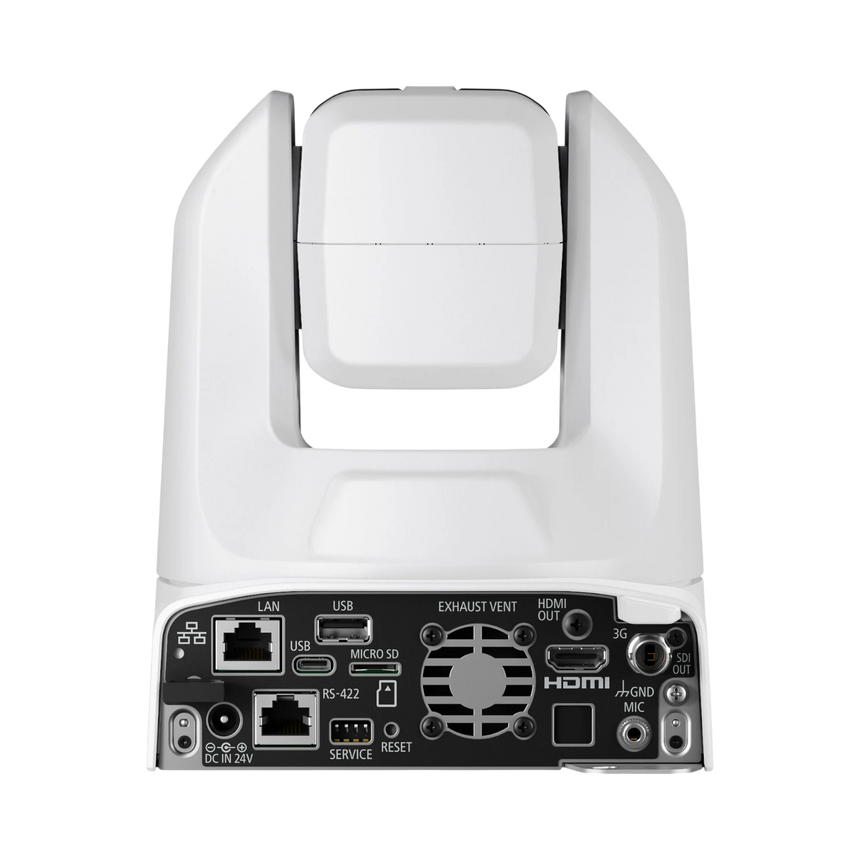

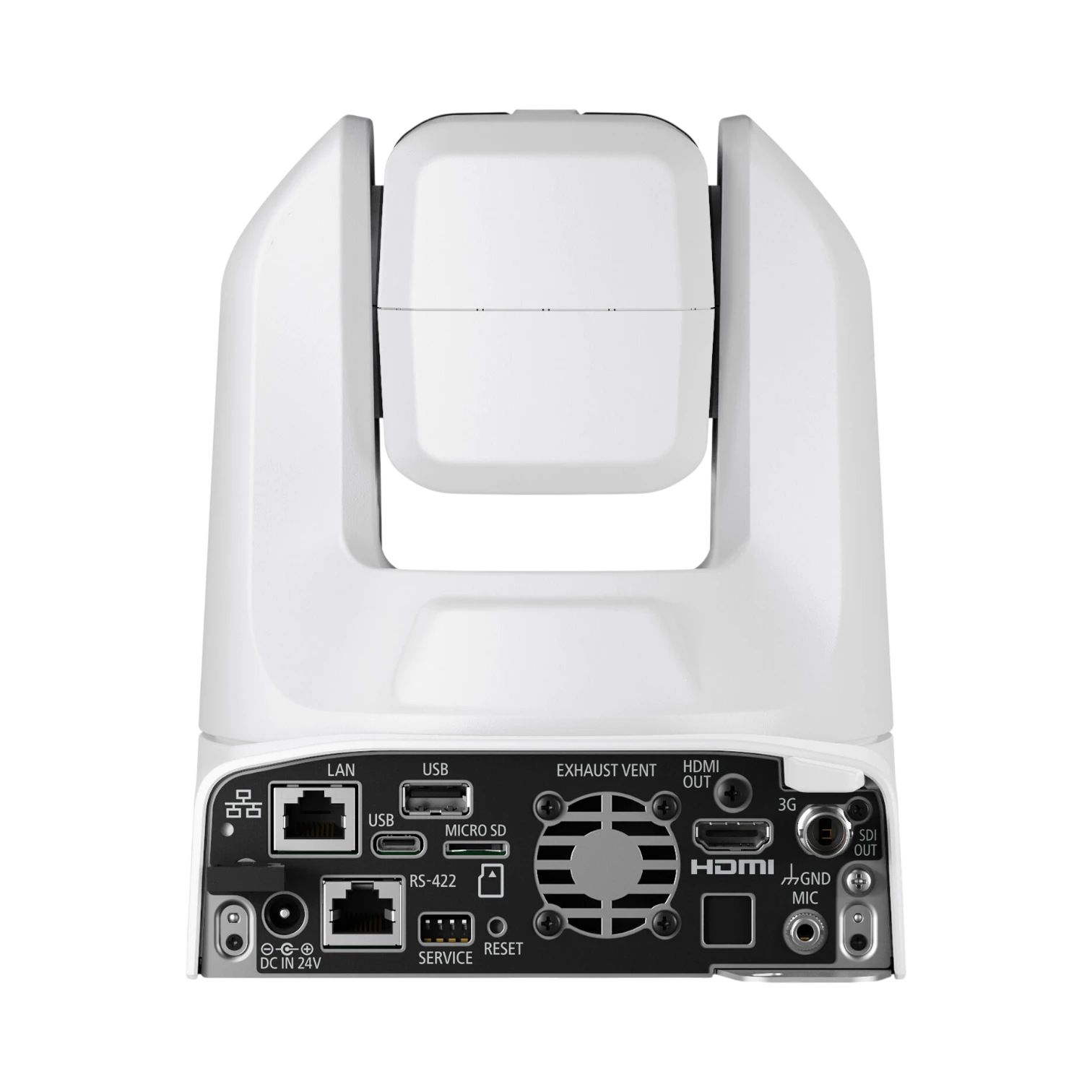

Connectivity and compatibility

This camera offers a broad range of connection options to fit into various production setups. HDMI and 3G-SDI outputs support traditional video workflows, while USB-C enables quick webcam use with standard video conferencing software through UVC and UAC protocols. IP streaming supports multiple protocols including NDI|HX, RTMP, and SRT, allowing flexible live streaming over networks. The inclusion of Power over Ethernet Plus (PoE+) simplifies cabling by combining power, control, and video signals into one cable, reducing clutter and installation time.

• HDMI and 3G-SDI for high-quality video output to monitors and switchers
• USB-C with UVC/UAC for plug-and-play webcam functionality
• IP streaming with NDI|HX, RTMP, and SRT for network-based broadcasts
• 3.5 mm stereo mini-jack for external microphone input
• PoE+ support for single-cable power and data transmission

Performance and reliability

The camera’s Hybrid AF system ensures fast and accurate focusing even when subjects move across the frame, which is essential for dynamic environments like classrooms or live events. Smooth pan and tilt motors provide precise and quiet movement, allowing operators to follow action without distracting jerks or noise. Four scene modes adapt the image processing to different lighting conditions, including low light and portrait settings, ensuring consistently clear and natural-looking video. The compact and discreet titanium white housing is designed to blend into light-colored interiors, making it suitable for professional venues where aesthetics matter.

Ideal uses and environments

This PTZ camera is well suited to a variety of professional settings where high-quality video capture and flexible control are required. It works well in educational environments for lecture capture, houses of worship for covering multiple areas like the pulpit and choir, and corporate meeting rooms where both presenters and audience need to be clearly visible. Its streaming capabilities and webcam compatibility also make it a strong choice for remote work setups and live event productions that require reliable, high-resolution video with minimal crew involvement.
