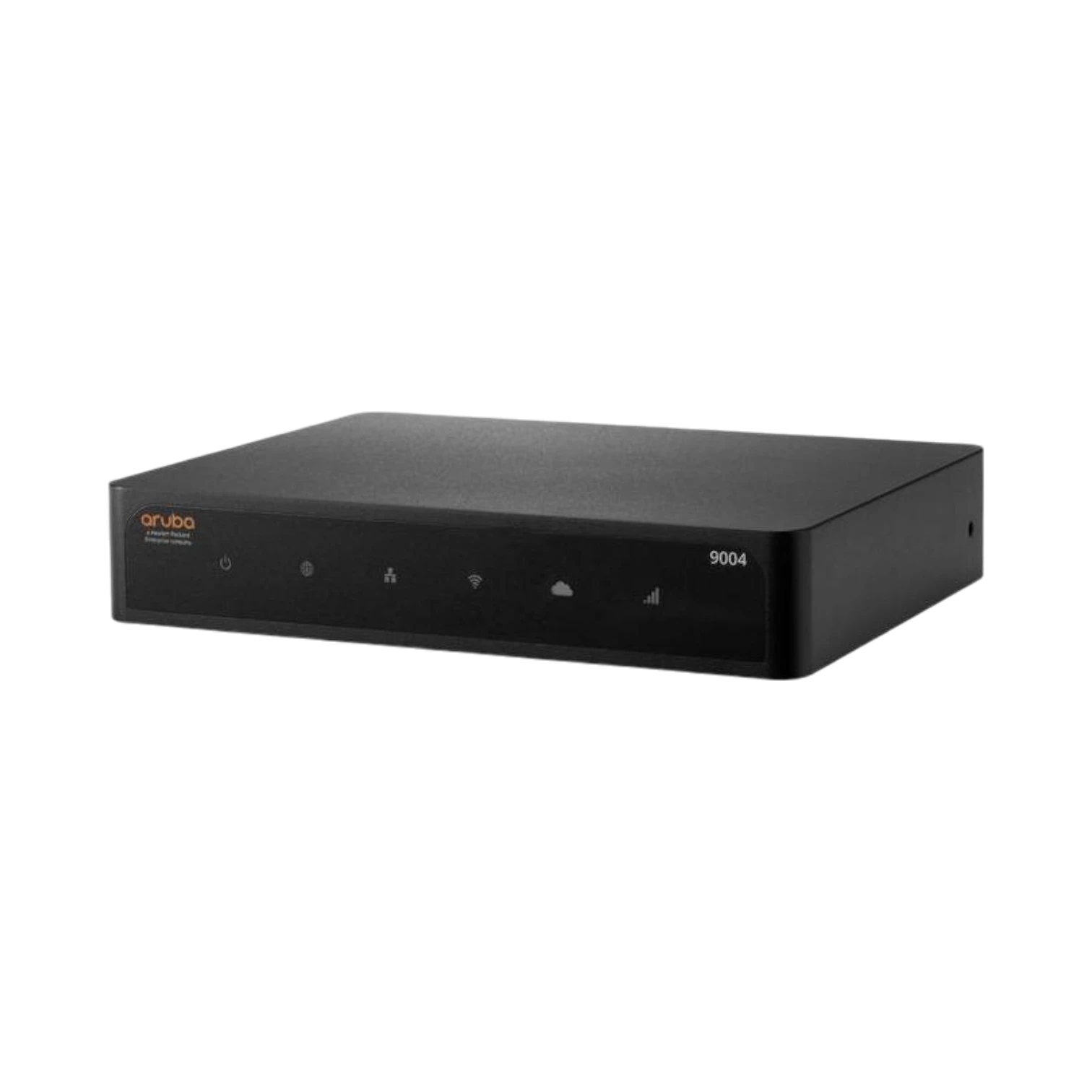

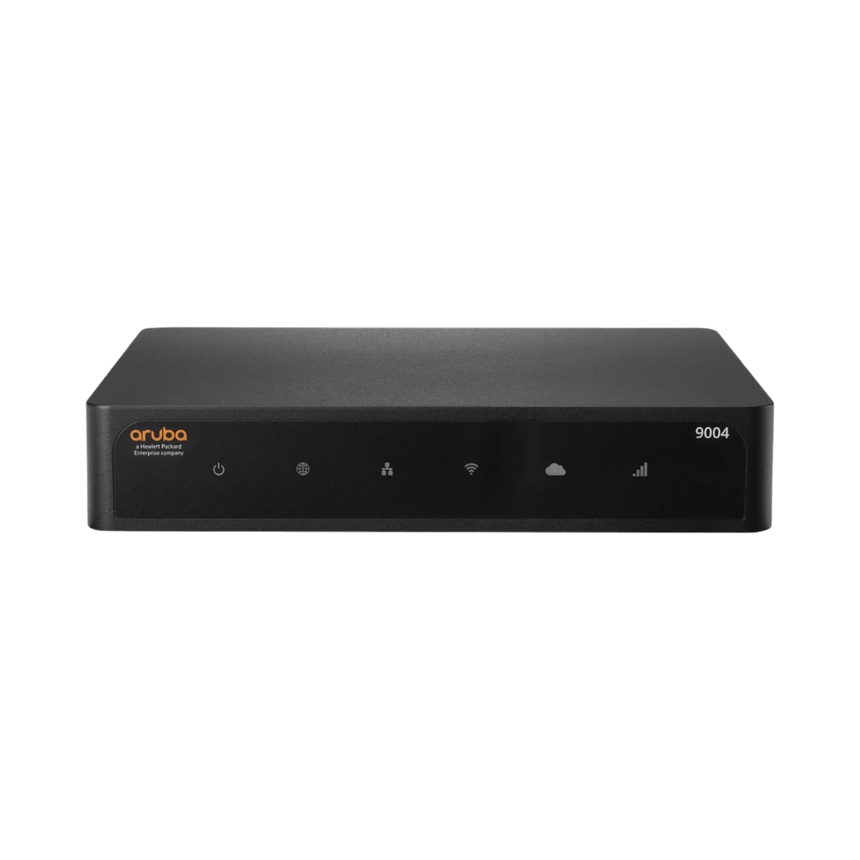

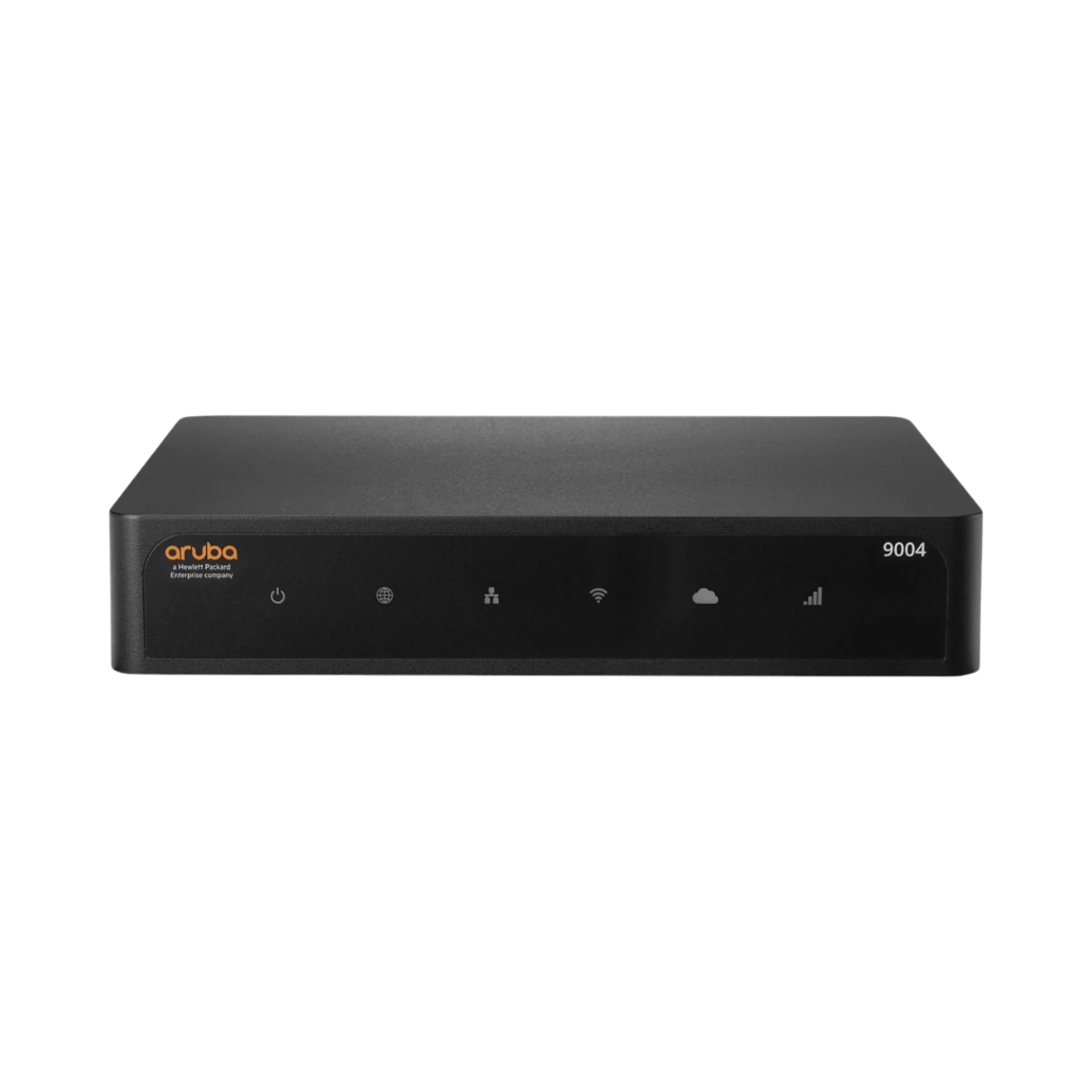

Aruba R1B20A

Overview

The Aruba R1B20A is a cloud-managed gateway designed to provide secure and efficient connectivity for branch offices, small campuses, and remote sites. It features four Gigabit Ethernet ports for wired access and supports up to 2,000 clients and 32 Aruba access points, making it suitable for growing environments such as retail stores, medical clinics, classrooms, and regional offices. With built-in routing, SD-WAN capabilities, and centralized management through Aruba Central, this gateway simplifies network administration and enhances security without the need for additional controllers or complex equipment.

Key features

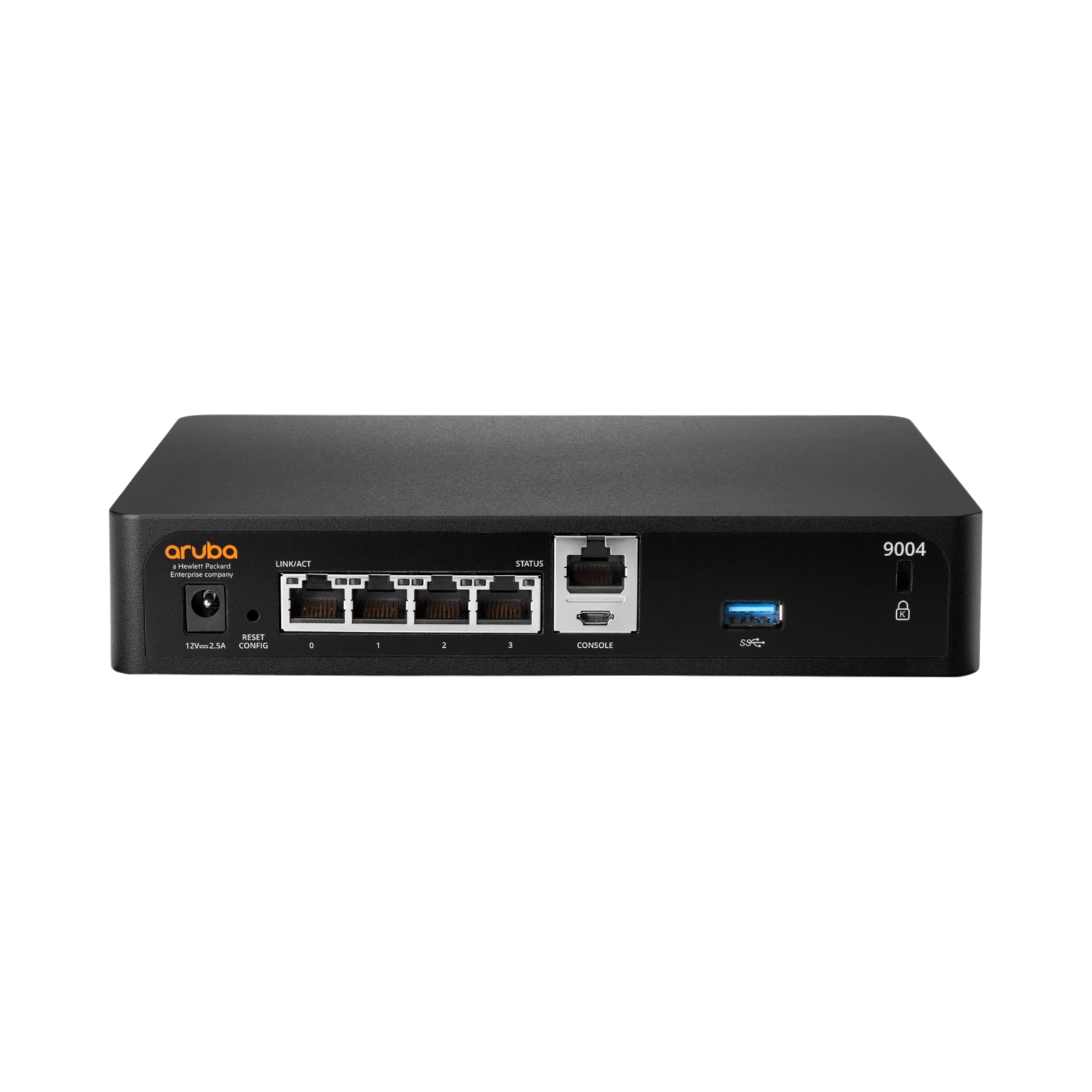

• Four RJ45 Gigabit Ethernet ports deliver reliable wired connections for multiple devices.
• Cloud management via Aruba Central allows administrators to update policies and monitor the network remotely from a single dashboard.
• Dynamic Segmentation enforces consistent security policies across both wired and wireless devices, reducing VLAN complexity and improving network safety.
• Integrated intrusion detection and prevention systems (IDS/IPS) monitor traffic in real time to identify and block threats without extra hardware.
• IoT-ready design includes Bluetooth, ZigBee, and NFC radios to simplify onboarding of sensors and badges for modern deployments.
• Rear USB port supports a 5G modem, providing cellular backup or quick connectivity for temporary or pop-up locations.
• Can transition to act as a Mobility Controller to support seamless roaming and enhance network resiliency as wireless networks expand.

Key specs

• Ports: 4 x RJ45 Gigabit Ethernet
• Client capacity: up to 2,000 clients
• Access point support: up to 32 Aruba access points
• Wireless radios: Bluetooth, ZigBee, NFC
• USB port: supports 5G modem for wireless WAN backup
• Management: cloud-based via Aruba Central

Connectivity and compatibility

This gateway integrates wired and wireless technologies to support a wide range of devices and network setups. The four Gigabit Ethernet ports provide fast and stable connections for desktop computers, point-of-sale systems, and other wired equipment. The inclusion of Bluetooth, ZigBee, and NFC radios enables easy integration of IoT devices such as sensors and access badges, streamlining deployment in environments that rely on smart technology. The USB port’s compatibility with 5G modems ensures continuous connectivity even when primary WAN links fail, making it a dependable choice for critical business operations.

Performance and reliability

Designed to handle high client densities and multiple access points, the Aruba 9004 maintains smooth network performance in busy environments. Its SD-WAN features optimize traffic flow between the cloud and data centers, reducing latency and improving user experience. The built-in IDS and IPS provide proactive security by detecting and mitigating threats in real time, eliminating the need for separate security appliances. This combination of features ensures that the network remains both fast and secure under varying loads and conditions.

Ideal uses and environments

The Aruba R1B20A fits well in locations that require secure, scalable, and easy-to-manage network connectivity. Retail branches benefit from its ability to segment point-of-sale systems and guest devices securely. Medical clinics can rely on its robust security and IoT support for connected health devices. Classrooms and regional offices gain from centralized management and seamless wireless roaming capabilities. Its cellular backup option also makes it a strong choice for temporary setups or remote sites where wired WAN connections may be unreliable or unavailable.
