Bose 842864-0110

Overview

The Bose 842864-0110 is a retrofit kit designed to simplify the installation or upgrade of FreeSpace FS2C ceiling loudspeakers. It provides all the necessary components to mount these speakers securely without the need to recut ceiling tiles, making it ideal for replacing older DS16F units or adding FS2C speakers to existing grids. The kit includes parts sized for common acoustic ceiling tiles and hard ceilings, ensuring a clean and stable fit that maintains the sound quality Bose is known for.

Key features

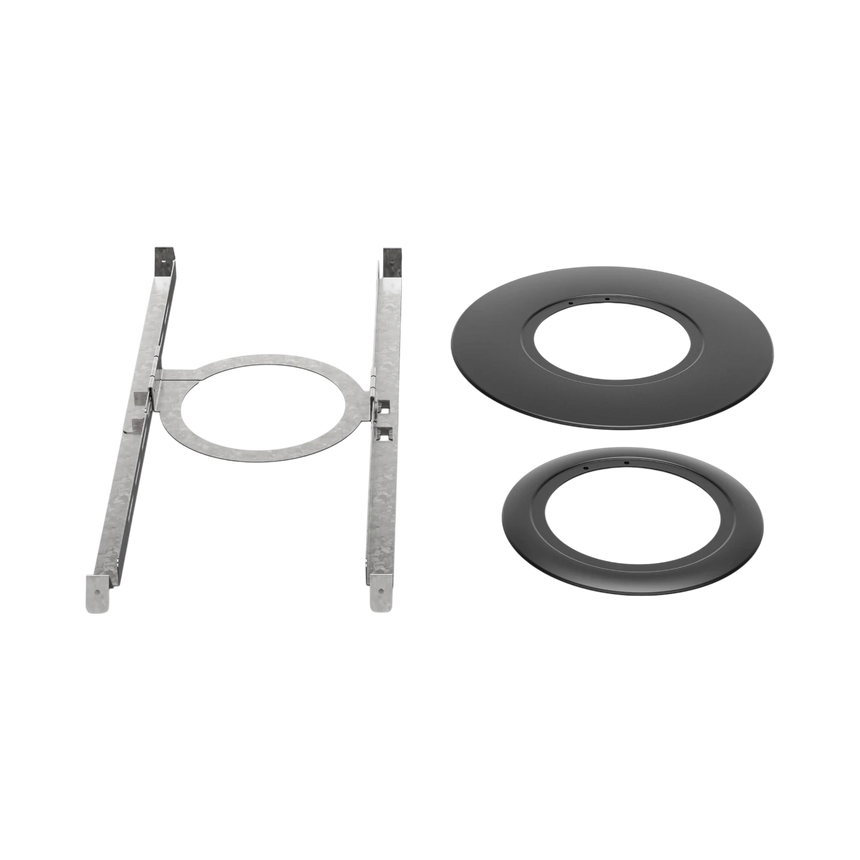

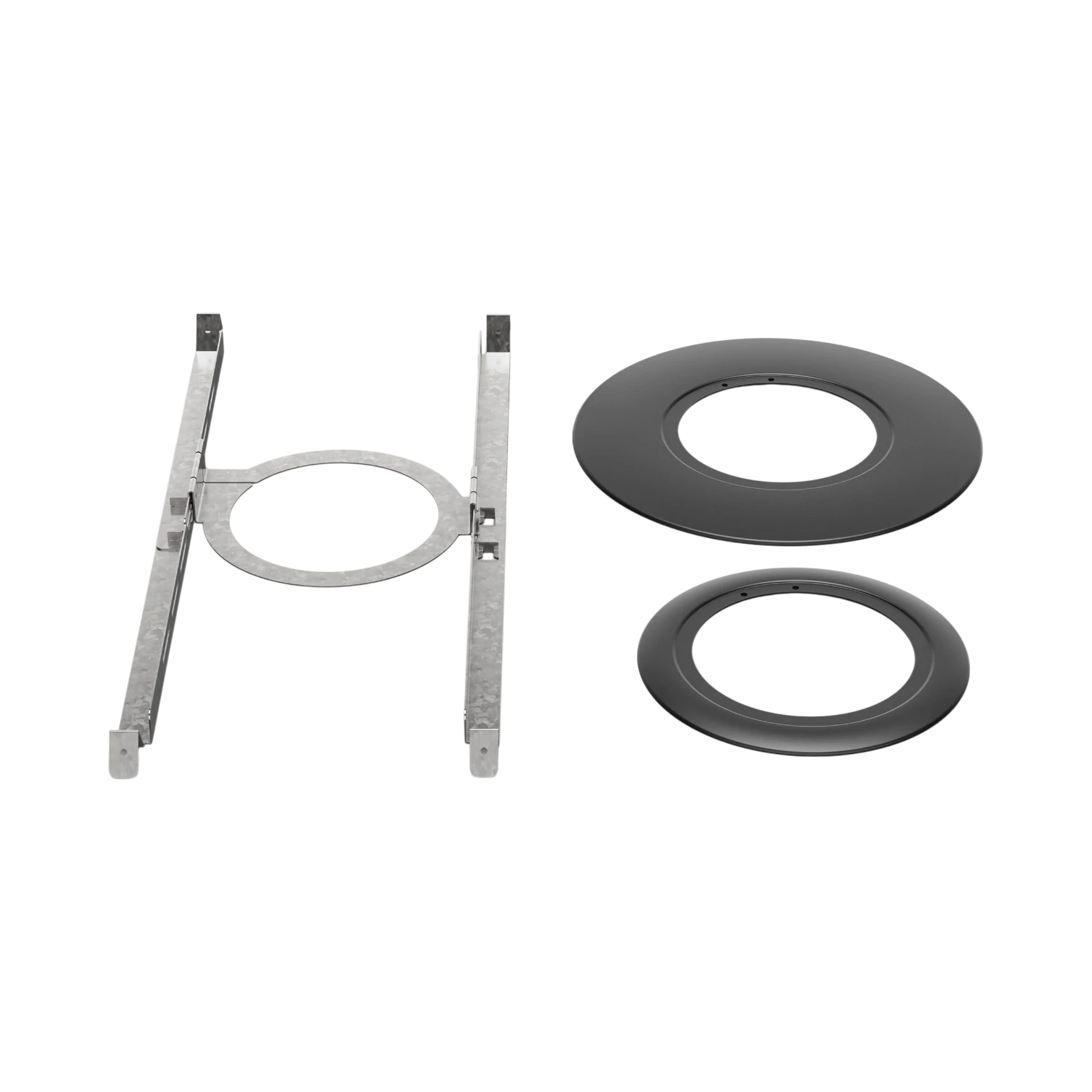

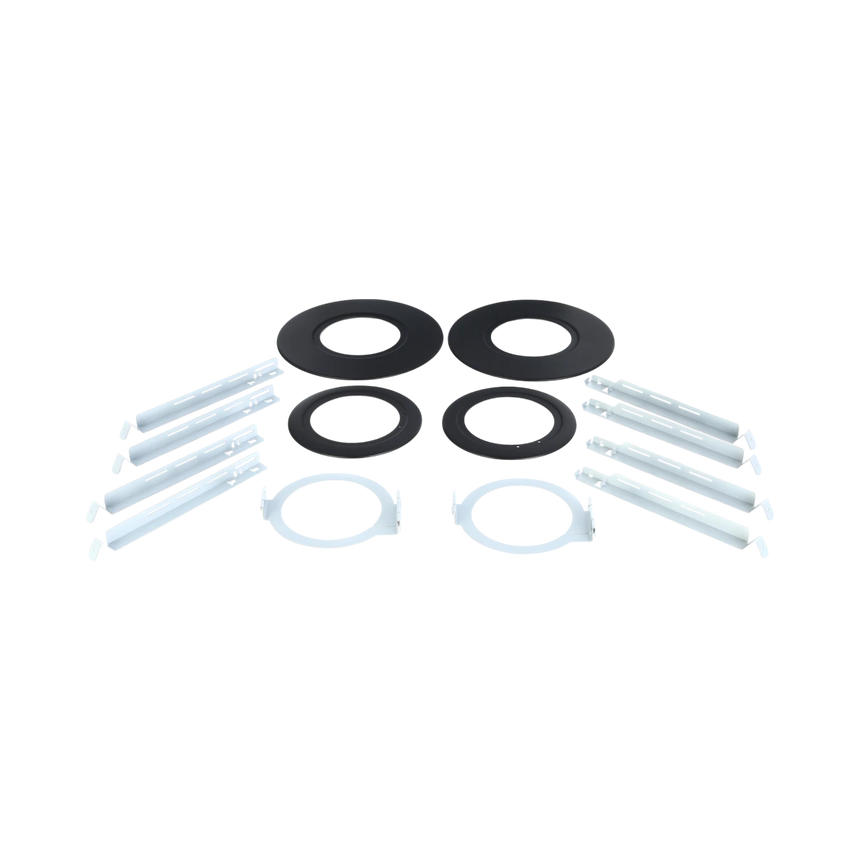

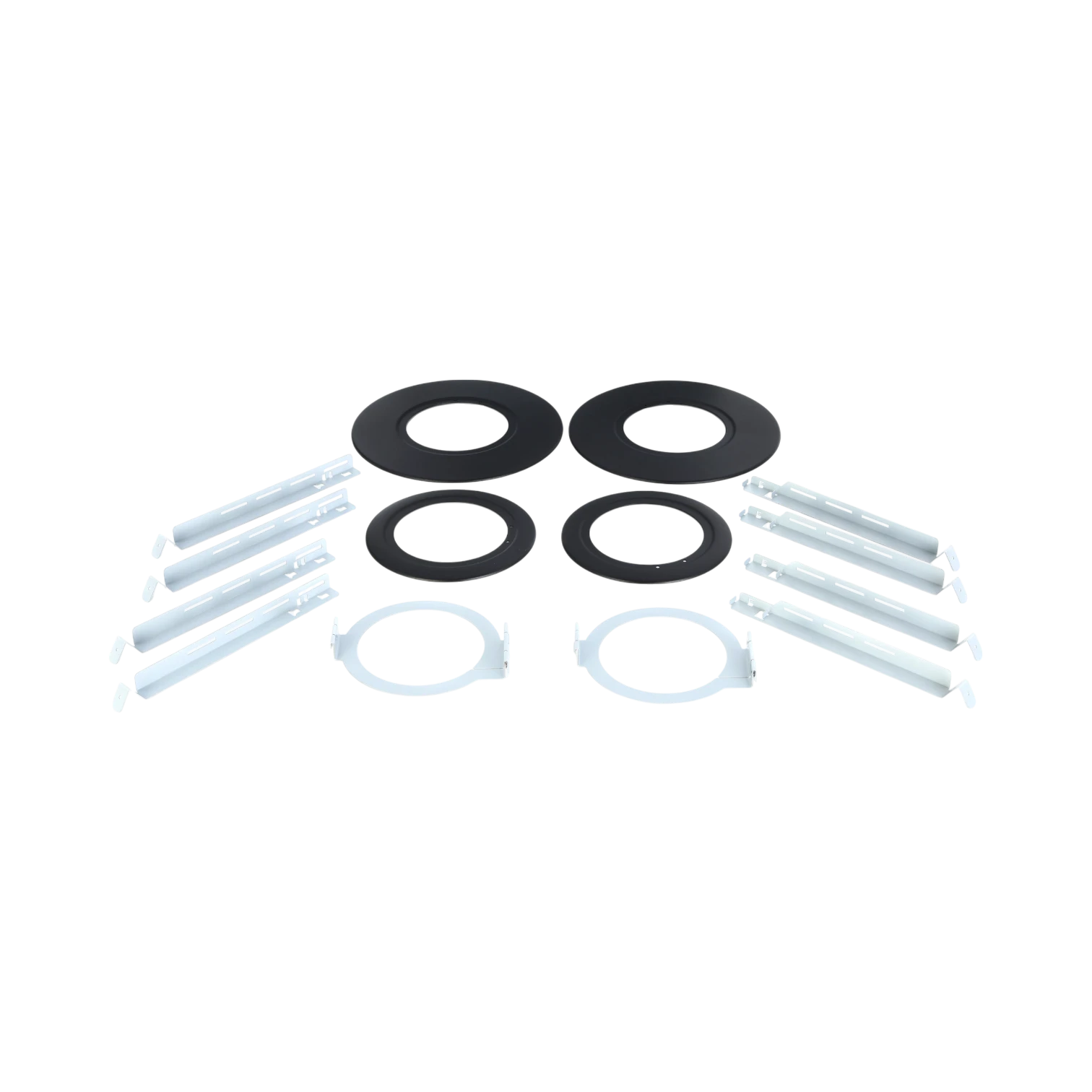

• Includes both narrow and wide retrofit rings to accommodate standard FS2C openings and larger DS16F cutouts, enabling quick speaker swaps.

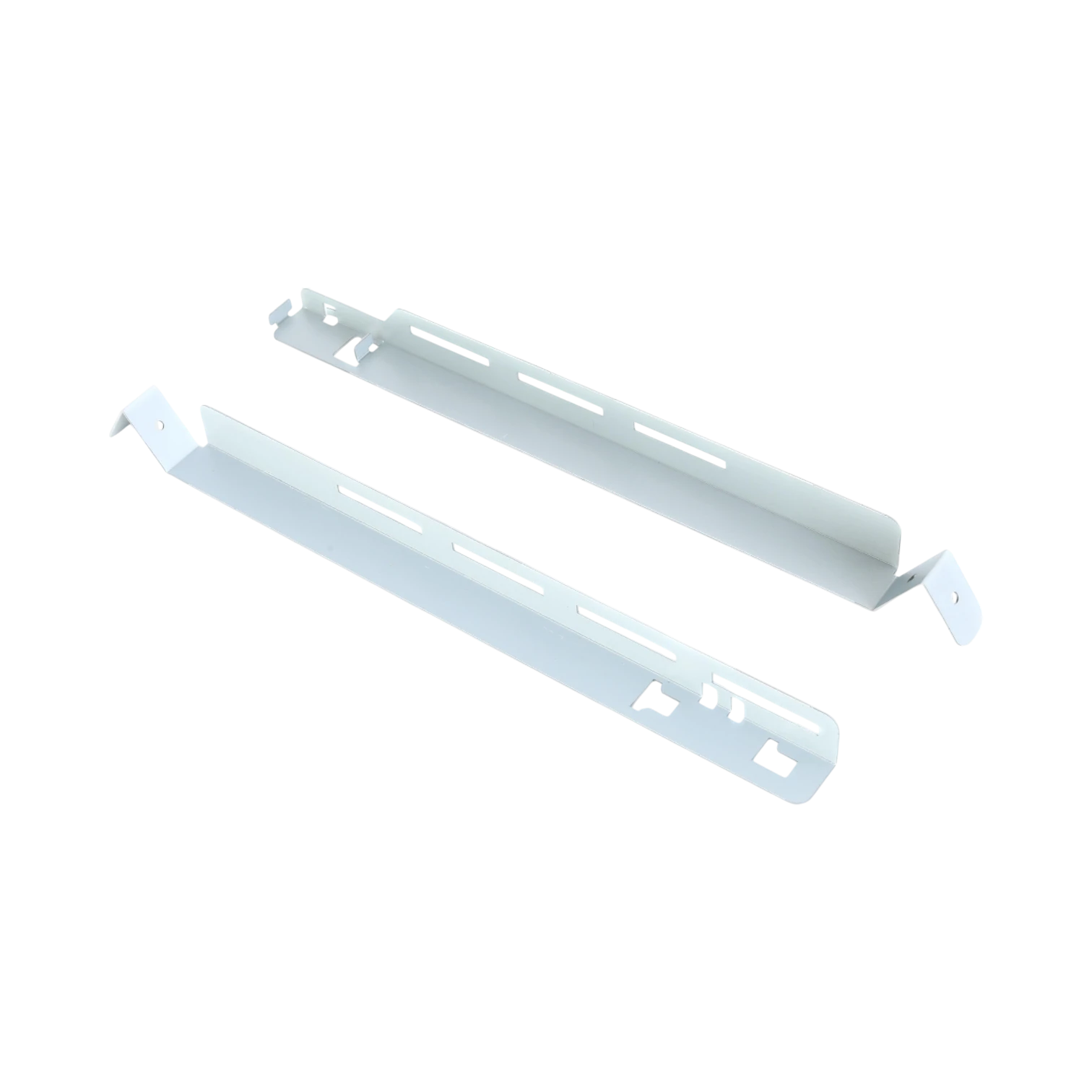

• Two tile bridge rings and two sets of support rails provide solid backing and even weight distribution for secure mounting on acoustic tiles or hard ceilings.
• Rails extend 25.35 inches and are spaced 10.43 inches apart to spread the speaker’s weight evenly and reduce strain on ceiling materials.
• Lightweight design under 2 pounds makes overhead installation easier and safer during extended projects.
• Clearly dimensioned components help installers achieve precise fits without guesswork or additional modifications.
• Supports professional AV installations in retail, office, classroom, and hospitality environments by ensuring speakers sit flush and stable.

Key specs

• Narrow retrofit ring: 6.3 inches inner diameter, 9.41 inches outer diameter
• Wide retrofit ring: 6.3 inches inner diameter, 12.99 inches outer diameter for DS16F cutouts
• Tile bridge ring diameter: 9.8 inches
• Support rails length: 25.35 inches
• Rail spacing: 10.43 inches
• Total kit weight: under 2 pounds

Installation and setup

This retrofit kit streamlines the installation process by matching existing ceiling cutouts, eliminating the need for recutting or patching. The included tile bridge rings provide a sturdy mounting surface behind ceiling tiles, while the support rails distribute the speaker’s weight evenly to prevent sagging or damage. Whether working with acoustic tiles or hard ceilings, installers can rely on this kit to secure FreeSpace FS2C loudspeakers quickly and accurately.

Ideal uses and environments

The kit is well suited for contractors, AV integrators, and facility managers working in commercial spaces such as retail stores, offices, classrooms, and hospitality venues. It helps reduce installation time and ensures that speakers remain firmly in place, preserving the acoustic performance expected from Bose. This makes it a practical choice for projects requiring speaker upgrades or new installations within existing ceiling grids.
