Bosch F.01U.302.304

Overview

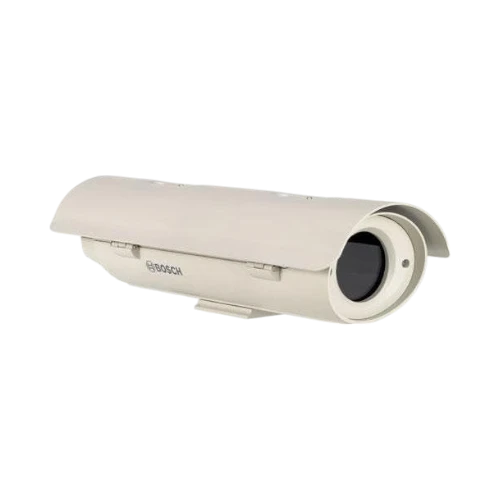

The Bosch F.01U.302.304 is an outdoor housing designed to protect DINION fixed cameras in harsh environments, including outdoor and dusty indoor locations. Its aluminum construction with an IP66 rating ensures reliable protection against rain, dust, and spray. Equipped with dual heaters and a self-cleaning defroster window, it maintains clear images even in temperatures as low as -40 °C. The housing operates on a standard 24 VAC power supply and weighs approximately 6.83 lb, making it suitable for mounting on poles or walls without stressing typical brackets.

Key features

• Aluminum housing with IP66 rating that shields the camera from wind-driven rain, dust, and spray to ensure long-term durability.
• Side-hinged cover that swings open after installation, providing easy, tool-free access to camera controls and network ports without removing the unit.
• Integrated dual heaters and a self-cleaning defroster window that prevent frost and condensation, keeping the camera’s view clear in extreme cold.
• Removable sunshield that reduces heat buildup and glare on the front window, improving image quality under direct sunlight.
• Flexible cable management options with feed-through glands or sealed rear connectors to protect wiring and simplify maintenance.
• Compatible with common 24 VAC power supplies found in many legacy and new CCTV installations.
• Lightweight design at 6.83 lb, allowing easy mounting on various brackets, poles, or parapet arms without additional strain.

Key specs

• Material: Aluminum housing
• Ingress protection: IP66 rated for dust and water resistance
• Operating temperature range: -40 °C to 50 °C
• Power supply: 24 VAC
• Weight: Approximately 6.83 lb
• Heating system: Dual integrated heaters
• Defroster: Self-cleaning window

Connectivity and compatibility

The housing supports cable routing through two secure paths: feed-through glands on the back plate or sealed connectors on the rear panel. This design protects cables from environmental damage and tampering, making it well suited for installations in exposed or high-security areas. It is compatible with DINION fixed cameras and integrates seamlessly into existing CCTV systems powered by 24 VAC.

Installation and setup

Installation is simplified by the side-hinged cover, which allows full access to the camera’s focus rings, dip switches, and network ports without removing the housing from its mount. The lightweight design reduces strain on mounting hardware, and the removable sunshield can be adjusted based on environmental conditions. These features help installers complete setup quickly and maintain the system with minimal downtime.

Ideal uses and environments

This housing is a strong choice for security integrators and facility managers who need to protect cameras in challenging climates, including rooftops, parking lots, perimeter fences, and coastal locations. Its ability to withstand wide temperature swings and resist dust and moisture makes it suitable for both new CCTV installations and upgrades to legacy systems. It helps extend camera life and reduce maintenance calls by maintaining clear video quality in demanding conditions.
