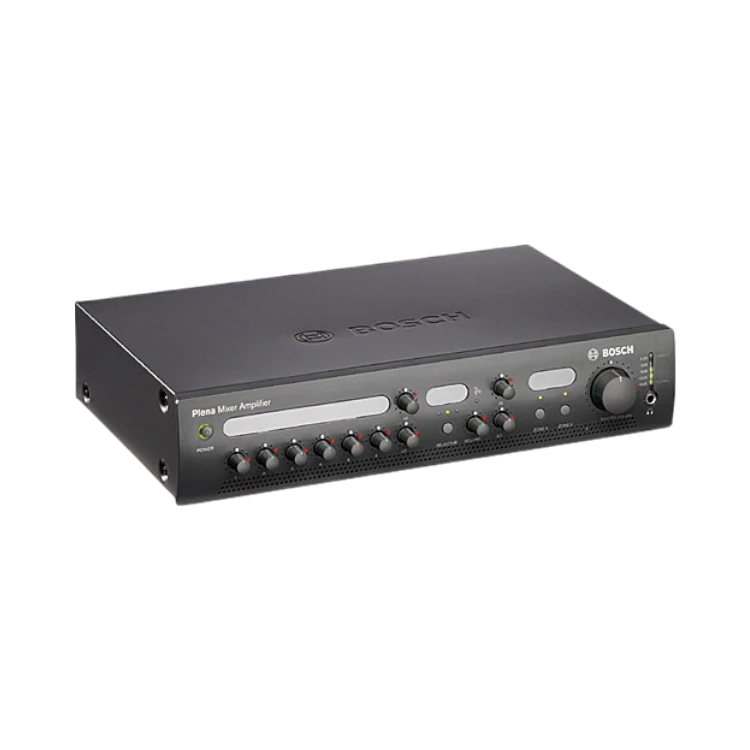

Bosch F.01U.066.937

Overview

The Bosch F.01U.066.937 is a Plena mixer amplifier designed to deliver 240 watts of power for clear and reliable sound across two separate zones. It supports both background music and public address functions, making it suitable for environments like retail stores, restaurants, offices, and community centers. With six microphone or line inputs and three selectable music sources, it offers flexible audio management while keeping daily operation straightforward for any user.

Key features

• 240 watt amplifier capable of driving 70 volt, 25 volt, or 4-ohm loudspeaker systems for versatile installation options
• Six microphone or line inputs, each with individual gain controls, allowing connection of handheld mics, paging stations, or wireless receivers
• Three music inputs selectable via a front-panel knob, enabling easy switching between streaming players, radio tuners, or media servers
• Two output zones to distribute music or paging messages to targeted areas within a venue
• Voice-activated priority circuit that automatically lowers music volume during announcements for clear speech intelligibility
• Built-in two-tone chime to signal upcoming announcements, enhancing communication effectiveness
• Separate tone controls for microphone channels and music sources to optimize vocal clarity without affecting background music warmth
• 24-volt DC backup input with integrated charger ensures uninterrupted operation during power outages, supporting emergency paging and compliance with safety codes
• Line, music-only, and insert outputs provide options for system expansion or external recording
• Rack-mountable chassis with compact dimensions and manageable weight for easy installation in professional audio setups

Key specs

• Power output: 240 watts
• Output options: 70 volt, 25 volt, and 4-ohm loudspeaker systems
• Inputs: Six microphone or line inputs with individual gain controls
• Music inputs: Three selectable sources via front-panel knob
• Output zones: Two independent zones
• Backup power: 24-volt DC input with integrated charger
• Dimensions: 16.9 × 3.9 × 10.6 inches (W × H × D)
• Weight: 27.6 pounds

Connectivity and compatibility

The rear panel offers a variety of connections to support diverse audio setups. It includes line outputs for external processing or recording, music-only outputs to isolate background audio, and insert points for integrating additional equipment. The multiple output voltage options make it compatible with a wide range of loudspeaker systems, ensuring flexibility in installation.

Installation and setup

The amplifier’s compact rack-mountable design fits standard 19-inch racks or can be placed on shelves behind counters. Its weight allows for easy handling by a single installer. Front-panel controls simplify daily use, while the rear panel provides all necessary connections for professional integration. Once configured, users mainly adjust master volume and zone selection, making it accessible for staff without technical expertise.

Ideal uses and environments

This mixer amplifier works well in retail environments where continuous background music and clear paging are essential. It suits restaurants that need to combine ambient music with host announcements and offices or community centers requiring reliable paging and emergency messaging. The built-in emergency override and backup power input make it a strong choice for venues that must meet safety regulations while maintaining sound quality.
