Black Box LGC281A

Overview

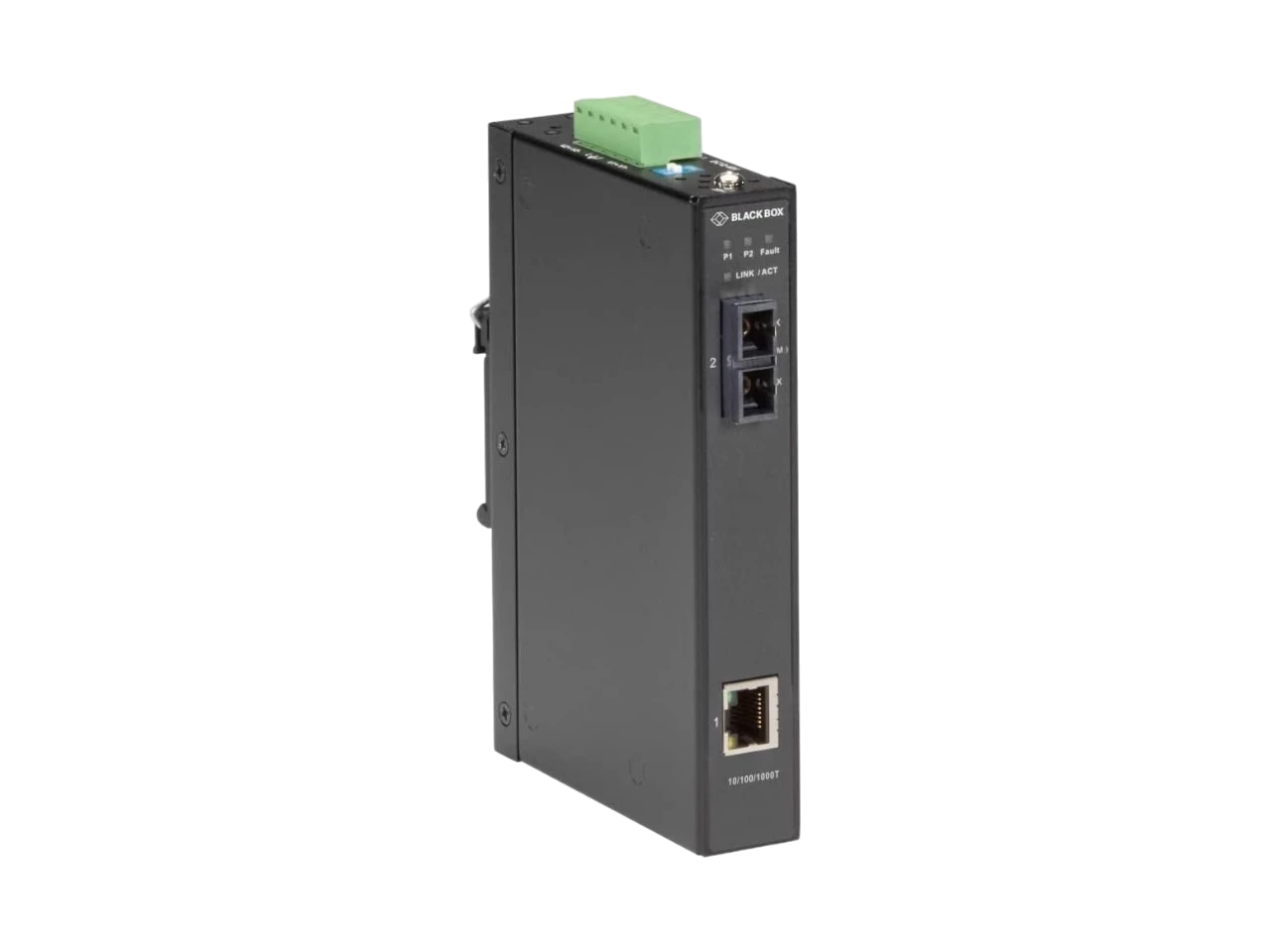

The Black Box LGC281A is a gigabit industrial media converter designed to extend Ethernet networks over multimode fiber without the need for a complete infrastructure overhaul. It supports 10, 100, or 1000 Mbps copper connections and converts them to 1000Base-X fiber via an SC port, enabling reliable network bridging over distances up to 550 meters. Built to withstand harsh environments, it operates within a temperature range of –40 to 158 °F and features a rugged IP-30 metal enclosure that resists dust, vibration, and temperature fluctuations common in industrial settings.

Key features

• Converts standard Ethernet signals to fiber optic connections, allowing network extension over long distances and electrically noisy areas.
• Supports jumbo frames up to 10,240 bytes, improving efficiency for large data transfers such as industrial vision systems and sensor aggregation.
• Dual 12 to 48 VDC power inputs provide redundant power options, ensuring continuous operation even if one power source fails.
• Durable IP-30 metal housing protects against dust and vibration, making it suitable for factory floors, traffic control cabinets, and outdoor enclosures.
• Flexible mounting options include DIN-rail and wall plate installation, simplifying deployment in control panels or maintenance rooms.
• Store-and-forward switching checks each packet for errors before forwarding, safeguarding the network from corrupted data frames.

Key specs

• Data rates: 10/100/1000 Mbps copper to 1000Base-X fiber
• Fiber type: Multimode
• Optical wavelength: 850 nm
• Maximum fiber distance: 550 meters
• Jumbo frame support: Up to 10,240 bytes
• Operating temperature: –40 to 158 °F (–40 to 70 °C)
• Enclosure: IP-30 metal housing

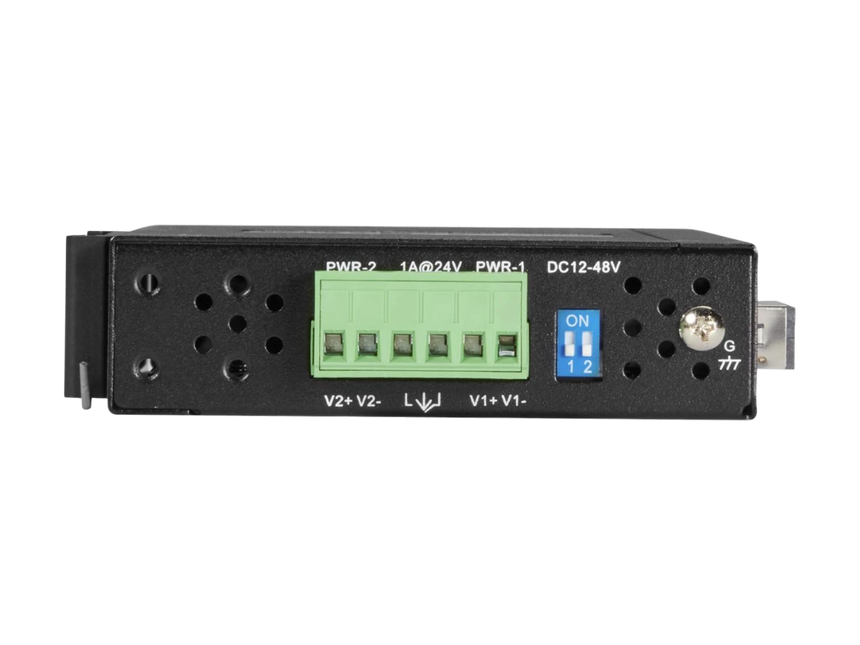

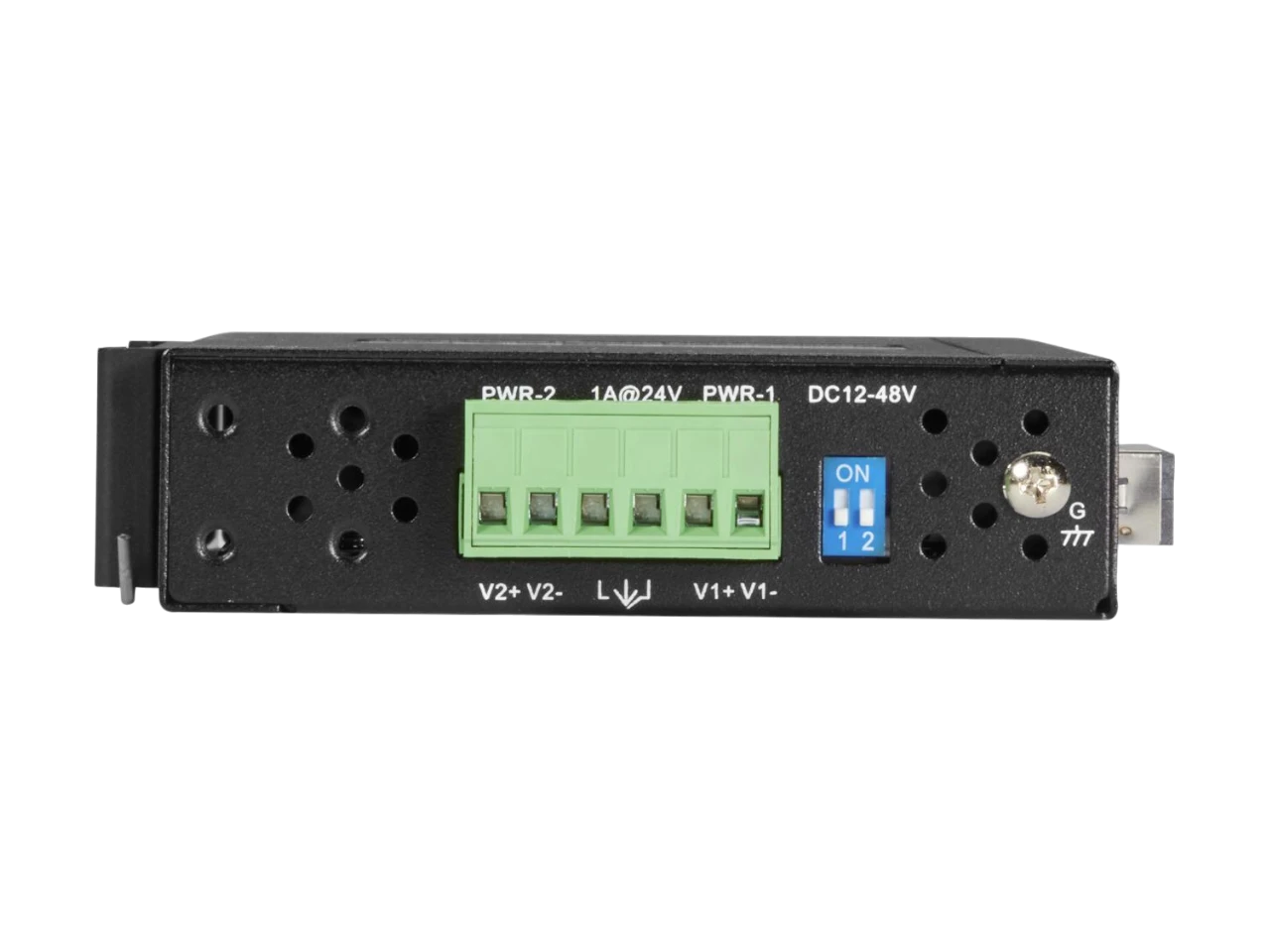

• Power input: Dual 12–48 VDC for redundancy

Connectivity and compatibility

This media converter connects standard Ethernet devices to multimode fiber networks using an SC port, making it compatible with a wide range of industrial Ethernet equipment. The copper port accepts 10/100/1000Base-T connections, allowing seamless integration with existing network devices without requiring configuration changes.

• SC fiber port for 1000Base-X multimode fiber connections
• RJ-45 port for 10/100/1000Base-T copper Ethernet
• Supports standard Ethernet protocols for easy network integration

Installation and setup

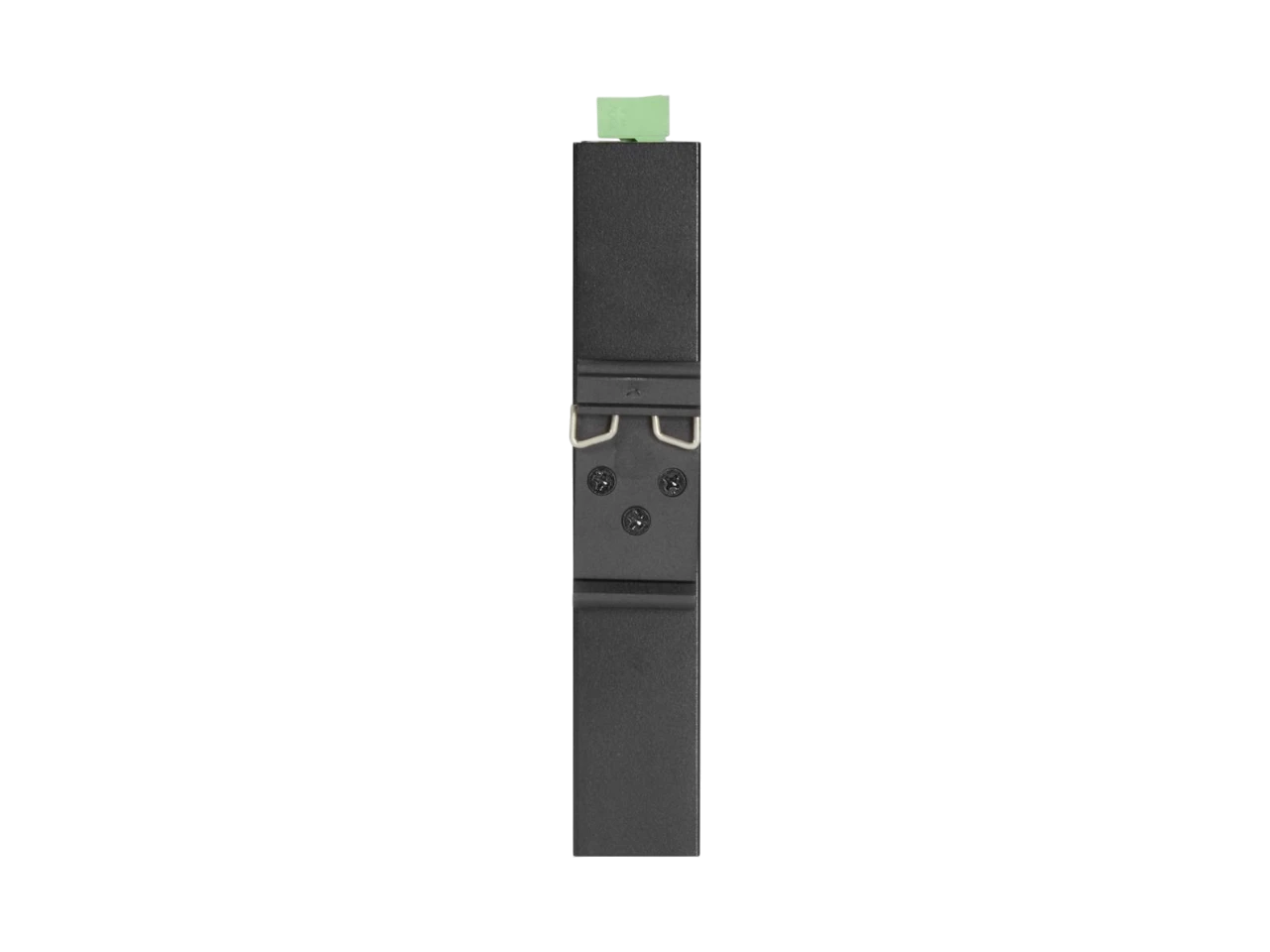

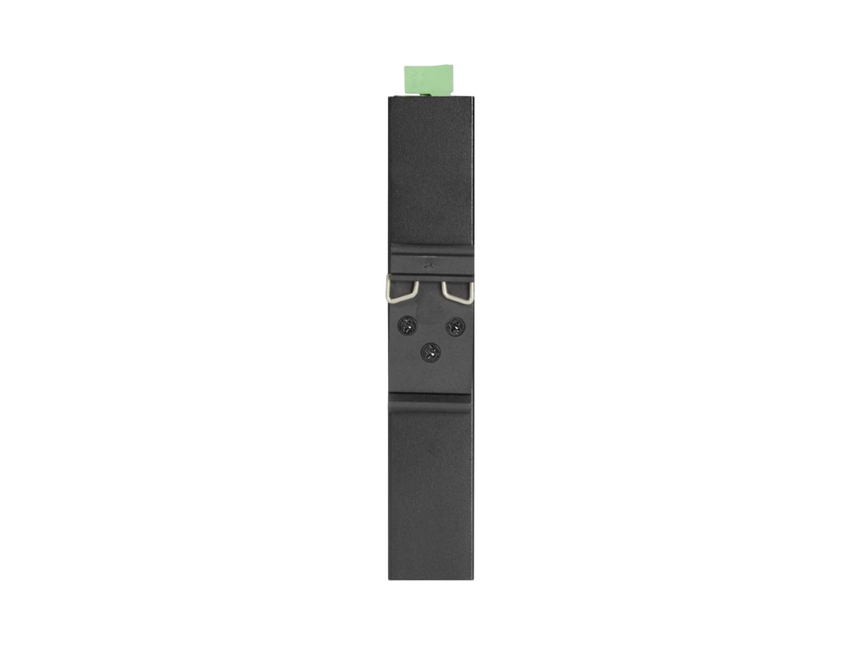

Designed for straightforward deployment, the LGC281A can be mounted on a DIN rail inside control panels or attached to wall plates in service areas. Its plug-and-play operation requires no complex configuration, enabling quick setup in industrial environments. The rugged design and wide temperature tolerance ensure reliable performance in challenging conditions.

Ideal uses and environments

This media converter is well suited to industrial and commercial applications where network extension over fiber is necessary. It works effectively in factory automation, traffic management systems, warehouse surveillance, and remote kiosk connectivity. Its robust construction and power redundancy make it a strong choice for environments that demand continuous, high-bandwidth network links despite harsh conditions.
