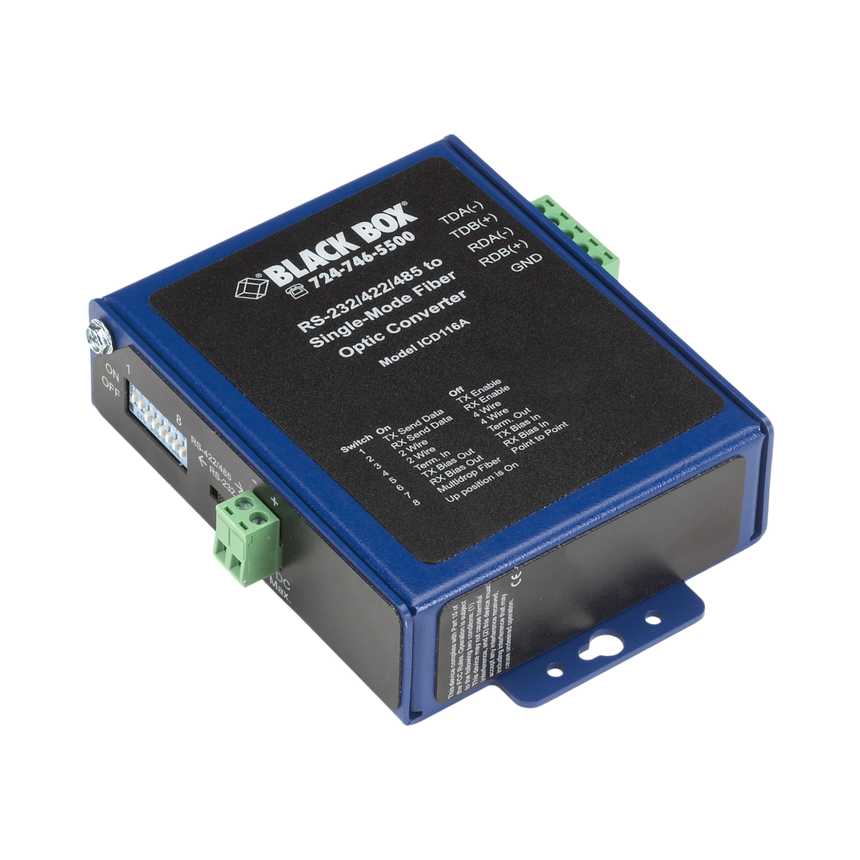

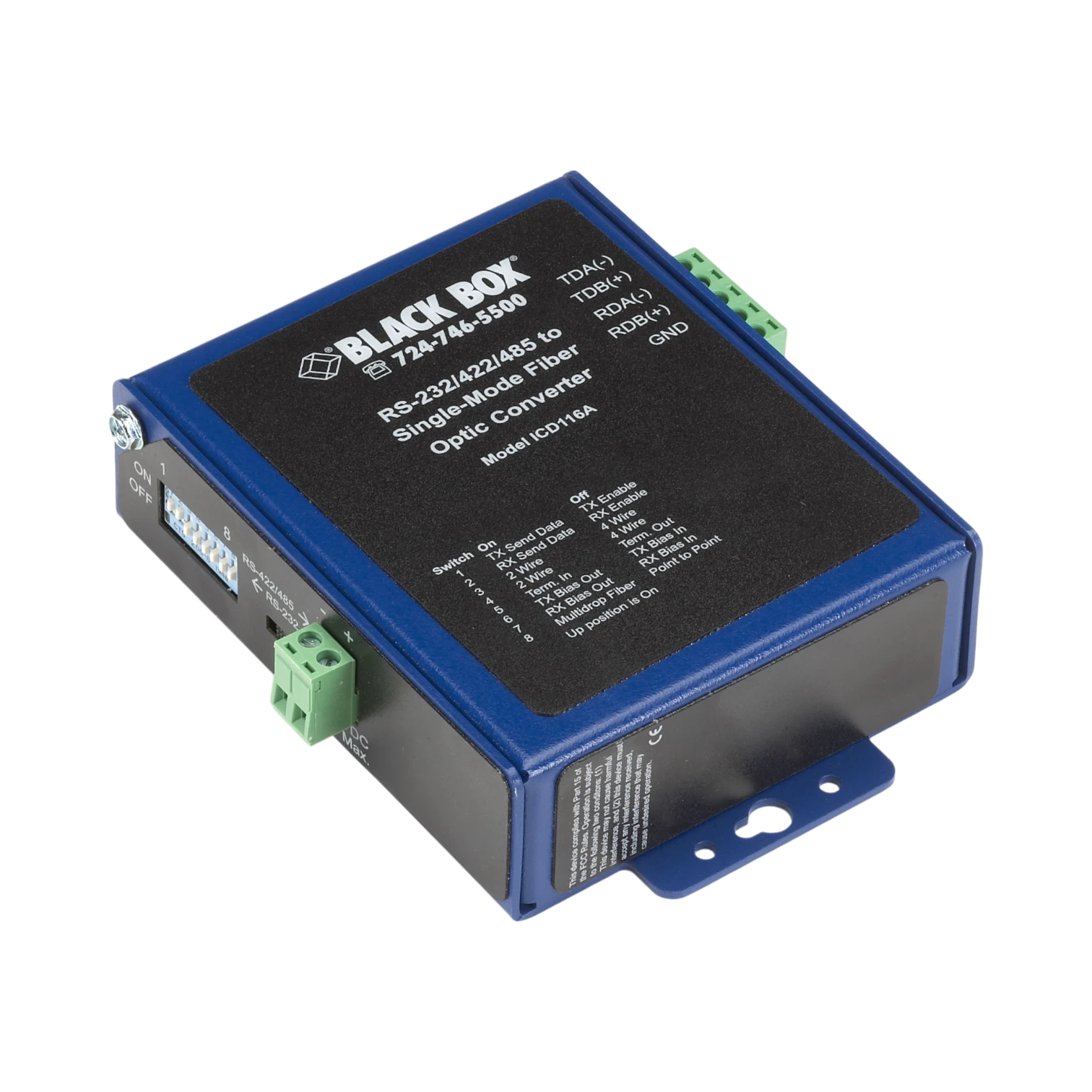

Black Box ICD116A

Overview

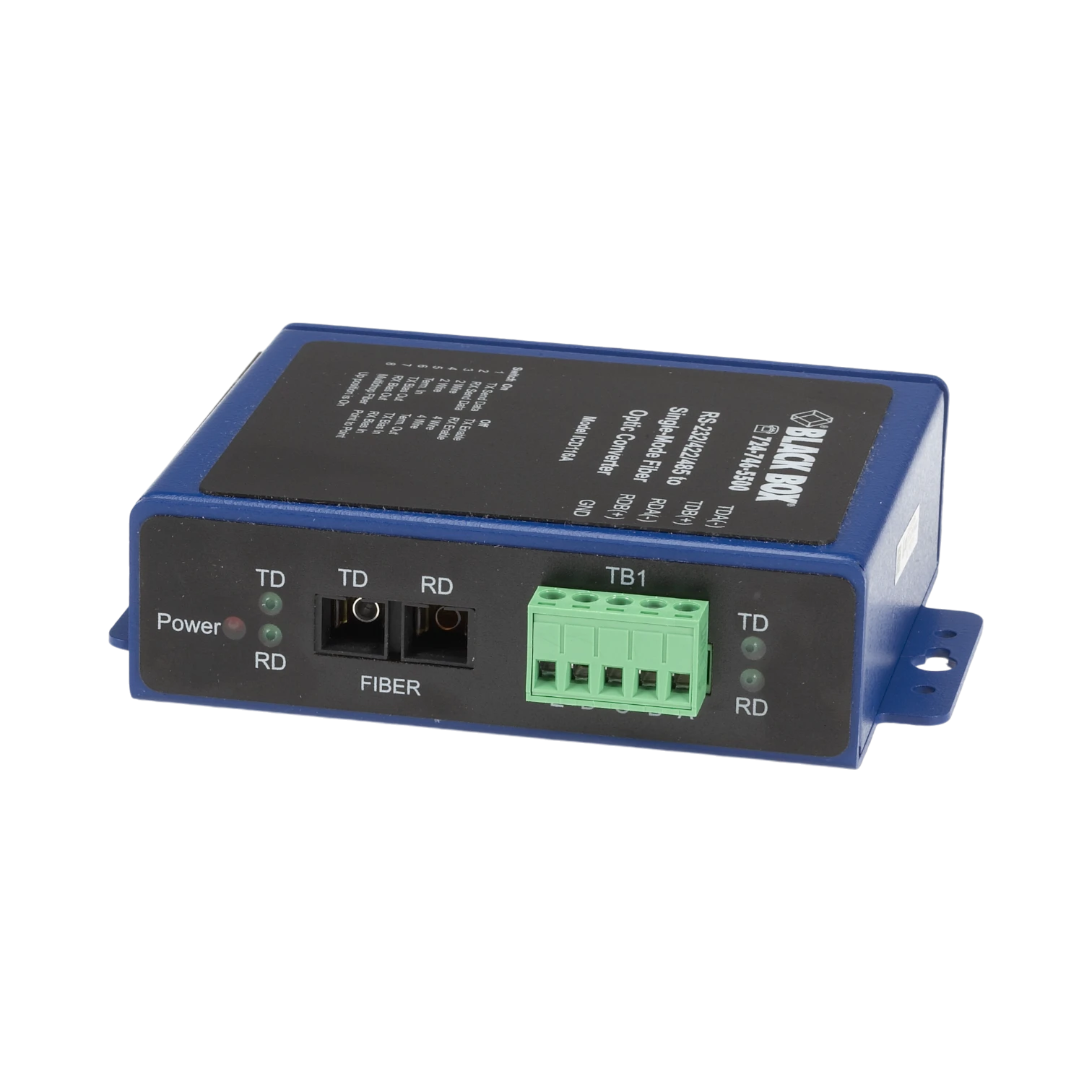

The Black Box ICD116A is a fiber extender designed to convert asynchronous RS-232, RS-422, or RS-485 serial signals for transmission over singlemode fiber optic cables. It enables reliable data communication over distances up to 15 kilometers at speeds reaching 115.2 kbps, making it an effective solution for connecting control rooms with remote sensors, PLCs, or terminals in industrial, utility, or defense environments. Its robust design isolates connected equipment from electrical noise and ground loops, ensuring stable operation in challenging conditions.

Key features

• Extends serial data signals up to 15 kilometers using singlemode fiber, allowing long-distance communication without signal degradation
• Metal enclosure with an IP30 rating provides protection against dust and mechanical impact, suitable for industrial settings
• Operates reliably in extreme temperatures from -30 to 185 degrees Fahrenheit and withstands shock and vibration, supporting harsh environment deployments
• Triple isolation rated at 2 kilovolts protects connected devices from electrical surges and eliminates ground loop interference
• Supports asynchronous RS-232, RS-422, and RS-485 interfaces, offering flexibility for various serial communication standards
• Enables ring topology with up to 31 additional units, facilitating shared communication paths and network scalability
• Complies with IEC 61850-3 and IEEE 1613 standards, ensuring suitability for critical substation and utility applications
• Simple field configuration via DIP switches for interface selection and termination, plus automatic data rate detection for seamless integration

Key specs

• Maximum transmission distance: 15 kilometers over singlemode fiber
• Data rate: up to 115.2 kbps
• Supported interfaces: RS-232, RS-422, RS-485
• Isolation rating: 2 kV triple isolation
• Operating temperature range: -30 to 185 °F (-34 to 85 °C)
• Enclosure rating: IP30 metal housing
• Compliance: IEC 61850-3, IEEE 1613
• Topology support: point-to-point and ring with up to 32 units total

Connectivity and compatibility

The ICD116A supports multiple serial communication standards, making it compatible with a wide range of industrial devices such as PLCs, remote terminal units, and sensors. Its fiber optic interface ensures immunity to electromagnetic interference, which is critical in electrically noisy environments like substations or manufacturing floors. The ability to form ring topologies allows flexible network designs that enhance redundancy and reliability.

Performance and reliability

Designed for demanding industrial and utility applications, this extender maintains stable communication even under extreme temperature fluctuations and mechanical stress. The triple isolation feature safeguards sensitive equipment from voltage surges and ground loops, reducing downtime risks. Compliance with rigorous industry standards further confirms its suitability for mission-critical installations where continuous operation is essential.

Installation and setup

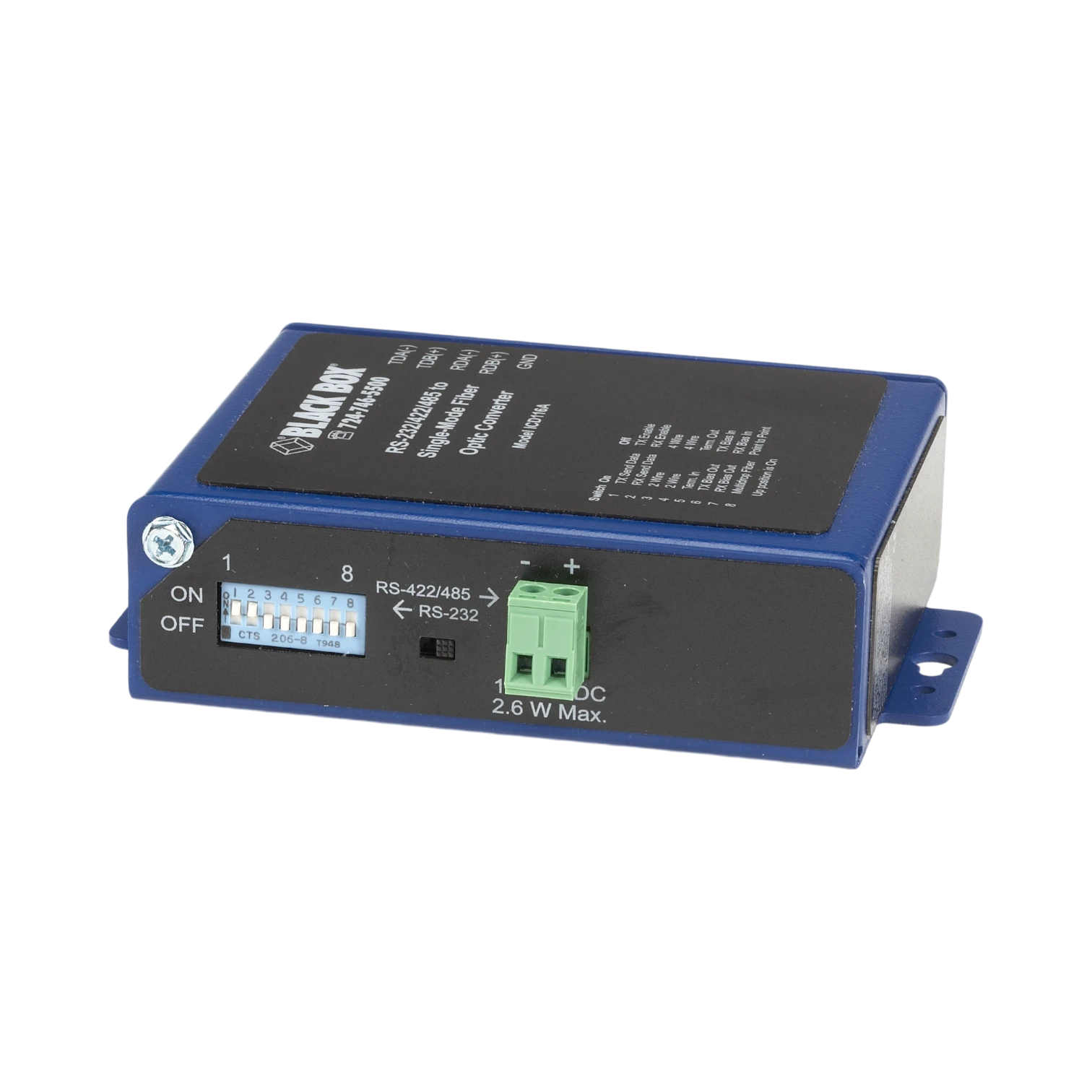

Setting up the ICD116A is straightforward thanks to DIP switches that allow quick selection of the serial interface type and termination settings. Automatic data rate detection simplifies integration with existing equipment by adapting to the connected device’s communication speed. Its compact metal housing can be mounted easily in control cabinets or on DIN rails, fitting well into existing industrial infrastructure.

Ideal uses and environments

This fiber extender is well suited to industrial automation, utility substations, and defense sites where long-distance serial communication is required without compromising signal integrity. It fits environments that demand rugged hardware capable of withstanding temperature extremes, vibration, and electrical interference. Engineers working on building automation, generator controls, or substation relay systems will find this unit a reliable choice for extending asynchronous serial data links.
