ADJ VS3384

Overview

The ADJ VS3384 is a high-resolution outdoor video panel designed to deliver sharp and vibrant images in both indoor and outdoor settings. Featuring a 3.84 millimeter pixel pitch and 4500 nits of brightness, it ensures detailed visuals that remain clear even under direct sunlight or bright stage lighting. Its durable construction with IP65 front and IP54 rear ratings protects against rain and dust, making it suitable for a wide range of environments and weather conditions.

This panel supports a 3840 hertz refresh rate with advanced MOM technology to minimize flicker and maintain smooth motion, which is especially important for broadcast and streaming applications. The unit is compatible with Nova Star synchronous control systems, allowing seamless integration into existing setups without additional software or training.

Key features

• 3.84 millimeter pixel pitch provides fine detail for audiences viewing from close distances
• High brightness of 4500 nits keeps images visible under daylight and intense stage lighting
• IP65 front and IP54 rear ratings protect electronics from rain, dust, and splashes during outdoor use
• 3840 hertz refresh rate combined with advanced MOM technology reduces flicker on camera and ensures smooth video playback

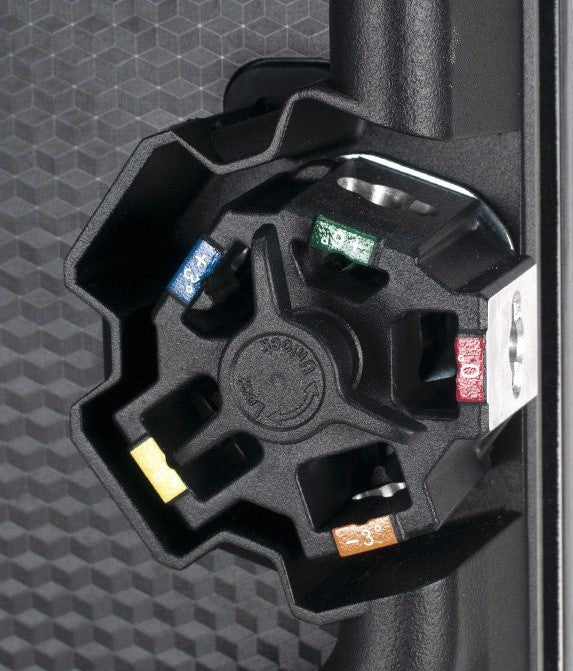

• Quick lock connectors enable fast and tool-free panel assembly, speeding up installation

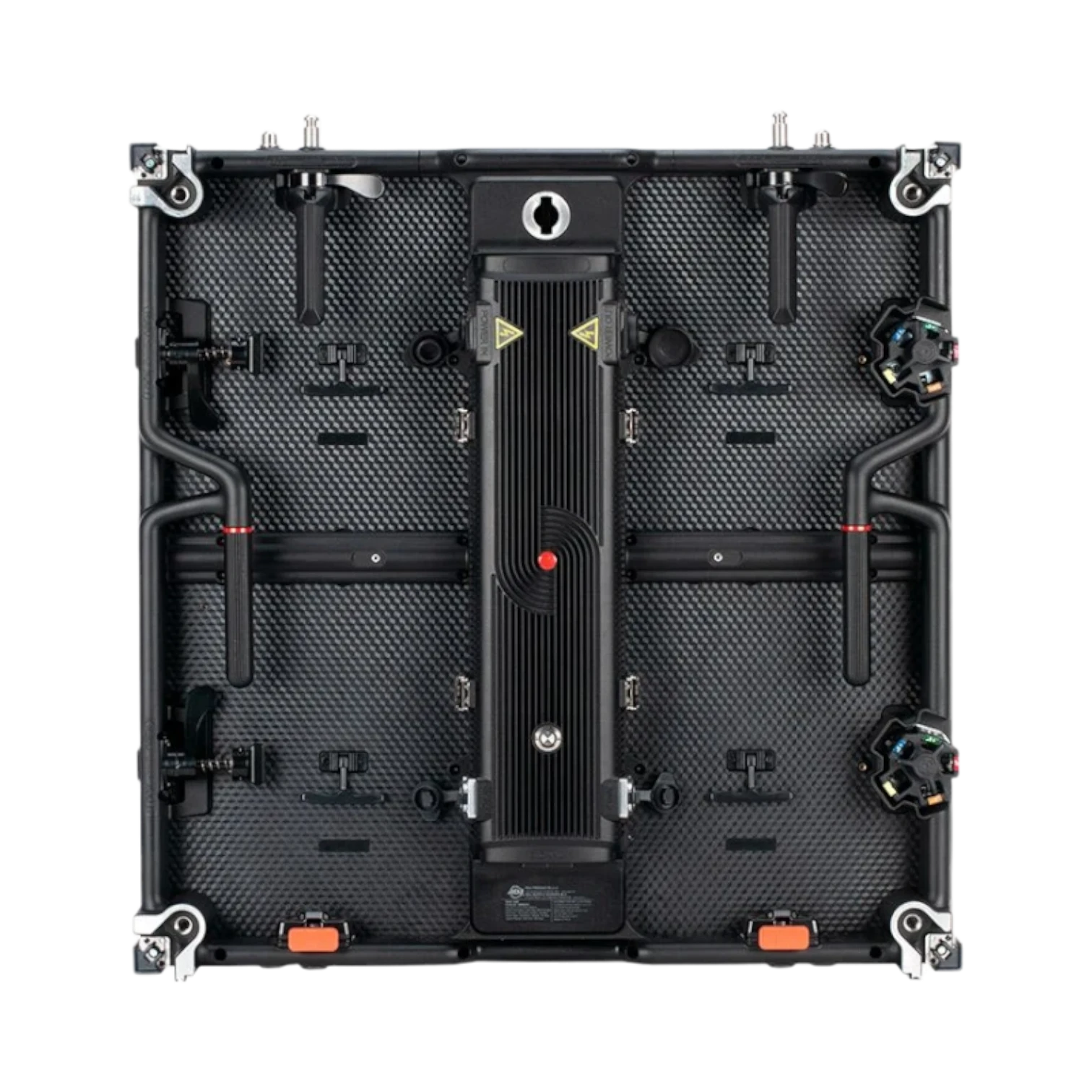

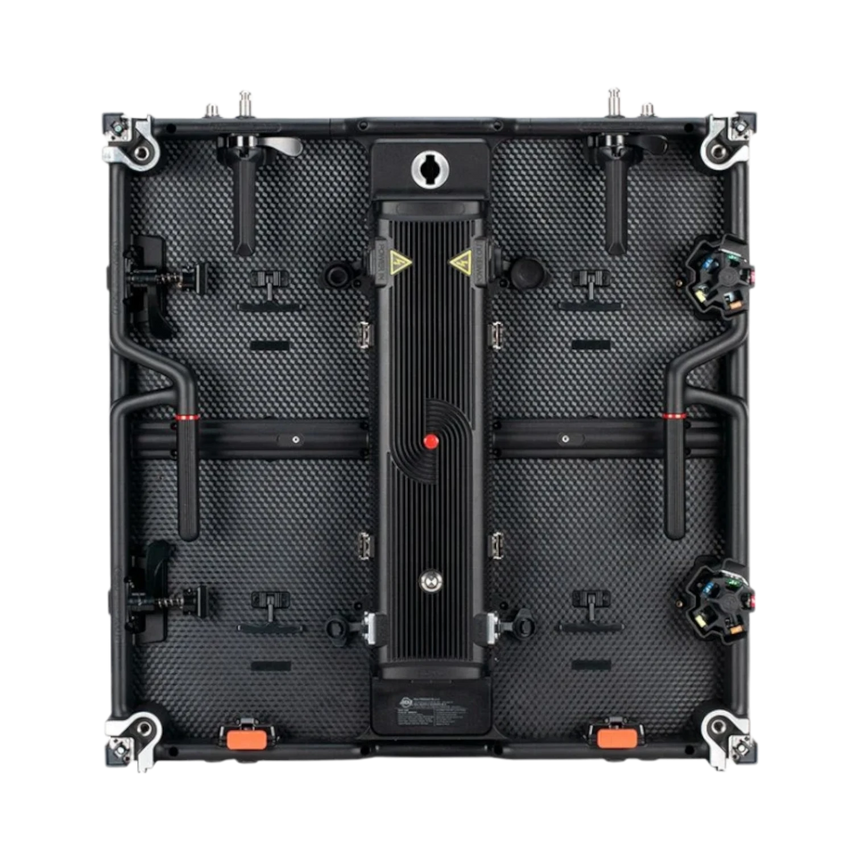

• Rear serviceable design allows easy access to modules and power supplies for maintenance without dismantling the entire wall
• Compatible with the full line of ADJ VS rigging bars, ground stack frames, and processors for flexible setup options
• Lightweight panels (19.84 pounds) sized at 22.7 by 22.7 inches make handling and transport manageable for a single technician
• Wide operating temperature range from minus 4 to 104 degrees Fahrenheit supports use in diverse climates and seasonal events

Key specs

• Pixel pitch: 3.84 millimeters
• Brightness: 4500 nits
• Refresh rate: 3840 hertz
• LED type: 3 in 1 RGB SMD1921
• Front protection rating: IP65
• Rear protection rating: IP54
• Panel dimensions: 22.7 x 22.7 x 3.00 inches
• Weight: 19.84 pounds
• Operating temperature: -4 to 104 degrees Fahrenheit
• Control system compatibility: Nova Star synchronous system

Connectivity and compatibility

The panel integrates smoothly with existing video walls and control systems thanks to its compatibility with Nova Star synchronous control technology. This allows for straightforward setup and operation without the need for new software or extensive training. Its mechanical design matches other ADJ VS models, enabling the use of shared rigging bars, ground stack frames, and processors, which simplifies expansion or replacement within a video wall configuration.

Installation and setup

Installation is streamlined by quick lock connectors that join panels securely without requiring tools, reducing setup time significantly. The rear serviceable design means technicians can access and replace LED modules or power supplies from the back of the panel, which is especially valuable during tours or events with tight schedules. The manageable size and weight allow a single technician to handle each panel safely and efficiently.

Ideal uses and environments

This video panel is well suited for a variety of applications including corporate signage, concert backdrops, sports arena scoreboards, and outdoor festivals. Its robust weather protection and wide temperature tolerance make it reliable for temporary outdoor installations such as winter markets or summer events. The high brightness and fine pixel pitch ensure that content remains clear and engaging for audiences both near and far, making it a strong choice for professional event production and broadcast environments.
