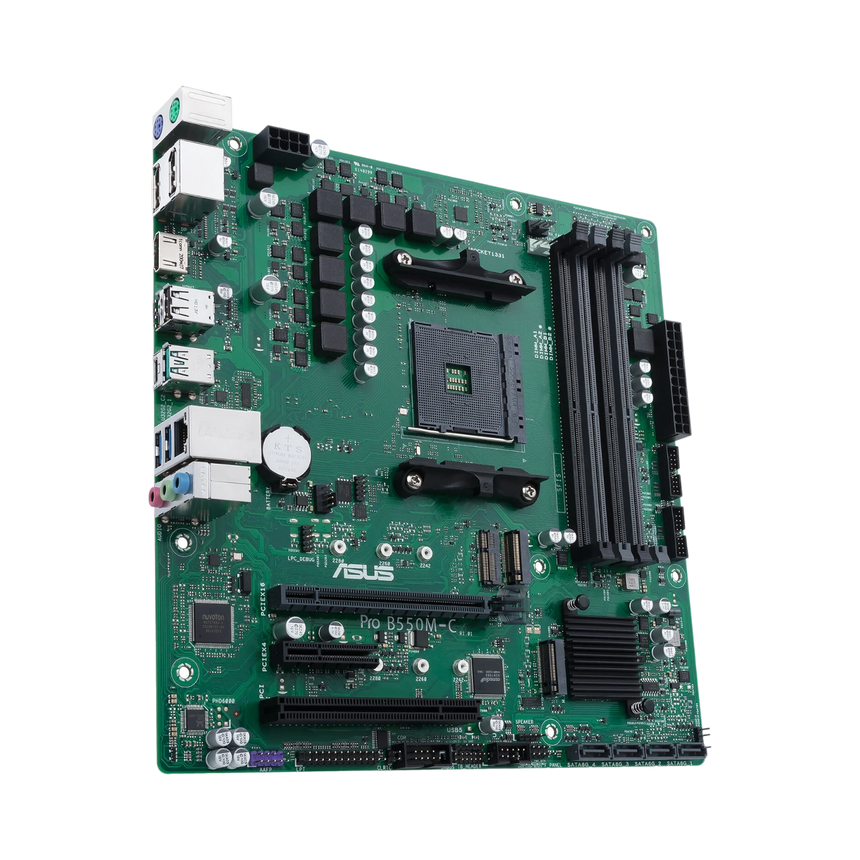

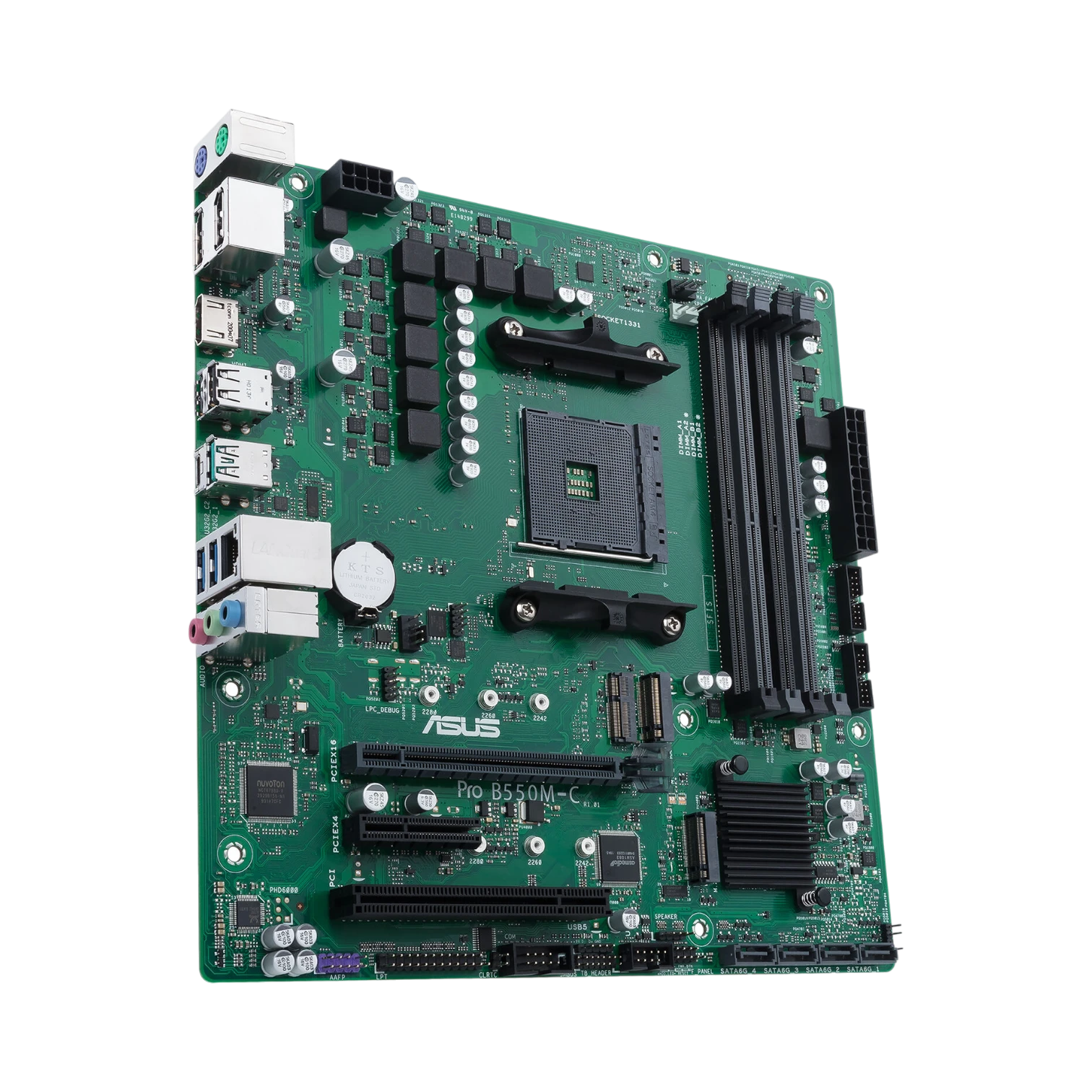

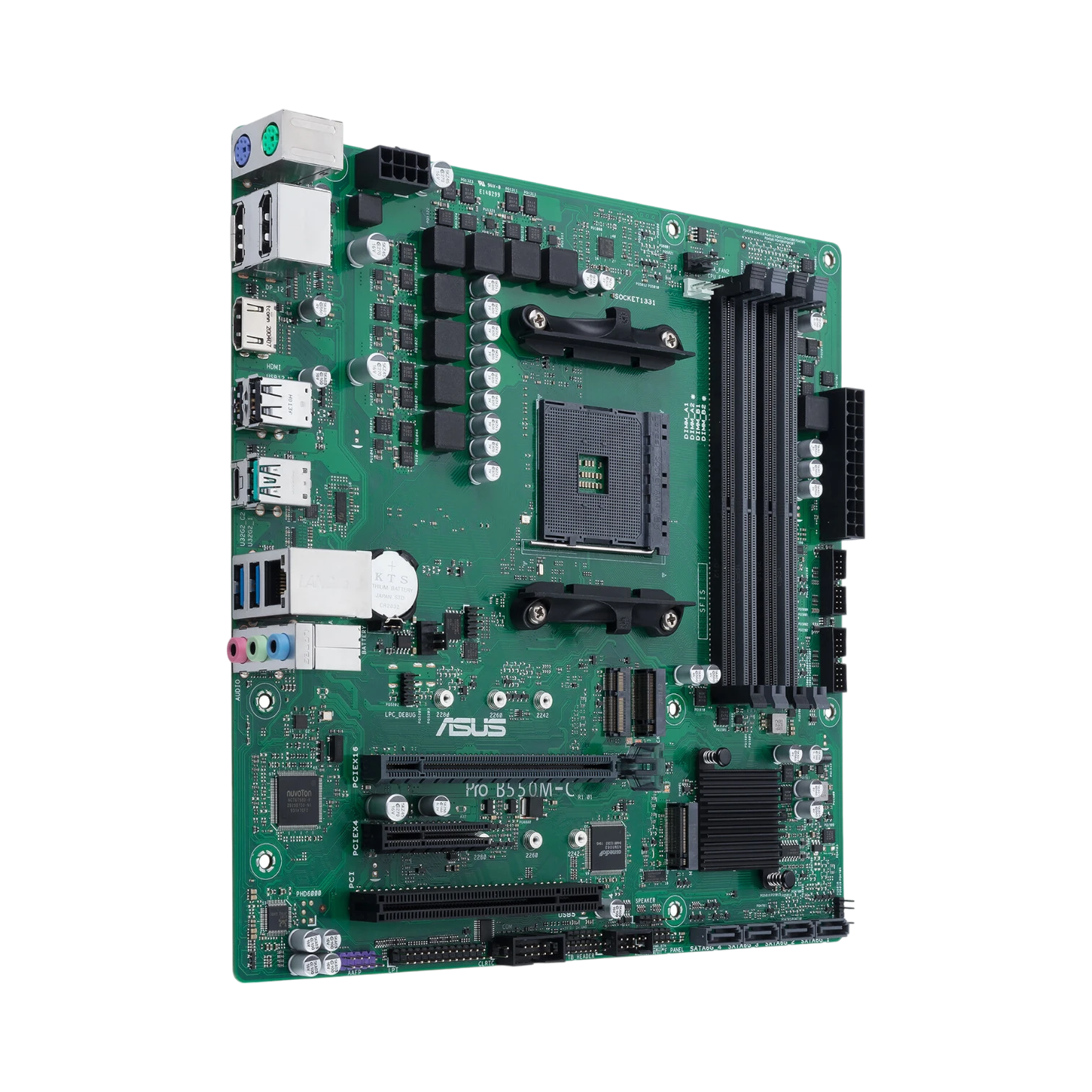

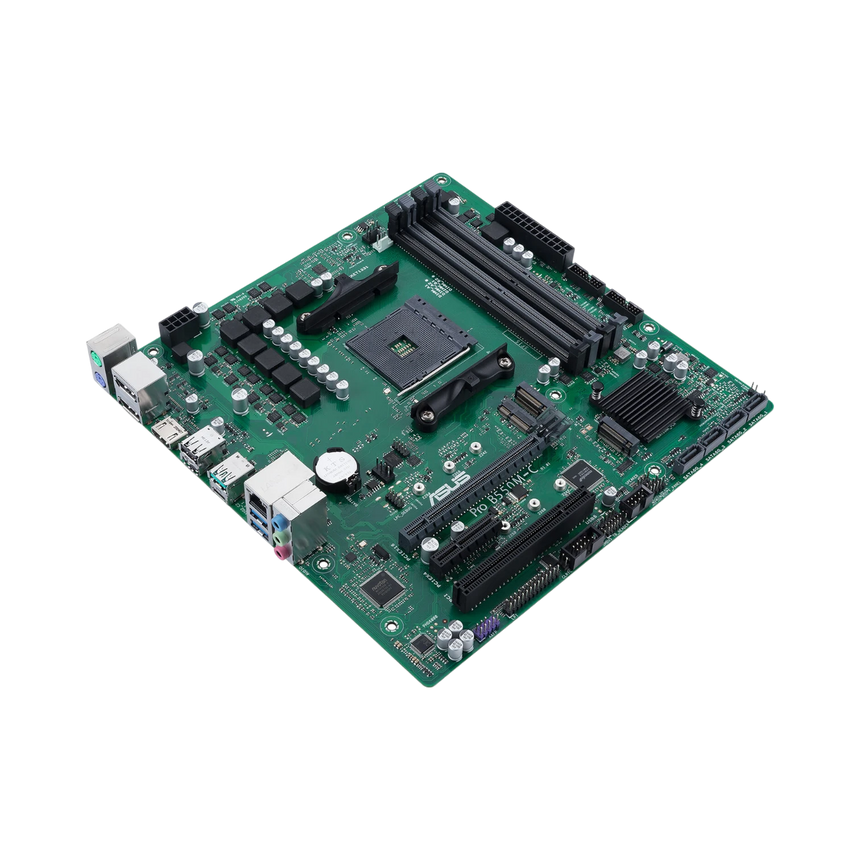

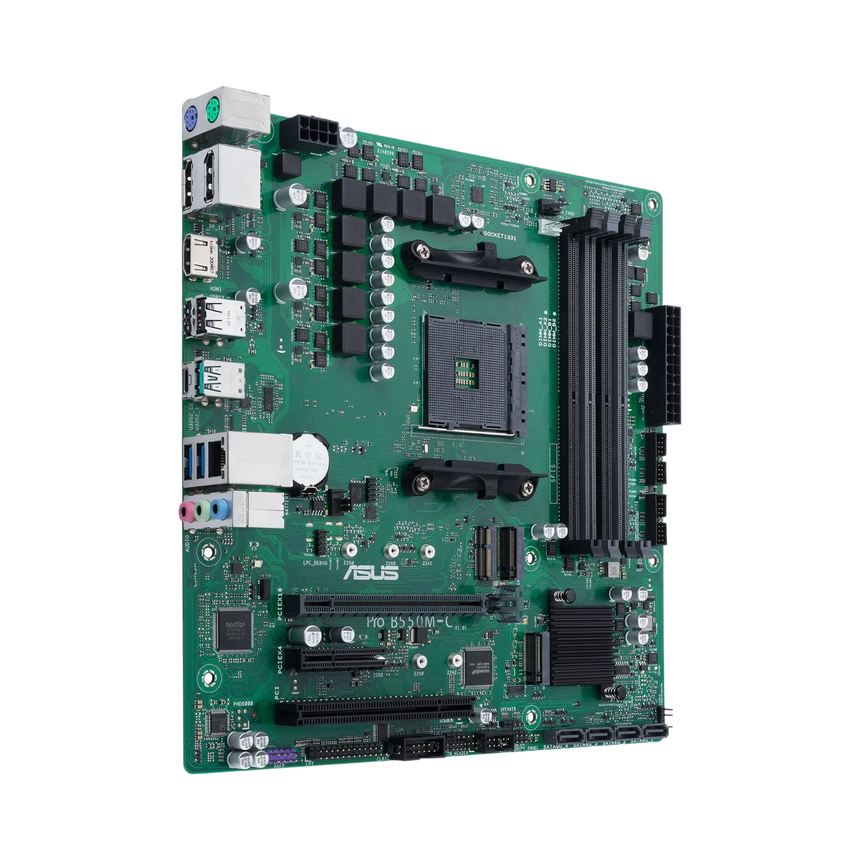

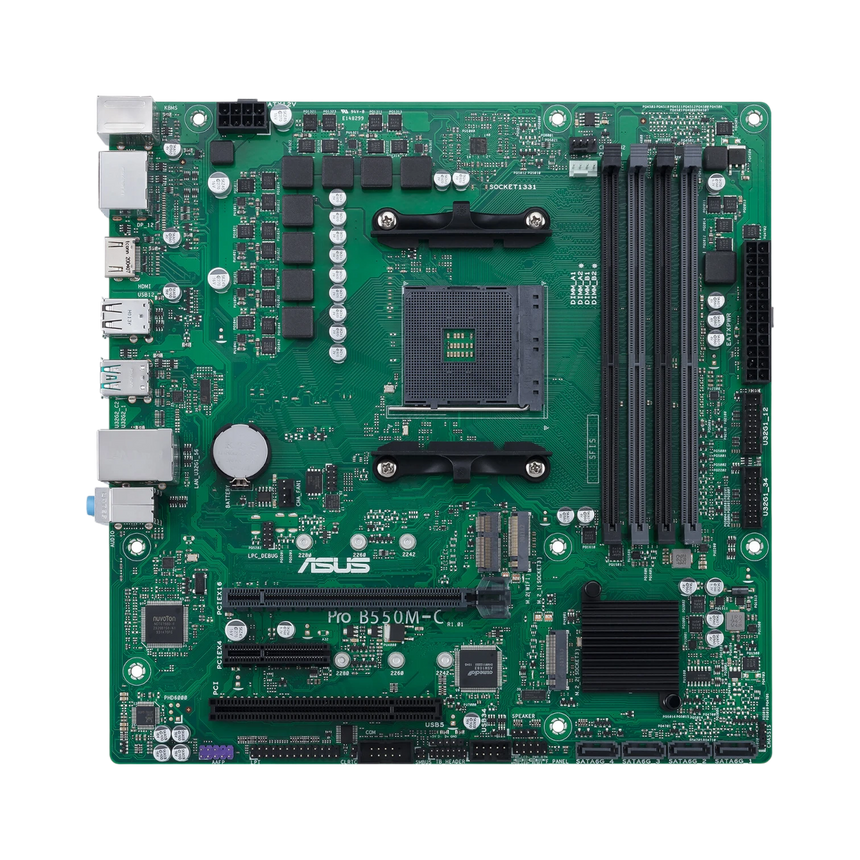

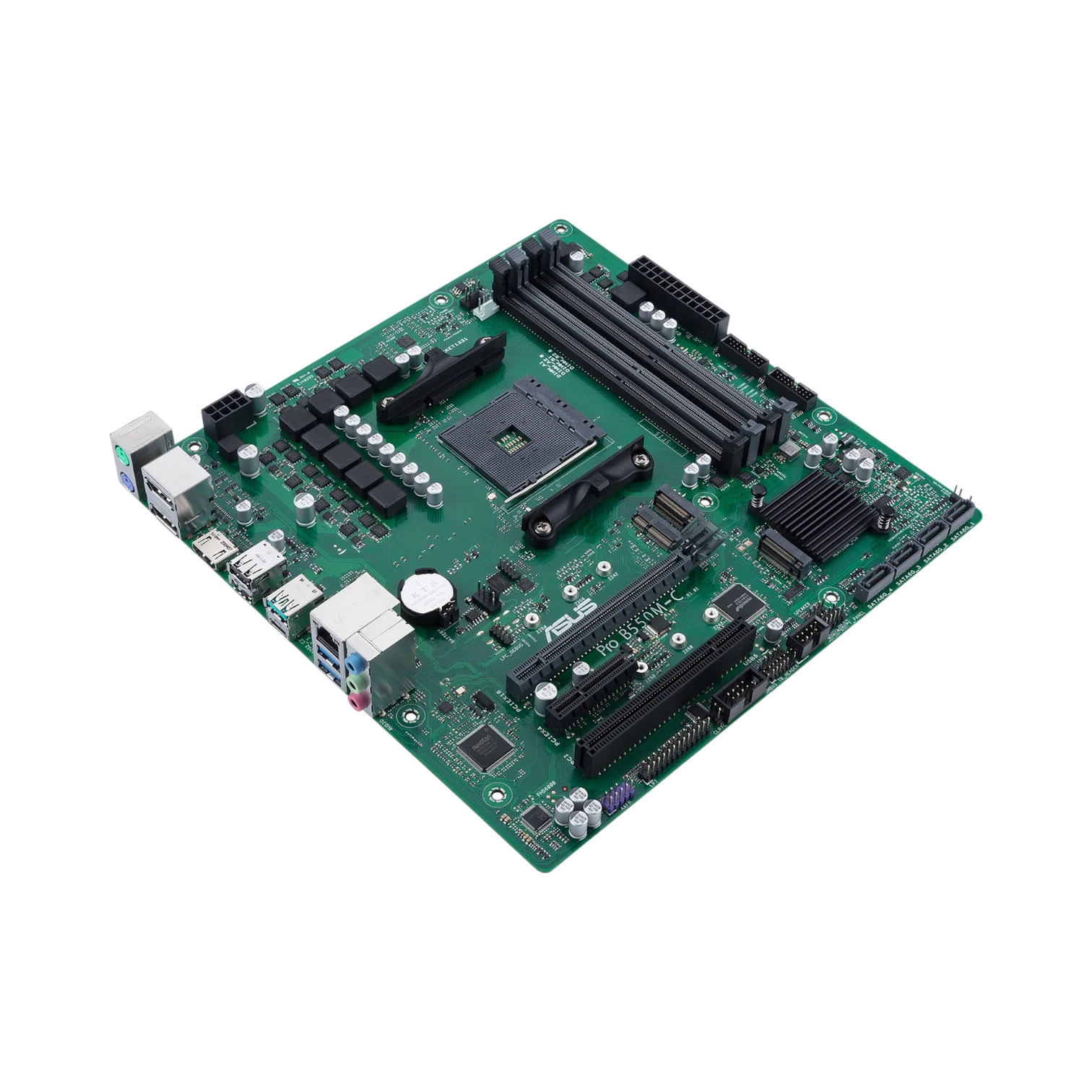

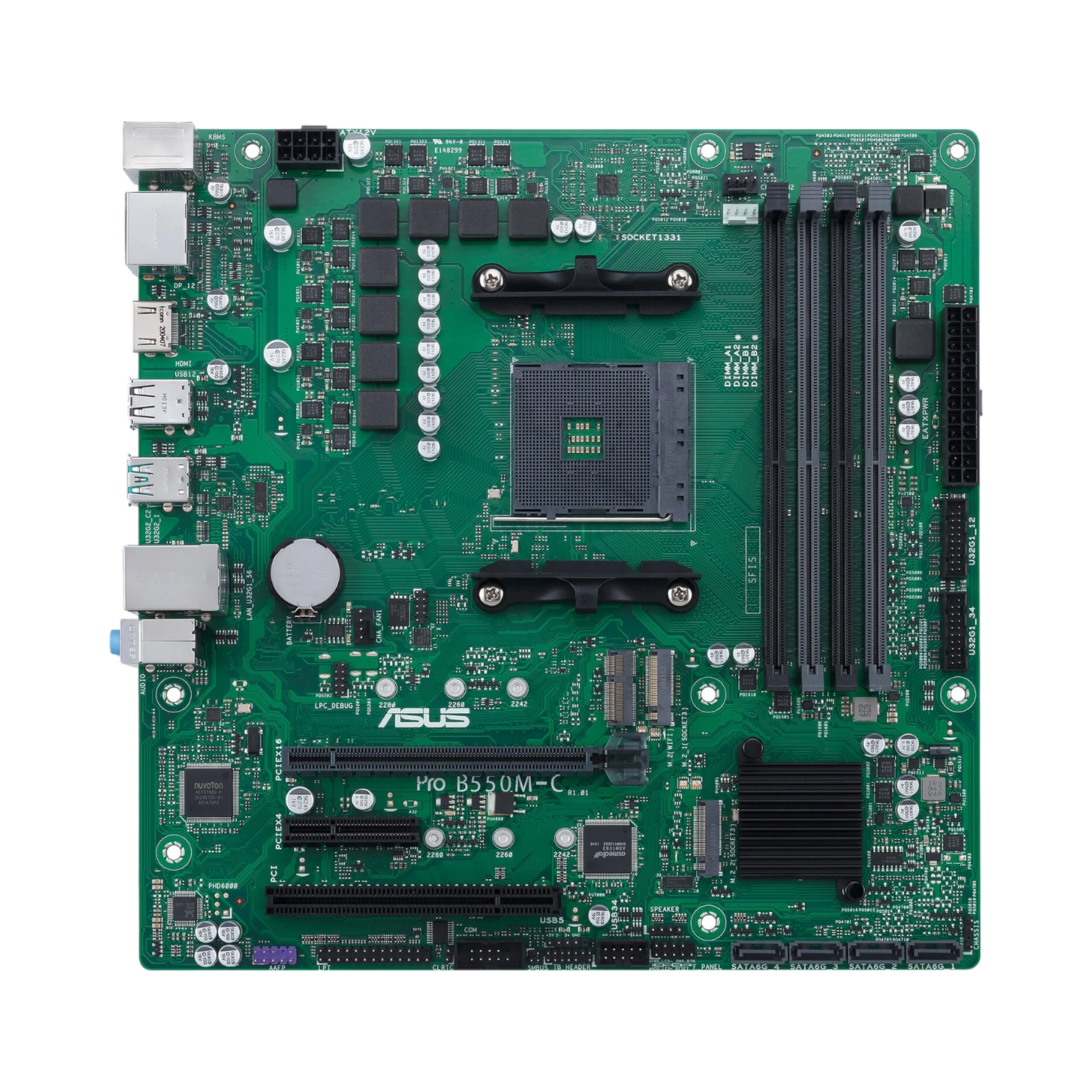

ASUS PRO B550M-C/CSM

Overview

The ASUS PRO B550M-C/CSM is a micro-ATX commercial motherboard designed to provide a stable and versatile foundation for business systems, digital signage, edge servers, and point-of-sale terminals. It supports AMD Ryzen 3000, 4000 G-Series APUs, and 5000 processors, with memory speeds up to 4800 MHz across four DDR4 DIMM slots, ensuring smooth multitasking and efficient performance. This board combines robust hardware features with enterprise-grade reliability to meet the demands of continuous operation environments.

Key features

• Supports a wide range of AMD Ryzen processors, offering flexibility for various business applications.
• Four DDR4 DIMM slots allow up to 128 GB of high-speed memory, enabling efficient multitasking and data handling.
• Dual M.2 sockets provide fast NVMe storage options, including PCIe 4.0 support for cutting-edge SSDs and PCIe 3.0 for additional drives.
• Four SATA 6 Gb/s connectors expand storage capacity for bulk data or backup drives.
• ASUS Control Center Express simplifies remote management, allowing administrators to update BIOS, monitor hardware health, and enforce security policies from a centralized console.
• Self-recovering BIOS protects firmware integrity by restoring the system automatically if an update fails, reducing downtime.

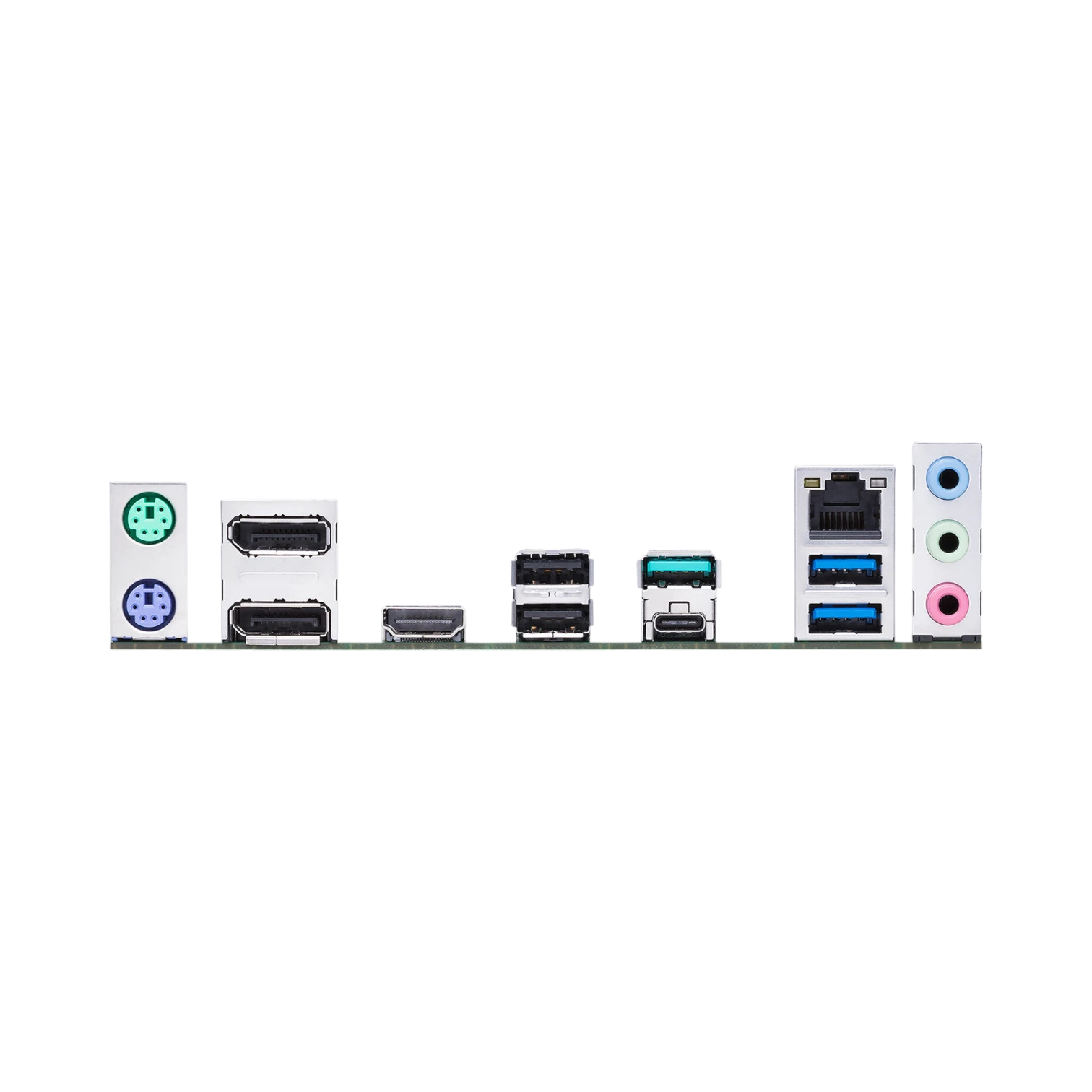

• Durability features such as anti-moisture coating, ESD guards, and a corrosion-resistant stainless steel rear I/O panel ensure long-term reliability in demanding environments.
• Integrated Realtek 1 Gb Ethernet provides stable network connectivity without the need for additional cards.
• Front-panel USB 3.2 Gen 2 Type-A and Type-C ports deliver up to 10 Gbps data transfer speeds for fast external device access.
• Onboard TPM header supports hardware-based encryption and secure boot, enhancing data security for regulated business settings.

Key specs

• Chipset: AMD B550
• Processor support: AMD Ryzen 3000, Ryzen 4000 G-Series APUs, Ryzen 5000 CPUs
• Memory: 4 × DDR4 DIMM slots, up to 128 GB, speeds up to 4800 MHz
• Storage interfaces: 2 × M.2 sockets (1 × PCIe 4.0, 1 × PCIe 3.0), 4 × SATA 6 Gb/s connectors
• Network: Realtek 1 Gb Ethernet controller
• Expansion slots: 1 × PCIe 4.0 ×16 slot, additional PCIe slots for expansion cards
• USB ports: Front-panel USB 3.2 Gen 2 Type-A and Type-C (up to 10 Gbps)
• Form factor: Micro-ATX

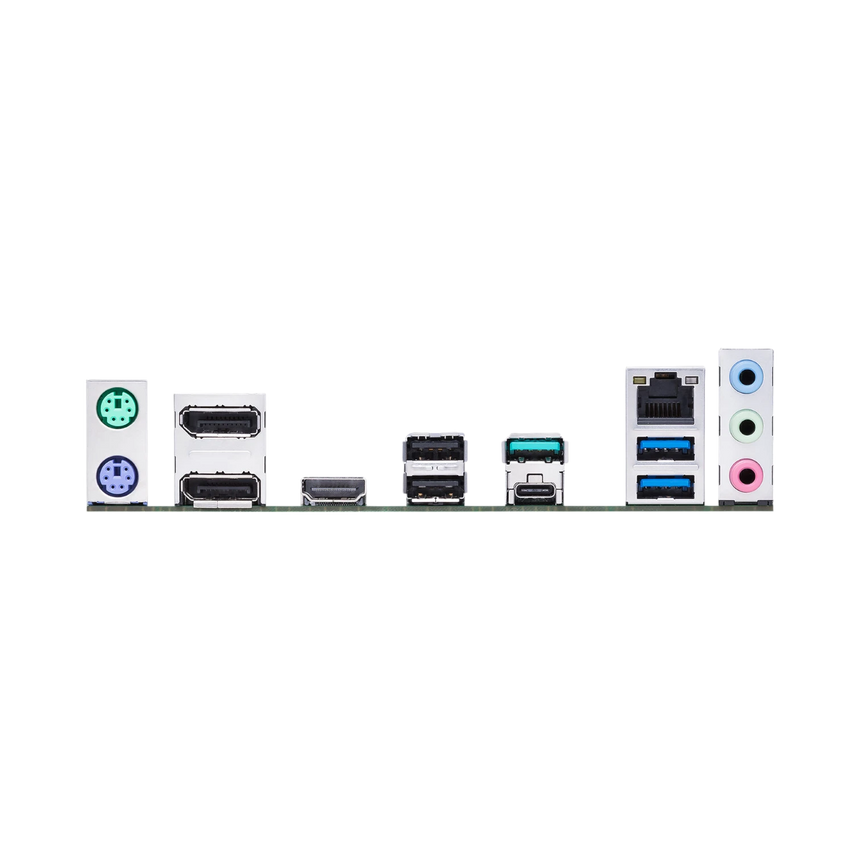

• Durability features: Anti-moisture coating, ESD guards, stainless steel rear I/O panel
• Security: Onboard TPM header for hardware encryption and secure boot

Connectivity and compatibility

This motherboard offers a comprehensive set of connectivity options to support a variety of peripherals and network environments. The inclusion of both USB Type-A and Type-C ports on the front panel ensures compatibility with modern external devices and fast data transfers. The Realtek 1 Gb Ethernet controller provides reliable wired networking suitable for office and industrial setups. Expansion slots allow for additional cards such as capture devices or RAID controllers, making it adaptable to specialized business needs.

Performance and reliability

Designed for continuous 24 × 7 operation, this motherboard undergoes rigorous validation to ensure stability in demanding environments like factories and kiosks. The anti-moisture coating and ESD protection guard against environmental hazards, while the self-recovering BIOS minimizes downtime by safeguarding firmware updates. Together, these features deliver a dependable platform that supports critical business functions without interruption.

Ideal uses and environments

The ASUS PRO B550M-C/CSM fits well in professional settings that require consistent performance and security, such as office workstations, digital signage systems, and edge computing servers. Its support for high-speed memory and storage, combined with remote management capabilities, makes it a strong choice for IT administrators managing fleets of devices. The motherboard’s durability features also make it suitable for industrial environments where exposure to moisture and electrostatic discharge is a concern.
