Atlona AT-HDR-EX-70C-KIT

Overview

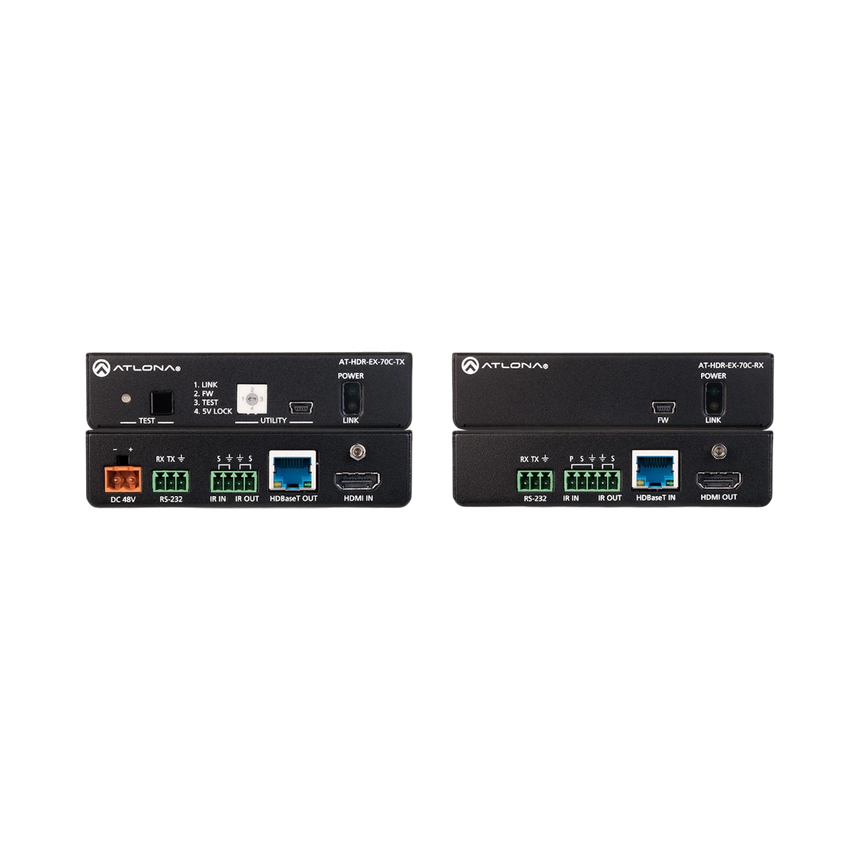

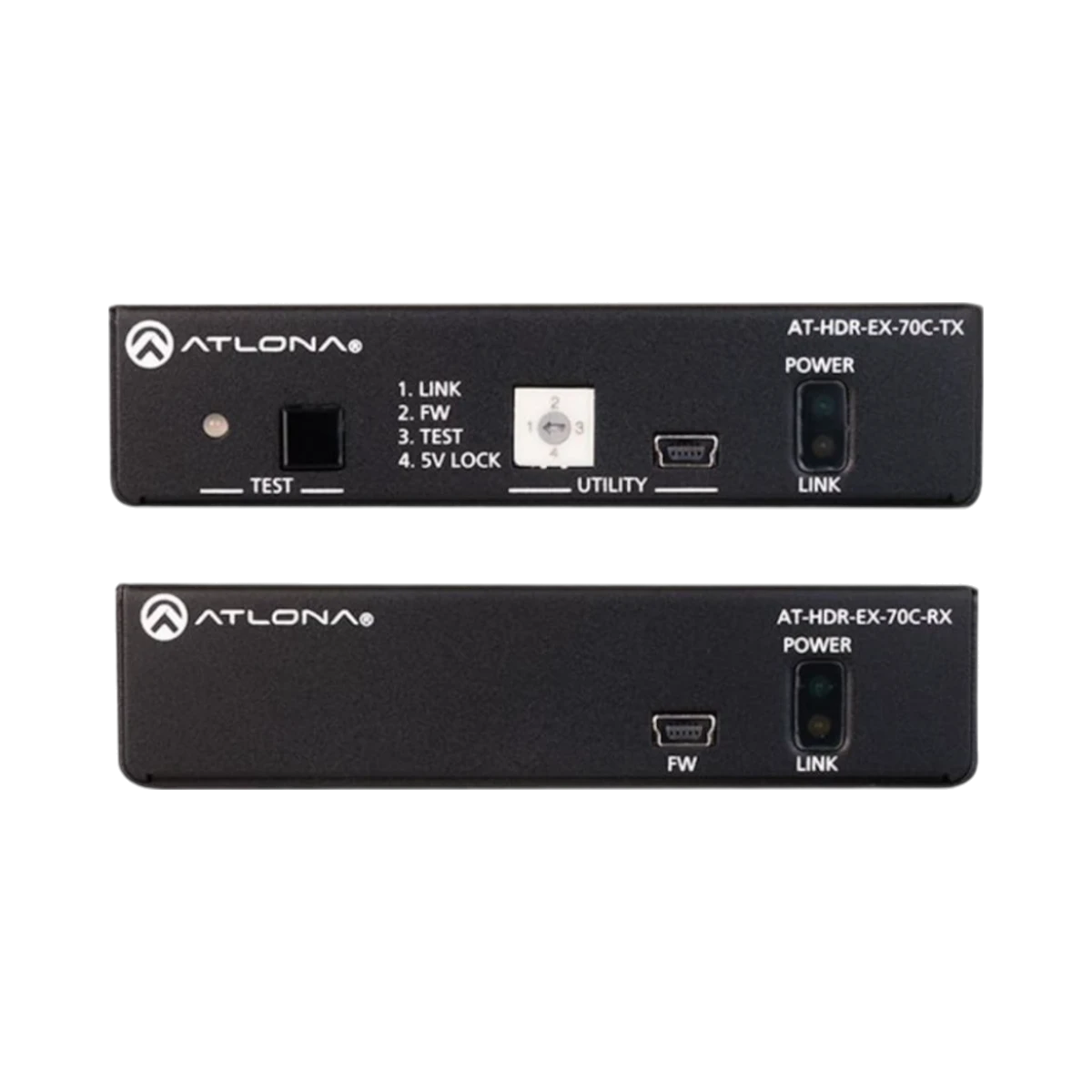

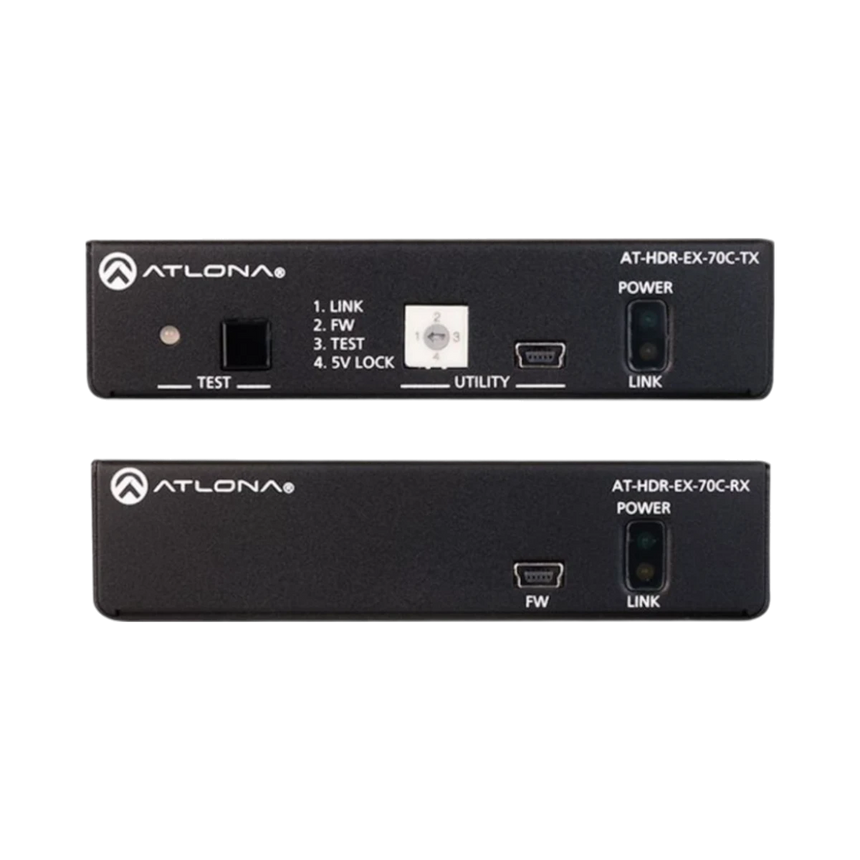

The Atlona AT-HDR-EX-70C-KIT is a transmitter and receiver set designed to extend high-quality 4K HDR HDMI signals over a single category cable. It supports 4K UHD video at 60 Hz with 4:4:4 chroma sampling and advanced HDR formats like HDR10 and Dolby Vision, ensuring vibrant and detailed images. This kit is ideal for professional AV installations, home theaters, and retail environments where maintaining sharp, color-accurate video is essential.

With the ability to extend HDMI signals up to 130 feet for 4K HDR and 230 feet for 1080p content using CAT6a or CAT7 cables, it simplifies installation while keeping costs down. The transmitter powers the receiver via Power over Ethernet (PoE), reducing the need for additional power supplies and minimizing cable clutter. It also supports bidirectional control signals such as IR, RS-232, and CEC, making device integration and control seamless in complex AV setups.

Key features

• Supports 4K/UHD video at 60 Hz with 4:4:4 chroma and HDR formats including HDR10 and Dolby Vision for accurate color and detail reproduction
• Compliant with HDCP 2.2 to ensure secure transmission of protected content
• Extends HDMI signals up to 230 feet for 1080p and 130 feet for 4K HDR over a single category cable, simplifying long-distance installations
• Uses CAT6a or CAT7 cable for a cost-effective and straightforward setup without sacrificing signal quality
• Power over Ethernet (PoE) capability allows the transmitter to supply power to the receiver, reducing the number of cables and power adapters needed
• Bidirectional extension of RS-232, IR, and CEC control signals enables integrated control of connected devices from either end
• Visually lossless compression technology maintains pristine image quality without introducing latency
• Compact design with rear panel connectors helps keep installations neat and manageable

Key specs

• Video resolution: up to 4K UHD (3840 x 2160) at 60 Hz with 4:4:4 chroma sampling
• HDR support: HDR10 and Dolby Vision
• HDCP compliance: HDCP 2.2
• Extension distance: up to 130 feet (40 meters) for 4K HDR, 230 feet (70 meters) for 1080p
• Cable type: CAT6a or CAT7 category cable
• Power delivery: Power over Ethernet (PoE) from transmitter to receiver
• Control signal support: bidirectional IR, RS-232, and CEC

Connectivity and compatibility

This kit integrates smoothly into existing AV systems by extending HDMI signals along with control signals over a single cable. The inclusion of IR, RS-232, and CEC support allows users to control source devices and displays remotely, which is especially useful in conference rooms, digital signage, and home theater setups. Its HDCP 2.2 compliance ensures compatibility with the latest protected content sources.

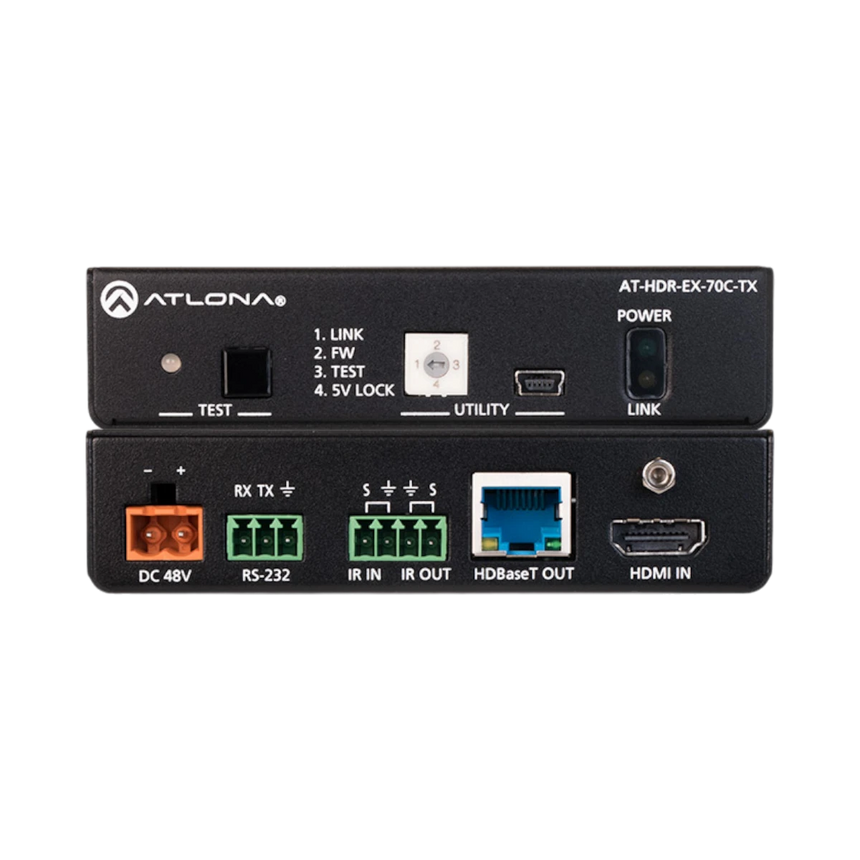

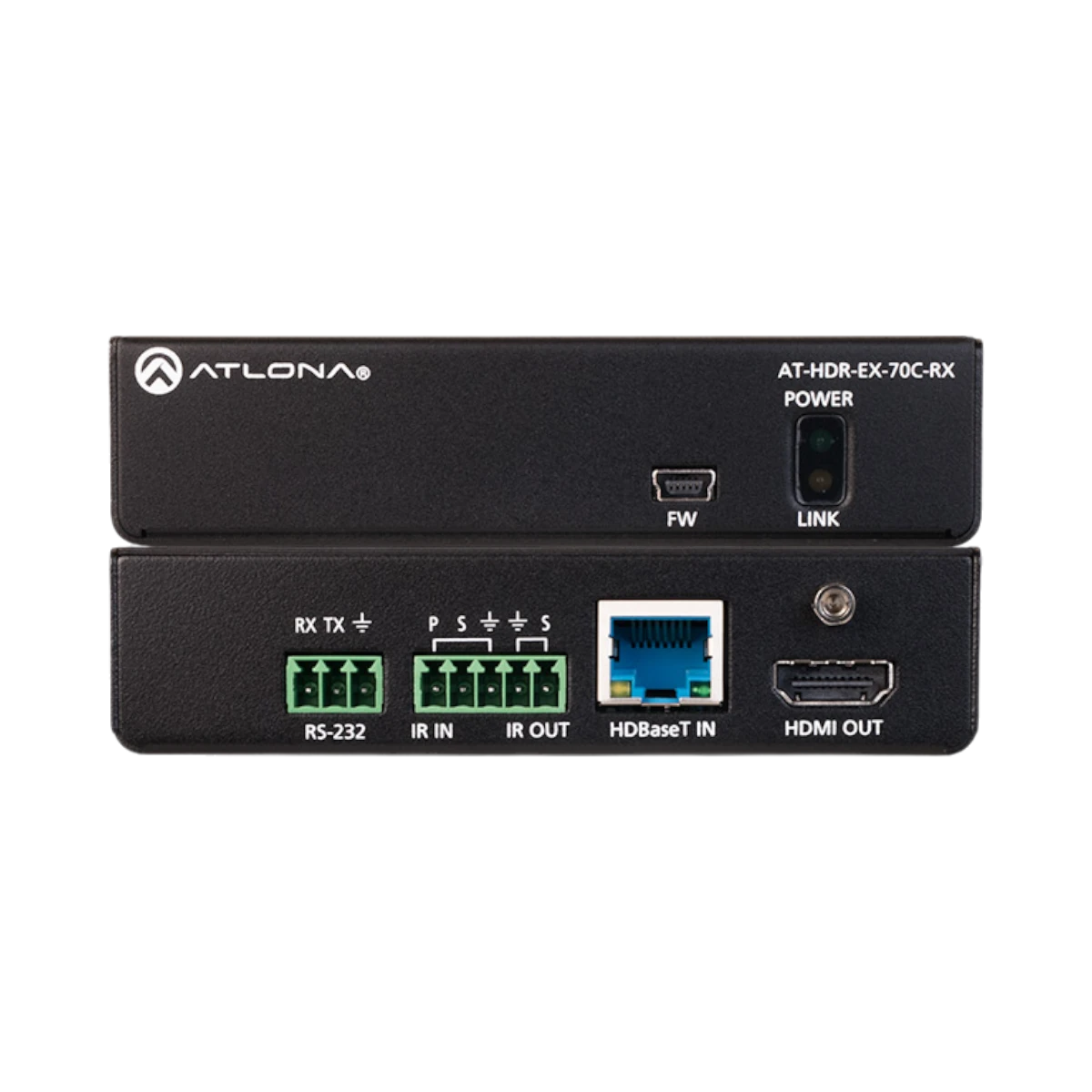

• HDMI input and output ports for high-definition video and audio transmission
• IR, RS-232, and CEC ports for flexible device control options
• PoE support eliminates the need for a separate power supply at the receiver end

Ideal uses and environments

The Atlona AT-HDR-EX-70C-KIT is well suited for professional AV installations requiring long-distance HDMI extension without compromising image quality. It fits well in home theaters where 4K HDR content is enjoyed, retail showrooms displaying vibrant digital signage, and conference rooms needing seamless device control. Its compact form and simple cabling make it a practical choice for both new installations and upgrades.

This set is a strong choice for users who need reliable, high-quality video extension with integrated control capabilities, especially in environments where minimizing cable clutter and maintaining signal integrity are priorities.
