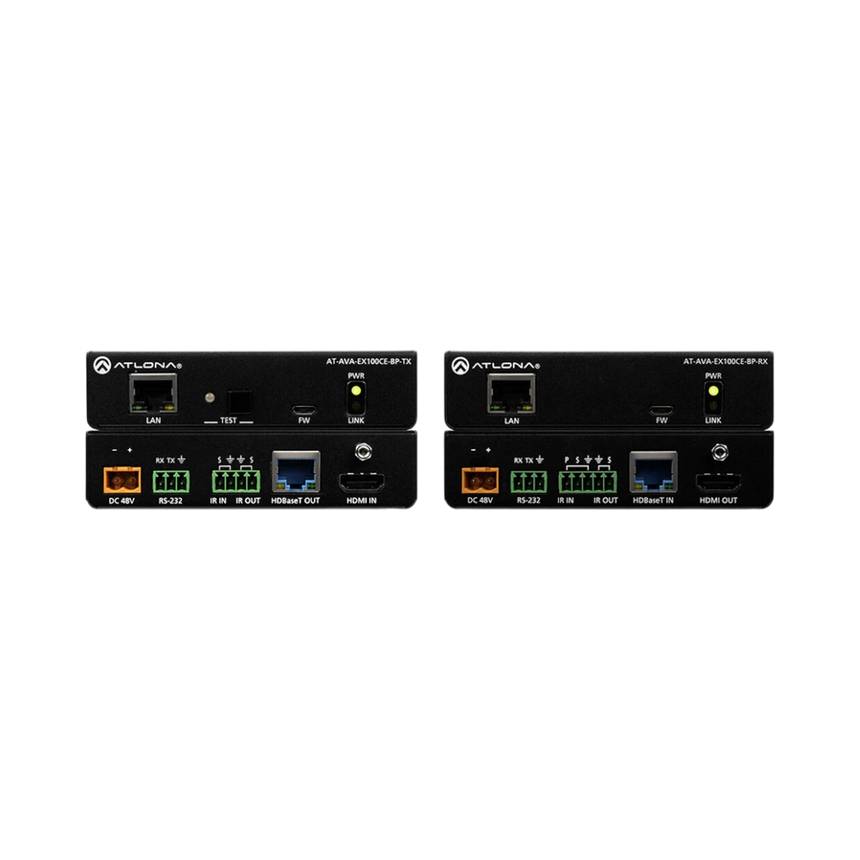

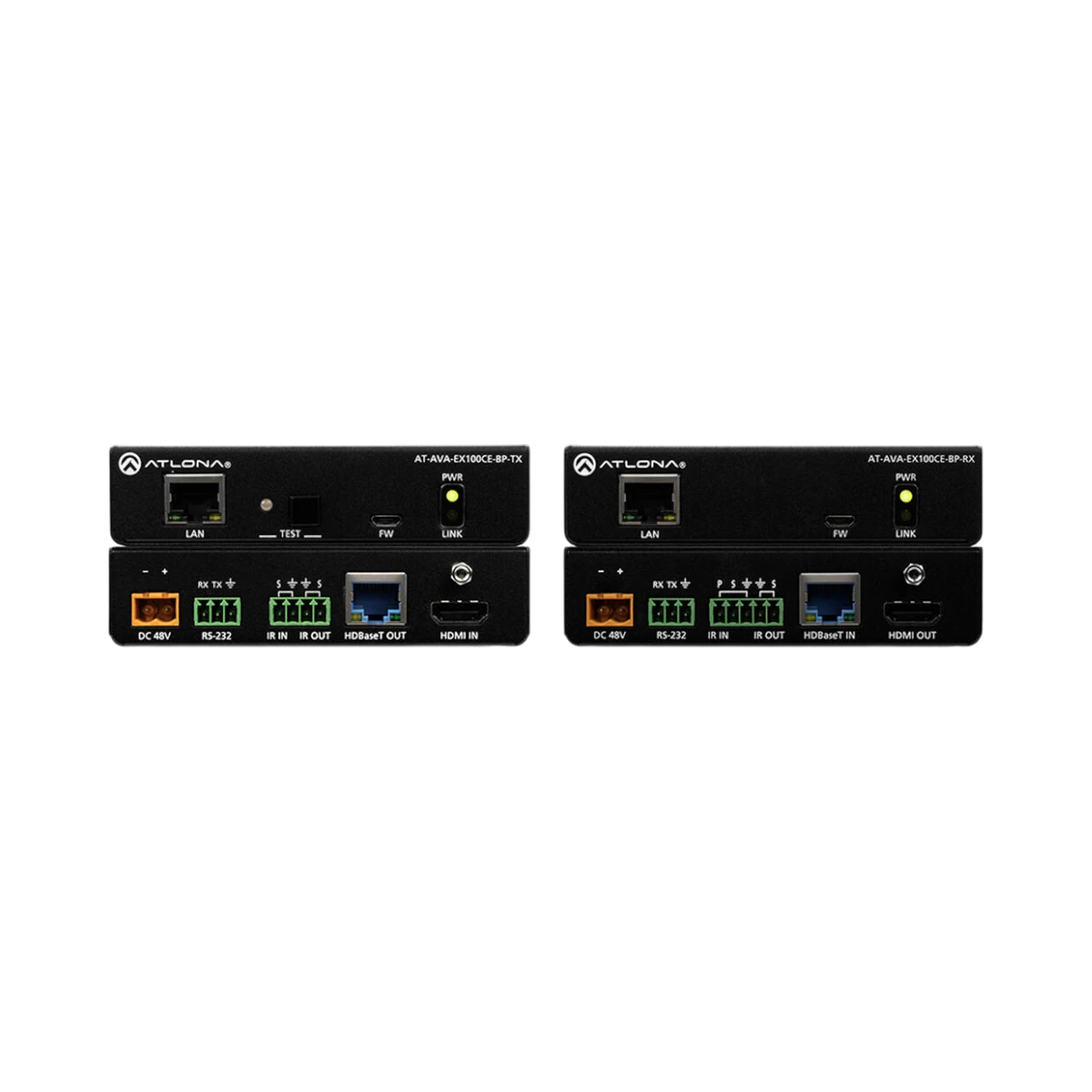

Atlona AT-AVA-EX100CE-BP-KIT

Overview

The Atlona AT-AVA-EX100CE-BP-KIT is a 4K HDMI transmitter and receiver kit designed to extend high-quality video, audio, and control signals up to 330 feet using a single Category 6 or Category 6A cable. It supports Ultra HD content at 4K resolution with 60 Hz refresh rate and 4:2:0 chroma subsampling, making it suitable for connecting media players, laptops, set-top boxes, and conferencing systems in environments like boardrooms, classrooms, and retail signage. The kit also includes Ethernet pass-through and carries RS-232 and infrared commands, simplifying network and control wiring.

Key features

• Extends 4K 60 Hz 4:2:0 video signals up to 330 feet over a single Cat 6 or Cat 6A cable, overcoming HDMI distance limitations
• Bidirectional power delivery allows powering the link from either the transmitter or receiver end, ideal for installations with limited power outlets
• Pass-through support for Ethernet, RS-232, and infrared control signals enables seamless integration with network and control systems
• EDID filtering and clock stretching ensure stable handshakes and maintain image integrity, reducing signal dropouts
• Integrated HDBaseT link test function verifies cable termination and estimates cable length during setup, simplifying installation troubleshooting
• HDMI Audio Return Channel (ARC) support allows audio to be sent back from the display to the source without extra cabling
• Compact metal enclosures with surface-mount brackets provide discreet mounting options behind displays, under tables, or on rack shelves

Key specs

• Video resolution: 4K at 60 Hz with 4:2:0 chroma subsampling
• Maximum cable length: 330 feet (100 meters) over Cat 6 or Cat 6A cable
• Signal types extended: HDMI video and audio, Ethernet, RS-232, infrared control
• Power: Bidirectional power delivery from either transmitter or receiver
• Enclosure: Compact metal housing with surface-mount brackets

Connectivity and compatibility

This kit supports a wide range of HDMI sources and displays, including media players, laptops, set-top boxes, and conferencing equipment. The inclusion of Ethernet pass-through keeps network connectivity intact at both ends, while RS-232 and infrared control signals allow integration with common control systems. The HDMI Audio Return Channel feature enables audio to flow back from compatible displays without additional cables, streamlining audio setups.

Installation and setup

Installation is straightforward thanks to the bidirectional power feature, which lets you power the link from either end depending on outlet availability. The built-in HDBaseT link test tool helps verify cable quality and length during setup, reducing troubleshooting time. Compact metal enclosures with mounting brackets make it easy to install the units discreetly in various locations such as behind screens, under tables, or on rack shelves.

Ideal uses and environments

This transmitter and receiver kit is well suited to professional AV installations in conference rooms, lecture halls, houses of worship, and retail signage applications. It works well in setups where long cable runs are necessary but standard HDMI cables fall short. The combination of video extension, control signal pass-through, and flexible power options makes it a strong choice for integrators and IT professionals looking to simplify cabling and maintain signal integrity over distance.
