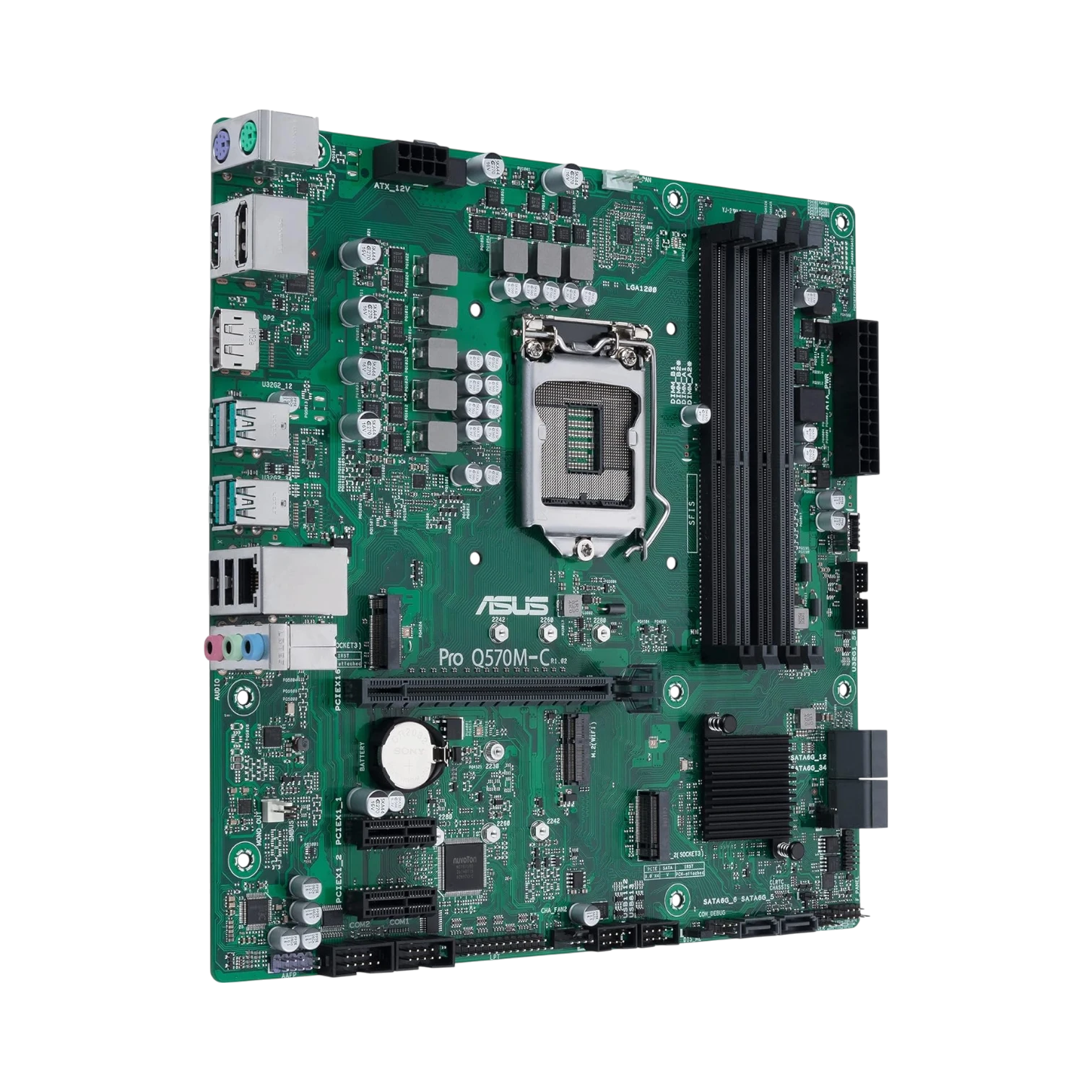

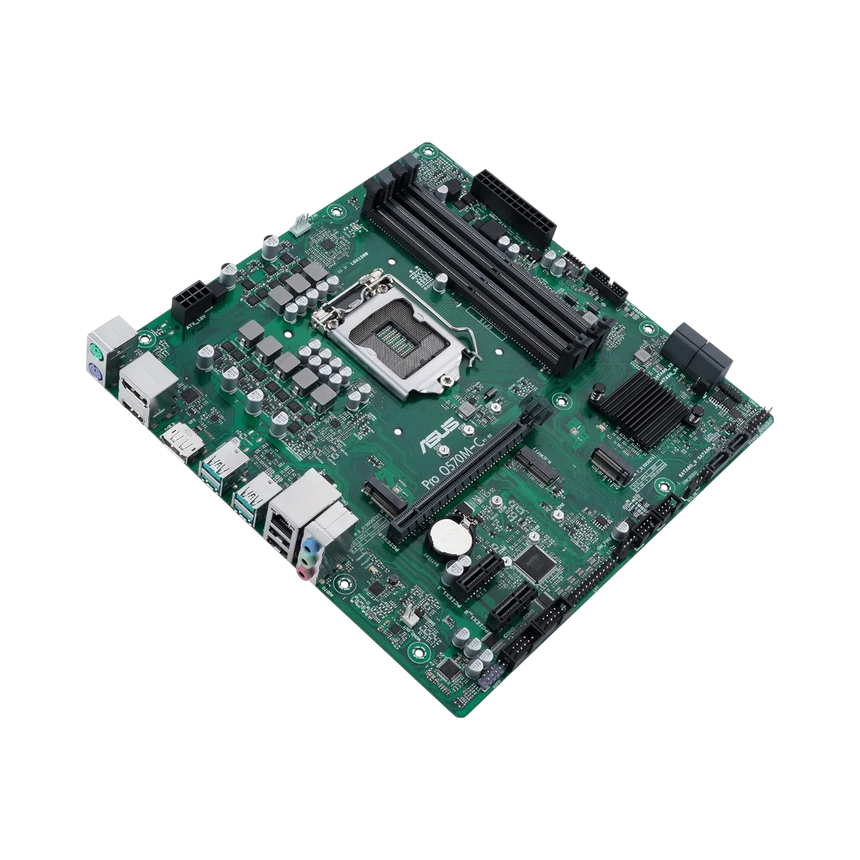

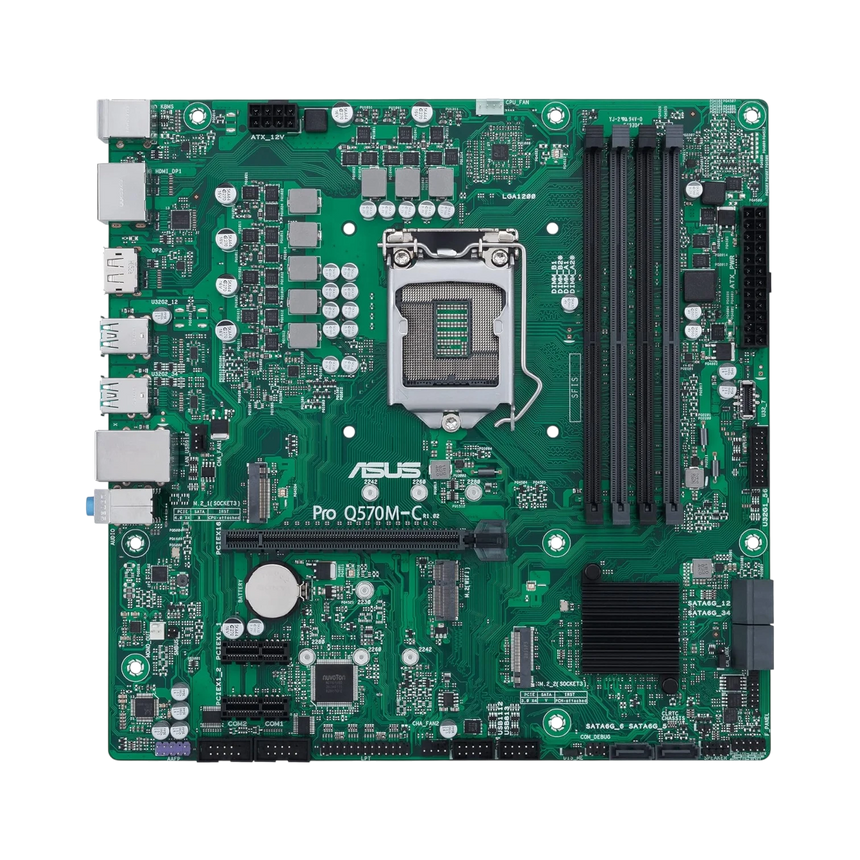

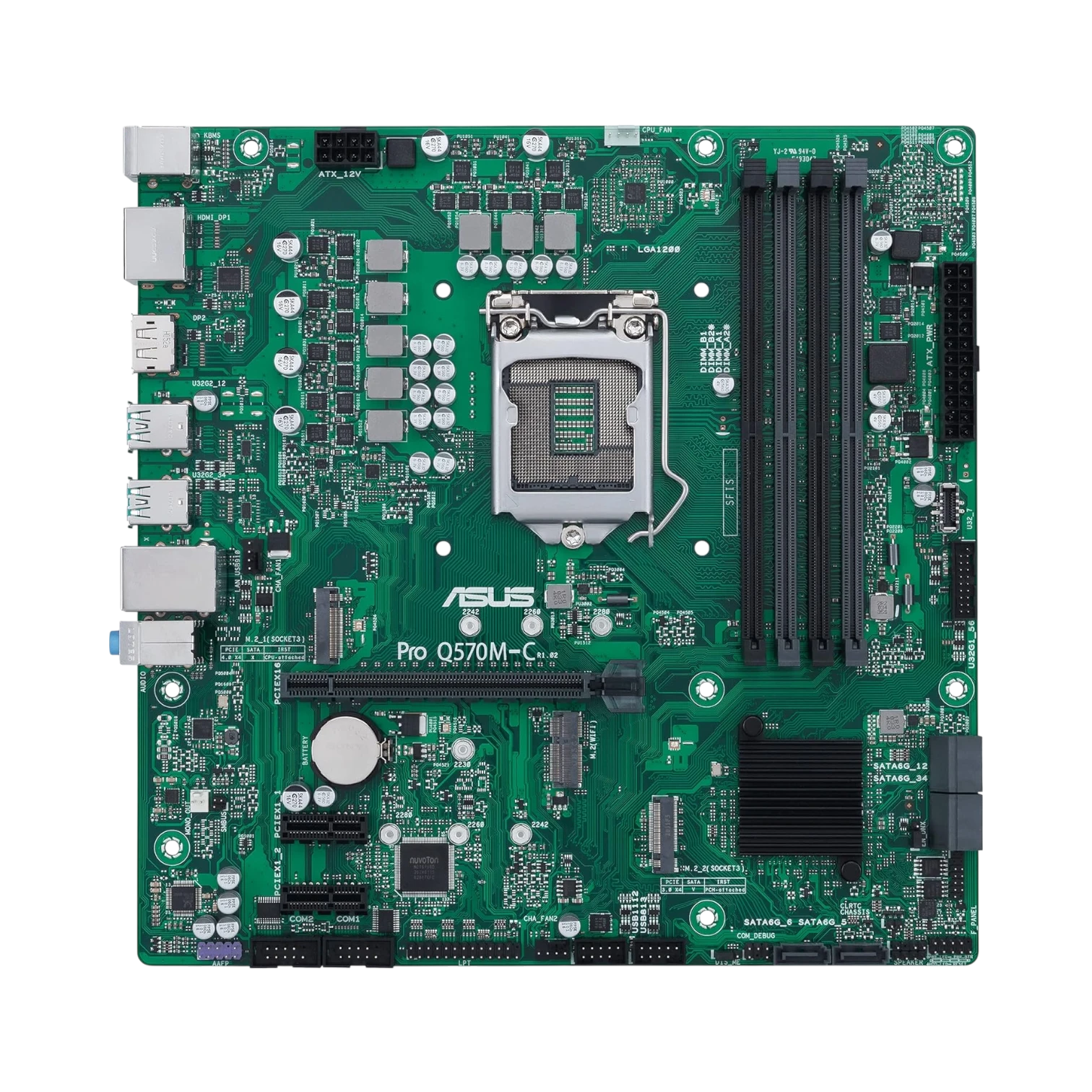

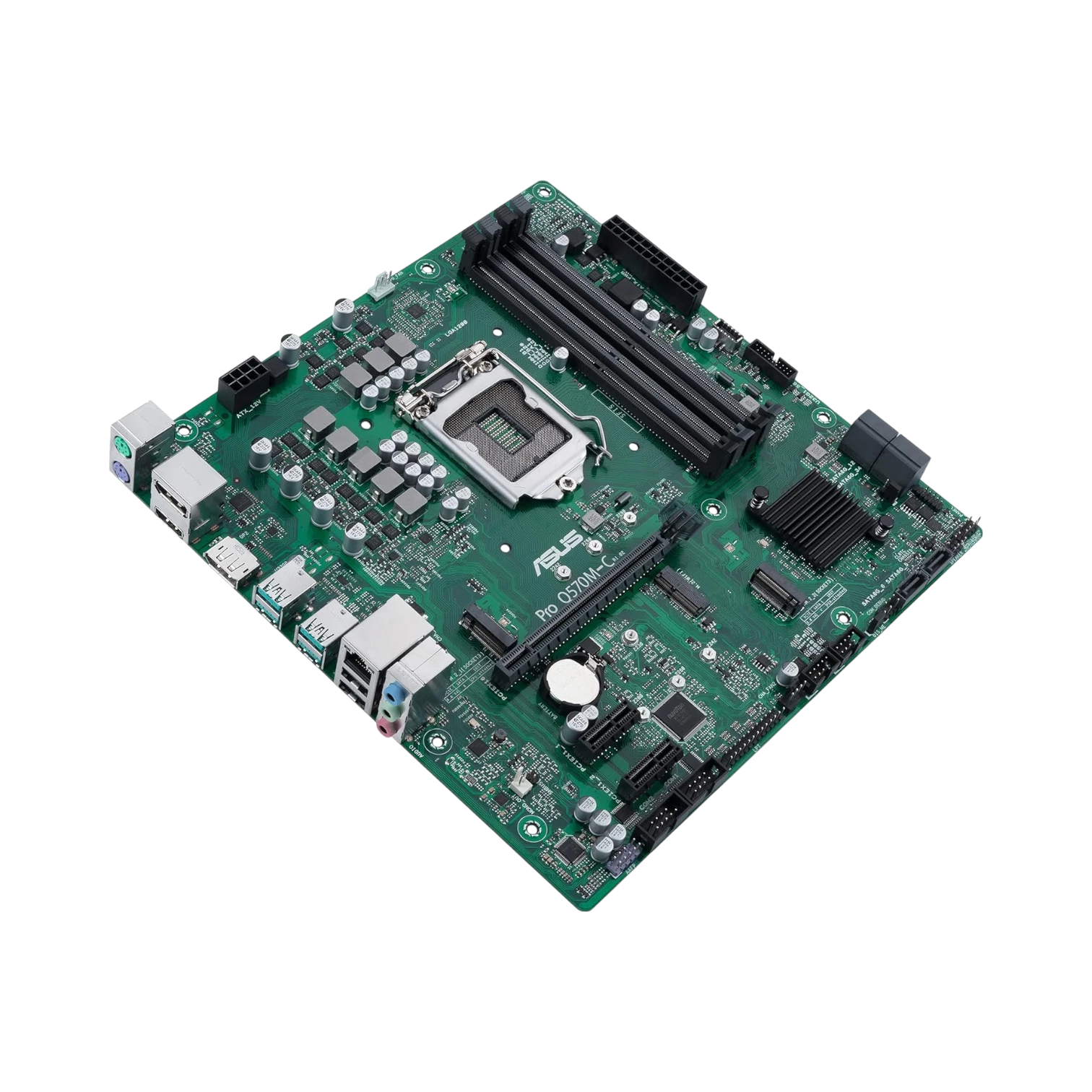

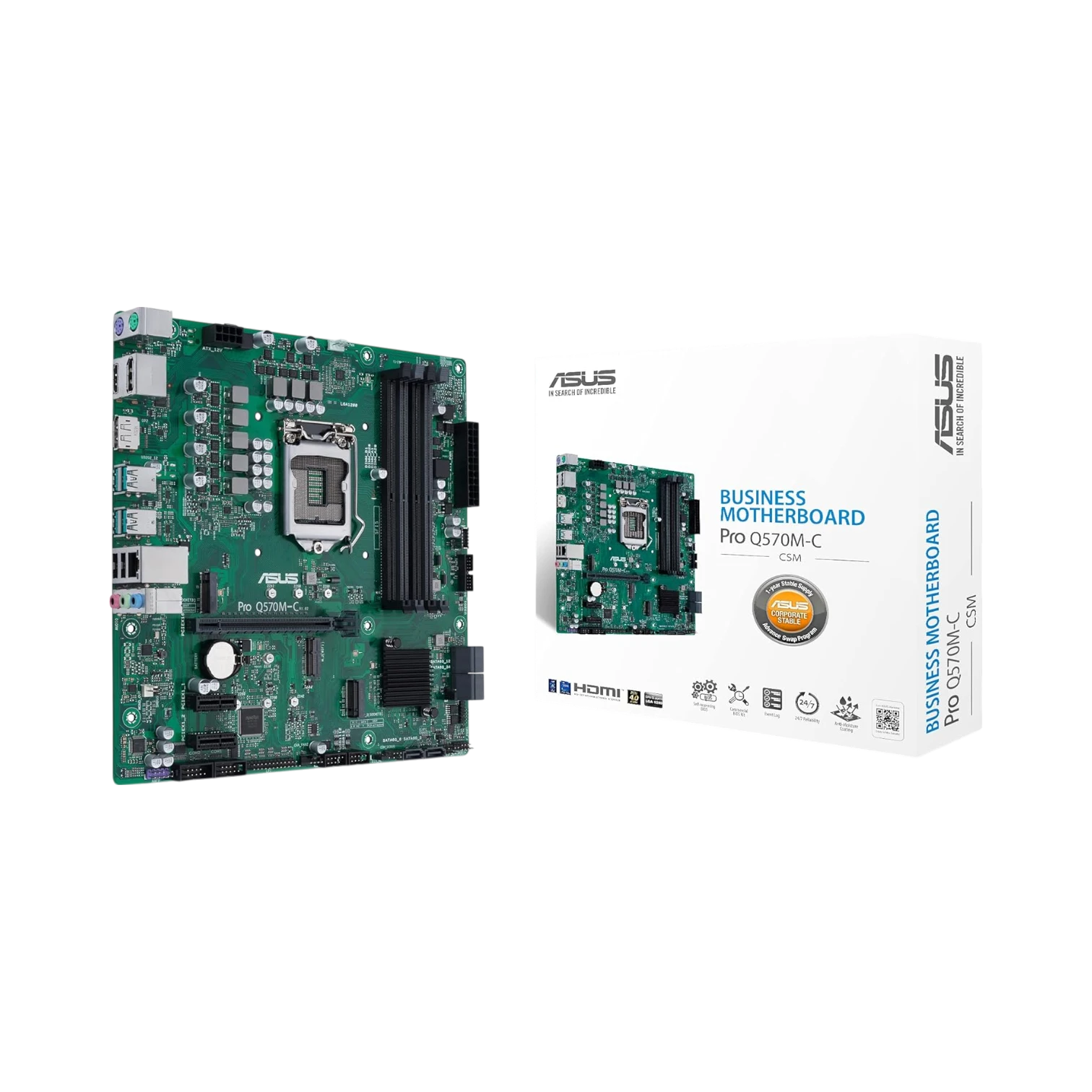

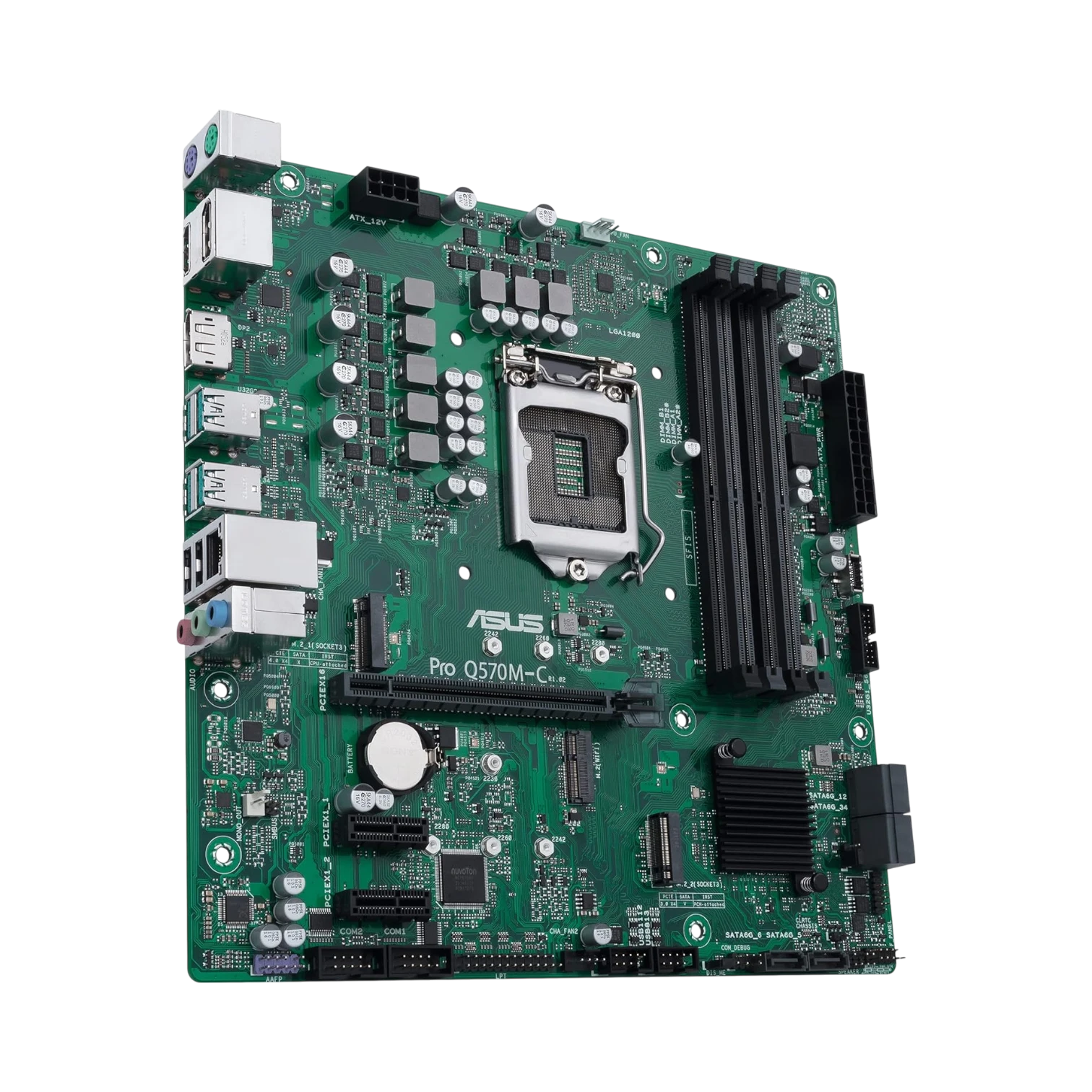

ASUS PRO Q570M-C/CSM

Overview

The ASUS PRO Q570M-C/CSM is a Micro-ATX motherboard designed to deliver stable and reliable performance for business environments. It supports 10th and 11th Gen Intel Core processors via the LGA 1200 socket and Intel Q570 chipset, providing flexibility to match processing power with workload demands. With support for up to 128 GB of DDR4 memory and multiple storage options including PCIe 4.0 M.2 slots, this board is well suited for office towers, point-of-sale systems, and digital signage setups that require long-term supply and easy remote management.

Key features

• Dual M.2 slots with one supporting PCIe 4.0 x4 for next-generation NVMe SSD speeds and the other supporting PCIe 3.0 x4 or SATA for versatile storage configurations
• Four DDR4 DIMM slots allowing up to 128 GB of memory, providing ample capacity for multitasking, virtualization, or engineering applications
• Expansion options include one PCIe 4.0 x16 slot for graphics or accelerator cards and two PCIe 3.0 x1 slots for additional peripherals like capture or networking cards

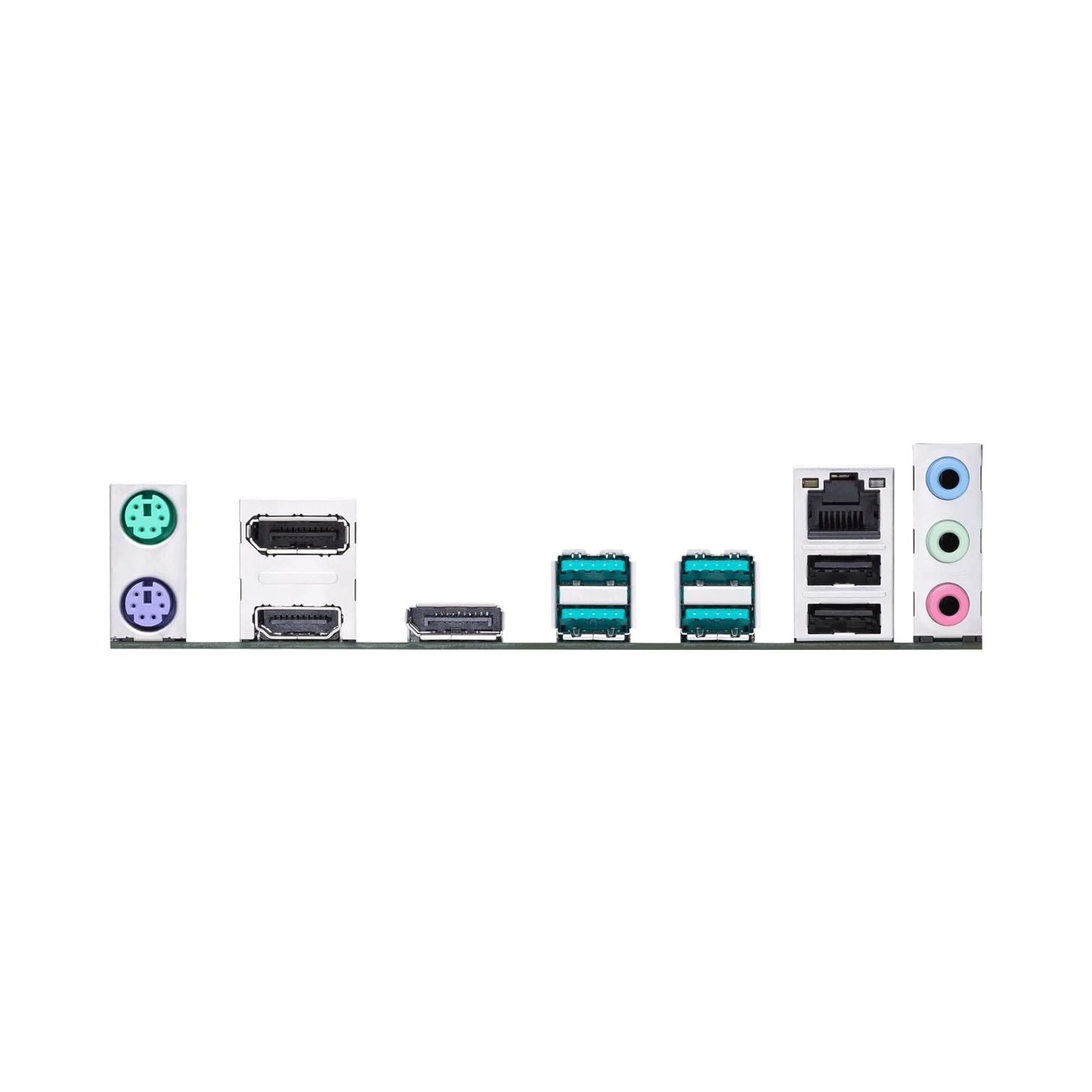

• Rear I/O panel equipped with four USB 3.2 Gen 2 Type-A ports for fast data transfer, two USB 2.0 ports for legacy devices, HDMI and dual DisplayPort outputs for multi-display setups, and Gigabit Ethernet for stable network connectivity
• Integrated TPM 2.0 module ensures compliance with Windows 11 security standards, while a self-recovering BIOS and COM debug header simplify maintenance and troubleshooting
• ASUS Control Center Express software enables centralized monitoring, update scheduling, and remote power control across multiple systems without additional licensing fees
• Protective features such as anti-moisture coating and anti-sulfur resistors enhance durability in environments with challenging air quality like factories and warehouses

Key specs

• Chipset: Intel Q570
• Socket: LGA 1200
• Processor support: 10th and 11th Gen Intel Core processors
• Memory: 4 x DDR4 DIMM slots, up to 128 GB
• Storage interfaces: 2 x M.2 slots (1 x PCIe 4.0 x4, 1 x PCIe 3.0 x4 or SATA), 6 x SATA III ports
• Expansion slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
• Rear I/O ports: 4 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0, 1 x HDMI, 2 x DisplayPort, 1 x Gigabit Ethernet, 3 x audio jacks
• Security: TPM 2.0 module

Connectivity and compatibility

This motherboard offers a comprehensive set of connectivity options to support a wide range of peripherals and displays. The combination of USB 3.2 Gen 2 ports and USB 2.0 ports ensures compatibility with both modern and legacy devices. Multiple video outputs including HDMI and dual DisplayPort allow for flexible multi-monitor configurations, ideal for productivity or digital signage. Gigabit Ethernet provides a reliable wired network connection suitable for office or industrial environments.

Performance and reliability

Designed with business use in mind, the PRO Q570M-C/CSM includes features that enhance system stability and security. The integrated TPM 2.0 module supports modern security protocols, while the self-recovering BIOS protects against firmware corruption during power interruptions. Anti-moisture and anti-sulfur protections extend the motherboard’s lifespan in less-than-ideal air conditions, making it a dependable choice for demanding workplaces.

Ideal uses and environments

This motherboard fits well in office workstations, point-of-sale terminals, and digital signage players where consistent performance and manageability are priorities. Its support for high memory capacity and fast storage options also makes it suitable for content creation and data-logging applications. IT teams will benefit from the remote management capabilities and robust security features, helping maintain large fleets of systems efficiently.
