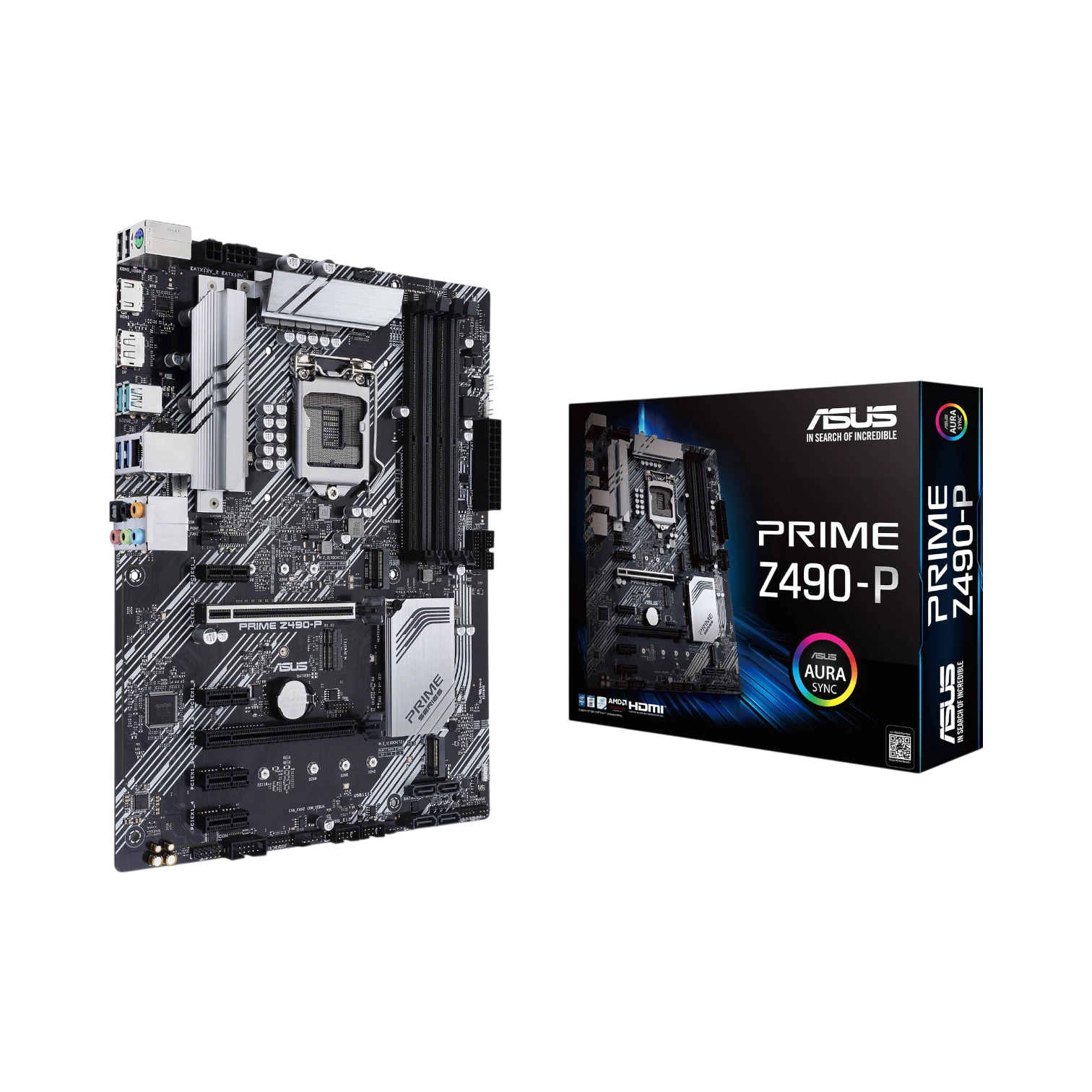

ASUS PRIME Z490-P

Overview

The ASUS PRIME Z490-P is an ATX motherboard designed to support 10th Generation Intel processors, including Core i3 through Core i9, as well as Pentium Gold and Celeron chips. It features the Intel Z490 chipset and LGA 1200 socket, providing a solid foundation for a range of builds from office computers to gaming and content creation systems. With support for up to 128 GB of DDR4 memory at speeds up to 4600 MHz through overclocking, this motherboard offers the performance headroom needed for multitasking and demanding applications.

Storage options include two M.2 slots compatible with PCIe 3.0 x4 or SATA drives, plus four SATA III ports for additional hard drives or SSDs. Expansion is flexible with one PCIe 3.0 x16 slot for a graphics card, a second x16-length slot running at x4, and four PCIe x1 slots for various add-ons. The rear panel provides multiple USB 3.2 Gen 2 and Gen 1 ports, HDMI 1.4b and DisplayPort 1.4 outputs for integrated graphics, and Realtek Gigabit Ethernet for reliable networking. Audio is handled by the onboard Realtek ALC887 codec delivering eight-channel HD sound.

Key features

• Intel LGA 1200 socket and Z490 chipset enable compatibility with a wide range of 10th Gen Intel processors, including unlocked K-series CPUs for overclocking.
• Four DDR4 memory slots support up to 128 GB of RAM with speeds up to 4600 MHz, allowing smooth performance in multitasking and gaming scenarios.
• Dual M.2 slots provide fast NVMe SSD support alongside SATA options, giving flexibility for boot drives and large storage libraries.
• Multiple PCIe slots accommodate a dedicated graphics card, additional expansion cards, and high-speed storage adapters to customize your build.
• Realtek RTL8111H Gigabit Ethernet ensures stable and fast wired network connections for work or gaming.
• Rear USB 3.2 Gen 2 and Gen 1 ports offer high-speed connectivity for external drives, peripherals, and accessories.
• HDMI 1.4b and DisplayPort 1.4 outputs support integrated graphics, useful for systems without a dedicated GPU.
• Onboard Realtek ALC887 audio codec delivers clear eight-channel HD sound, eliminating the need for a separate sound card in many setups.

Key specs

• Chipset: Intel Z490
• Socket: LGA 1200
• Memory: 4 x DDR4 slots, up to 128 GB, up to 4600 MHz (OC)
• Storage: 2 x M.2 slots (PCIe 3.0 x4 or SATA), 4 x SATA III ports
• Expansion slots: 1 x PCIe 3.0 x16, 1 x PCIe x16 (x4 mode), 4 x PCIe x1
• Networking: Realtek RTL8111H Gigabit Ethernet
• USB ports: Multiple USB 3.2 Gen 2 and Gen 1 on rear panel
• Video outputs: HDMI 1.4b, DisplayPort 1.4
• Audio: Realtek ALC887 8-channel HD audio codec

Connectivity and compatibility

This motherboard offers a comprehensive set of connectivity options to support a variety of peripherals and devices. The combination of USB 3.2 Gen 2 and Gen 1 ports ensures fast data transfer rates for external storage and accessories. The inclusion of both HDMI and DisplayPort outputs allows users to connect to modern monitors or TVs using integrated Intel graphics, which is especially useful for builds without a dedicated GPU. Realtek Gigabit Ethernet provides a reliable wired network connection, suitable for stable internet access in home or office environments.

• Rear USB 3.2 Gen 2 ports for high-speed peripheral connections
• USB 3.2 Gen 1 ports for additional device support
• HDMI 1.4b and DisplayPort 1.4 outputs for video display
• Realtek RTL8111H Gigabit Ethernet for wired networking

Ideal uses and environments

The ASUS PRIME Z490-P is well suited to users building a versatile desktop that can handle a range of tasks. It works well for office setups requiring reliable performance and expandability, as well as for gamers and content creators who need support for high-speed memory and multiple storage options. Its straightforward layout and proven ASUS firmware make it a strong choice for first-time builders and those upgrading older systems who want a balance of modern features and future-proofing.
