ASUS P12R-M/10G-2T

Overview

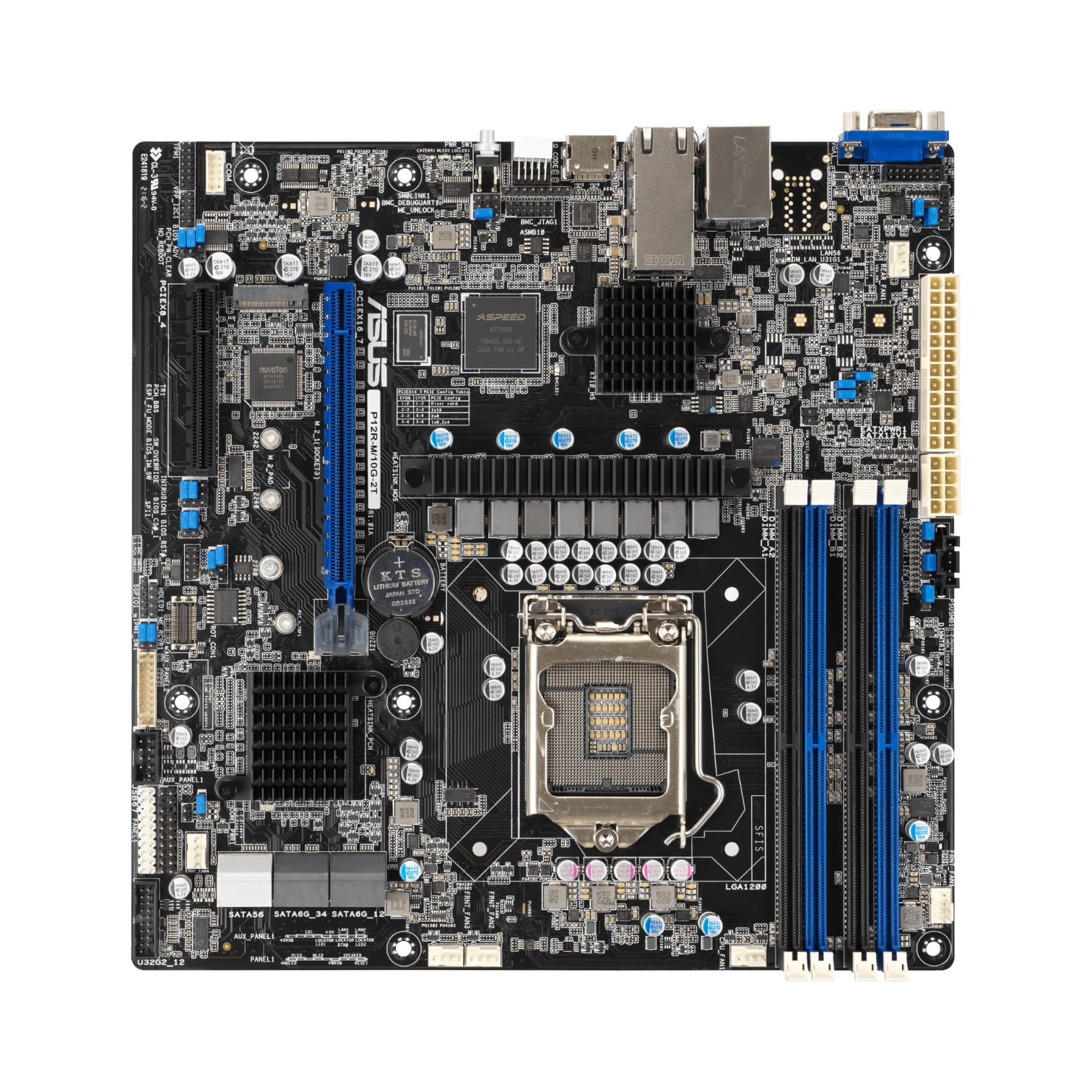

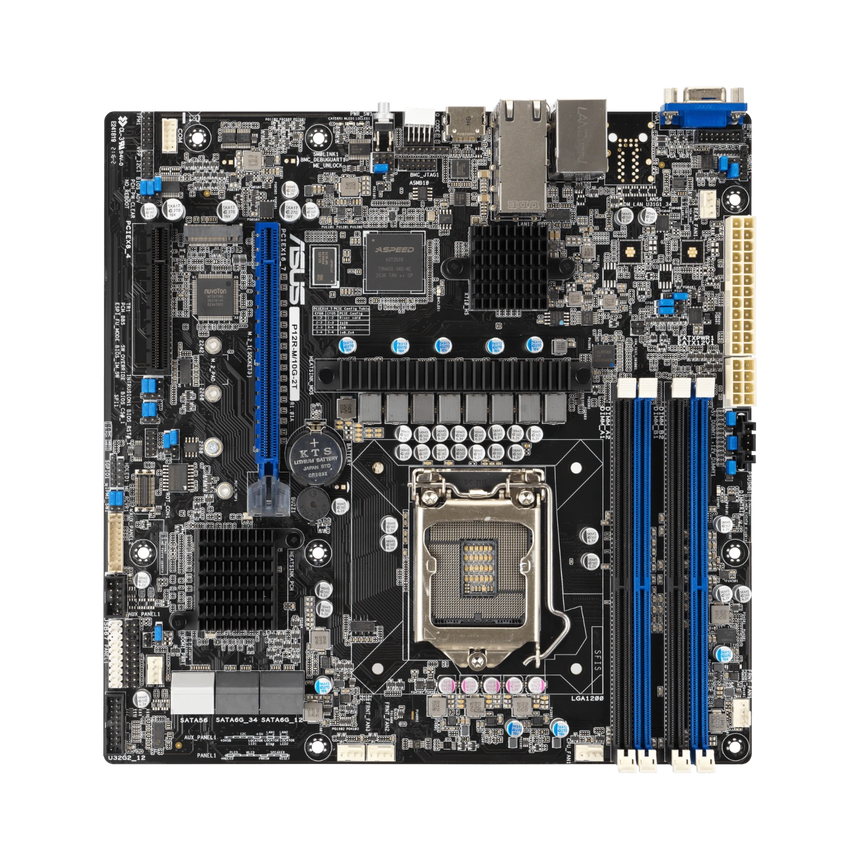

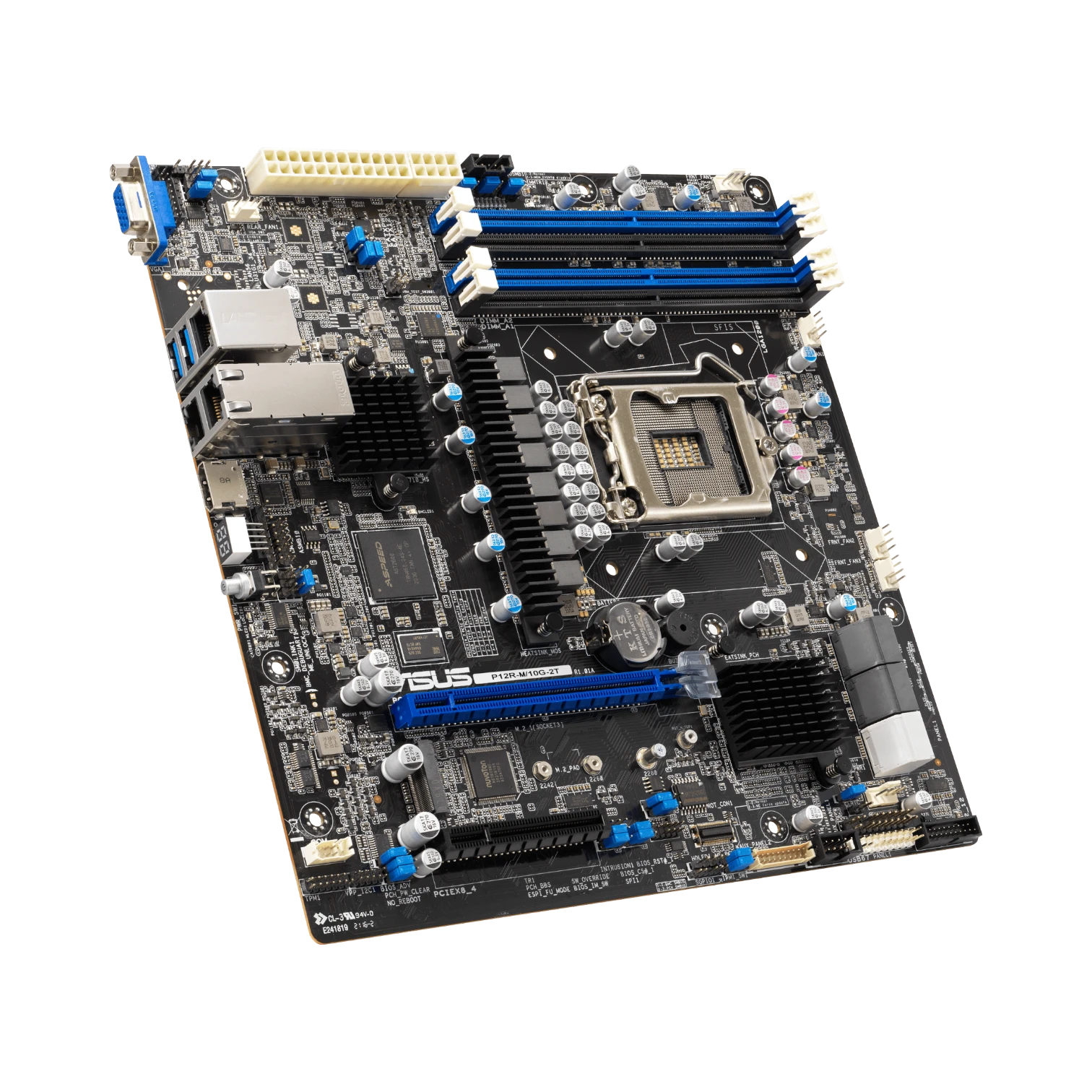

The ASUS P12R-M/10G-2T is a Micro ATX server motherboard built around the Intel C252 chipset and an LGA 1200 socket, designed to support Intel Xeon E-2300 and Pentium processors. It offers a compact yet capable platform for small business servers, branch office file hosts, and edge appliances, delivering reliable performance with up to 128 GB of DDR4 memory and advanced networking features. This motherboard balances expandability and security, making it suitable for environments that require fast data transfer and remote management.

Key features

• Supports Intel Xeon E-2300 and Pentium processors for dependable server-grade computing power
• Four DDR4 UDIMM slots allow memory expansion up to 128 GB, accommodating demanding workloads like file sharing and light virtualization
• Dual 10 GbE ports powered by the Intel X710-AT2 controller enable rapid data movement across networks
• Dedicated management LAN provides isolated network access for secure remote administration
• Two PCIe 4.0 slots (x16 and x8) offer flexibility for adding GPUs or storage controllers to enhance performance
• Six SATA 6 Gb/s ports with RAID 0, 1, 5, and 10 support ensure versatile and reliable storage configurations
• M.2 slot supports high-speed NVMe drives for fast boot times and quick access to critical data
• Integrated ASMB10-iKVM module allows full out-of-band management, enabling system monitoring and control even when the OS is offline
• Platform Firmware Resilience protects firmware from unauthorized changes, enhancing system security and stability
• HDMI and VGA outputs facilitate dual-display setups for easier on-site troubleshooting and management

Key specs

• Chipset: Intel C252
• CPU socket: LGA 1200
• Memory: 4 x DDR4 UDIMM slots, up to 128 GB
• Network: Dual 10 GbE ports (Intel X710-AT2), plus dedicated management LAN
• Expansion slots: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x8
• Storage interfaces: 6 x SATA 6 Gb/s ports with RAID 0, 1, 5, 10 support; 1 x M.2 slot for NVMe SSD

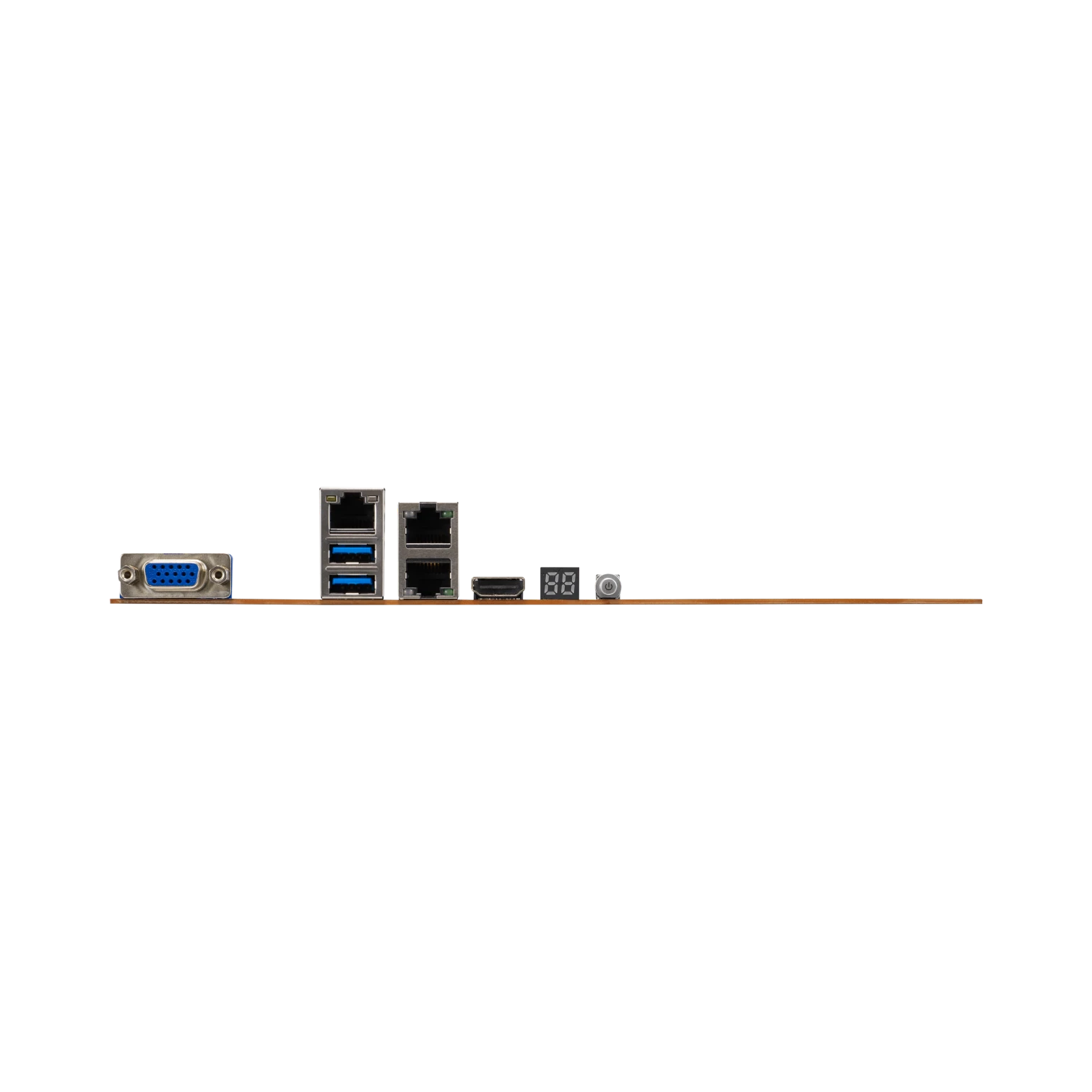

• Video outputs: HDMI and VGA
• Management: ASMB10-iKVM module for remote management

Connectivity and compatibility

This motherboard offers comprehensive connectivity options tailored for server environments. The dual 10 GbE ports ensure high-speed network access suitable for data-intensive applications, while the dedicated management LAN keeps administrative traffic separate for enhanced security. The combination of SATA and M.2 storage interfaces supports a wide range of drives, allowing flexible storage setups. HDMI and VGA outputs provide compatibility with various monitors for direct system access.

Performance and reliability

Designed to deliver consistent performance, the ASUS P12R-M/10G-2T supports the latest Intel Xeon E-2300 processors, which provide robust processing power for multitasking and server workloads. Memory capacity up to 128 GB ensures smooth operation under heavy loads. The Platform Firmware Resilience feature safeguards the motherboard’s firmware, preventing unauthorized modifications and maintaining system integrity over time. This reliability is critical for business-critical applications and continuous operation.

Ideal uses and environments

This motherboard fits well in small business servers, branch office file servers, and edge computing devices where space is limited but performance cannot be compromised. Its high-speed networking capabilities and secure remote management make it a strong choice for IT teams managing distributed environments or remote sites. The board’s expandability supports future upgrades, making it a practical investment for growing infrastructure needs.
