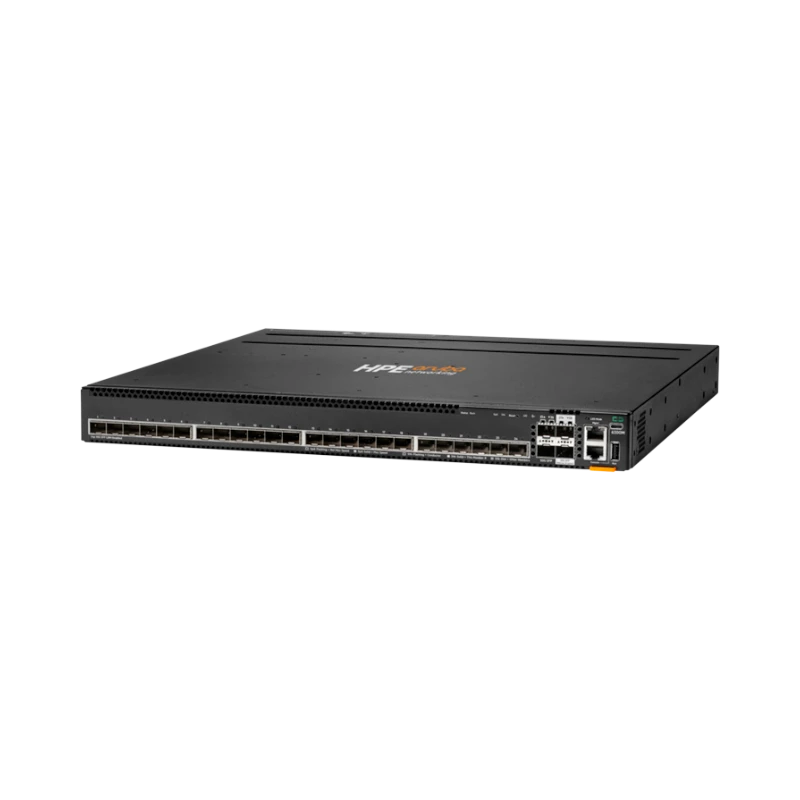

Aruba R8S92A

Overview

The Aruba R8S92A is a high-performance network switch designed to deliver fast fiber connectivity and robust security for campus cores, aggregation layers, and demanding edge environments. It features twenty-four SFP+ ports capable of running at 1 Gbps or 10 Gbps with Long Reach Multimode optics and MACSec encryption, allowing extended fiber runs while protecting sensitive data. With uplink ports supporting speeds up to 50 Gbps and a switching capacity of 780 Gbps, this switch handles heavy network traffic efficiently and securely.

Key features

• Twenty-four SFP+ ports supporting 1 Gbps or 10 Gbps speeds with Long Reach Multimode optics and built-in MACSec encryption for secure fiber connections.
• Four uplink ports offering flexible speed options: two ports support 10 Gbps, 25 Gbps, or 50 Gbps transceivers, and two ports support 10 Gbps or 25 Gbps with MACSec for encrypted uplinks.
• Stacking capability for up to ten switches, enabling simplified management and seamless network expansion without added complexity.
• Multiple console access options including USB-C, RJ interface, and optional Bluetooth connectivity compatible with the Aruba CX Mobile App for easy setup and troubleshooting.
• Redundant power supply bays with hot-swappable modules to ensure continuous operation and minimize downtime.
• Advanced processing with a quad-core Arm Cortex A72 CPU and 8 GB memory to support rich automation and maintain performance under heavy workloads.
• Low latency of 1.5 microseconds on 10 Gbps links, supporting smooth streaming, virtualization, and large data transfers.
• Compact chassis design that fits standard racks while allowing proper airflow and cable management.

Key specs

• Switching capacity: 780 Gbps
• Forwarding rate: 580 million packets per second
• Ports: 24 SFP+ (1 Gbps or 10 Gbps), 2 uplink ports (10/25/50 Gbps), 2 SFP ports (10/25 Gbps with MACSec)
• Processor: Quad-core Arm Cortex A72
• Memory: 8 GB
• Latency: as low as 1.5 microseconds on 10 Gbps links
• Power supply: Two hot-swappable bays
• Dimensions: 4.4 × 44.2 × 38.5 cm
• Weight: 6.71 kg

Connectivity and compatibility

This switch supports a wide range of fiber transceivers, including Long Reach Multimode optics for extended cable runs without signal degradation. The uplink ports accommodate 10 Gbps, 25 Gbps, and 50 Gbps transceivers, providing flexibility to connect to servers, data centers, or other network segments. MACSec encryption on multiple ports ensures data security during transmission, making it suitable for environments where protecting sensitive information is critical.

• 24 SFP+ ports with Long Reach Multimode and MACSec support
• 2 uplink ports compatible with 10 Gbps, 25 Gbps, or 50 Gbps transceivers
• 2 additional SFP ports supporting 10 Gbps or 25 Gbps with MACSec encryption
• USB-C and RJ console ports plus optional Bluetooth for mobile app management

Performance and reliability

Designed to handle modern network demands, this switch delivers a high forwarding rate and low latency, ensuring smooth operation for streaming, virtualization, and large file transfers. The quad-core processor and ample memory support advanced features and automation without slowing down. Redundant power supplies with hot-swappable modules provide resilience against power failures, making it a dependable choice for critical network infrastructure.

Installation and setup

Installation is straightforward with multiple console access options, including USB-C, RJ interface, and Bluetooth connectivity through the Aruba CX Mobile App. This flexibility allows network administrators to bring the switch online or troubleshoot efficiently in various environments. The ability to stack up to ten units simplifies network expansion and management, reducing operational overhead as your network grows.

Ideal uses and environments

This switch fits well in campus core networks, aggregation layers, and edge rooms that require high-speed fiber connectivity combined with strong security. It is a strong choice for organizations needing to secure data in transit while maintaining high throughput and low latency. IT teams managing growing networks will appreciate the stacking capabilities and flexible uplink options, making it suitable for enterprise, education, and data center environments.
