Aruba JL725B#ABA

Overview

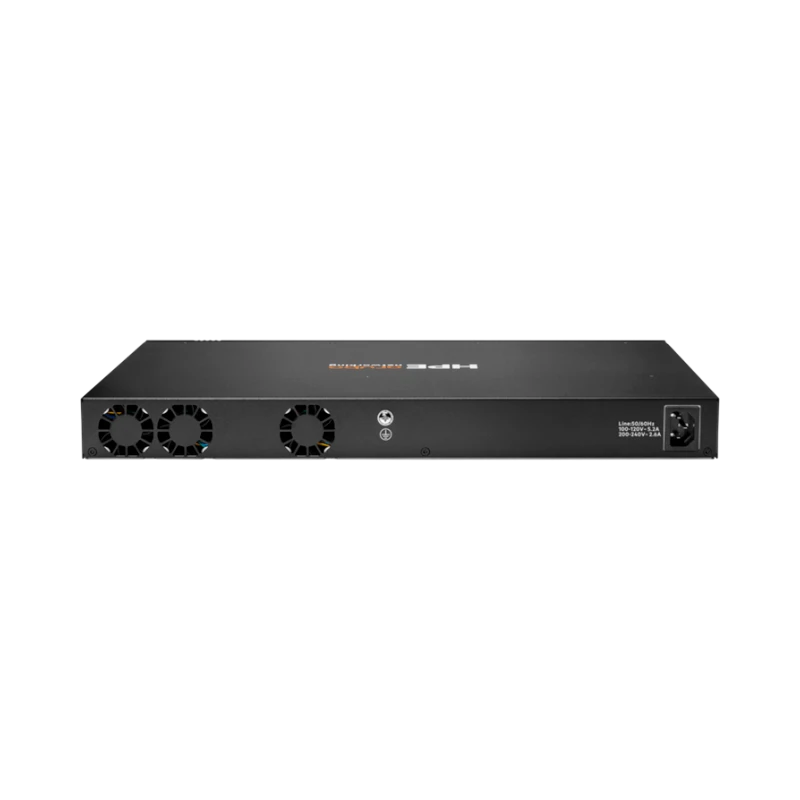

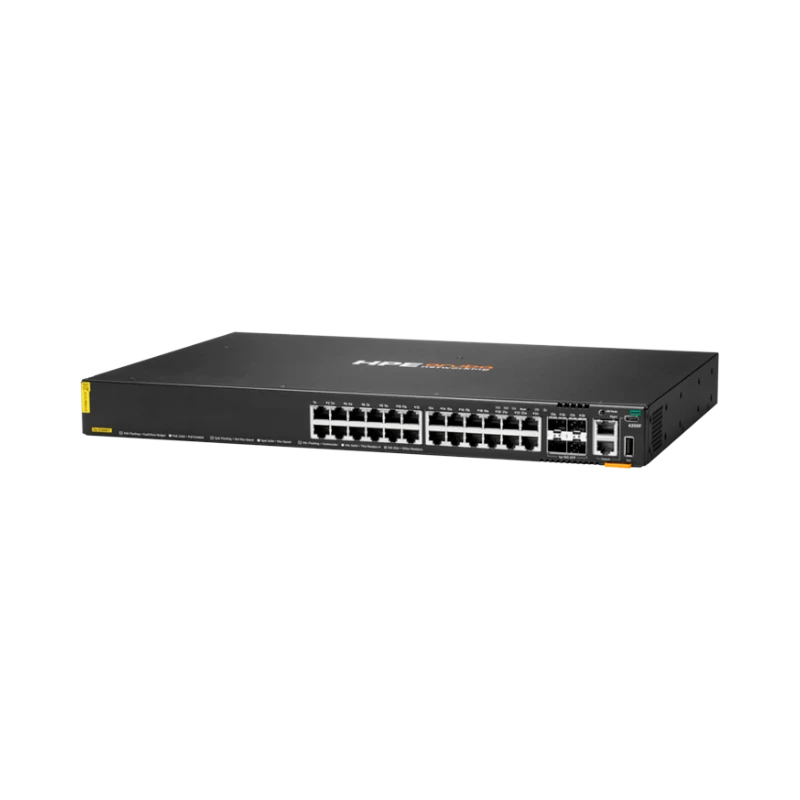

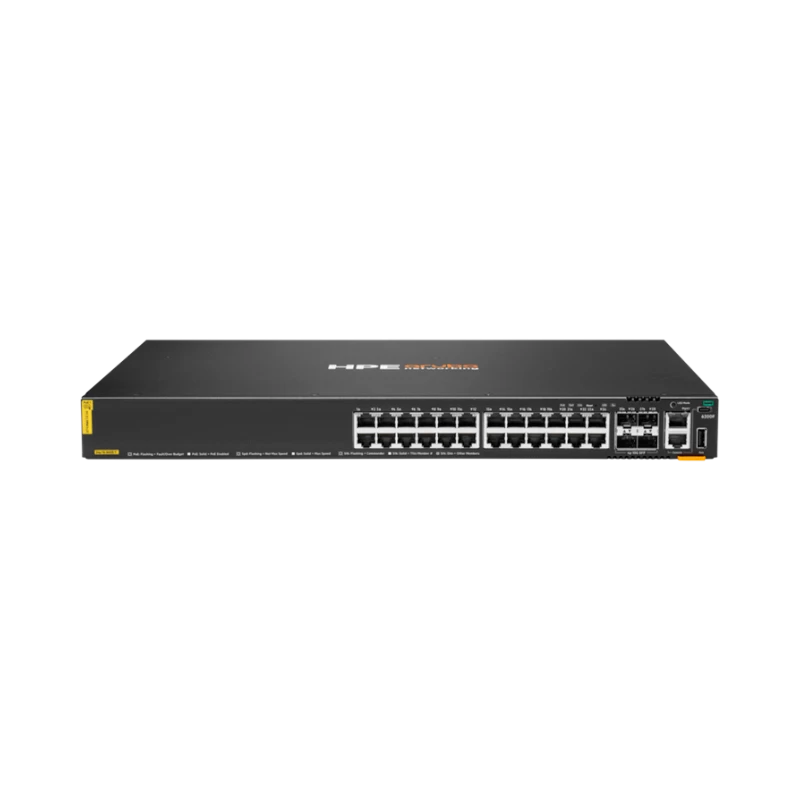

The Aruba JL725B#ABA is a high-performance network switch designed to deliver reliable power and fast connectivity in a compact 1U rack-mountable form factor. It features 24 copper Ethernet ports with up to 30 watts of Power over Ethernet (PoE) per port, ideal for powering devices like IP phones, security cameras, and Wi-Fi access points without extra power adapters. Four SFP+ uplink slots support both 1 Gbps and 10 Gbps connections, providing the bandwidth needed for linking branch offices, aggregation switches, or servers. With a 1.8 GHz quad-core ARM processor and 8 GB of DDR4 memory, this switch handles busy network traffic efficiently while offering a total PoE budget of 370 watts.

Key features

• 24 Ethernet ports supplying up to 30 watts of PoE each, enabling centralized power delivery for connected devices
• Four SFP+ uplink slots supporting 1 Gbps and 10 Gbps speeds for flexible, high-bandwidth network expansion
• Stacking capability for up to eight switches, allowing simplified management as a single logical device
• Powerful 1.8 GHz quad-core ARM processor paired with 8 GB DDR4 memory to maintain smooth data flow under heavy loads
• Fixed internal power supply with a 370-watt PoE budget, sufficient for a full floor of access points or VoIP phones
• Front-panel USB-C and RJ-45 console ports that streamline initial setup and ongoing maintenance
• Compact 1U chassis that fits easily into standard racks, making it suitable for branch offices and small campuses
• High switching capacity and forwarding rate to keep latency low for voice, video, and cloud applications

Key specs

• Ports: 24 copper Ethernet with PoE, 4 SFP+ uplinks
• PoE budget: 370 watts total
• Processor: 1.8 GHz quad-core ARM
• Memory: 8 GB DDR4
• Storage: 16 GB flash
• Switching capacity: 128 Gbps
• Maximum forwarding rate: 95.2 million packets per second (Mpps)
• Form factor: 1U rack-mountable
• Console ports: USB-C and RJ-45

Connectivity and compatibility

This switch supports a wide range of network devices through its 24 PoE-enabled Ethernet ports, which can power IP phones, wireless access points, and security cameras directly. The four SFP+ uplink slots provide flexible options for connecting to higher-speed network backbones or aggregation points, supporting both 1 Gbps and 10 Gbps fiber or copper modules. The USB-C and RJ-45 console ports offer versatile management access, whether through direct serial connection or modern USB interfaces.

Performance and reliability

Equipped with a quad-core ARM processor and ample DDR4 memory, the switch maintains low latency and high throughput even during peak network usage. Its 128 Gbps switching capacity and 95.2 Mpps forwarding rate ensure smooth handling of voice, video, and cloud workloads. The fixed power supply delivers a consistent 370-watt PoE budget, supporting multiple powered devices without interruption. Stacking up to eight units allows the network to grow without adding complexity to management or configuration.

Ideal uses and environments

This switch is well suited for branch offices, small campuses, and growing businesses that require enterprise-grade features without unnecessary complexity. It fits neatly into a 1U rack space, making it a practical upgrade for environments where space is limited. IT teams managing VoIP phones, wireless access points, and security cameras will find the PoE capabilities especially valuable. The stacking feature supports future expansion, making it a strong choice for organizations planning to scale their network infrastructure over time.
