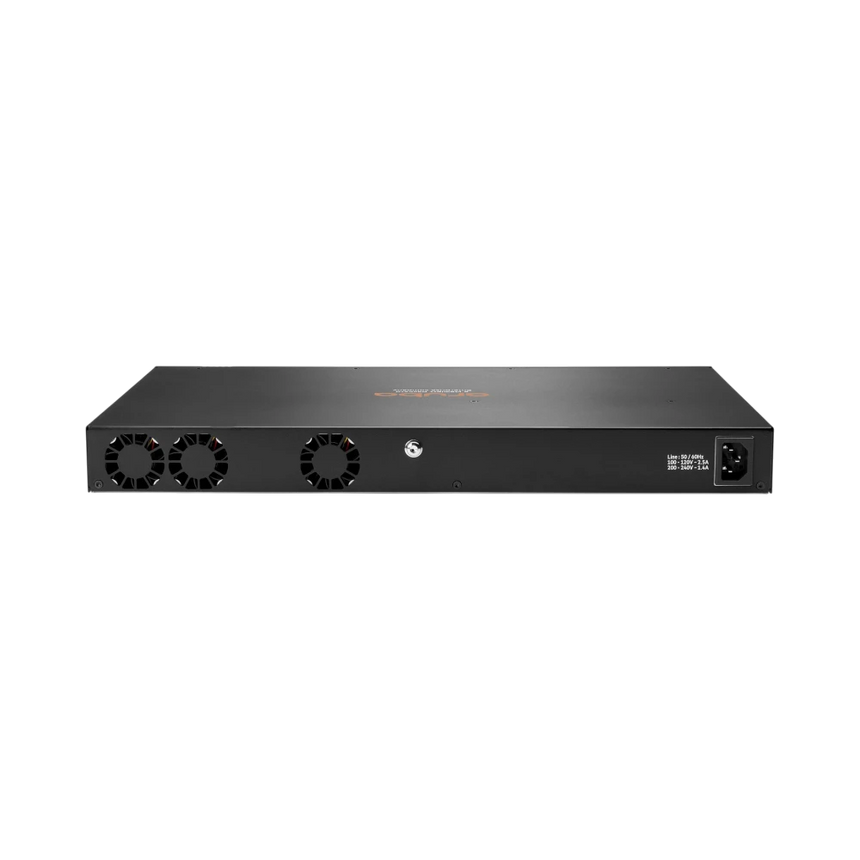

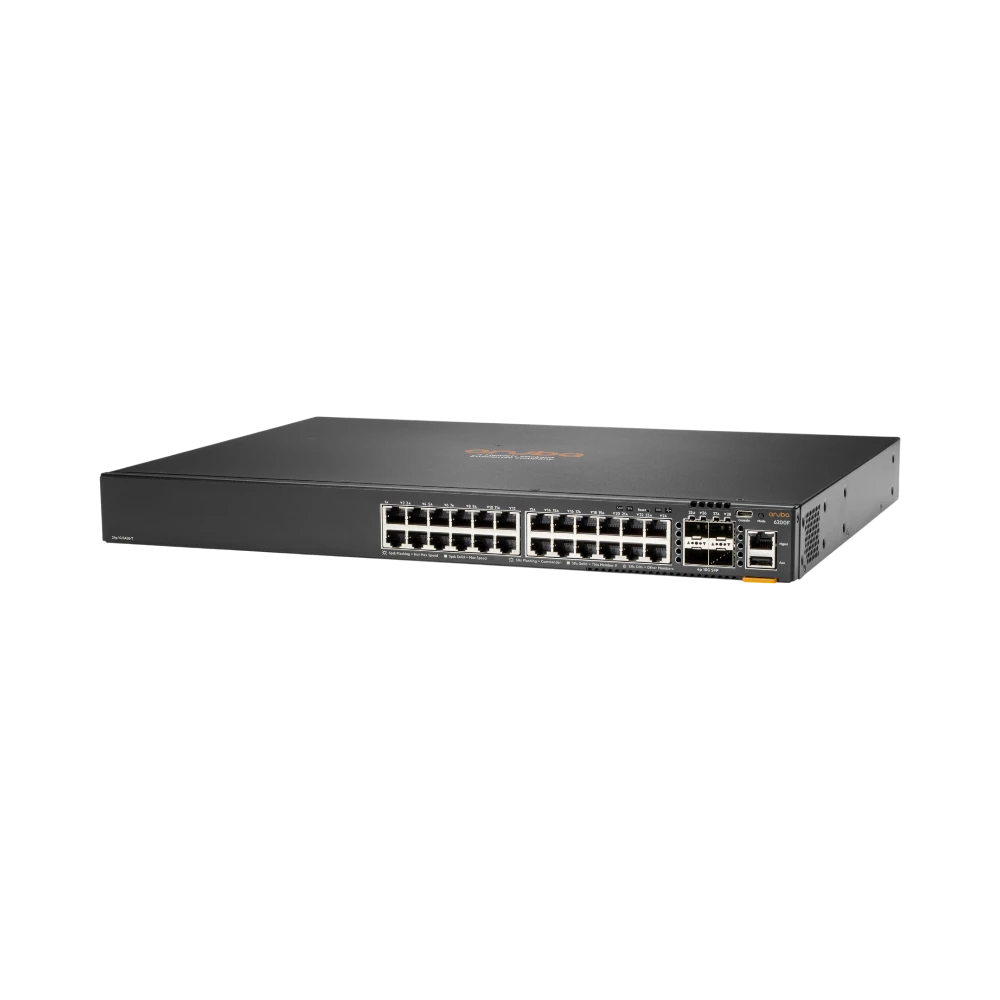

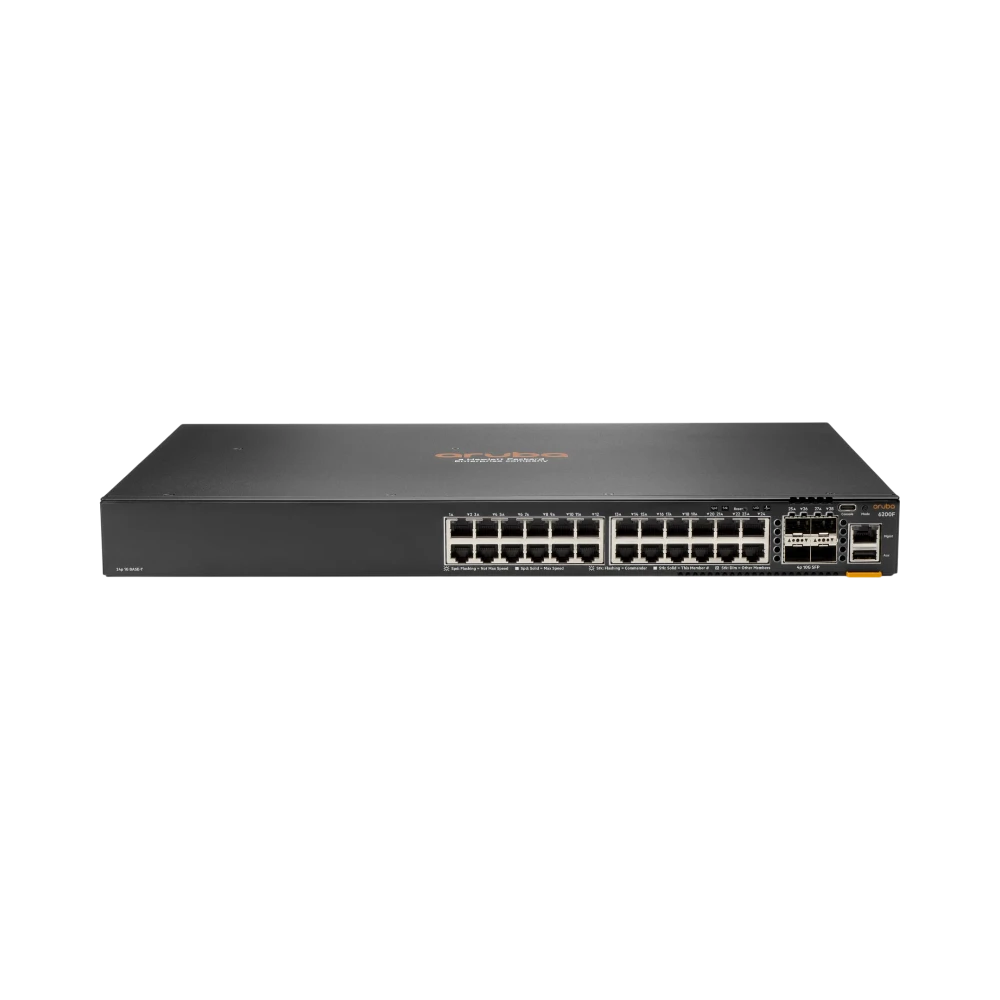

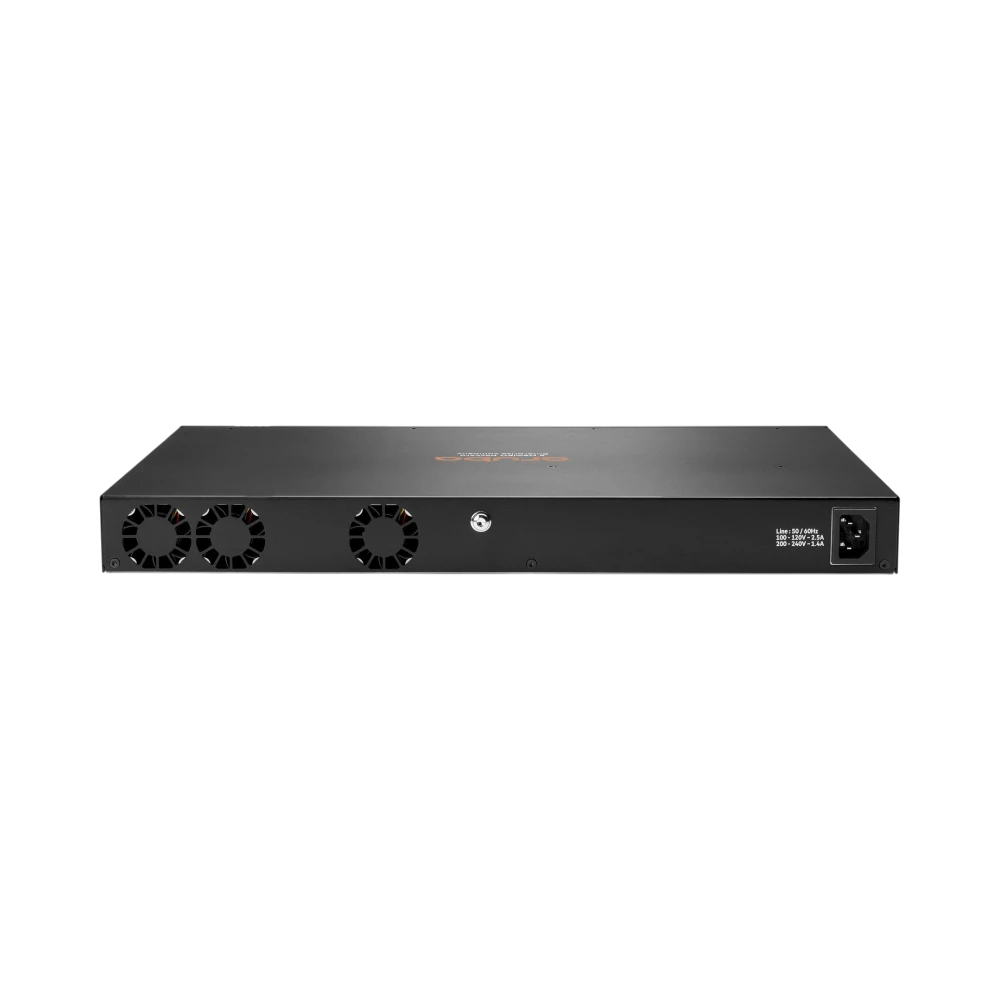

Aruba JL724A#ABA

Overview

The Aruba JL724A#ABA is a CX 6200F switch designed to provide reliable wired network access for branch offices, campus buildings, and expanding businesses. It features 24 copper ports supporting speeds up to 1 Gbps, ideal for connecting desktops, printers, and access points. Additionally, four SFP+ slots offer flexible uplink options at 1 or 10 Gbps, ensuring smooth connectivity to core switches or servers without bottlenecks as network traffic increases.

This switch supports stacking of up to eight units using Aruba Virtual Switching Framework, allowing the entire stack to function as a single device. This simplifies configuration and management as your network grows. Powered by a quad-core ARM Cortex-A72 processor running at 1.8 GHz, with 8 GB DDR4 memory and 16 GB flash storage, it delivers a switching capacity of 128 Gbps and throughput up to 95.2 million packets per second, maintaining low latency for clear voice calls and uninterrupted high-definition video streaming.

Key features

• 24 RJ-45 ports that automatically negotiate speeds of 10, 100, or 1000 Mbps to match connected devices’ requirements
• Four SFP+ slots supporting 1 Gbps or 10 Gbps fiber uplinks for flexible, high-speed connections to core network components
• Aruba Virtual Switching Framework enables stacking of up to eight switches, streamlining network expansion and management
• Low latency of 1.46 microseconds at 10 Gbps ensures smooth performance for real-time applications like voice and video
• USB-C console port and USB-A host port facilitate quick setup and configuration through direct access or flash drive loading
• Built-in Bluetooth adapter allows pairing with mobile devices for guided installation using the Aruba mobile app
• Internal power supply with a modest 59-watt draw and quiet fans maintain efficient and unobtrusive operation
• Compact 1U rack-mountable chassis fits standard racks, saving space in network closets or server rooms
• Limited lifetime warranty provides long-term protection and peace of mind for your investment

Key specs

• Processor: Quad-core ARM Cortex-A72 at 1.8 GHz
• Memory: 8 GB DDR4
• Storage: 16 GB flash
• Ports: 24 RJ-45 copper ports (10/100/1000 Mbps), 4 SFP+ slots (1/10 Gbps)
• Switching capacity: 128 Gbps
• Throughput: Up to 95.2 million packets per second
• Latency: As low as 1.46 microseconds at 10 Gbps
• Power consumption: 59 watts (internal power supply)
• Form factor: 1U rack-mountable chassis

Connectivity and compatibility

This switch offers versatile connectivity options to support a variety of network devices. The 24 copper ports accommodate common wired devices such as desktops, printers, and wireless access points, while the four SFP+ slots provide high-speed fiber uplinks to core switches or servers. The USB-C console port and USB-A host port simplify direct management and configuration tasks. Bluetooth connectivity enables mobile device pairing for guided setup, making it easier to deploy in diverse environments.

Installation and setup

Setting up the Aruba JL724A#ABA is straightforward thanks to multiple access methods. The USB-C console port allows direct command-line interface access, while the USB-A host port supports loading configuration files from flash drives. The built-in Bluetooth adapter pairs with smartphones or tablets to launch the Aruba mobile app, which guides users through installation steps. The intuitive web interface and compatibility with popular network management platforms make ongoing administration efficient and user-friendly.

Ideal uses and environments

This switch is well suited to organizations that require dependable wired connectivity with room to grow. It fits naturally in branch offices, campus networks, and small to medium-sized businesses that need to expand their infrastructure without adding complexity. The stacking capability and high switching capacity make it a strong choice for environments where network demands increase over time, while the quiet operation and compact form factor help maintain a professional and unobtrusive workspace.
