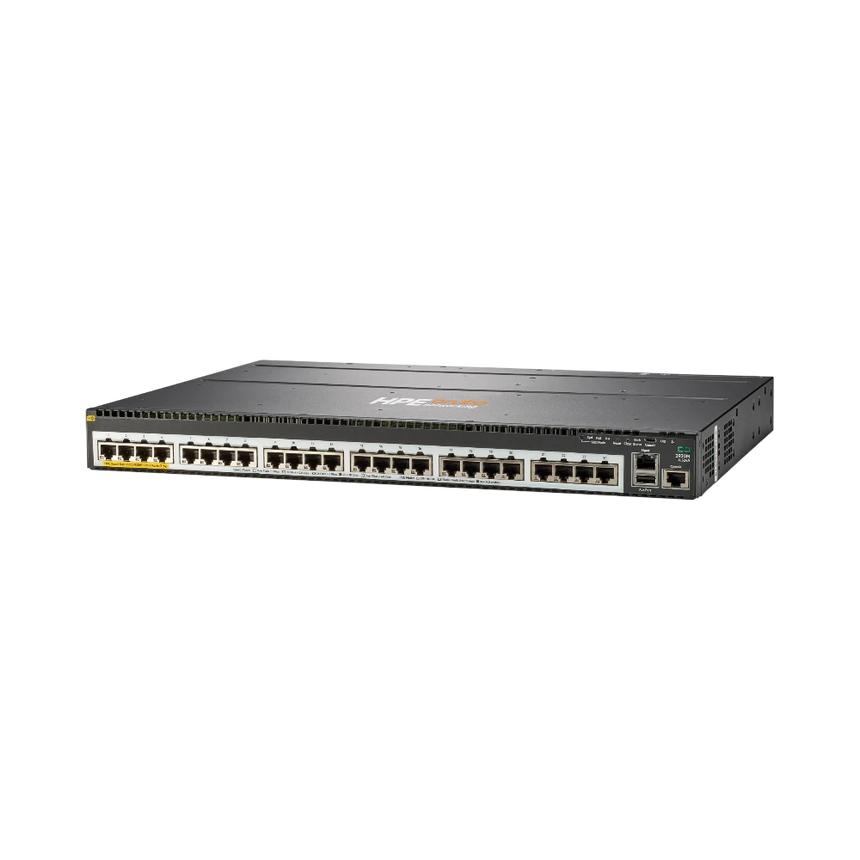

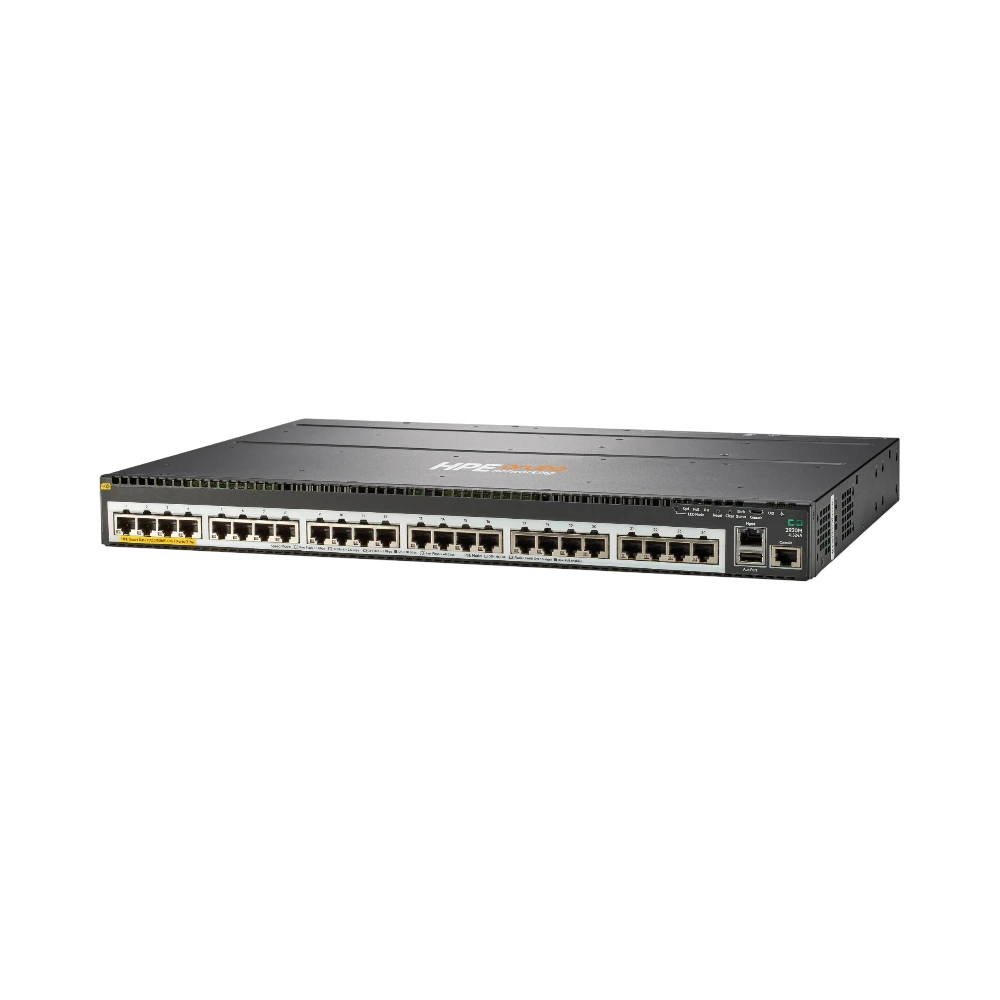

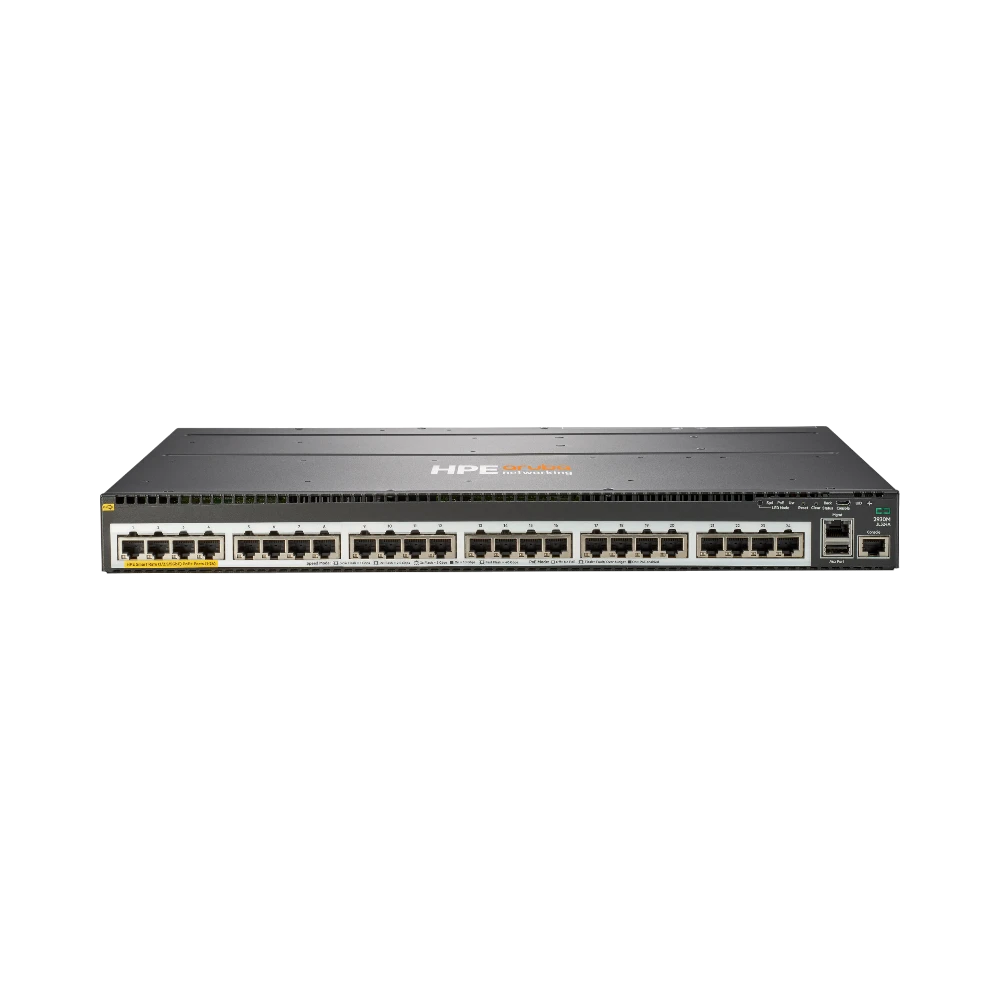

Aruba JL324A

Overview

The Aruba JL324A is a 24-port managed network switch designed to deliver multi-gigabit speeds and robust power delivery for modern network environments. Each RJ45 port supports speeds up to 5 GbE, ensuring high throughput for Wi-Fi 6 access points, workstations handling large files, and other demanding devices. With a switching capacity of 320 Gb/s and a forwarding rate of 112 Mpps, it maintains low latency even under heavy traffic, making it a strong choice for wiring closets, branch offices, school campuses, and small data centers.

Key features

• Twenty-four RJ45 ports supporting 1, 2.5, and 5 GbE speeds to accommodate a range of network devices and bandwidth needs
• Power over Ethernet Plus (PoE+) capability with a budget of up to 840 watts, allowing direct power delivery to access points, IP phones, and security cameras without extra injectors
• Optional stacking and uplink modules enable multiple switches to operate as a single logical device, simplifying management and scaling network capacity
• Equipped with a dual-core Cortex A9 processor running at 1016 MHz, along with 1 GB DDR3 RAM and 4 GB flash memory, to support advanced features and future firmware updates
• Compact 1U rack-mount design fits standard racks and supports operation in temperatures from 32 to 113 °F, suitable for various indoor environments

Key specs

• Ports: 24 RJ45 with 1, 2.5, and 5 GbE speeds
• PoE budget: up to 840 watts with optional power supplies
• Switching capacity: 320 Gb/s
• Forwarding rate: 112 million packets per second (Mpps)
• Processor: dual-core Cortex A9 at 1016 MHz
• Memory: 1 GB DDR3 RAM
• Storage: 4 GB flash memory
• Form factor: 1U rack-mount
• Operating temperature: 32 to 113 °F

Connectivity and compatibility

This switch supports a wide range of network devices through its multi-gigabit RJ45 ports, making it compatible with the latest Wi-Fi 6 access points, high-performance workstations, and PoE-enabled devices. The PoE+ support reduces the need for separate power injectors, streamlining cable management and installation. Optional stacking modules allow seamless integration with other Aruba 2930M switches, expanding network capacity while maintaining centralized control.

Ideal uses and environments

The Aruba JL324A fits well in environments that require reliable multi-gigabit connectivity and power delivery, such as branch offices, educational campuses, and small data centers. Its ability to handle high traffic volumes with low latency makes it suitable for networks supporting video conferencing, large file transfers, and security systems. The switch’s temperature tolerance and rack-mount design ensure it can be deployed in typical wiring closets and network rooms without special accommodations.
