C2G C2G30025

Overview

The C2G C2G30025 is an HDMI HDBaseT extender kit designed to transmit uncompressed 4K video at 60 Hz, multi-channel audio, control signals, and power over a single network cable. It pairs a single gang wall plate transmitter with an ultra-slim box receiver, enabling long-distance HDMI signal extension up to 130 feet using Cat6a cabling and up to 230 feet for 1080p signals over Cat6. This solution is ideal for installations requiring clean, professional setups with minimal cabling, such as conference rooms, classrooms, and digital signage.

Key features

• Extends 4K 60 Hz HDMI signals up to 130 feet over a single Cat6a cable, maintaining high-quality video transmission
• Supports 1080p HDMI signals up to 230 feet on Cat6 cable, allowing flexible placement of displays

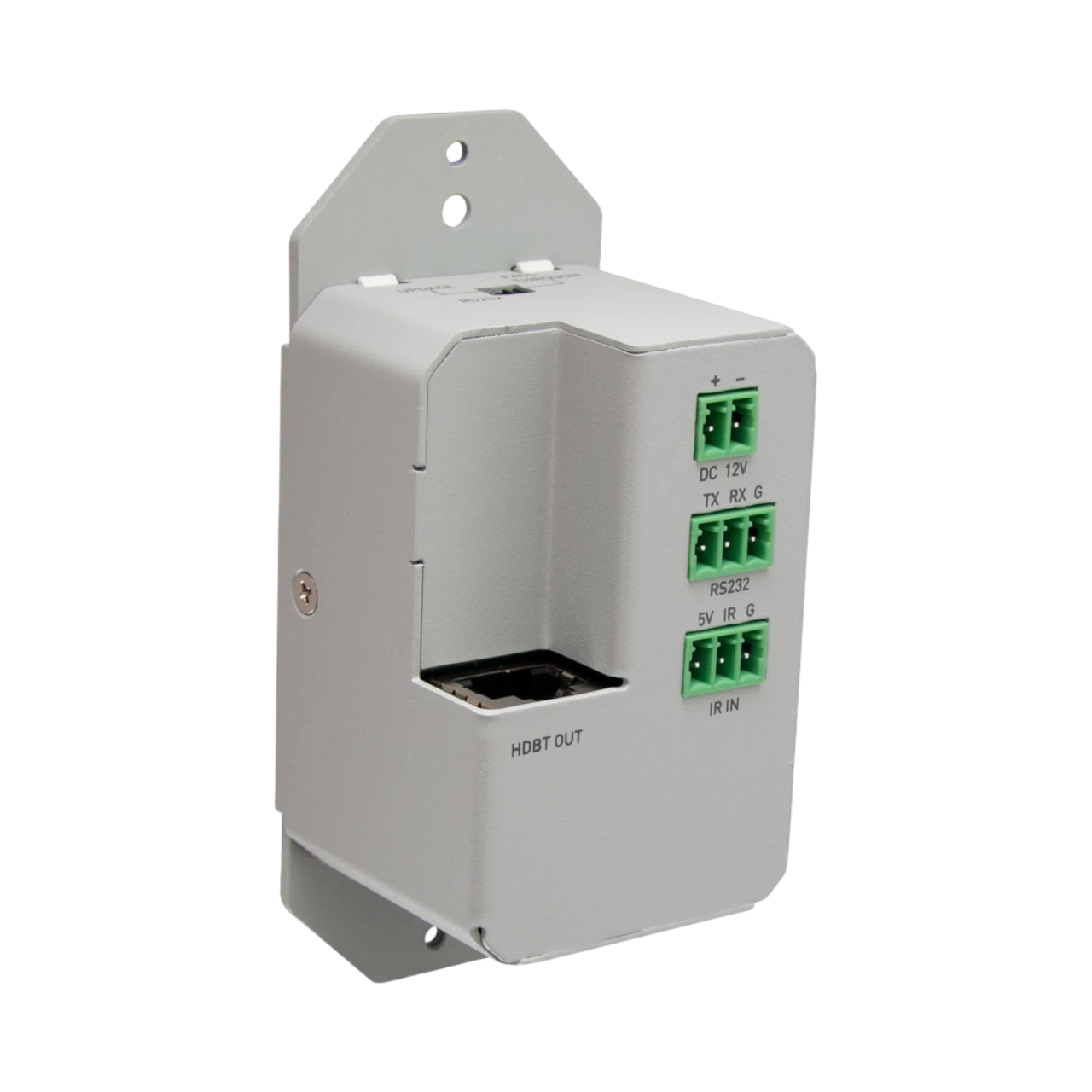

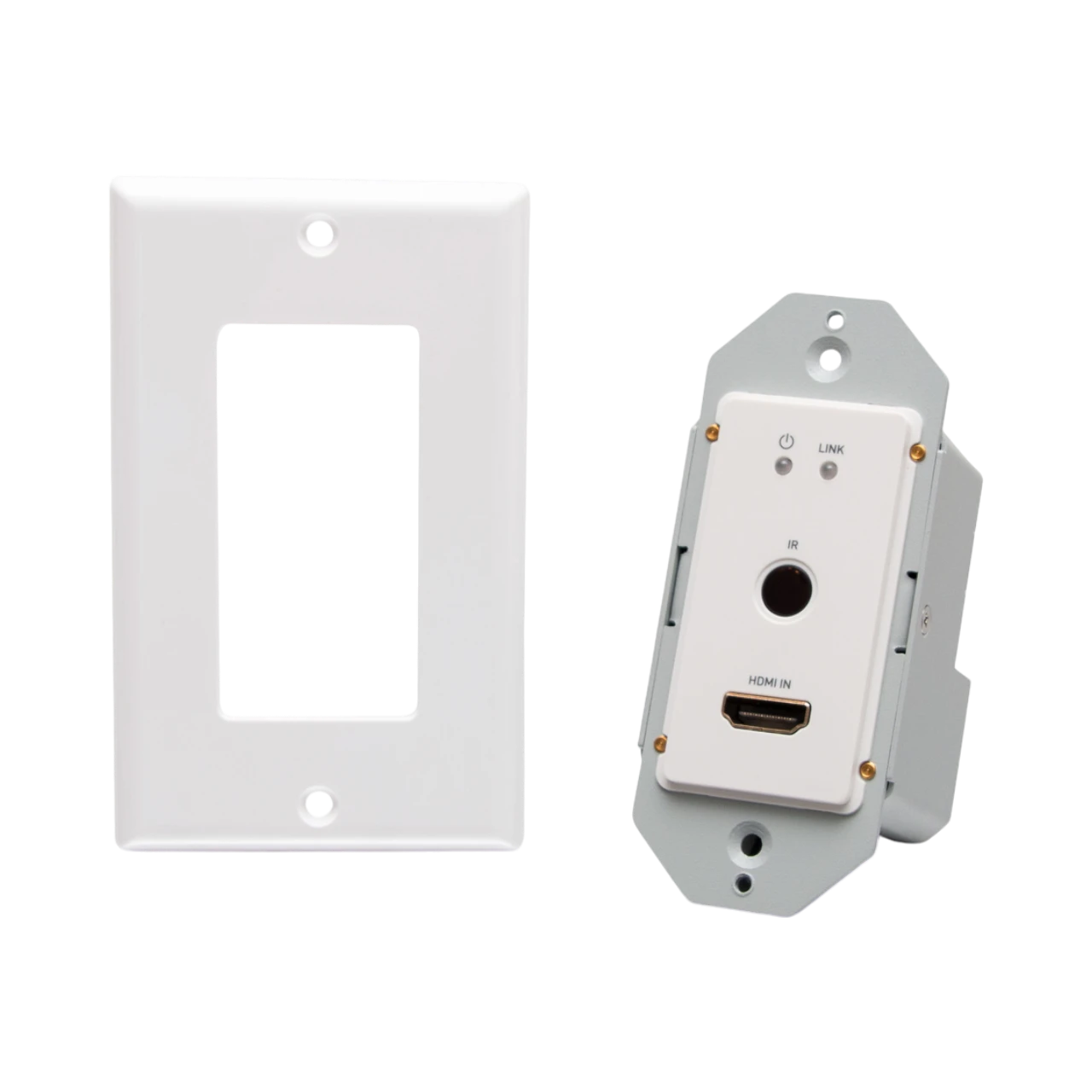

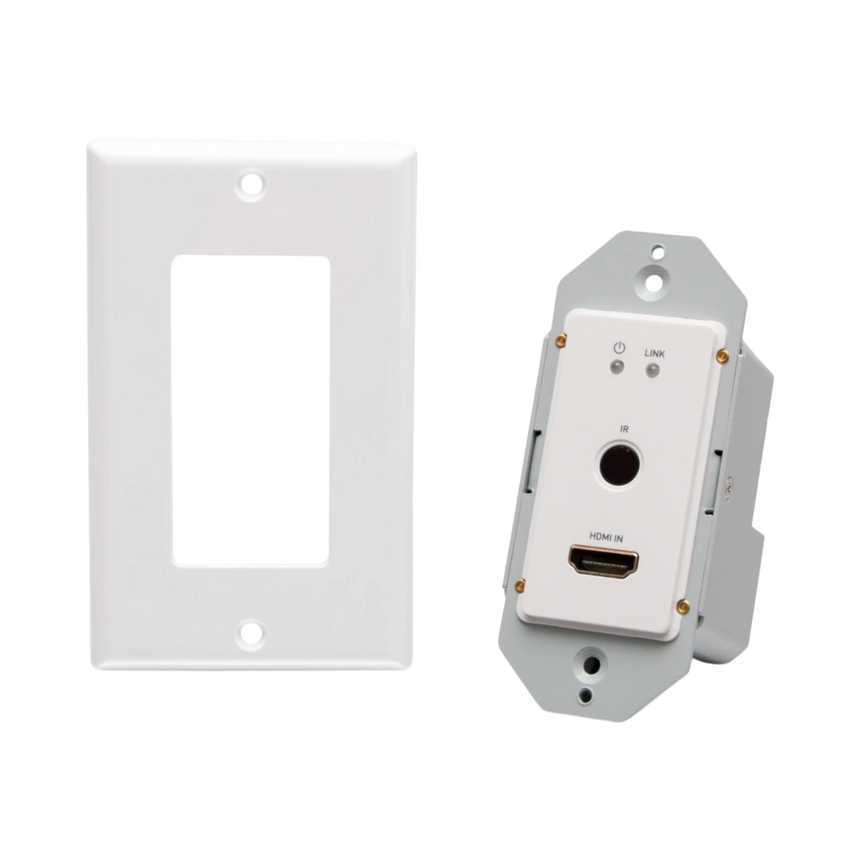

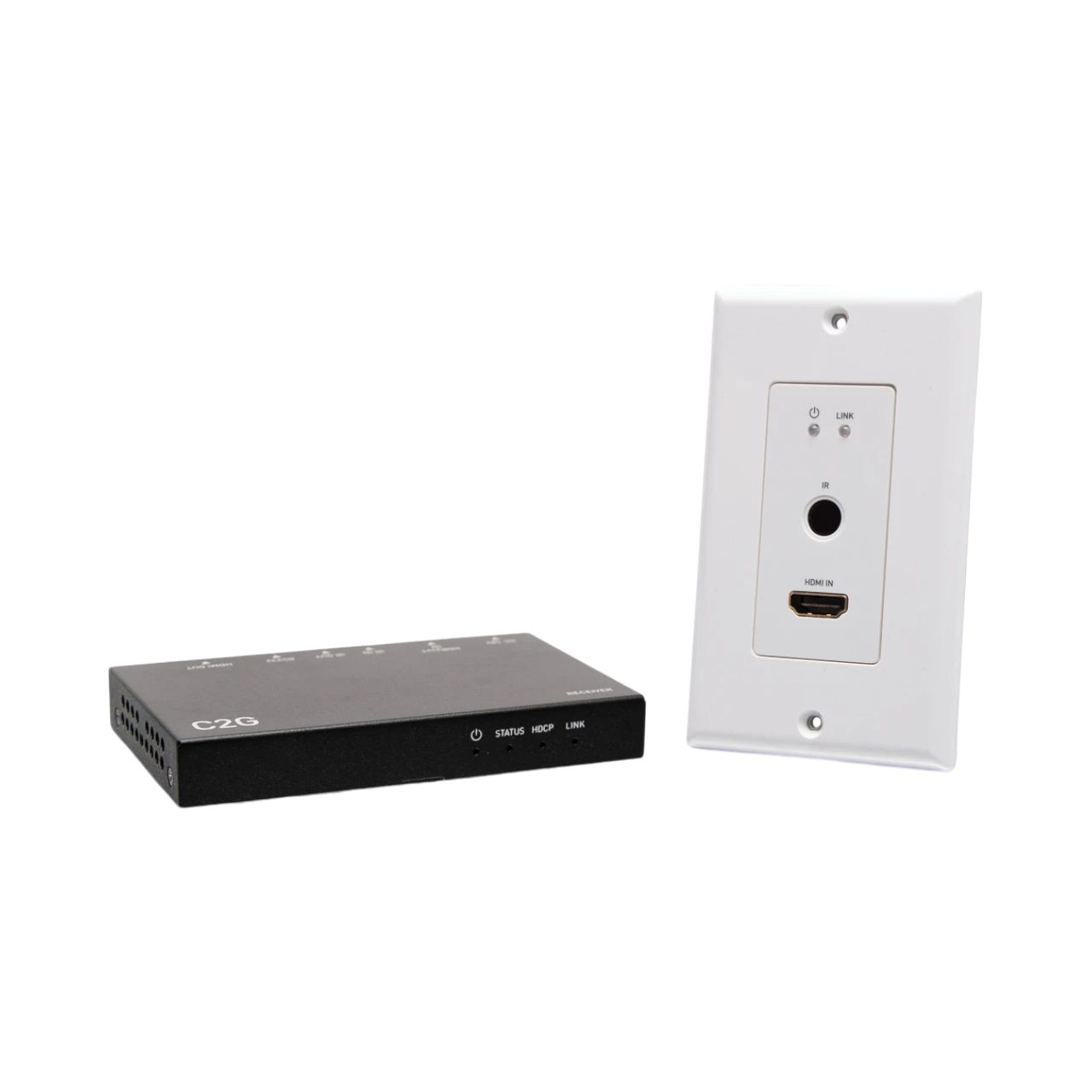

• Single gang wall plate transmitter and ultra-slim box receiver provide a low-profile, discreet installation that blends with standard electrical hardware
• Bi-directional Power over Cable eliminates the need for a separate power supply at the receiver, simplifying installation in tight spaces
• HDCP 2.2 compliance ensures compatibility with protected 4K content sources for secure playback
• Supports Dolby Atmos, DTS, and other multi-channel audio formats to preserve immersive sound quality

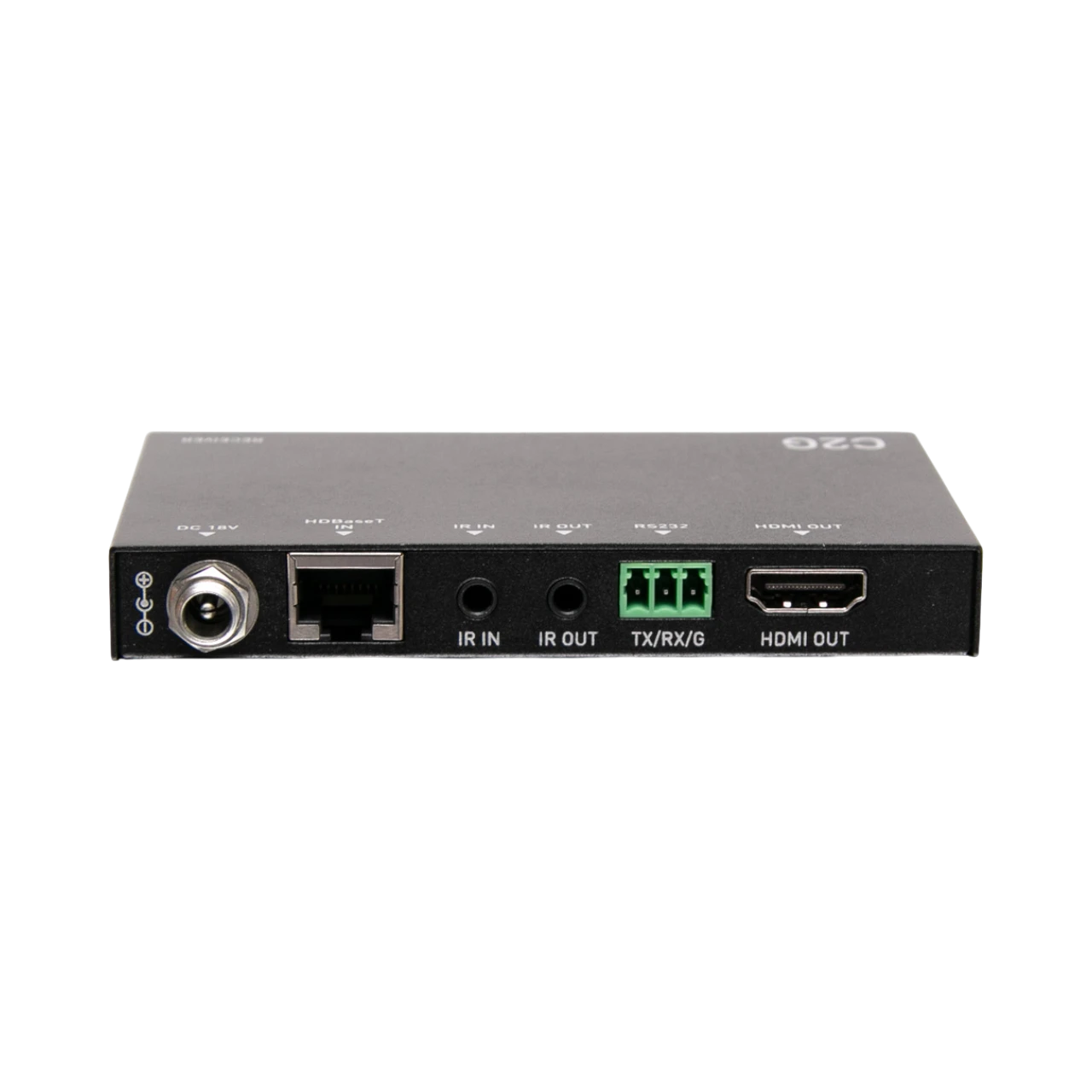

• IR and RS232 pass-through enable two-way control signals, allowing remote commands like display power, volume, and source switching without extra cabling

Key specs

• Video resolution: 4K at 60 Hz, 1080p at extended distances
• Maximum transmission distance: 130 feet over Cat6a for 4K, 230 feet over Cat6 for 1080p
• HDCP version: 2.2 compliant
• Audio support: Dolby Atmos, DTS, multi-channel formats
• Power delivery: Bi-directional Power over Cable
• Form factor: Single gang wall plate transmitter, ultra-slim box receiver

Connectivity and compatibility

This extender kit uses HDBaseT technology to transmit HDMI signals along with IR and RS232 control commands over a single Ethernet cable. It supports standard Cat6 and Cat6a cables, making it compatible with existing network infrastructure in many commercial and professional environments. The inclusion of IR and RS232 pass-through allows integration with a wide range of AV control systems, enhancing flexibility for system integrators and end users.

Installation and setup

The transmitter’s single gang wall plate design fits seamlessly into standard electrical boxes, providing a clean and professional look. The ultra-slim receiver’s compact profile allows it to be mounted discreetly behind displays, even in tight spaces. Power over Cable reduces the need for additional power outlets near the receiver, streamlining installation and reducing clutter. This setup is well suited for environments where aesthetics and cable management are priorities.

Ideal uses and environments

This extender kit is well suited to conference rooms, training classrooms, lecture halls, and digital signage installations where long cable runs and clean wall appearances are essential. It supports high-resolution video and immersive audio formats, making it a strong choice for professional AV setups that require reliable signal transmission and flexible control options. Users who need to extend HDMI signals beyond typical cable lengths without sacrificing quality will find this solution effective and convenient.
