Planar 998-3480-00

Overview

The Planar 998-3480-00 is a professional 43-inch digital signage display designed to deliver sharp 4K visuals with a native resolution of 3840 × 2160 at a smooth 60 Hz refresh rate. It features responsive 20-point multi-touch technology, making it ideal for interactive presentations, menus, and wayfinding in various environments such as retail, education, hospitality, and corporate spaces. The display’s slim bezel and anti-glare coating ensure content remains clear and readable even under bright lighting conditions.

Key features

• 20 simultaneous touchpoints with an 8 ms response time for smooth and accurate interaction

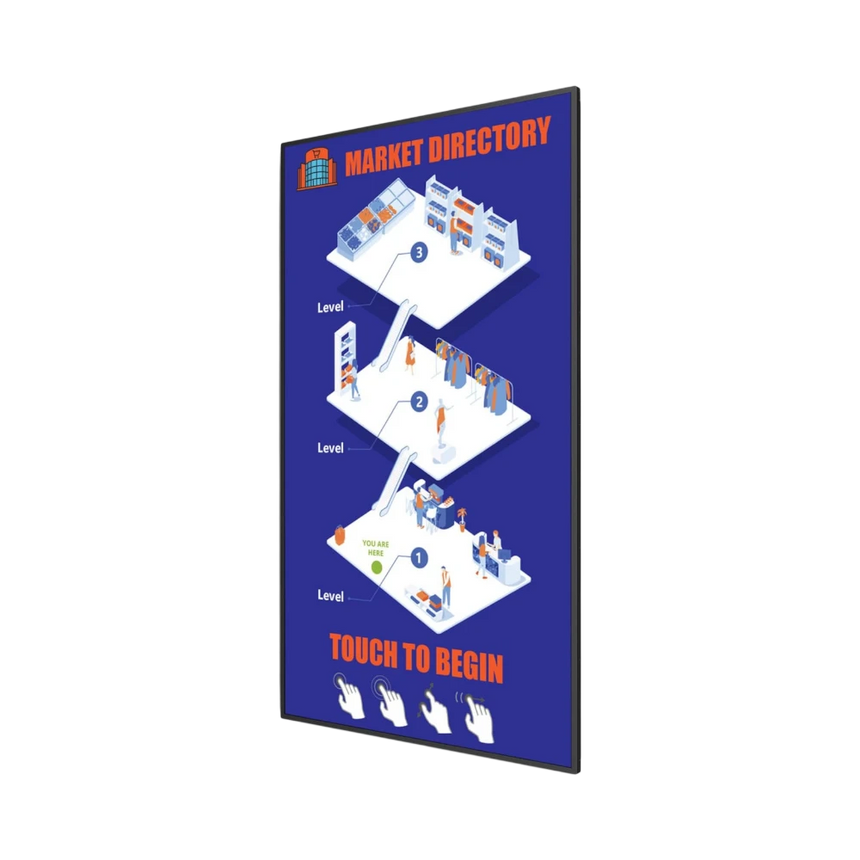

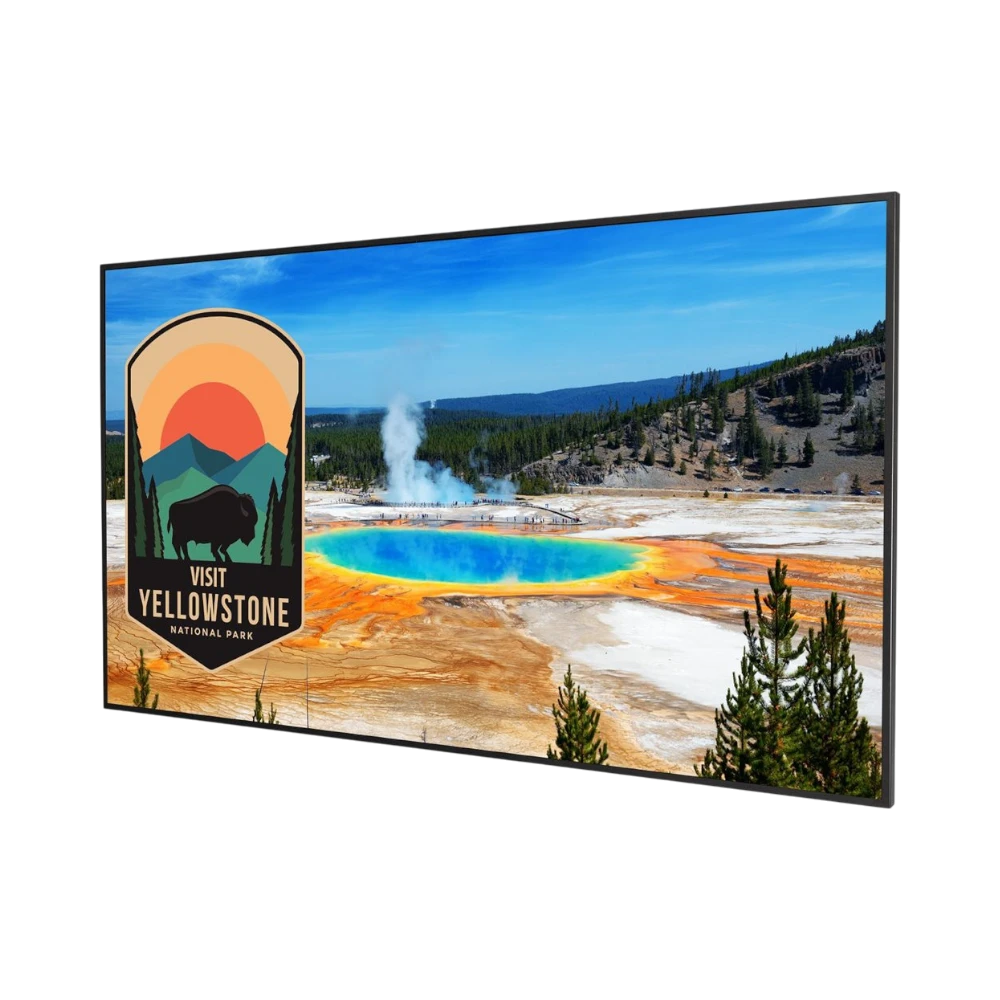

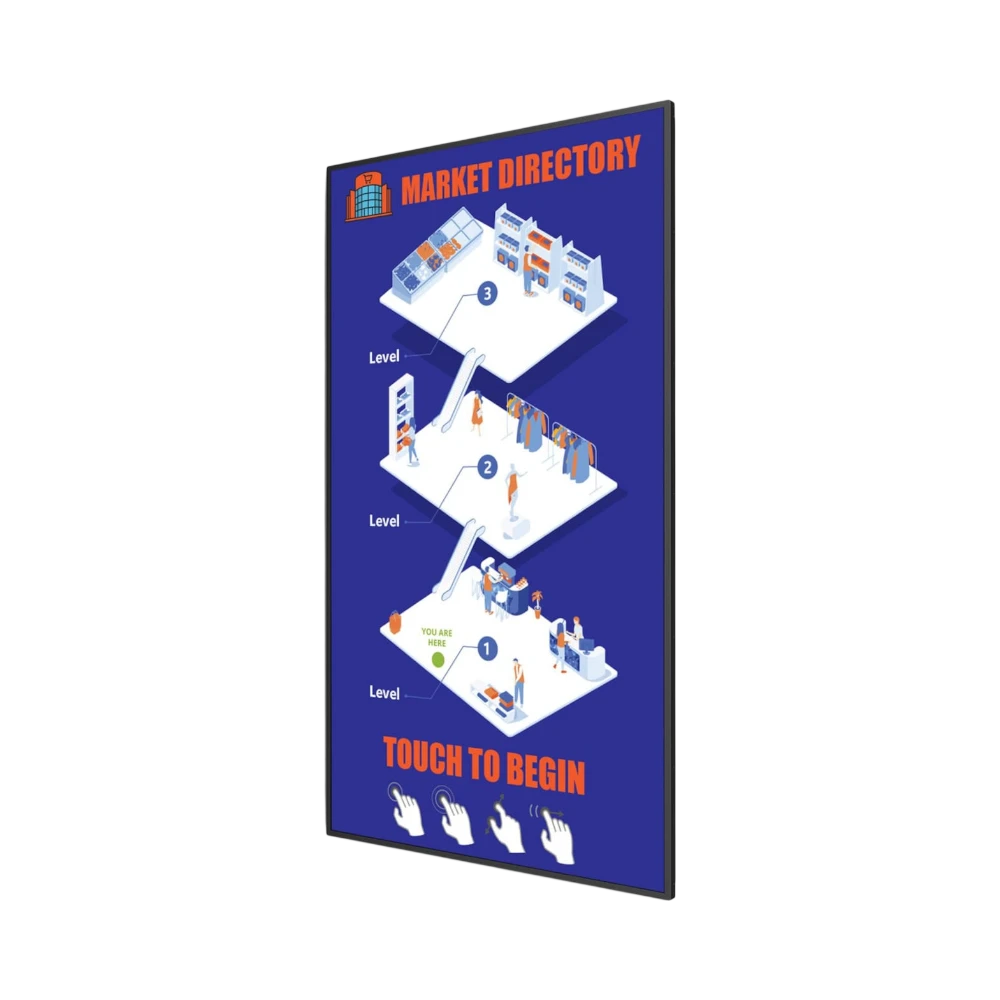

• Flexible mounting options allow use in both landscape and portrait orientations to fit different installation needs
• Anti-glare coating combined with 400 nit brightness maintains visibility in well-lit areas
• Wide 72 percent NTSC color gamut and 1200:1 contrast ratio provide accurate colors and deep blacks for vivid images
• Multiple connectivity options including two HDMI inputs, three USB ports, Ethernet, and RS-232 for versatile integration
• Fanless cooling design reduces noise and maintenance requirements, enhancing reliability in quiet environments
• Runs on an Android platform, enabling direct app installation for a self-contained digital signage solution
• ENERGY STAR certified with an average power consumption of approximately 95 watts to help control operating costs
• Includes remote control, stylus, HDMI cable, and USB cable for immediate setup and use

Key specs

• Display size: 43 inches
• Resolution: 3840 × 2160 (4K UHD)
• Refresh rate: 60 Hz
• Touch technology: 20-point multi-touch with 8 ms response
• Brightness: 400 nits
• Contrast ratio: 1200:1
• Color gamut: 72 percent NTSC
• Backlight type: Direct-lit LED
• Backlight life: 30,000 hours
• Power consumption: Approximately 95 watts
• Mounting pattern: VESA 100 × 200 mm
• Connectivity: 2 × HDMI, 3 × USB, 1 × Ethernet (LAN), RS-232 serial port

Connectivity and compatibility

This display offers a range of ports to connect media players, computers, and peripherals, making it adaptable to many digital signage setups. The two HDMI inputs support high-definition video sources, while the three USB ports allow connection of touch peripherals or local media playback devices. The Ethernet port enables network control and content management, and the RS-232 port supports integration with traditional serial control systems. Running on an Android platform, it supports compatible apps directly on the display, reducing the need for external players.

Installation and setup

The Planar 998-3480-00 is designed for straightforward installation with a standard VESA 100 × 200 mm mounting pattern that fits most commercial mounts and stands. Its slim, logo-free bezel helps the display blend seamlessly into any environment. The included remote control, stylus, HDMI cable, and USB cable provide everything needed to get started quickly. The fanless design minimizes noise and maintenance, making it suitable for quiet spaces like classrooms and meeting rooms.

Ideal uses and environments

This digital signage display works well in retail stores, classrooms, hotel lobbies, and corporate huddle spaces where clear, interactive content is essential. Its 4K resolution and accurate color reproduction make it a strong choice for applications requiring detailed visuals and engaging user interaction. The ability to mount in portrait or landscape orientation adds flexibility for various layouts and content types. Its energy-efficient operation and long backlight life also make it a practical option for continuous use in commercial settings.
