Fortinet FAP-U432F-A

Overview

The Fortinet FAP-U432F-A is an outdoor Wi-Fi 6 access point designed to deliver tri band 802.11ax wireless connectivity with an aggregate throughput of up to 9.68 Gbit/s. It provides reliable, high-speed internet access across large open spaces such as courtyards, parking lots, and outdoor event venues. Its rugged, weather-resistant enclosure and included mounting hardware make it easy to install and maintain in challenging outdoor environments.

Key features

• Tri band 802.11ax architecture that supports simultaneous operation on 2.4 GHz and 5 GHz bands for balanced traffic management and reduced congestion.
• Three 4x4 MIMO radios that enable multiple devices to connect concurrently without sacrificing performance.
• Rugged, weather-resistant design built to withstand outdoor conditions and maintain consistent connectivity.

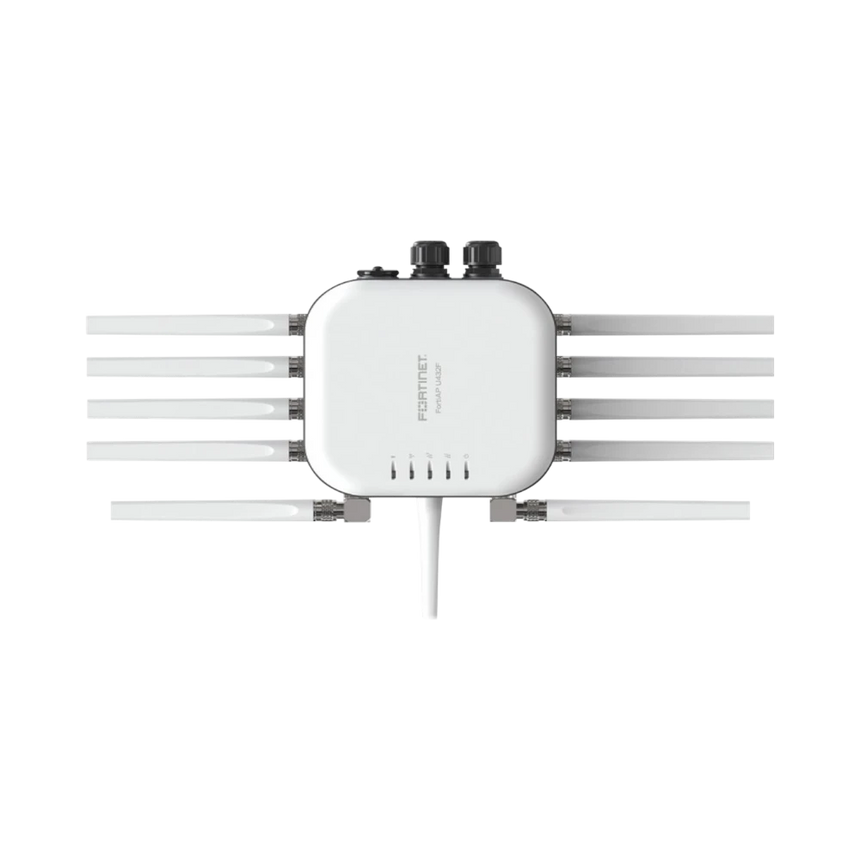

• Eleven external antennas with 5 dBi gain to extend wireless coverage deep into wide-open areas.
• Power over Ethernet Plus (PoE+) support allows a single cable to provide both power and data, simplifying installation and reducing cable clutter.
• Integrated Bluetooth Low Energy and Zigbee radios enable deployment of IoT sensors, beacons, and asset-tracking devices without additional gateways.
• Comes with wall and pole mounting brackets, a PoE adapter, power cable, and ground cable to facilitate quick and secure setup.

Key specs

• Wireless standard: Tri band 802.11ax (Wi-Fi 6)
• Maximum aggregate throughput: 9.68 Gbit/s
• Radio configuration: Three 4x4 MIMO radios
• Frequency bands: 2.4 GHz and 5 GHz
• Antenna gain: Eleven external antennas with 5 dBi gain
• Power delivery: Power over Ethernet Plus (PoE+)
• Additional radios: Bluetooth Low Energy and Zigbee
• Mounting options: Wall and pole mounts included

Connectivity and compatibility

This access point supports Power over Ethernet Plus, allowing it to receive power and data through a single Ethernet cable, which reduces installation complexity and cost. The tri band radios operate concurrently on both 2.4 GHz and 5 GHz frequencies, ensuring compatibility with a wide range of Wi-Fi 6-enabled devices such as laptops, smartphones, and tablets. The built-in Bluetooth Low Energy and Zigbee radios expand connectivity options for IoT devices, making it suitable for smart building applications and asset tracking without requiring extra gateways.

Installation and setup

The Fortinet FAP-U432F-A is designed for straightforward deployment in outdoor environments. Its rugged enclosure protects against weather and environmental factors, while the included wall and pole mounting brackets provide flexible installation options. The package also contains a PoE adapter, power cable, and ground cable, so you have everything needed to get the access point up and running quickly. Using a single PoE+ cable for power and data simplifies cabling and reduces installation time.

Ideal uses and environments

This access point is well suited to outdoor spaces where reliable, high-speed wireless connectivity is essential. It works effectively in campus quads, hotel pool areas, warehouse yards, sports fields, and outdoor event venues. The device supports dense environments with many connected users and devices, making it a strong choice for organizations that need to maintain productivity and guest access in open-air settings. IT teams benefit from its integration with the Fortinet ecosystem, which streamlines management and monitoring.
