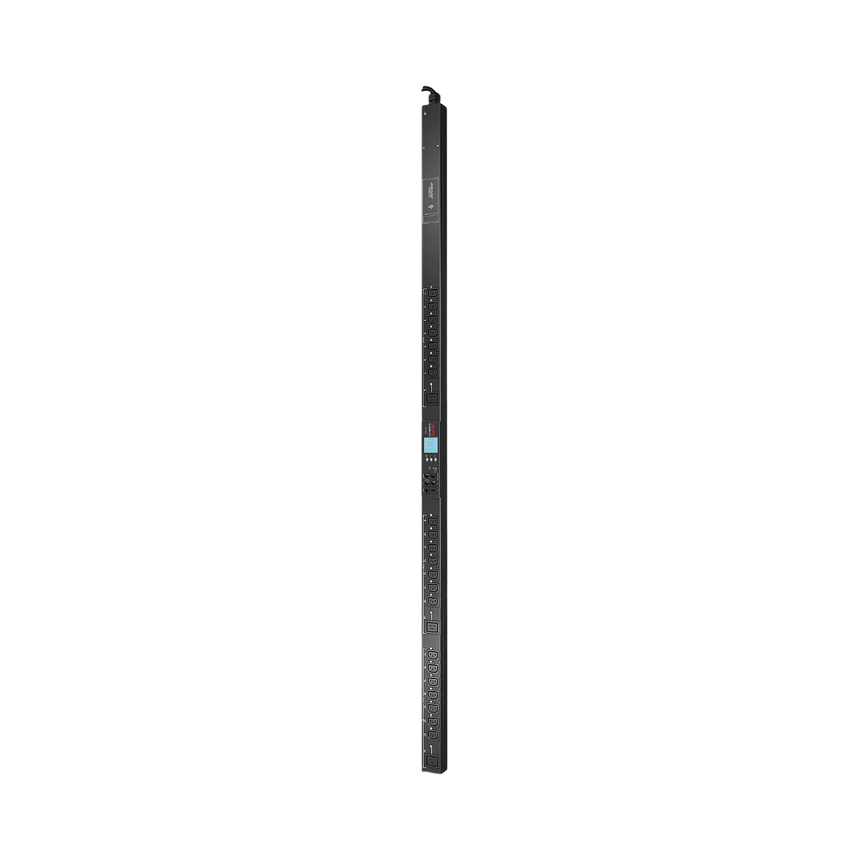

APC 0U 208V 24-Outlets Switched Rack Power Distribution Unit

The APC AP8961 is a switched rack power distribution unit that delivers 208-volt power to equipment in a server rack while occupying no horizontal space, because it mounts vertically in the 0U channel. With twenty-one C13 outlets and three C19 outlets, it can feed a mix of servers, storage arrays, and network switches from a single 5.7 kW source.

Each outlet can be turned on or off remotely through a web browser, SNMP, or Telnet session. This capability lets an administrator reboot an unresponsive server without visiting the rack, schedule startup sequences that reduce in-rush current, or lock individual outlets to prevent unauthorized use.

The unit measures current in real time and displays the reading locally and over the network. User-defined alarms warn when a circuit approaches its limit, helping to avoid accidental overloads that could trip a breaker. A port for an optional temperature or humidity probe extends monitoring to environmental conditions inside the rack.

An input plug of type NEMA L21-20P supplies three-phase 208-volt power, making the PDU well suited to high-density data centers, enterprise server rooms, research labs, and colocation facilities. Integration with APC management software allows the same interface that watches UPS systems to supervise power strips, giving IT staff a unified view of critical infrastructure.

Because the AP8961 combines outlet-level control, metering, and environmental monitoring in a single device that fits behind the equipment, it helps organizations use rack space efficiently while maintaining reliable power distribution.

Highlights:

• 24 outlets: twenty-one C13 and three C19
• 0U vertical rack mount design preserves horizontal rack space
• Remote control through Web, SNMP, and Telnet interfaces
• Input plug: NEMA L21-20P, 208 V three-phase
• Maximum load capacity of 5.7 kW
• Real-time current metering with on-screen and network readings
• User-defined alarms help prevent overloads
• Port for optional temperature or humidity sensor
• Dimensions: 70.5 in × 2.2 in × 1.8 in
• Weight: 15.2 lb
