Panasonic AV-HS04M5

Overview

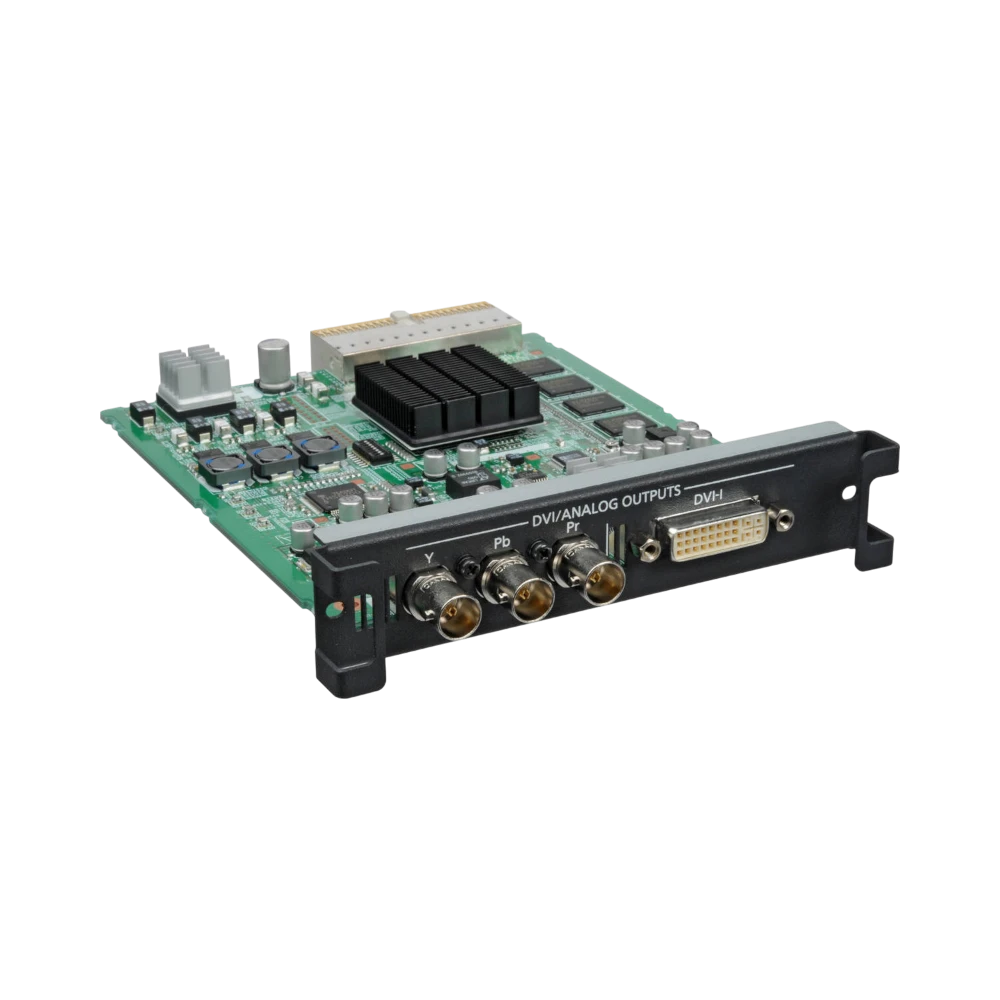

The Panasonic AV-HS04M5 is a DVI and analog component output board designed to expand the output capabilities of the AV-HS400 and AV-HS450 live production switchers. It provides one DVI connector and one three-wire component connector, each supporting resolutions up to 1920 x 1080. This board allows technical directors to send dedicated video feeds to confidence monitors, projectors, external recorders, or streaming encoders without interrupting the main program output.

Key features

• One DVI output that supports full HD resolution for clear digital video connections to LCD panels or computer monitors
• One analog component Y Pb Pr output that maintains compatibility with legacy equipment using component cabling
• Seamless installation into an available option slot on AV-HS400 or AV-HS450 mixers for quick system expansion
• Enables sending separate video feeds to multiple devices, enhancing routing flexibility during live productions
• Eliminates the need for external converters, preserving signal integrity and minimizing latency
• Automatic recognition by the mixer with easy format adjustments via front panel or control software

Key specs

• Output resolution: up to 1920 x 1080 (Full HD)
• Output connectors: 1 x DVI, 1 x three-wire analog component (Y Pb Pr)
• Compatible with: Panasonic AV-HS400 and AV-HS450 live production switchers
• Installation: fits into an open option slot on supported mixers

Connectivity and compatibility

This output board enhances the connectivity options of your AV-HS400 or AV-HS450 switcher by adding both digital and analog video outputs. The DVI port is ideal for connecting to modern digital displays, while the component output supports devices that rely on analog Y Pb Pr signals. This dual compatibility ensures smooth integration with a wide range of professional video equipment.

Ideal uses and environments

The AV-HS04M5 is well suited for live event production companies, houses of worship, educational institutions, and compact broadcast studios that require additional output flexibility. It allows operators to route separate video feeds to confidence monitors, venue projectors, or recording and streaming devices without affecting the main program output, making it a practical upgrade for setups that demand reliable and versatile video distribution.
